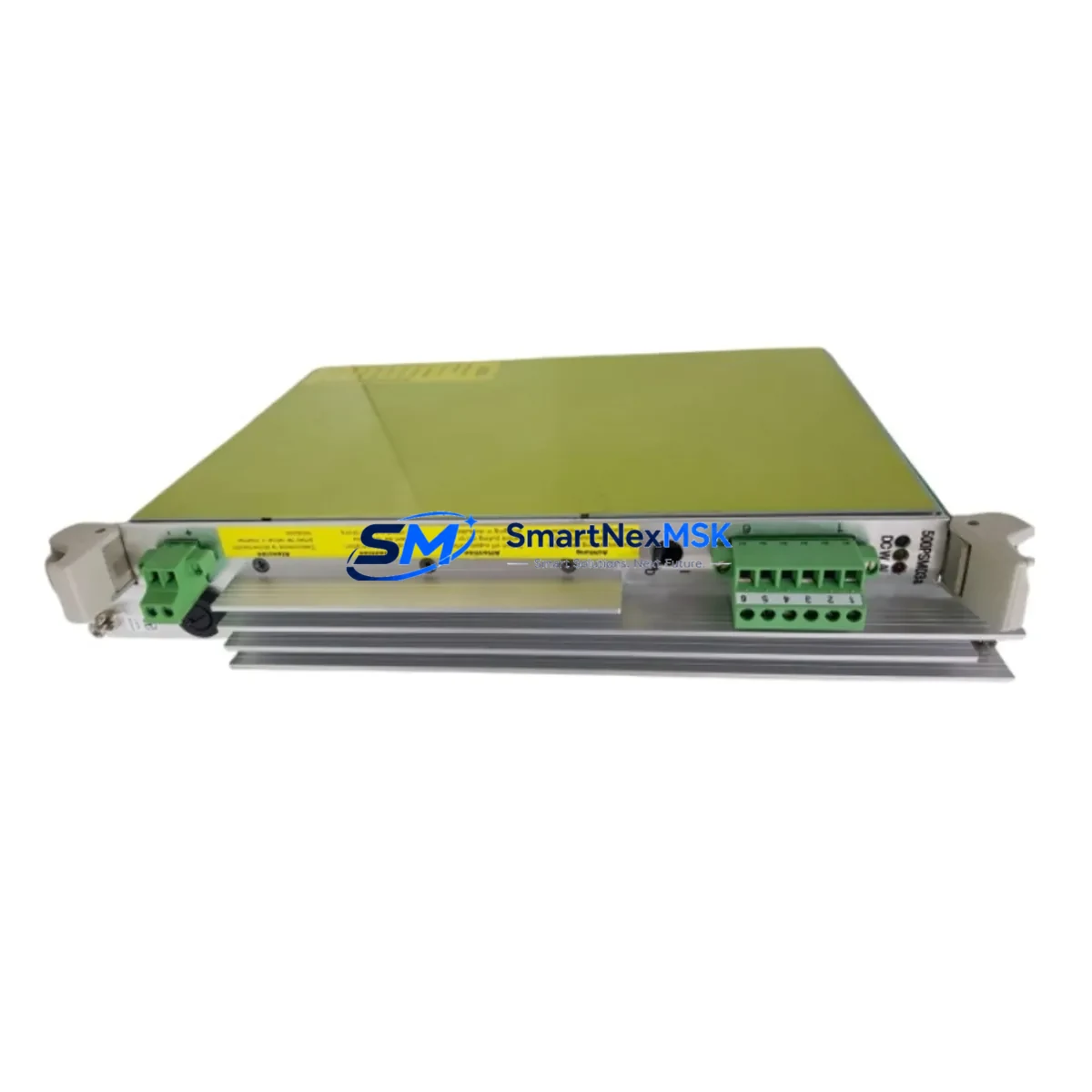

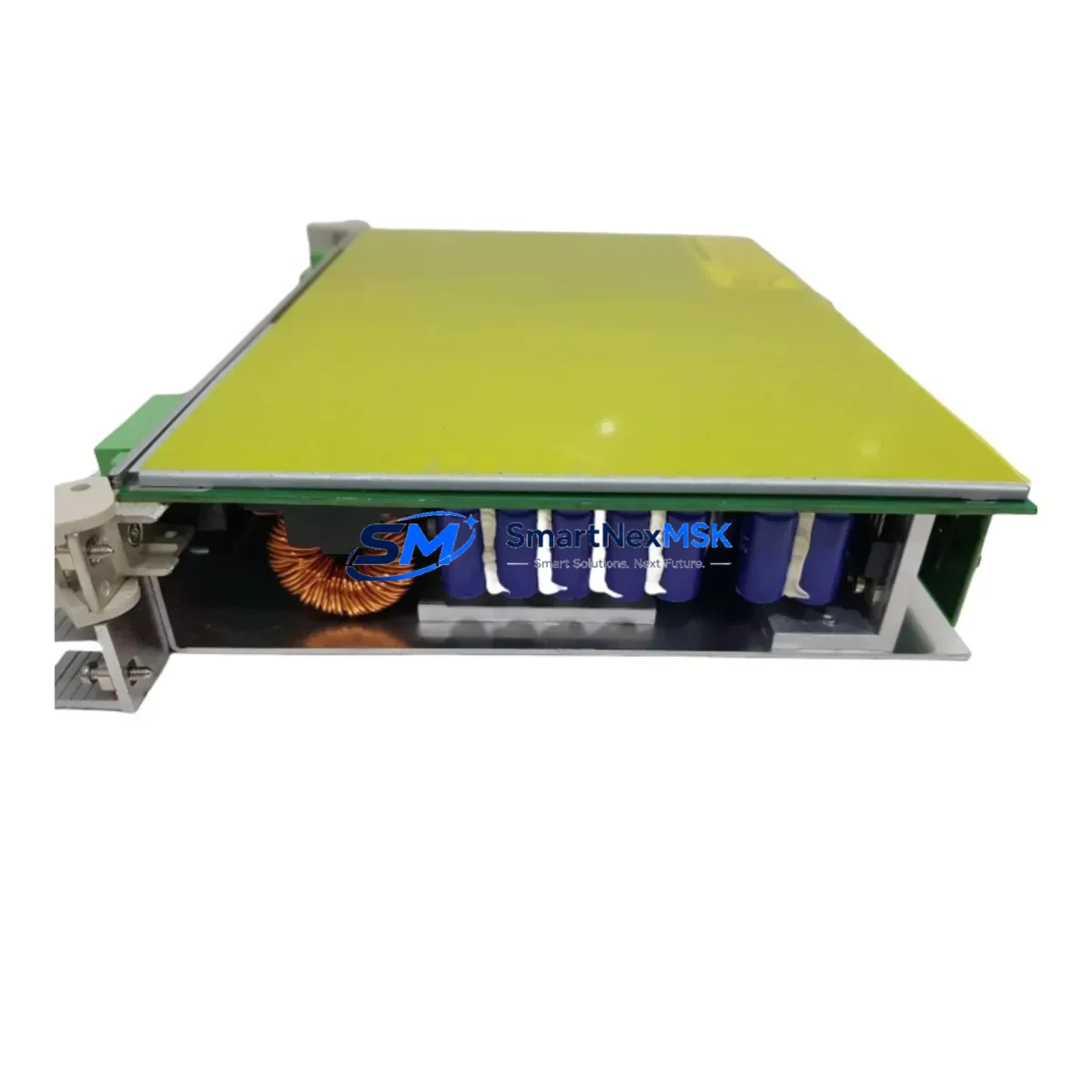

ABB 500PSM03 Safety-Enhanced Power Supply Module

ABB 500PSM03 Safety-Enhanced Power Supply Module: Reliable Control in Harsh Industrial Sites

The ABB 500PSM03 is a ruggedized AC500 series PLC power supply module engineered for mission-critical industrial automation environments where control continuity, electrical safety, and long-term field reliability are non-negotiable. Rated at 24VDC / 3A / 72W, this module delivers stable, conditioned DC power to the AC500 CPU and I/O backplane under the most demanding operating conditions — including high-vibration machinery, electromagnetic-dense control rooms, continuous-process plants, and hazardous-area control cabinets.

In heavy industrial sectors such as petrochemical refining, electric power generation, mining extraction, water and wastewater treatment, metallurgical processing, port logistics, and continuous discrete manufacturing, an unstable or failed power supply module is not merely an inconvenience — it is a safety event. The 500PSM03 is designed to eliminate that risk by providing clean, regulated power with built-in surge absorption, overvoltage protection, and short-circuit immunity, ensuring that the AC500 CPU — whether a PM573, PM583, or PM595 — maintains uninterrupted scan cycles and deterministic I/O response even during grid disturbances or load switching transients.

Sourced directly from authorized supply chains and subjected to full pre-shipment functional testing, every 500PSM03 unit shipped by SMARTNEXMSK is verified against ABB factory specifications before dispatch. Our 12-month warranty covers all hardware defects and operational failures under normal industrial use conditions, giving procurement engineers and maintenance teams the confidence to specify this module for both new installations and critical spare-parts inventories.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust industrial control cabinet is only as reliable as its weakest power link. The ABB 500PSM03 anchors the power architecture of AC500-based control systems, but its effectiveness is maximized when integrated within a layered protection strategy that addresses every potential failure vector in the cabinet.

At the incoming power stage, a properly rated ABB SACE Tmax XT series circuit breaker or an ABB S200 miniature circuit breaker (MCB) provides upstream overcurrent protection, preventing fault currents from propagating into the 500PSM03 and the downstream PLC backplane. For installations in areas with frequent voltage sags or brownouts — common in mining substations and port crane systems — an ABB UPS module (CP-E series) or an external 24VDC buffer capacitor module can be installed in parallel to bridge power interruptions of up to several hundred milliseconds without triggering a CPU restart.

On the I/O side, the 500PSM03 powers the AC500 backplane that hosts digital and analog I/O modules such as the ABB DC532 digital input module, ABB DC522 digital output module, and ABB AX522 analog I/O module. Signal integrity on these modules depends directly on the quality of the supply rail — any ripple or noise on the 24VDC bus can cause analog signal drift, false digital transitions, or spurious output activations in safety-critical interlocks. The 500PSM03’s low-ripple output (typically <50mV peak-to-peak) ensures that field instruments, proximity sensors, and 4–20mA transmitters connected to these I/O modules receive a stable reference environment.

For communication-intensive cabinets running PROFIBUS DP, PROFINET, or Modbus TCP fieldbus architectures via ABB communication modules such as the CM572-DP or CM589-PNIO, power quality is equally critical. Communication timeouts and CRC errors are frequently traced back to power supply noise rather than network configuration faults. The 500PSM03’s regulated output eliminates this variable, ensuring deterministic fieldbus communication cycles.

In safety-instrumented systems (SIS) or emergency shutdown (ESD) circuits, the 500PSM03 is often paired with ABB Pluto safety controllers or third-party safety relays (e.g., Pilz PNOZ series) that monitor the 24VDC rail voltage. A stable supply from the 500PSM03 prevents nuisance trips of safety relays caused by voltage dips, which in process plants can trigger unplanned shutdowns costing tens of thousands of dollars per hour in lost production.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In continuous hydrocarbon processing, the AC500 PLC system — powered by the 500PSM03 — manages burner management systems (BMS), compressor anti-surge control, and emergency depressurization sequences. Power supply stability is a SIL-rated requirement in these environments, and the 500PSM03’s surge immunity and overvoltage protection directly support SIL 1/2 loop integrity.

Electric Power Generation & Substation Automation: Turbine governor control, excitation systems, and protection relay coordination panels in power plants demand zero-tolerance for power supply glitches. The 500PSM03 provides the stable 24VDC backbone for AC500 systems managing grid synchronization, load dispatch, and fault isolation sequences.

Mining & Mineral Processing: Underground and open-pit mining environments expose control equipment to extreme vibration, dust ingress, and wide temperature swings. The 500PSM03’s IEC 60068-certified mechanical robustness and extended temperature range make it the preferred power supply choice for conveyor control, crusher automation, and ventilation safety systems in these sites.

Water & Wastewater Treatment: SCADA-integrated AC500 systems controlling pump stations, dosing systems, and UV disinfection units rely on the 500PSM03 for 24/7 uninterrupted operation. In water utilities, a control system failure can compromise public health safety — the 500PSM03’s short-circuit protection and auto-recovery features minimize mean time to recovery (MTTR) in the event of a downstream fault.

Metallurgical & Steel Processing: Rolling mills, arc furnaces, and continuous casting lines generate severe electromagnetic interference from high-current switching. The 500PSM03’s IEC 61000-4-5 surge immunity and conducted EMI filtering protect the AC500 CPU from the electrical noise generated by thyristor drives, variable frequency drives (VFDs), and large motor starters operating in the same facility.

Port & Logistics Automation: Ship-to-shore cranes, automated stacking cranes (ASC), and conveyor sorting systems in port terminals operate in salt-air, high-humidity environments with frequent load cycling. The 500PSM03’s wide input voltage range accommodates the voltage fluctuations typical of port power distribution systems, while its robust construction withstands the mechanical vibration of crane operations.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the ABB 500PSM03?
The 12-month warranty covers all hardware defects, component failures, and operational malfunctions under normal industrial operating conditions as specified in the ABB AC500 technical documentation. If a unit fails within the warranty period, SMARTNEXMSK will provide a replacement unit or full repair at no additional cost. Warranty claims are processed within 5 business days of fault confirmation.

Q2: How is each 500PSM03 unit tested before shipment?
Every unit undergoes a 100% pre-shipment functional test that verifies output voltage accuracy (24VDC ±1%), output current capacity (3A rated load), overvoltage protection activation threshold, short-circuit protection response, and thermal performance under load. Test records are available upon request for quality-critical procurement processes.

Q3: Is the 500PSM03 compatible with both AC500 V2 and V3 CPU generations?
Yes. The 500PSM03 is compatible with the full range of ABB AC500 V2 and V3 CPU modules, including the PM564, PM566, PM573, PM583, and PM595. It is also backward-compatible with legacy AC500 backplane configurations. If you are unsure about compatibility with a specific system configuration, contact our technical team with your CPU part number and backplane revision for confirmation.

Q4: Can SMARTNEXMSK guarantee long-term supply availability for ongoing maintenance contracts?
Yes. SMARTNEXMSK maintains dedicated safety-stock inventory of high-demand ABB AC500 modules including the 500PSM03 to support long-term maintenance, repair, and operations (MRO) contracts. We can provide scheduled delivery agreements, blanket purchase orders, and priority allocation for customers with critical infrastructure maintenance requirements. Contact our sales team to discuss supply continuity arrangements.
