ABB 5SHX36L4521 Safety-Enhanced IGCT for Harsh Industrial Sites

ABB 5SHX36L4521 Safety-Enhanced IGCT for Harsh Industrial Sites

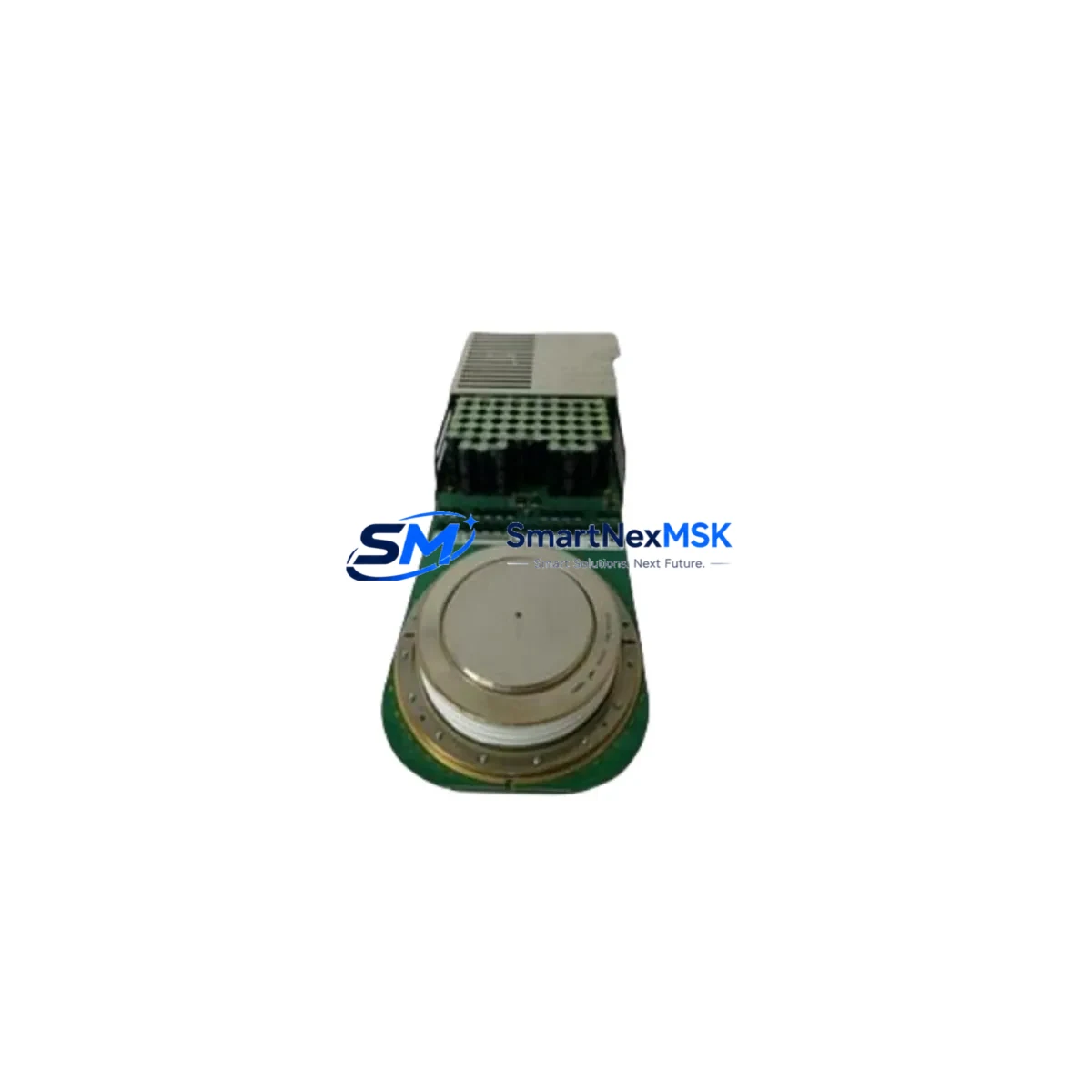

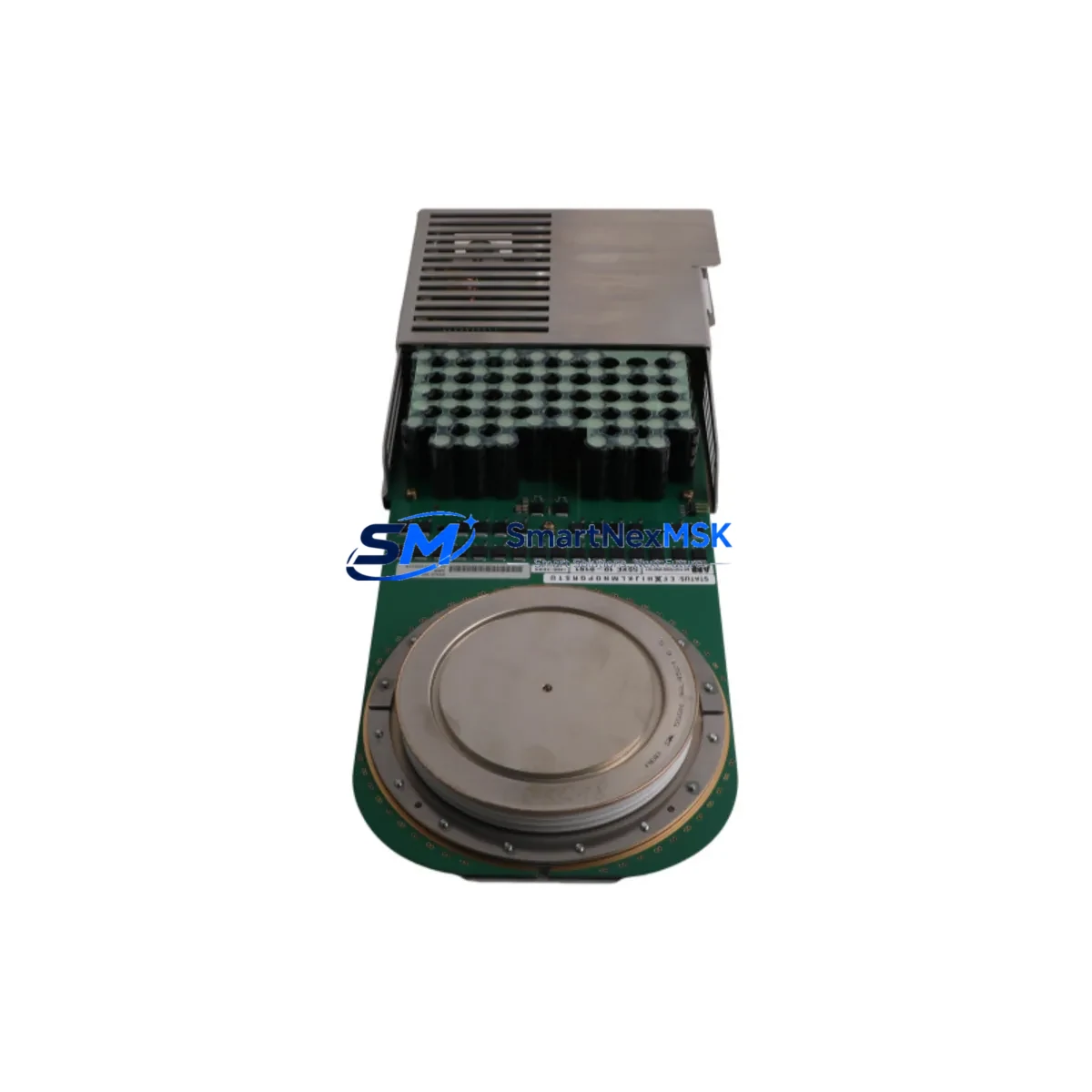

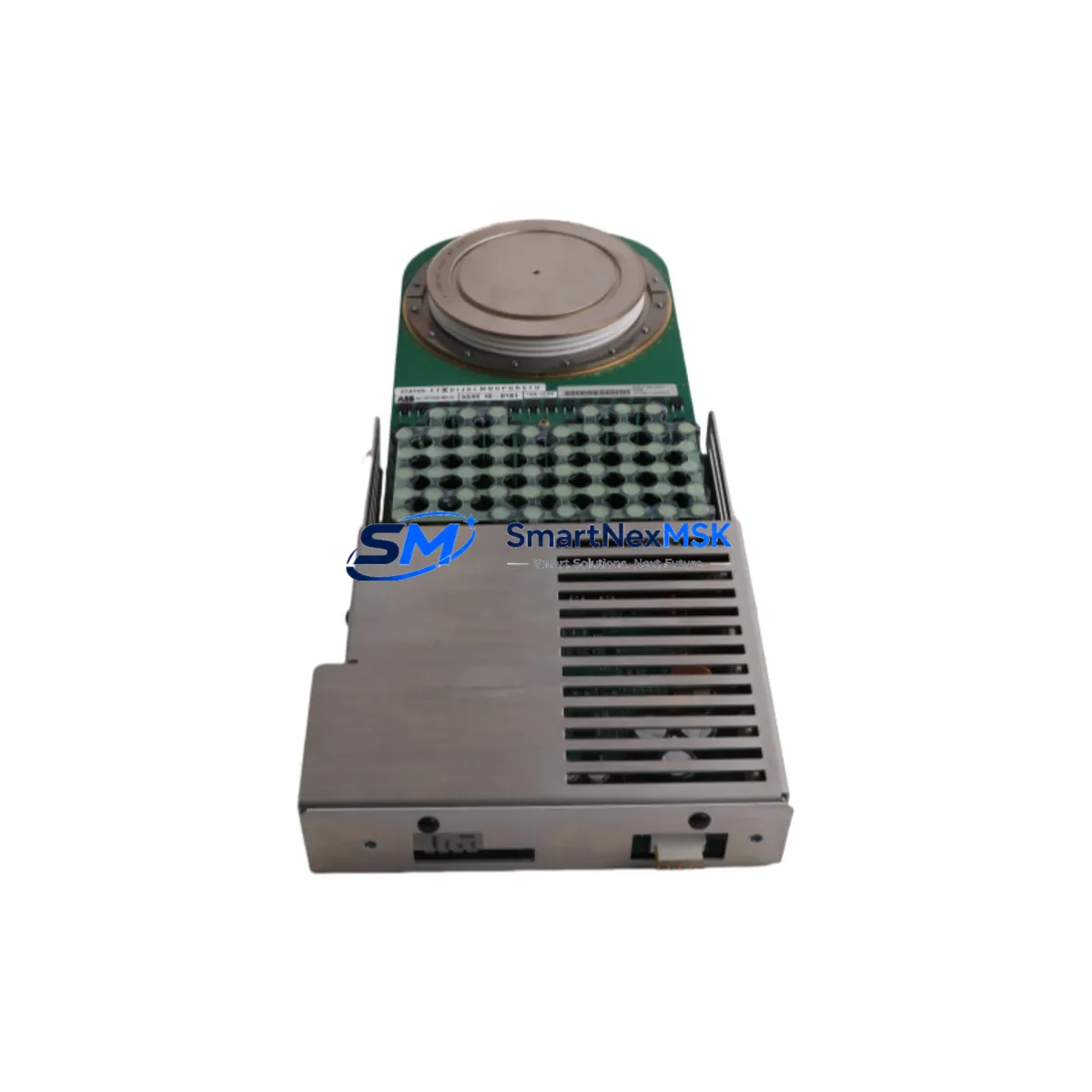

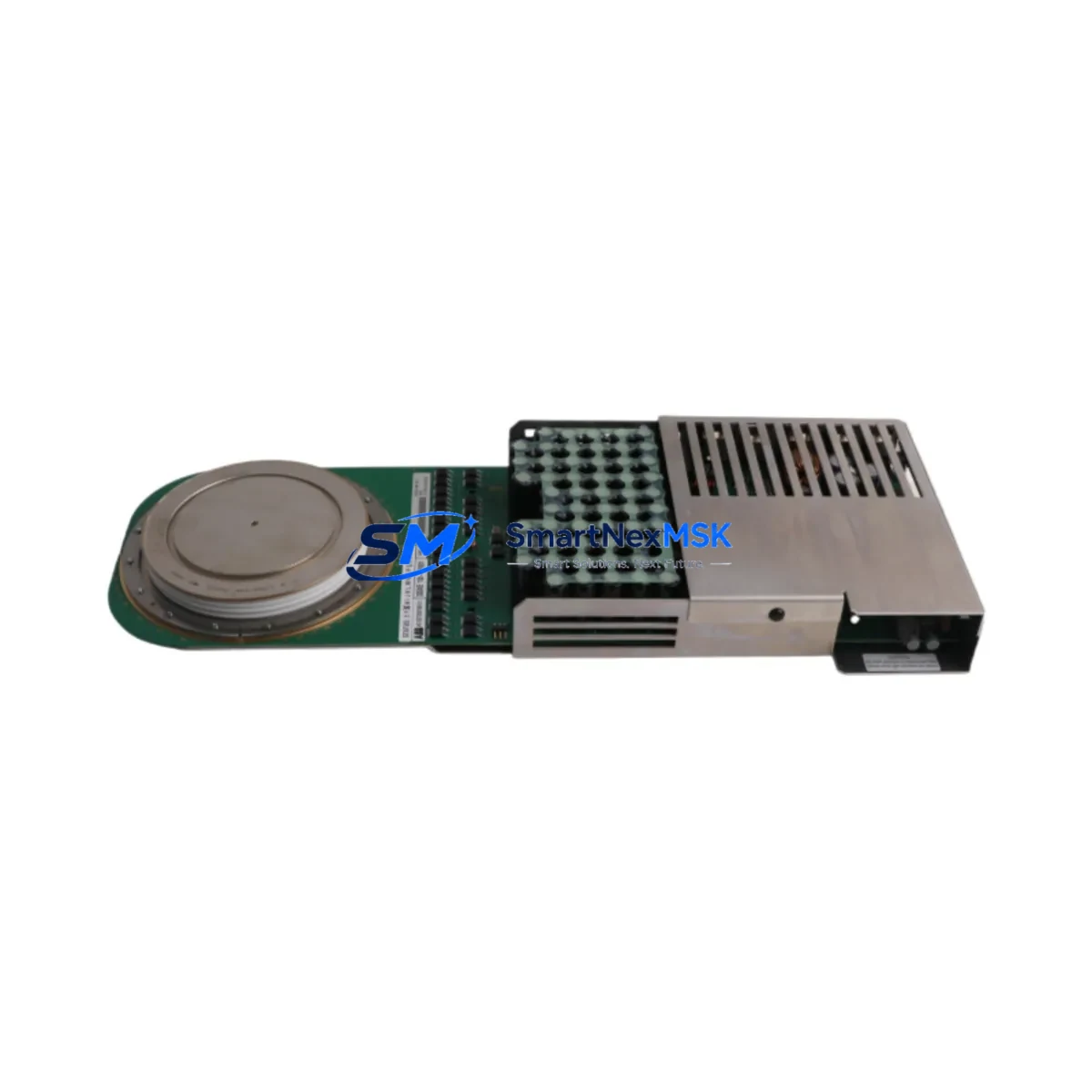

The ABB 5SHX36L4521 (also referenced as 5SXE10-0181, order code AC10272001R0101) is a high-performance, press-pack Integrated Gate-Commutated Thyristor (IGCT) engineered by ABB’s Power Semiconductors division in Switzerland. Rated at 4500 V blocking voltage and designed for continuous high-current switching duty, this module is purpose-built for the most demanding industrial safety and control applications — including critical interlock circuits, high-power motor drives, STATCOM reactive compensation systems, and traction converters operating in harsh, high-interference environments.

In industrial facilities where control interruption is not an option — petrochemical plants, steel mills, mining hoists, port crane drives, and grid-tied power conversion systems — the 5SHX36L4521 delivers the switching precision and thermal robustness required to maintain safe, uninterrupted operation. Its press-pack construction ensures superior thermal contact, minimal junction-to-case resistance, and fail-short behavior under fault conditions, a critical safety characteristic that prevents open-circuit failures in series-connected converter stacks.

Safety Reliability Table

Control Cabinet Protection Strategy

Deploying the ABB 5SHX36L4521 within a high-power control cabinet demands a coordinated protection architecture. In a typical medium-voltage drive or STATCOM cabinet, the IGCT operates in close coordination with its dedicated ABB 5SXE10-0181 gate unit, which provides the ultra-low-inductance gate current pulse necessary for reliable turn-off at full load current. The gate unit must be mounted within the specified distance from the IGCT to preserve switching integrity and prevent gate signal degradation under high dV/dt transients.

Upstream of the IGCT stack, ABB SACE Tmax XT series molded-case circuit breakers or equivalent IEC 60947-rated devices provide short-circuit protection and isolation capability. DC-link capacitor banks — typically film-type, such as those from the ABB CLMD or equivalent MKP series — buffer voltage ripple and absorb turn-off overvoltage spikes, protecting the IGCT from transient overvoltage events that could trigger uncontrolled conduction.

For surge and overvoltage protection, metal oxide varistors (MOVs) and RC snubber networks are installed in parallel with each IGCT device to clamp voltage spikes generated during commutation. In multi-level converter topologies, ABB 5SDF series fast recovery diodes serve as freewheeling and clamping elements, working in tandem with the 5SHX36L4521 to manage reverse recovery currents and prevent shoot-through faults.

Power supply integrity for the gate drive and control logic is maintained through redundant 24 VDC SITOP or equivalent DIN-rail power supplies with active current limiting and output monitoring. Communication between the converter control board and the gate units typically runs over fiber-optic links — using components such as ABB AGDR or NGDR fiber interface boards — to achieve full galvanic isolation and immunity to the intense electromagnetic interference present in high-power switching environments.

Temperature monitoring via NTC thermistors or PT100 RTD sensors embedded in the heatsink assembly provides real-time thermal feedback to the control system, enabling safe derating or emergency shutdown before junction temperatures reach critical thresholds. Cooling systems — whether forced-air with EC fan modules or liquid-cooled with deionized water heat exchangers — must be sized to maintain heatsink temperatures within the IGCT’s safe operating area under worst-case load and ambient conditions.

Critical Industrial Safety Applications

The ABB 5SHX36L4521 is qualified for deployment across the most safety-critical sectors of heavy industry:

Petrochemical & Refinery Plants: In variable-speed drives controlling compressors, pumps, and blowers in ATEX-classified zones, the IGCT’s fail-short behavior and hermetically sealed package ensure that a device failure does not create an open-circuit arc hazard. Continuous production processes demand zero unplanned downtime, and the 5SHX36L4521’s proven reliability in 24/7 duty cycles supports this requirement.

Electric Power Generation & Grid Infrastructure: STATCOM and SVC systems using IGCT-based converters rely on the 5SHX36L4521 for reactive power compensation and voltage stabilization on high-voltage transmission networks. In power plant auxiliary drives and excitation systems, the module’s low switching losses and high blocking voltage reduce thermal stress and extend mean time between failures.

Mining & Mineral Processing: Hoist drives, conveyor systems, and grinding mill drives in underground and open-pit mining operations subject power electronics to extreme vibration, dust ingress, and wide ambient temperature swings. The press-pack construction of the 5SHX36L4521 eliminates bond-wire fatigue — the leading failure mode in wire-bonded modules — making it the preferred choice for high-reliability mining drive applications.

Water & Wastewater Treatment: Large pump station drives and aeration blower controls in municipal water infrastructure require continuous, unattended operation. The IGCT’s robust thermal cycling capability and long operational lifespan reduce maintenance intervals and spare parts consumption in remote or difficult-to-access installations.

Metallurgy & Steel Production: Rolling mill main drives, arc furnace power supplies, and ladle furnace electrode regulators impose severe current and voltage transients on power semiconductors. The 5SHX36L4521’s high di/dt turn-off capability and low on-state losses make it well-suited for these high-duty-cycle, high-transient-stress applications where module failure results in costly production shutdowns.

Port & Heavy Lifting Equipment: Ship-to-shore crane drives and rubber-tyred gantry cranes demand four-quadrant operation with rapid torque reversal. IGCT-based drives provide the dynamic response and regenerative braking capability required for safe, efficient load handling in port logistics operations.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the ABB 5SHX36L4521?
Every unit supplied by SMARTNEXMSK carries a 12-month warranty from the date of shipment. This covers parametric failures and functional defects under normal operating conditions. Warranty claims are supported with direct technical assistance and priority replacement dispatch to minimize site downtime.

Q2: What pre-shipment testing is performed on each unit?
All ABB 5SHX36L4521 units undergo a comprehensive pre-shipment inspection including visual examination, blocking voltage verification, gate trigger threshold testing, and thermal resistance measurement. Test records are available upon request. Units that do not meet ABB’s original factory specifications are not shipped.

Q3: Is the 5SHX36L4521 compatible with existing ABB IGCT gate drive units?
Yes. The 5SHX36L4521 is designed for use with the ABB 5SXE10-0181 gate unit and is fully compatible with ABB’s standard IGCT gate drive architecture. It is a direct form-fit-function replacement for other 5SH-series IGCT devices of equivalent voltage and current rating, subject to confirmation of the specific converter design parameters.

Q4: Can long-term supply continuity be guaranteed for critical maintenance programs?
SMARTNEXMSK maintains dedicated inventory of ABB 5SH-series IGCT modules to support ongoing maintenance, planned overhaul, and emergency replacement requirements. We work with industrial customers on scheduled procurement programs to ensure spare parts availability for the full operational life of installed converter systems. Contact our technical sales team to discuss long-term supply agreements.
