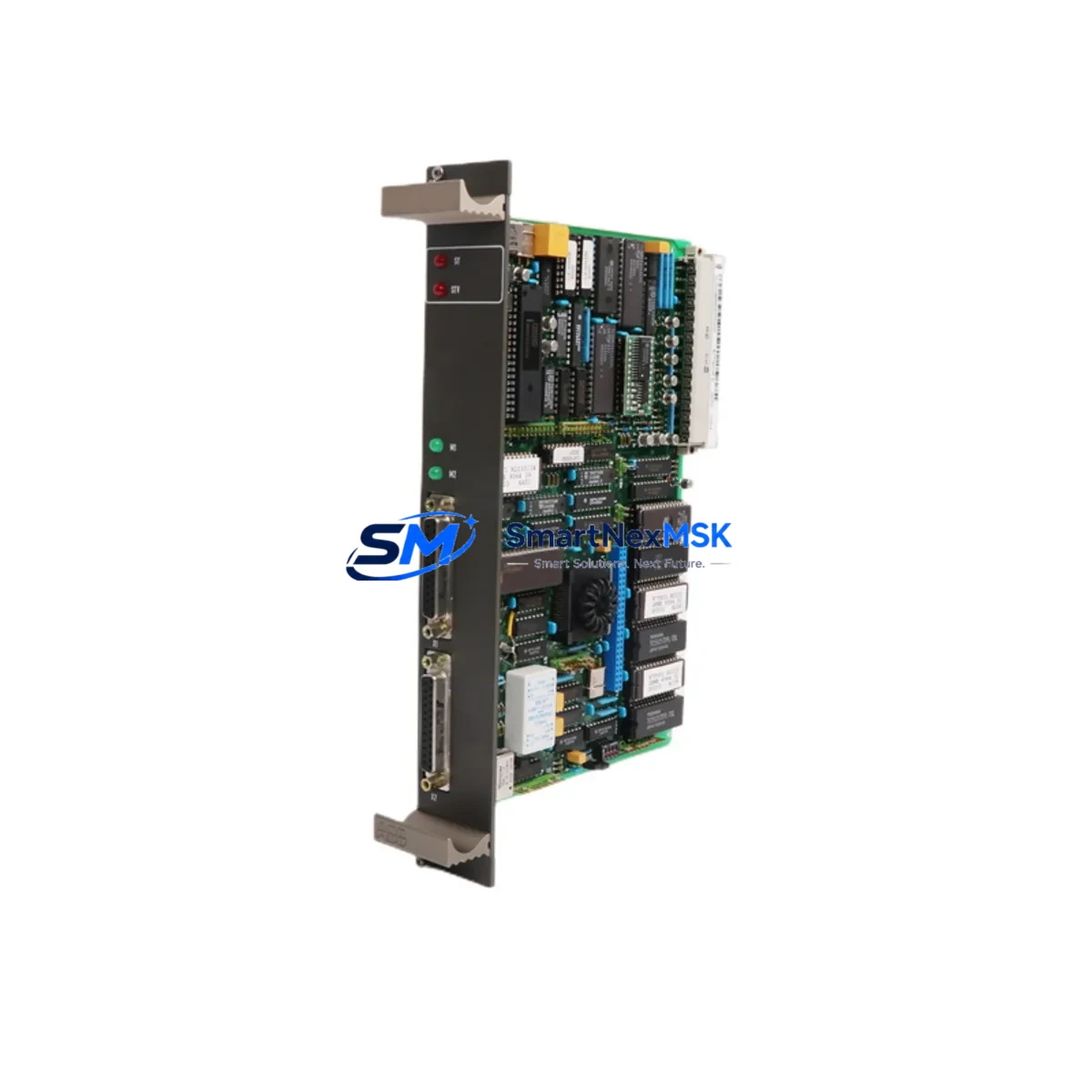

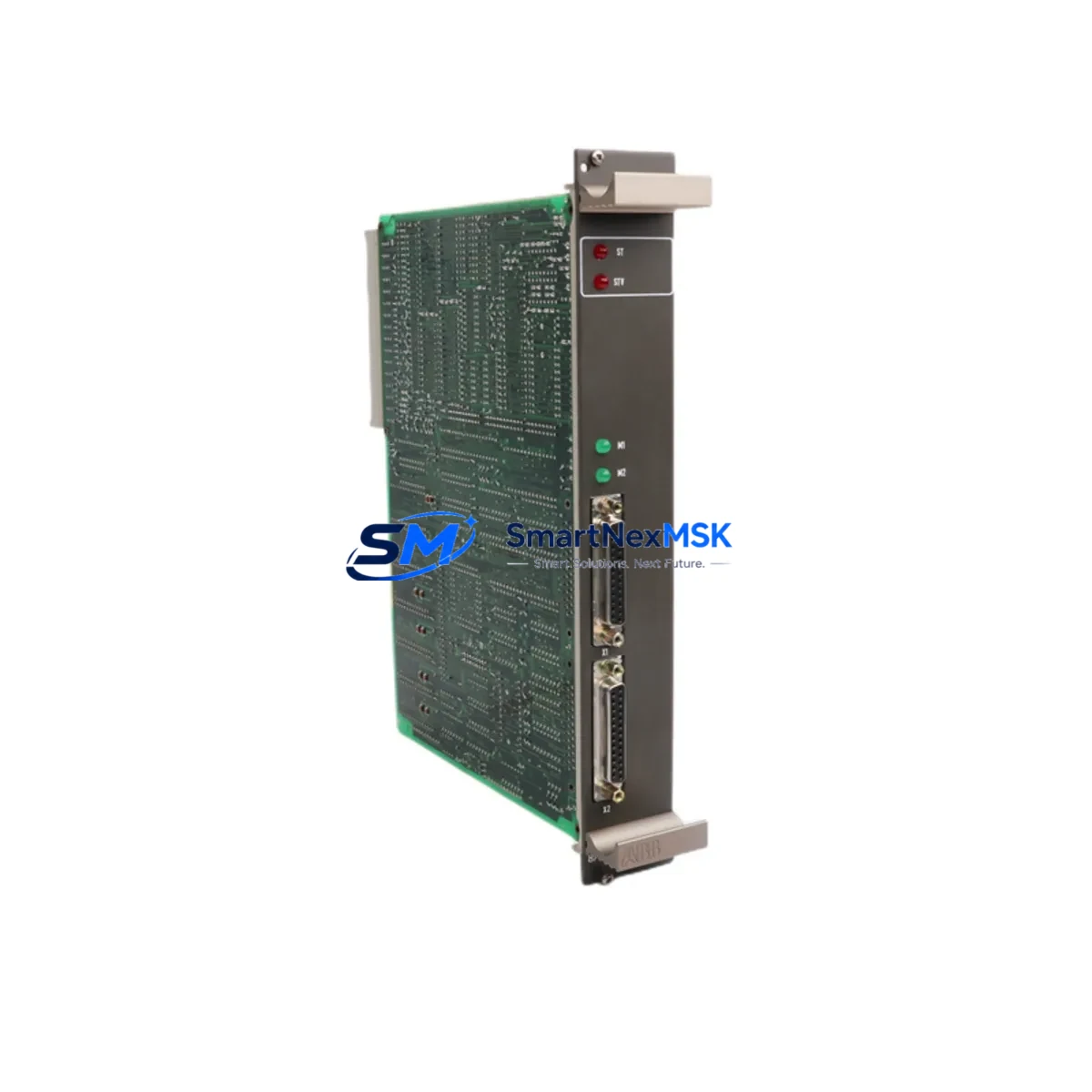

ABB 87TS01K-E GJR2368900R2200 Safety Coupling Module AC500

ABB 87TS01K-E GJR2368900R2200 Safety Coupling Module AC500: Reliable Control in Harsh Industrial Sites

In high-stakes industrial environments — where continuous production, heavy electrical interference, and unplanned downtime carry serious operational and safety consequences — the integrity of every component in the control cabinet matters. The ABB 87TS01K-E (GJR2368900R2200) is a ruggedized coupling module engineered for the AC500 PLC platform, purpose-built to maintain stable signal transmission and system continuity under the demanding conditions found in petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical processes, port logistics systems, and continuous manufacturing lines.

As a critical interface component within the AC500 modular architecture, the 87TS01K-E serves as the structural and electrical bridge between I/O terminal units and the CPU or communication modules. Its role in the control loop is deceptively foundational: without a reliable coupling module, even the most advanced PLC rack becomes vulnerable to signal interruption, ground loop interference, and cascading module faults. This unit eliminates those risks through robust mechanical locking, low-impedance bus contacts, and a thermally stable housing rated for extended industrial duty cycles.

Safety Reliability Table

Control Cabinet Protection Strategy

The 87TS01K-E does not operate in isolation — its safety value is realized as part of a coordinated control cabinet architecture. In a well-engineered AC500-based control system, this coupling module works in concert with the ABB PM573-ETH CPU module, which handles the primary logic execution and Ethernet-based SCADA communication. Alongside it, ABB DC532 digital input modules and DC522 digital output modules handle field-level signal acquisition and actuator control, with the coupling module ensuring zero-loss bus continuity between each I/O slice and the backplane.

Power integrity is equally critical. The AC500 rack is typically fed through an ABB CP-E 24/10.0 power supply unit, which provides regulated 24 VDC with built-in overload protection. To guard against upstream power transients — particularly in facilities with large motor drives, arc furnaces, or frequent switching loads — engineers commonly install ABB OVR surge protection devices at the panel entry point. This layered approach prevents voltage spikes from propagating into the backplane and causing module resets or data corruption.

For process-critical applications requiring safety-rated interlocking, the 87TS01K-E is often deployed in racks that also include ABB AI523 analog input modules for 4–20 mA process variable monitoring and ABB AO523 analog output modules for control valve positioning. In communication-intensive architectures, ABB CM572-DP PROFIBUS DP communication modules or CM589-PNIO PROFINET interface modules are mounted in the same rack, with the coupling module maintaining the physical and electrical integrity of the entire assembly. Any degradation at the coupling interface — loose contacts, thermal expansion gaps, or vibration-induced micro-disconnects — can silently corrupt I/O data across all downstream modules, making the 87TS01K-E a first-priority spare in any AC500 maintenance inventory.

Critical Industrial Safety Applications

In petrochemical and refinery environments, the ABB 87TS01K-E is deployed in emergency shutdown (ESD) panel racks where continuous signal integrity between safety PLCs and field instruments is non-negotiable. A coupling module failure in this context can mask a critical process alarm or delay a protective trip, with potentially severe consequences. The ruggedized design of the AC500 platform — and this module specifically — addresses these risks through its vibration-resistant mechanical interface and wide operating temperature tolerance.

In power generation and grid substation control, AC500 systems manage generator excitation, transformer protection relays, and load-shedding logic. The 87TS01K-E ensures that the I/O modules feeding protection relay inputs maintain uninterrupted bus communication, even during the high-frequency electromagnetic transients that accompany switching operations and fault clearance events.

In mining and mineral processing, where conveyor drives, crushers, and slurry pumps generate significant electrical noise and mechanical vibration, the coupling module’s positive-lock retention prevents the intermittent contact failures that can cause spurious motor trips or missed safety interlocks. Maintenance teams in these environments prioritize stocking verified OEM spare modules — including the 87TS01K-E — to minimize mean time to repair (MTTR) during unplanned outages.

In water and wastewater treatment facilities, where AC500 PLCs manage pump sequencing, chemical dosing, and SCADA telemetry over extended periods without manual intervention, the long-term reliability of every backplane component is essential. The 87TS01K-E supports multi-year continuous operation without contact degradation, making it suitable for remote unmanned pump stations and treatment plant automation panels.

In metallurgical and steel production environments, where high-current induction furnaces and rolling mill drives create extreme EMI conditions, the AC500 coupling module’s compliance with IEC 61000 immunity standards ensures that control signals remain clean and deterministic, supporting both process quality and worker safety.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the ABB 87TS01K-E GJR2368900R2200?
The 12-month warranty covers all manufacturing defects and functional failures under normal industrial operating conditions. If the module fails to perform its coupling and bus interface function within the warranty period, we provide replacement or full refund. Warranty claims are processed with documented pre-shipment test records provided upon request.

Q2: How is the 87TS01K-E tested before shipment?
Every unit undergoes a full functional verification test prior to dispatch, confirming bus contact integrity, mechanical locking engagement, and dimensional compliance with AC500 backplane specifications. Test records are available for B2B customers requiring incoming inspection documentation.

Q3: Is this module compatible with all AC500 I/O terminal units and CPU racks?
The 87TS01K-E is designed for the ABB AC500 S500 I/O system and is compatible with standard AC500 terminal units and backplane configurations. It is recommended to verify the specific rack generation (V2/V3) against your existing system documentation or contact our technical team for confirmation before ordering for safety-critical applications.

Q4: Can long-term supply continuity be guaranteed for ongoing maintenance programs?
Yes. We maintain dedicated stock of the 87TS01K-E GJR2368900R2200 to support B2B customers with planned maintenance schedules, annual spare parts procurement, and emergency replacement requirements. Bulk order pricing and reserved stock arrangements are available for facilities managing multiple AC500 installations.
