ABB ACS880-01-032A-3 Spare for ACS880 Automation: Spare Replacement & Industrial Downtime Risk Control

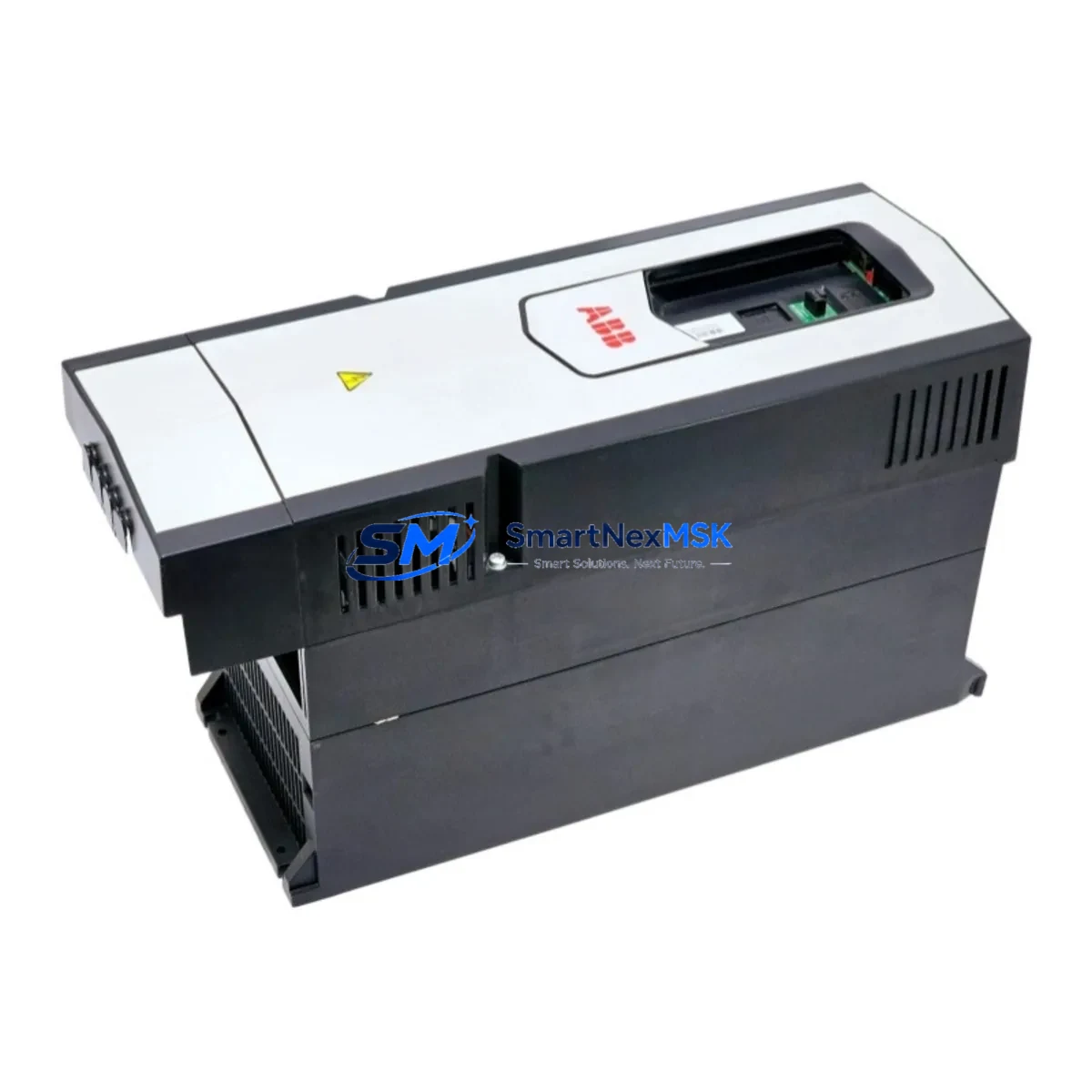

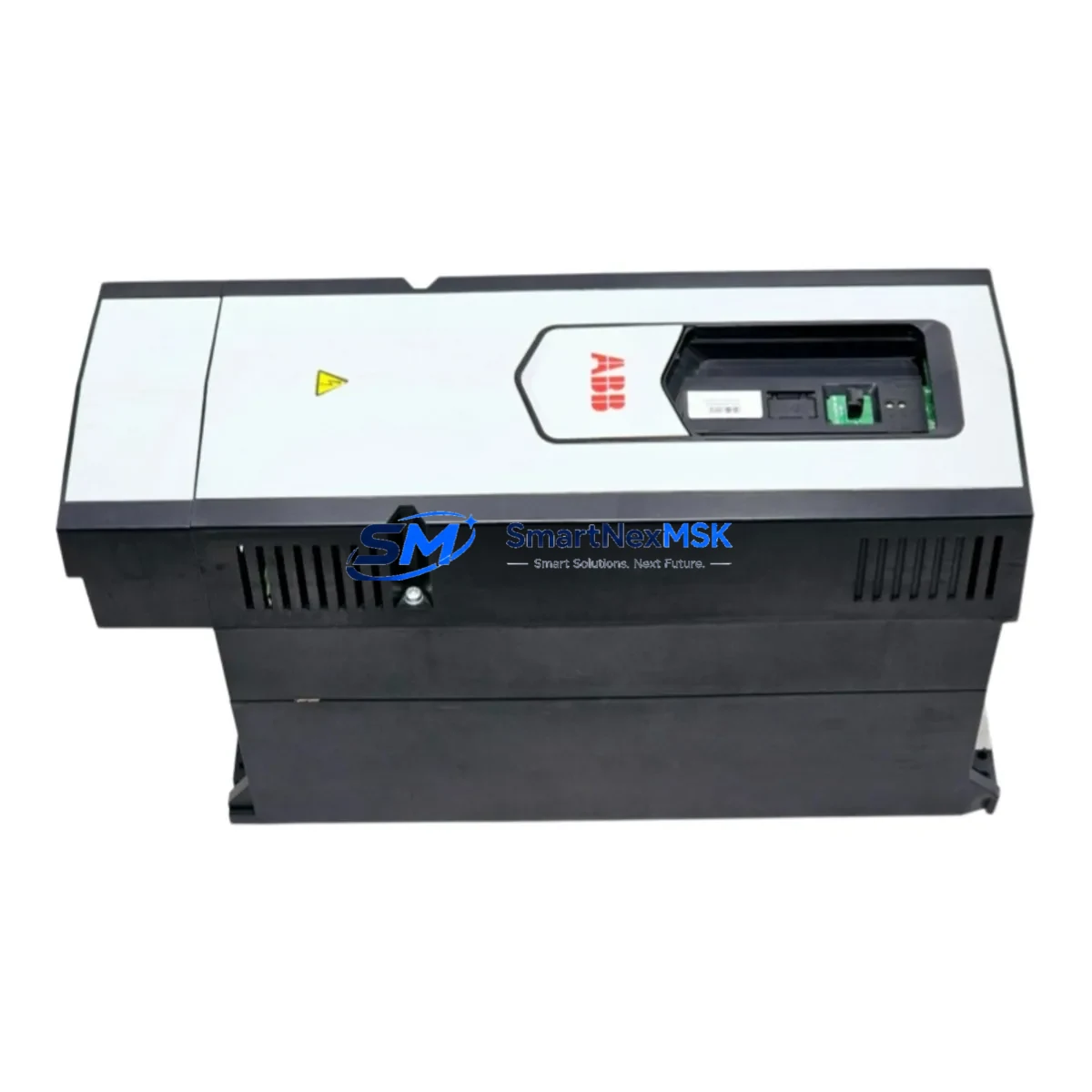

The ABB ACS880-01-032A-3 is a 15 kW (32 A), 380–480 V three-phase AC variable frequency drive from ABB’s flagship ACS880 single drive series. Designed for demanding industrial automation environments — including motor control centers, pump and fan systems, conveyor lines, and process automation cabinets — this drive is a critical component whose failure can trigger unplanned production stoppages. Maintaining a verified, tested spare on the shelf is the most effective strategy for minimizing mean time to repair (MTTR) and protecting operational continuity.

This listing provides a maintenance-ready original spare of the ACS880-01-032A-3, sourced, inspected, and dispatched with a 12-month warranty. Each unit undergoes functional verification prior to shipment, ensuring that when your maintenance team installs it, the drive powers up correctly and resumes process control without delay.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or procurement engineer schedules replacement of the ACS880-01-032A-3, the drive itself is rarely the only component that warrants attention. A thorough cabinet inspection and system audit during the same maintenance window can prevent repeat failures and extend the service life of the entire control system.

Begin with the input power supply: verify that the upstream ABB SACE Tmax or similar molded-case circuit breaker (MCCB) is correctly rated for the drive’s input current and has not experienced nuisance tripping. Check the input line reactor or EMC filter — ABB recommends the ACH-AP-H or NOCH0016-62 choke for ACS880 installations — for signs of overheating or insulation degradation.

Inspect the motor cable and output terminals. Loose terminal connections at the U2/V2/W2 output are a common root cause of drive IGBT stress and premature failure. If the motor has been running for more than 30,000 hours, consider scheduling bearing replacement alongside the drive swap to avoid a second unplanned outage.

Review the fieldbus communication module installed in the drive’s option slot — typically an ABB RPBA-01 PROFIBUS adapter or RDNA-01 DeviceNet module. These modules are drive-specific and must be transferred to the replacement unit or replaced with a new module if the original shows communication faults.

Check the control panel and parameter backup. The ABB ACS-AP-I or ACS-AP-W control panel stores drive parameters and can be used to upload the saved parameter set directly to the new ACS880-01-032A-3, dramatically reducing commissioning time during an emergency replacement. Always maintain an up-to-date parameter backup in your CMMS or maintenance records.

Inspect the 24 VDC auxiliary power supply feeding the drive’s control board. An unstable auxiliary supply — often sourced from an ABB CP-E 24/2.5 or similar DIN-rail PSU — can cause erratic drive behavior that mimics hardware faults. Measure output voltage under load before condemning the drive itself.

For systems using ABB AC500 PLC or AC800M DCS as the supervisory controller, verify that the I/O module providing the speed reference and run/stop signals — such as the ABB AI523 analog input module or DO510 digital output module — is functioning correctly. A failed I/O channel can prevent the replacement drive from starting even after a successful hardware swap.

Finally, inspect the cabinet thermal management: clean or replace the cabinet door filter mats, verify that the cooling fan (internal to the ACS880 frame) is operational, and confirm that ambient temperature inside the enclosure does not exceed 40°C under full load. Overtemperature is the leading cause of premature VFD failure in poorly ventilated MCC cabinets.

Site Replacement Workflow

Step 1 — Isolation & Lockout/Tagout: De-energize the drive via the upstream MCCB and apply LOTO. Wait a minimum of 5 minutes for DC bus capacitors to discharge before opening the drive enclosure. Verify DC bus voltage with a calibrated meter.

Step 2 — Parameter Backup: If the original drive is still partially functional, use the ACS-AP-I panel or ABB Drive Composer PC tool to export the full parameter set. Save to both local CMMS and a USB backup.

Step 3 — Hardware Swap: Disconnect input (L1/L2/L3), output (U2/V2/W2), control wiring (X1 terminal block), and the fieldbus adapter. Transfer the communication module and control panel to the replacement ACS880-01-032A-3. Reconnect all wiring per the original cable schedule.

Step 4 — Parameter Restore & Commissioning: Upload the saved parameter set via the control panel. Verify motor nameplate data (ID run if motor data has changed). Confirm fieldbus node address and baud rate match the network configuration.

Step 5 — Test Run: Perform a no-load test run at low speed before reconnecting the mechanical load. Monitor output current, DC bus voltage, and heatsink temperature during the first 30 minutes of operation.

This workflow is compatible with both direct ACS880-01-032A-3 like-for-like replacements and cross-series retrofits from legacy ACS800-01-0025-3 or ACS550 installations, where parameter migration and wiring adaptation are required.

Spare Parts Support FAQ

Q1: Is this ACS880-01-032A-3 an original ABB unit or a compatible aftermarket part?
This is an original ABB ACS880-01-032A-3 drive, not a copy or compatible substitute. Each unit is sourced from authorized ABB distribution channels or verified industrial surplus with full traceability. Pre-shipment functional testing is performed on every unit before dispatch.

Q2: How many ACS880-01-032A-3 units should I keep in my spare parts inventory?
For critical process lines where a single drive failure causes full production stoppage, we recommend a minimum of one hot spare per installed drive. For non-critical applications or where multiple identical drives are installed, a 1:3 or 1:5 ratio (one spare per three to five installed units) is a common industry practice. Consult your CMMS failure history to refine the stocking level based on your site’s actual MTBF data.

Q3: What is covered under the 12-month warranty, and how is a warranty claim handled?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, or operation outside the drive’s rated parameters. To initiate a warranty claim, contact [email protected] with the order number and a description of the fault. We will arrange return shipping and either repair or replace the unit within the agreed lead time.

Q4: Can this drive replace an older ACS800-01 or ACS550 unit in an existing cabinet?
In many cases, yes — with appropriate adaptation. The ACS880-01-032A-3 uses a different parameter structure and fieldbus adapter ecosystem than the ACS800 or ACS550 series. A parameter migration procedure and possible control wiring changes are required. We recommend consulting the ABB ACS880 Hardware Manual and the relevant migration guide before proceeding. Our technical team can provide pre-sales compatibility guidance upon request.
