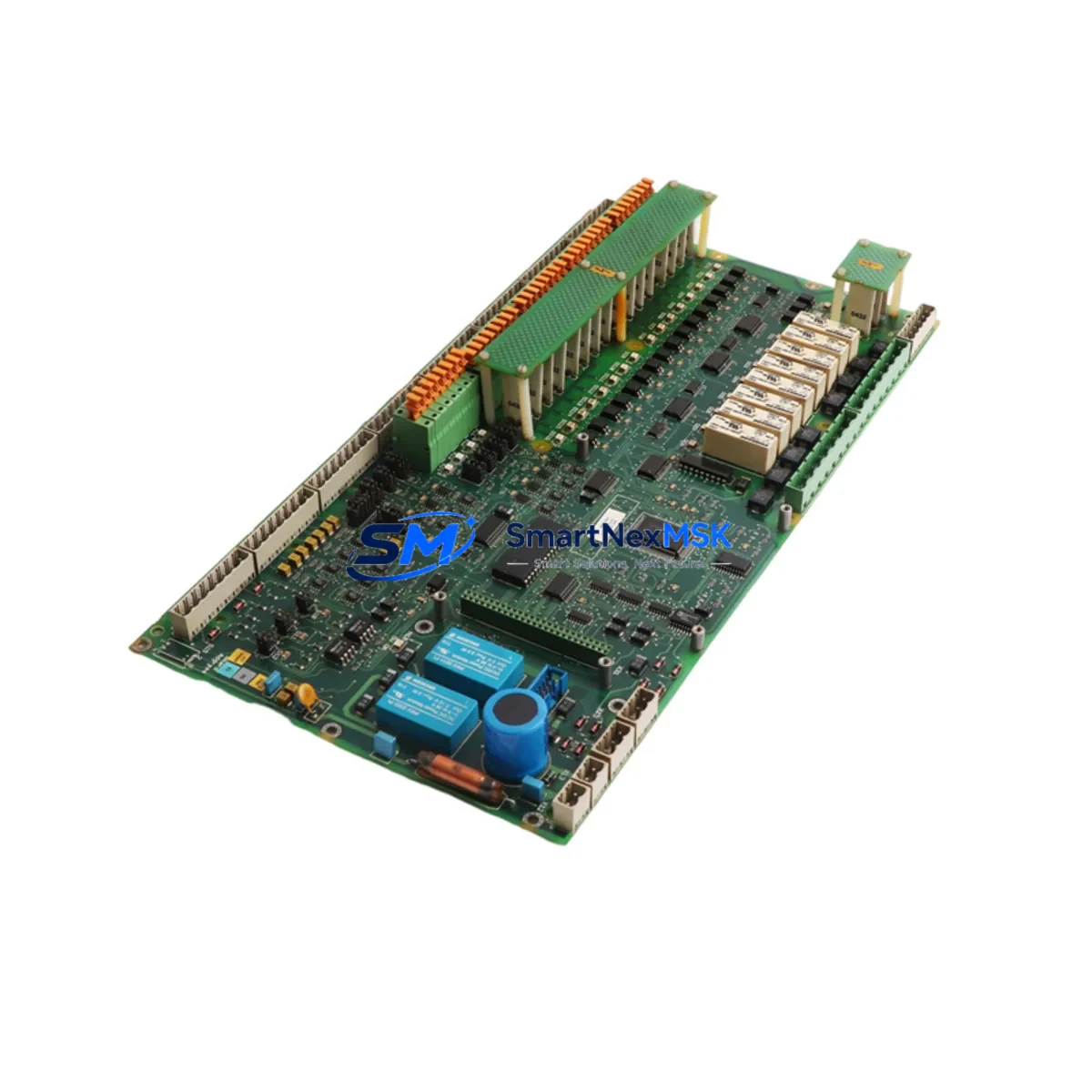

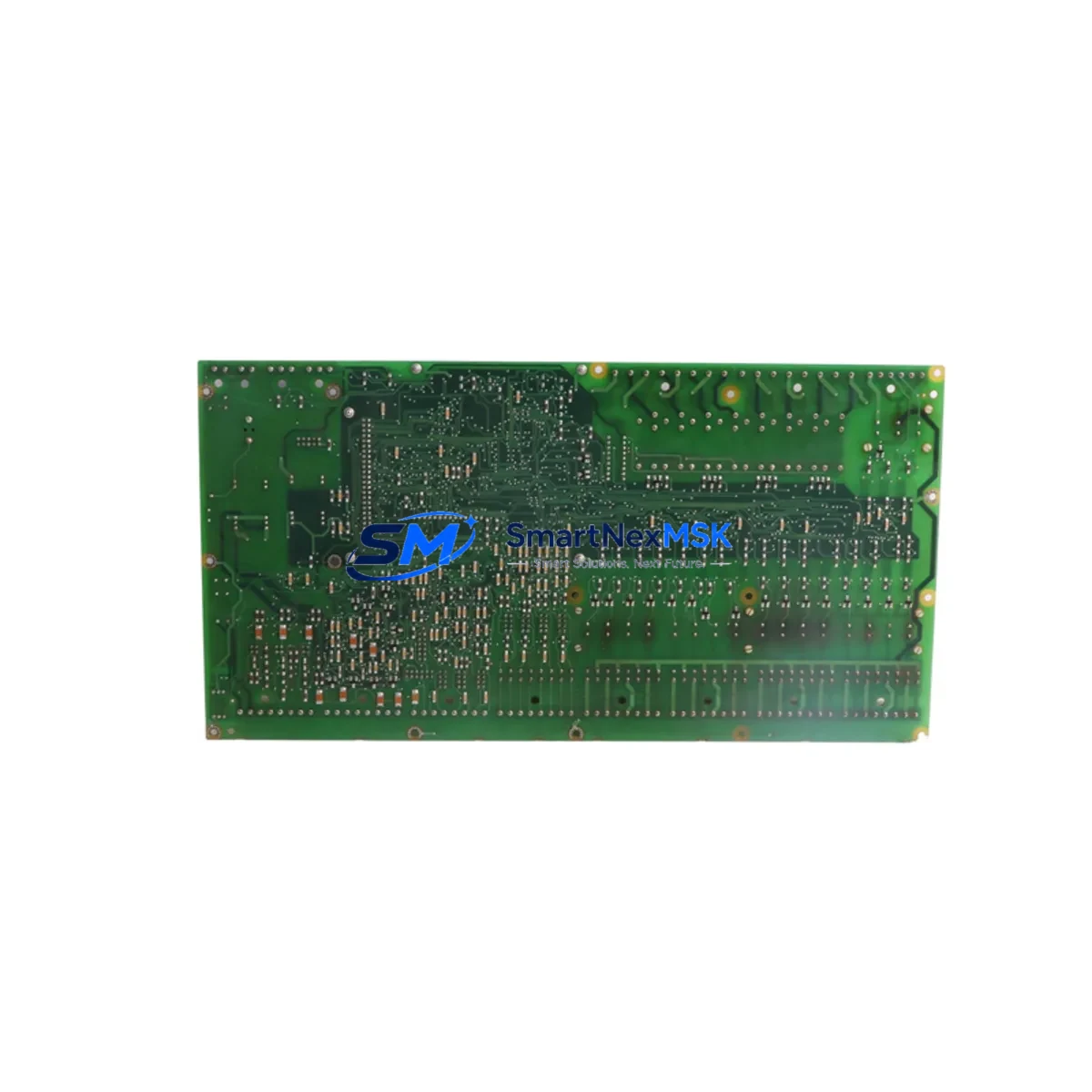

ABB ADATX110 3ASC25H209 Safety-Enhanced DCS I/O Module

ABB ADATX110 3ASC25H209 Safety-Enhanced DCS I/O Module: Reliable Control in Harsh Industrial Environments

The ABB ADATX110 (3ASC25H209) is a ruggedized DCS I/O interface module engineered for mission-critical industrial control applications where safety, signal integrity, and continuous uptime are non-negotiable. Designed as a core component of the ABB Advant AC450 distributed control system, this module delivers deterministic I/O performance in high-load, high-interference environments including petrochemical plants, power generation facilities, metallurgical operations, mining control rooms, water treatment stations, and continuous-process manufacturing lines.

In modern industrial control cabinets, the integrity of every I/O channel directly impacts plant safety. A single point of signal drift, power fluctuation, or module misoperation can cascade into unplanned shutdowns, process deviations, or — in the worst case — safety interlock failures. The ADATX110 addresses these risks through robust hardware design, wide operating temperature tolerance, and proven EMI/RFI shielding that maintains stable communication even in electrically noisy environments adjacent to variable frequency drives, high-voltage switchgear, and heavy motor loads.

Safety Reliability Table

Control Cabinet Protection Strategy

Deploying the ABB ADATX110 3ASC25H209 within a well-engineered control cabinet requires a layered protection strategy that addresses power quality, signal isolation, communication redundancy, and thermal management simultaneously. In high-load industrial environments, the ADATX110 is typically installed alongside the ABB DSDP110 power distribution module, which conditions and distributes 24 VDC across the backplane, ensuring that voltage sags or transient surges from upstream switchgear do not propagate into the I/O signal chain.

For communication integrity, the ADATX110 operates on the Advant RCOM backplane bus in coordination with the ABB DSBC110 bus controller module, which manages token-passing communication between I/O nodes and the AC450 processor. In plants where electromagnetic interference from large motor drives or arc furnaces is a concern, supplementing the cabinet with ABB DSDO110 digital output modules and dedicated surge arrestors on field wiring terminals significantly reduces the risk of spurious output activation — a critical safety consideration in interlock circuits controlling valves, contactors, and emergency shutdown relays.

Power supply redundancy is another pillar of cabinet-level safety. Pairing the ADATX110 with an ABB DSMB110 memory backup module ensures that process data and configuration parameters are retained during momentary power interruptions, preventing cold-restart mismatches that can cause process upsets. For analog signal loops — particularly 4–20 mA transmitter circuits feeding the ADATX110’s input channels — installing ABB DSAI110 analog input modules with galvanic isolation on each channel eliminates ground loop interference that would otherwise introduce signal drift in precision measurement applications such as flow, pressure, and temperature control.

In safety instrumented systems (SIS) or critical interlock loops, the ADATX110 is often deployed in conjunction with ABB DSDX110 I/O expansion modules to extend channel capacity without compromising scan cycle time. Communication health monitoring via the ABB DSCS110 communication supervisor module provides real-time diagnostics on bus traffic, enabling maintenance teams to detect degraded communication paths before they escalate into control failures. Thermal management within the cabinet — using properly rated ventilation panels and temperature sensors — further protects the ADATX110 from heat-induced derating in high-ambient-temperature installations such as outdoor substations or tropical process plants.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In continuous hydrocarbon processing, the ADATX110 serves as the I/O backbone for distributed control loops managing reactor temperature, pressure relief valve positioning, and feed flow regulation. Its surge-protected channels prevent false trips caused by static discharge events common in flammable-atmosphere zones adjacent to the control room.

Power Generation & Grid Substations: Thermal and hydroelectric power stations rely on the Advant AC450 platform — and by extension the ADATX110 — for turbine governor control, excitation system feedback, and protection relay coordination. The module’s deterministic scan cycle ensures that control responses to grid frequency deviations remain within safe operating limits.

Mining & Mineral Processing: In underground and open-pit mining operations, control systems face extreme vibration, dust ingress, and wide temperature swings. The ADATX110’s robust mechanical construction and wide thermal tolerance make it a reliable choice for conveyor interlock control, crusher load monitoring, and ventilation fan speed regulation in safety-critical mine environments.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities use the ADATX110 within SCADA-integrated DCS architectures to manage pump sequencing, chemical dosing control, and effluent quality monitoring. Reliable I/O performance prevents dosing errors that could compromise treated water safety or regulatory compliance.

Metallurgy & Steel Production: Electric arc furnaces, rolling mills, and continuous casting lines generate intense electromagnetic fields that challenge conventional I/O modules. The ADATX110’s EMI-hardened design maintains signal fidelity in these environments, supporting precise temperature control and cooling water flow regulation essential to product quality and worker safety.

Port & Heavy Logistics Automation: Container crane control systems and bulk material handling conveyors in port environments demand high I/O availability and fast fault detection. The ADATX110 supports these requirements within AC450-based crane management systems, reducing unplanned downtime that directly impacts port throughput and operational safety.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If the module fails to perform its specified I/O interface functions within the warranty period, we provide a free replacement or full refund. Warranty claims are processed within 5 business days upon receipt of the returned unit.

Q2: How is the ADATX110 3ASC25H209 tested before shipment?
Every unit undergoes a full functional test prior to dispatch, including power-on verification, backplane communication handshake testing, and I/O channel continuity checks. A test report is available upon request. Units that do not pass our outgoing quality inspection are quarantined and never shipped.

Q3: Is this module compatible with all ABB Advant AC450 system configurations?
Yes. The ADATX110 (3ASC25H209) is a standard I/O interface module for the ABB Advant AC450 platform and is also backward-compatible with AC410 and AC460 system variants. It slots directly into the standard Advant subrack without hardware modification. For specific firmware revision compatibility questions, our technical team can advise based on your system’s processor module version.

Q4: Can you guarantee long-term supply for ongoing maintenance and spare parts programs?
Yes. We maintain dedicated stock of the ADATX110 3ASC25H209 and other Advant AC450 series modules to support long-term spare parts programs for plants with extended DCS lifecycle commitments. We can provide volume pricing, reserved stock agreements, and lead-time guarantees for customers managing multi-year maintenance contracts. Contact our sales team to discuss your specific supply continuity requirements.
