ABB AGDR-71C 6MBI450U-120 Safety-Enhanced IGBT Gate Driver

ABB AGDR-71C 6MBI450U-120 Safety-Enhanced IGBT Gate Driver for Harsh Industrial Sites

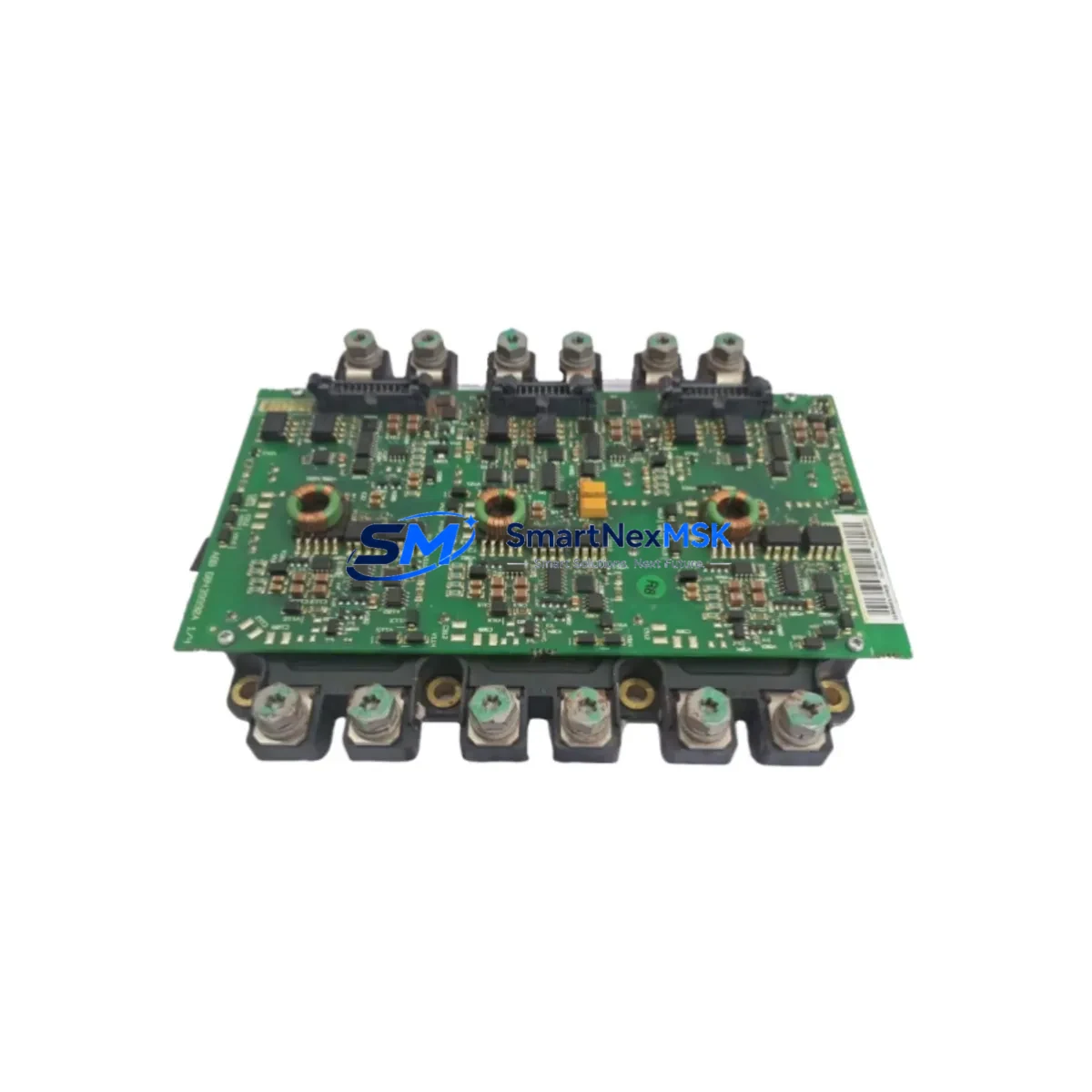

The ABB AGDR-71C 6MBI450U-120 is a ruggedized IGBT gate driver module engineered for mission-critical industrial automation environments where control continuity, signal integrity, and personnel safety are non-negotiable. Designed to interface directly with the Fuji Electric 6MBI450U-120 IGBT power module, this gate driver is a cornerstone component in ABB ACS800 series variable frequency drives deployed across heavy industry, continuous process manufacturing, and safety-critical control architectures.

In high-load industrial sites — including petrochemical plants, steel mills, mining hoists, port crane systems, and water treatment facilities — the gate driver is the last line of defense between a healthy power stage and a catastrophic drive fault. The AGDR-71C is purpose-built to maintain precise gate switching under conditions of severe electromagnetic interference, supply voltage fluctuation, and thermal stress, ensuring that the IGBT module fires correctly on every cycle, even in the most demanding 24/7 continuous production environments.

Safety Reliability Table

Control Cabinet Protection Strategy

In a properly engineered ACS800 drive cabinet, the AGDR-71C does not operate in isolation — it is one node in a layered protection architecture. The gate driver receives switching commands from the ABB RDCU-02C drive control unit, which coordinates torque and speed references from the main control board. Upstream, the ABB RINT-5514C rectifier interface board conditions the DC bus voltage that feeds the IGBT power stage, while the ABB APBU-44C branching unit distributes fiber-optic gate signals to multiple parallel IGBT stacks in high-power configurations.

On the power supply side, the ABB SPSU-01C auxiliary power supply unit provides the isolated ±15V and +24V rails that the AGDR-71C requires for stable gate drive operation. Any ripple or dropout on these rails can cause erratic gate switching — a risk that the AGDR-71C’s built-in UVLO circuit mitigates by holding the IGBT off until supply rails are fully stable. For sites with poor power quality, pairing the gate driver with a Siemens SITOP PSU100S 24V stabilized power supply on the auxiliary bus adds an additional layer of supply-side protection.

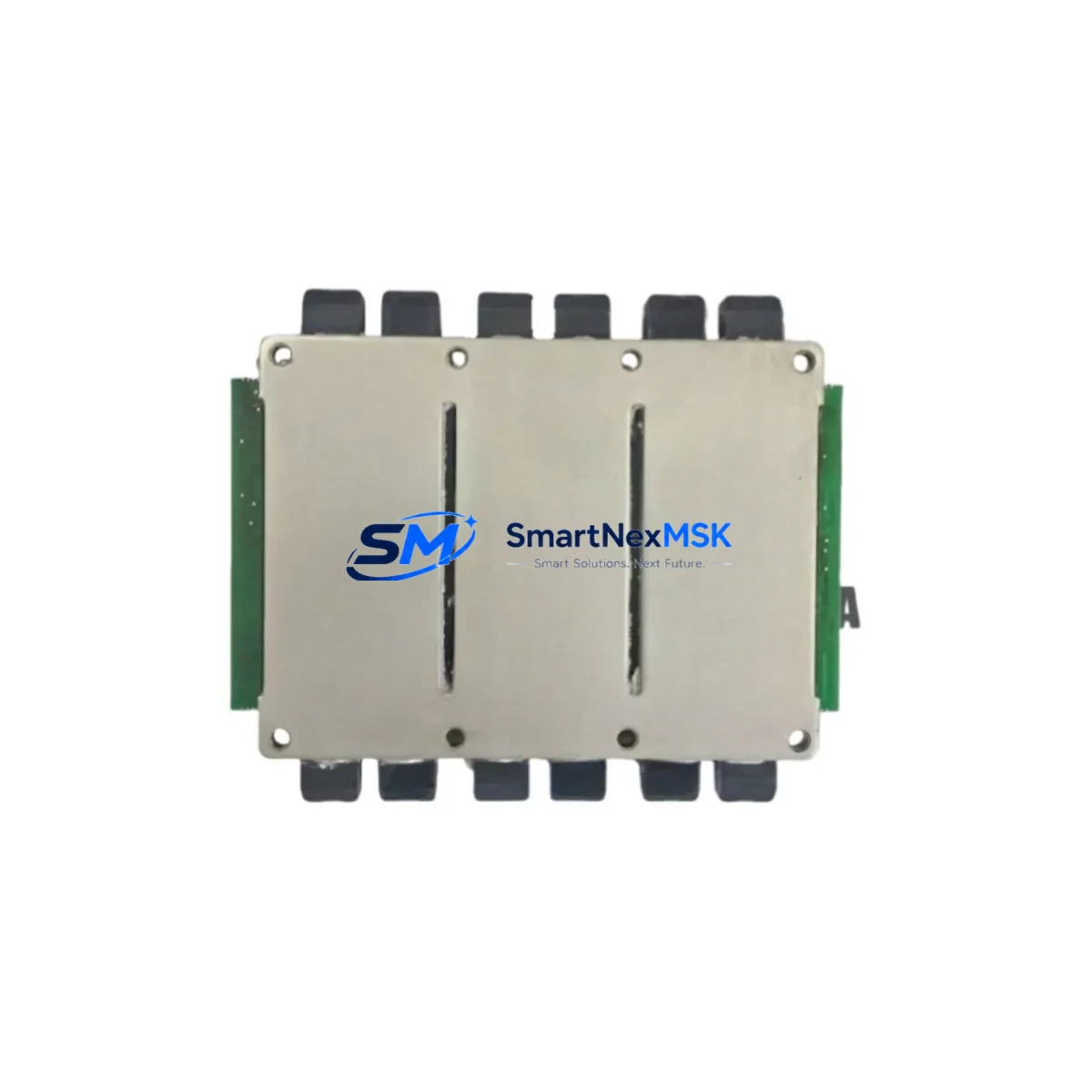

The IGBT module itself — the Fuji Electric 6MBI450U-120 — is a 450-ampere, 1200-volt six-pack IGBT that handles the full motor phase current. When this module ages or sustains surge damage, the AGDR-71C’s desaturation detection circuit identifies the resulting collector-emitter voltage rise within microseconds and initiates a controlled soft shutdown, preventing the explosive failure mode that can destroy an entire drive cabinet. In parallel interlock systems, the ABB DDCS fiber-optic communication board relays fault status to the master PLC — typically a Siemens S7-400 CPU or ABB AC500 safety PLC — which can then execute a safe-state sequence across the broader process control system.

For thermal management in enclosed cabinets, the AGDR-71C is typically mounted in close proximity to the IGBT heatsink assembly, with the ABB NOCH0010-64 cooling fan unit maintaining airflow across the power stack. Proper thermal design ensures that the gate driver’s internal components remain within their rated temperature envelope even during peak load cycles in summer ambient conditions exceeding 40°C.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In hazardous-area motor control centers driving compressors, pumps, and agitators, an uncontrolled drive trip can trigger process upsets with serious safety consequences. The AGDR-71C’s fast fault detection and controlled shutdown capability ensures that drive faults result in a safe, orderly stop rather than an uncontrolled coast-down that could damage mechanical seals or cause pressure excursions.

Electric Power Generation & Transmission: In auxiliary drive systems for boiler feed pumps, induced draft fans, and cooling water pumps at thermal power stations, the ACS800 drive with AGDR-71C gate driver must maintain continuous operation through grid disturbances. The module’s surge immunity and EMI resistance are critical in substations where high-voltage switching events create intense electromagnetic transients.

Mining Hoists & Conveyors: Underground mine hoists and overland conveyors operate under extreme mechanical loads with frequent starts and stops. The IGBT gate driver must handle the resulting high-frequency switching stress without signal drift or timing errors that could cause torque ripple, mechanical shock, or — in the worst case — a runaway hoist event. The AGDR-71C’s precise gate timing and short-circuit protection are essential safety features in these applications.

Water & Wastewater Treatment: Municipal water treatment facilities rely on continuous pump operation to maintain system pressure and treatment capacity. Drive failures in these facilities can result in service interruptions affecting large populations. The AGDR-71C’s 12-month warranty and pre-shipment functional testing provide the reliability assurance that utility operators require when specifying spare parts for critical pump drives.

Metallurgy & Steel Production: Rolling mill drives and electric arc furnace electrode regulators demand the highest levels of drive reliability. In these applications, the AGDR-71C must maintain gate signal integrity in the presence of intense magnetic fields, high-frequency harmonic currents, and rapid load transients. Its reinforced galvanic isolation prevents ground loop interference from corrupting gate timing signals.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the AGDR-71C?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. If the module fails to perform its specified gate drive and protection functions within the warranty period, we provide a replacement or full refund. Warranty claims are processed with priority to minimize your site downtime.

Q2: What pre-shipment testing is performed on each AGDR-71C unit?
Every AGDR-71C undergoes a full functional test including gate output verification, desaturation protection response, UVLO threshold check, and insulation resistance measurement before dispatch. Units that do not pass all test criteria are quarantined and not shipped. A test record is available upon request.

Q3: Is this gate driver compatible with all ACS800 drive variants and 6MBI450U-120 IGBT modules?
The AGDR-71C is specifically designed for ABB ACS800 series drives using the Fuji Electric 6MBI450U-120 IGBT power module. It is not a universal gate driver. Before ordering, confirm your drive’s power stage configuration against the ACS800 hardware manual. If you are unsure of compatibility, contact our technical team with your drive nameplate data and we will verify the correct part number.

Q4: Can you guarantee long-term supply availability for ongoing maintenance programs?
Yes. We maintain dedicated safety stock of the AGDR-71C to support customers with planned maintenance schedules and emergency replacement requirements. For customers managing fleets of ACS800 drives, we recommend establishing a blanket order or consignment stock arrangement to ensure parts availability without lead-time risk. Contact our sales team to discuss a supply agreement tailored to your maintenance program.
