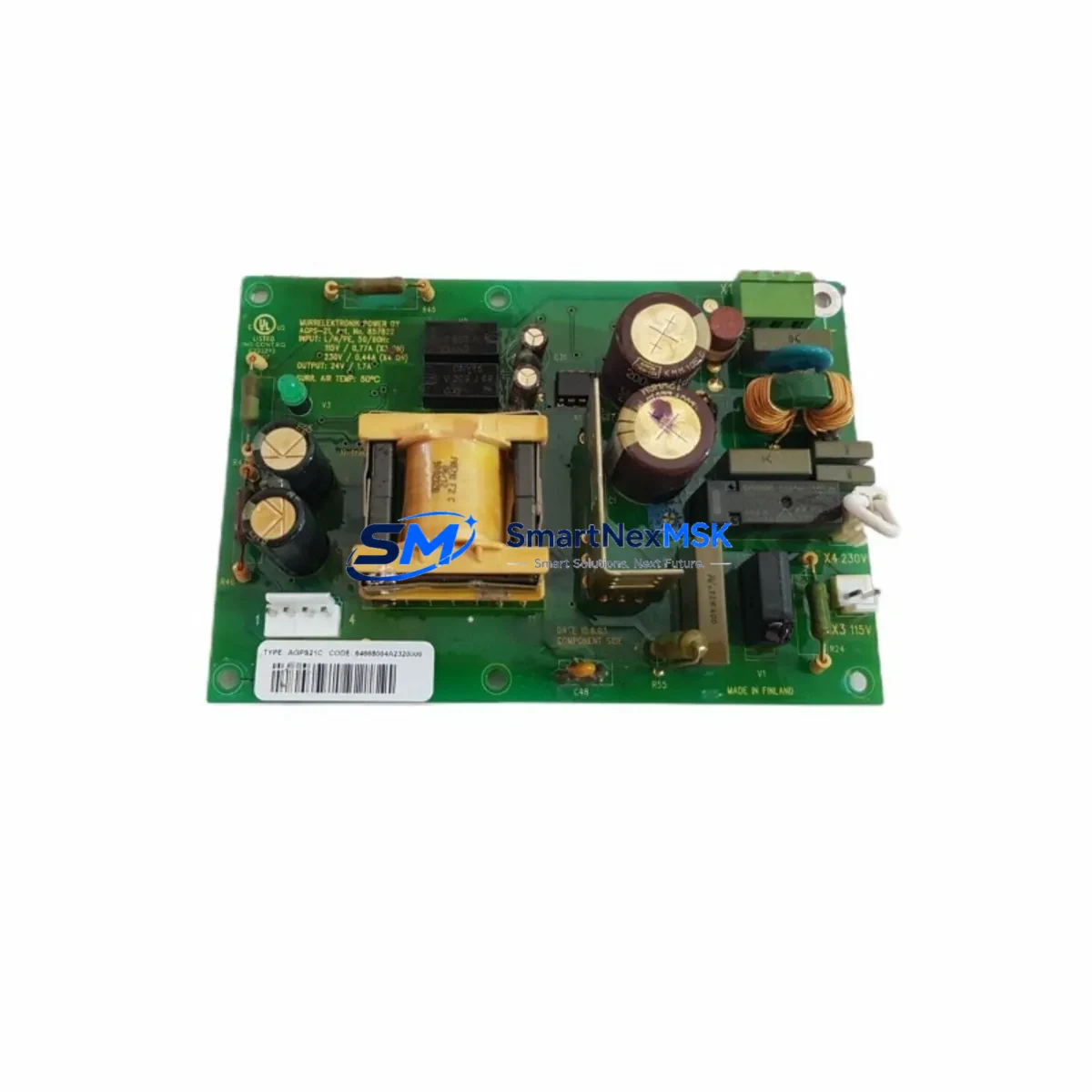

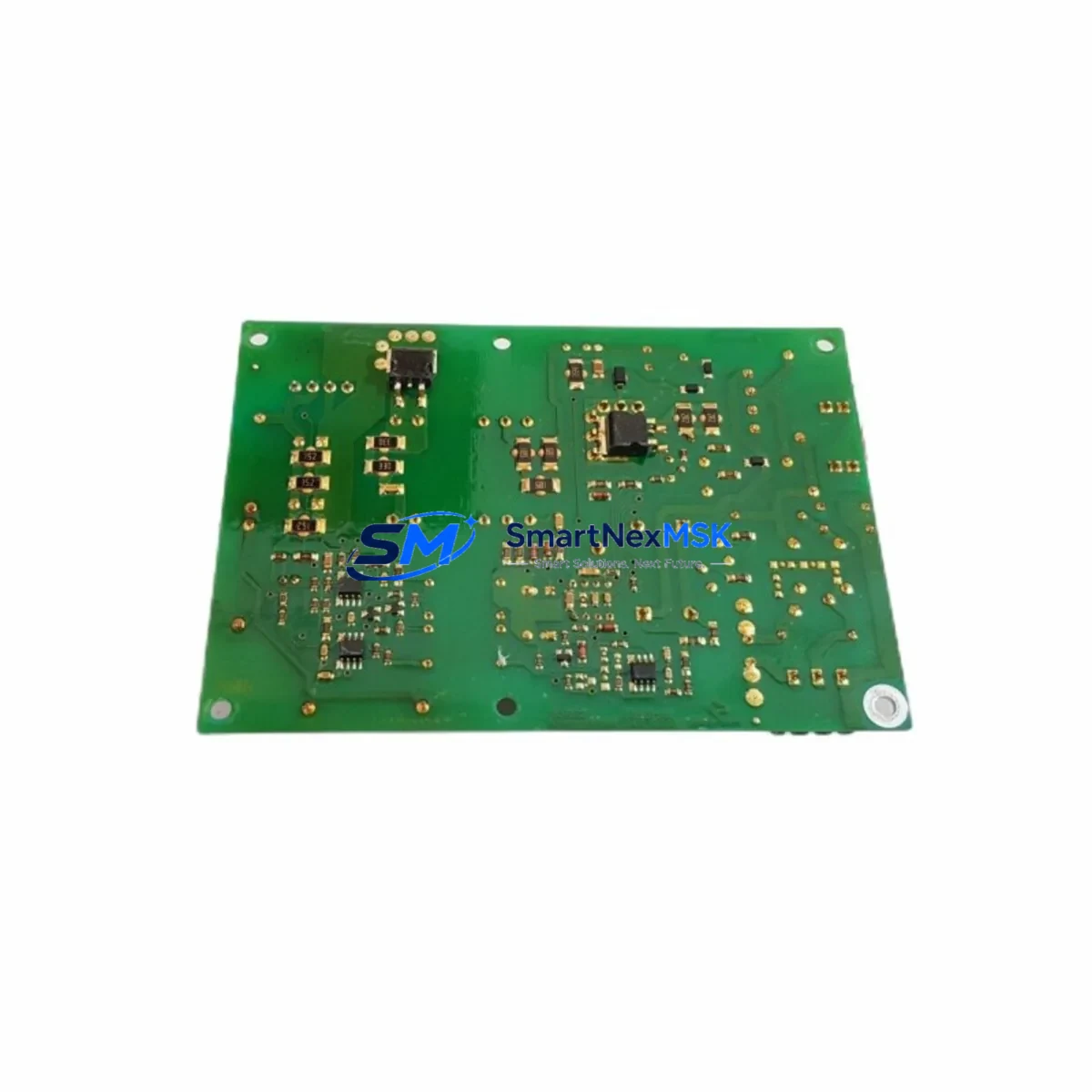

ABB AGPS-21C 64668064 Safety-Enhanced Gate Power Supply

ABB AGPS-21C 64668064 Safety-Enhanced Gate Power Supply for Harsh Industrial Sites

The ABB AGPS-21C (Part No. 64668064) is a ruggedized gate power supply module engineered for mission-critical drive control in the most demanding industrial environments. Designed specifically for the ABB ACS800 series variable frequency drives, this module delivers stable, isolated gate firing signals to IGBT power bridges under conditions of high electrical noise, voltage transients, and continuous heavy-load operation. In petrochemical plants, metallurgical facilities, mining hoists, port crane systems, and water treatment stations — where unplanned downtime carries severe safety and financial consequences — the AGPS-21C serves as a foundational component in the drive’s power conversion and protection architecture.

Industrial sites operating ACS800 drives in continuous production cycles face persistent threats: power grid fluctuations, ground loops, electromagnetic interference from adjacent motor starters and welding equipment, and thermal stress from high-ambient enclosures. The AGPS-21C addresses these threats directly. Its isolated gate drive outputs prevent common-mode noise from propagating into the IGBT switching circuit, eliminating a primary cause of nuisance trips and module misfire events. The module’s internal power regulation maintains consistent gate voltage even when the DC bus experiences transient sags or surges — a critical capability in facilities where upstream transformers feed multiple large motor loads simultaneously.

In control cabinet configurations where the ACS800 operates alongside components such as the ABB AINT-02C auxiliary interface board, the APBU-44C pulse encoder interface unit, and the ASCO-01C serial communication module, the AGPS-21C must maintain signal integrity across all operating conditions. Any degradation in gate pulse timing — caused by a failing power supply — can result in asymmetric IGBT switching, increased harmonic distortion, and ultimately thermal runaway in the inverter bridge. Replacing a worn AGPS-21C before failure is a standard preventive maintenance practice in facilities with zero-tolerance for drive faults on critical process lines.

The module is equally important in safety interlock architectures. When the ACS800 is integrated into a safety relay circuit — for example, using a ABB ADUM-01C drive-to-DCS interface module or communicating via RDNA-01 DeviceNet adapter — the gate power supply must remain stable during emergency stop sequences and controlled ramp-down events. An unstable gate supply during a safety-commanded stop can cause uncontrolled deceleration, posing direct risk to personnel and equipment. The AGPS-21C’s design ensures that gate signals remain coherent through the full stop cycle, supporting safe and predictable drive behavior under all fault conditions.

For facilities managing large fleets of ACS800 drives — common in pulp and paper mills, cement plants, and offshore platforms — maintaining a stocked spare of the AGPS-21C is a recognized best practice. Mean time to repair (MTTR) for a drive fault caused by a failed gate power supply can exceed 48 hours if the part must be sourced reactively. Proactive spare holding, combined with periodic bench testing of installed modules using the ABB NDIO-01C digital I/O extension module for signal verification, reduces this risk substantially. Our inventory of AGPS-21C units is pre-tested prior to shipment, with each module verified for output voltage accuracy, isolation resistance, and switching response.

The AGPS-21C is also relevant in retrofit and modernization projects. When upgrading aging ACS600 installations to ACS800 platforms, or when replacing third-party drives with ABB equivalents, the gate power supply is frequently the first module to require replacement due to accumulated thermal cycling. Compatibility with the full ACS800 hardware family — including the ACS800-01, ACS800-04, and ACS800-07 cabinet drive variants — makes the AGPS-21C a versatile spare that covers multiple drive frame sizes within a single site’s inventory. Pairing the AGPS-21C replacement with a concurrent inspection of the APOW-01C auxiliary power supply board and the AINP-01C analog input board ensures a comprehensive drive health restoration after any fault event.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust ACS800 control cabinet protection strategy extends well beyond the drive itself. The AGPS-21C works in concert with a layered set of protective and monitoring components to ensure continuous, safe operation. On the power input side, a properly rated line reactor or du/dt filter upstream of the drive attenuates voltage spikes before they reach the DC bus, reducing stress on the gate power supply’s internal regulators. The ABB APOW-01C auxiliary power supply board provides the low-voltage DC rails that feed the AGPS-21C and other control-side boards; any instability in this supply will directly impact gate firing quality, making it a co-inspection priority during any AGPS-21C replacement.

On the signal and communication side, the ABB AINT-02C auxiliary interface board manages the handshake between the drive’s control board and external PLC or DCS systems. If the AGPS-21C is generating fault codes related to gate undervoltage or overcurrent, the AINT-02C’s diagnostic outputs are the first place to interrogate. Similarly, the ABB RDNA-01 DeviceNet adapter or RPBA-01 PROFIBUS adapter — depending on the site’s fieldbus architecture — must maintain clean communication with the drive controller during any gate supply fault event to ensure the safety PLC receives accurate drive status and can execute the correct interlock response.

For sites using the ACS800 in regenerative braking or active front-end configurations, the ABB ARPP-01C gate power supply for the supply unit operates in parallel with the AGPS-21C on the inverter side. Both modules must be in good condition to maintain balanced power flow and prevent asymmetric loading of the IGBT bridges. Periodic replacement of both units during scheduled maintenance shutdowns is recommended to avoid staggered failures that complicate root cause analysis.

Critical Industrial Safety Applications

The ABB AGPS-21C 64668064 is deployed across a wide range of heavy industrial sectors where drive reliability is directly linked to operational safety and regulatory compliance.

In petrochemical and refinery facilities, ACS800 drives control compressor trains, boiler feed pumps, and cooling tower fans that operate continuously for months between planned shutdowns. A gate power supply failure in this context can trigger an uncontrolled process upset, activating pressure relief systems and requiring manual intervention in potentially hazardous atmospheres. The AGPS-21C’s stable gate firing ensures that the drive responds predictably to speed reference changes and emergency stop commands from the safety instrumented system (SIS).

In mining and mineral processing, ACS800 drives power conveyor systems, ball mills, and slurry pumps under extreme load cycling and high ambient dust concentrations. The gate power supply must maintain performance despite vibration, thermal shock, and the electromagnetic interference generated by large DC motors and thyristor rectifiers operating nearby. The AGPS-21C’s ruggedized design and galvanic isolation make it well-suited to these conditions.

In power generation and grid-tied applications, including wind turbine pitch control and hydroelectric governor systems, the AGPS-21C supports precise speed and torque control that directly affects grid frequency stability. Any gate misfiring event in these applications can cause torque ripple, mechanical stress on couplings and gearboxes, and potential grid disturbance events reportable to the network operator.

In water and wastewater treatment, drives controlling submersible pumps and aeration blowers must operate reliably in high-humidity, corrosive-atmosphere control rooms. The AGPS-21C’s tolerance for humid environments and its sealed construction make it a dependable choice for these installations, where manual intervention is difficult and response times to drive faults are measured in hours rather than minutes.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the AGPS-21C 64668064?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. If the module fails to perform its specified gate power supply function within the warranty period, we will provide a replacement unit at no additional cost. The warranty period begins from the date of shipment and is supported by our pre-shipment test records for each unit.

Q2: How is each AGPS-21C tested before shipment?
Every unit undergoes a pre-shipment functional test covering output voltage accuracy on all gate drive channels, galvanic isolation resistance between channels and the control logic ground, and switching response verification under simulated load conditions. Test results are retained in our quality records and can be provided upon request for critical applications requiring documented traceability.

Q3: Is the AGPS-21C 64668064 compatible with all ACS800 drive variants?
The AGPS-21C is compatible with the ACS800-01, ACS800-04, and ACS800-07 drive families. Compatibility with specific frame sizes and software versions should be confirmed against the ABB ACS800 hardware manual for your installation. If you provide your drive’s type code and serial number, our technical team can confirm compatibility before shipment.

Q4: Can you support long-term supply for sites with multiple ACS800 drives?
Yes. We maintain ongoing inventory of the AGPS-21C 64668064 and can support scheduled spare part programs for sites managing large ACS800 fleets. We offer advance reservation of stock for planned maintenance shutdowns and can coordinate phased deliveries aligned with your maintenance calendar. Contact our sales team to discuss a supply agreement tailored to your site’s requirements.
