ABB AI815 3BSE052604R1 Maintenance-Ready Spare S800 I/O

ABB AI815 3BSE052604R1 Maintenance-Ready Spare S800 I/O: Spare Replacement & Industrial Downtime Risk Control

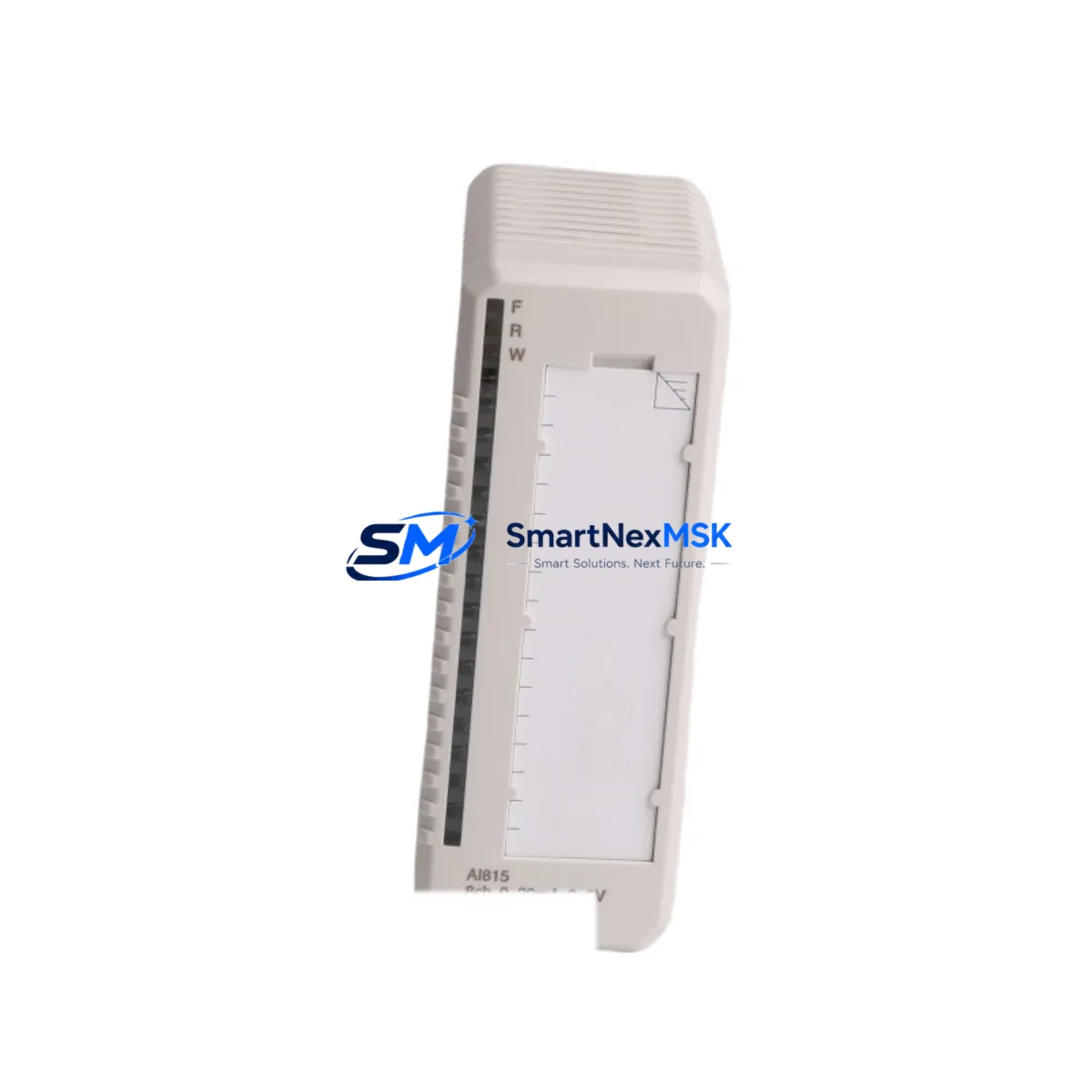

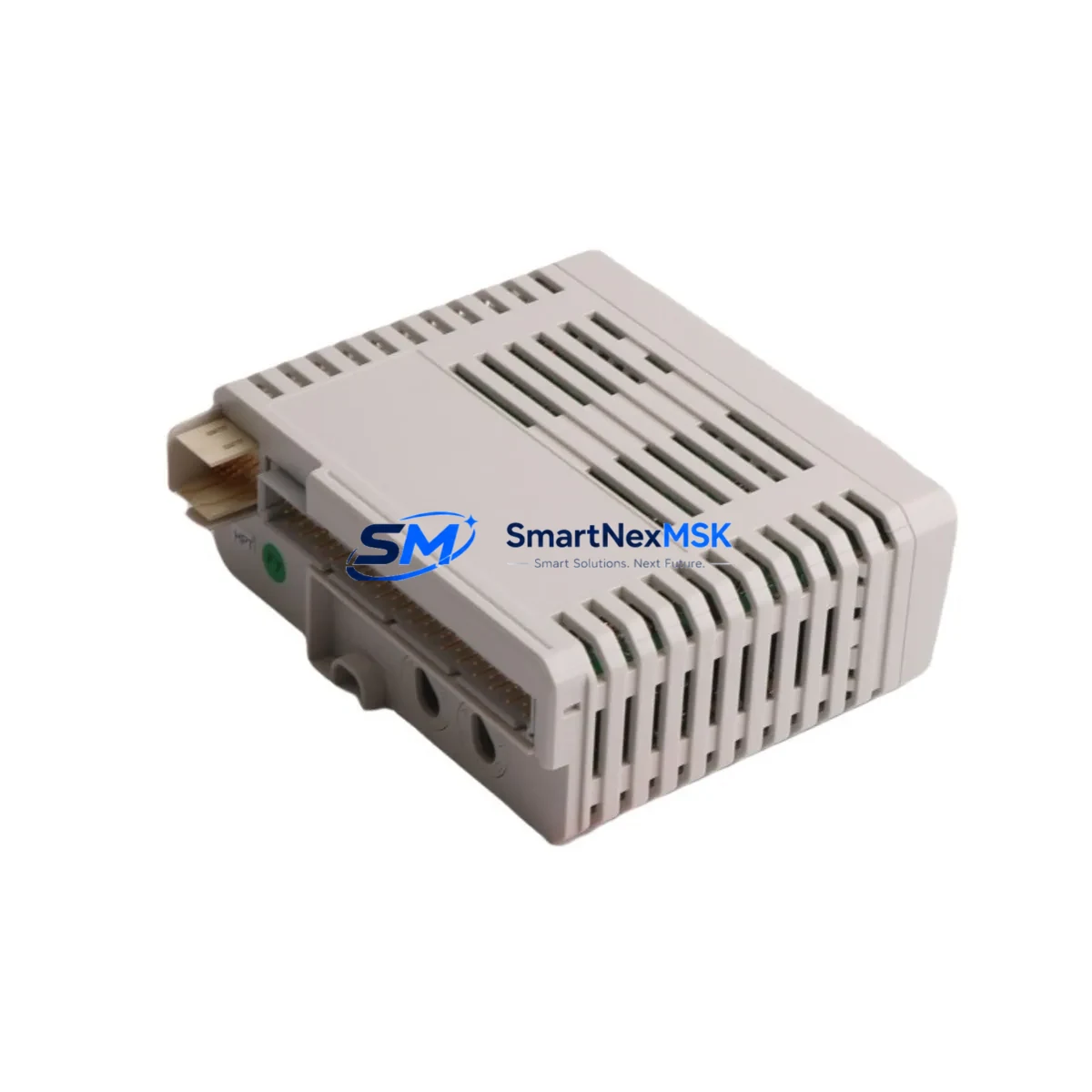

The ABB AI815 (part number 3BSE052604R1) is an 8-channel analog input module designed for the S800 I/O system, widely deployed in AC 800M DCS environments across power generation, oil & gas, chemical processing, and heavy manufacturing facilities. When this module fails or degrades, the impact on process visibility is immediate — analog signals from field transmitters are lost, control loops go open, and operators lose the data they need to maintain safe, stable production. Sourcing a verified original spare quickly is not optional; it is a core element of any credible maintenance strategy.

This listing provides a maintenance-ready, original ABB AI815 3BSE052604R1 spare module, fully tested prior to shipment, backed by a 12-month warranty, and available for fast dispatch to minimize your system downtime. Whether you are responding to an unplanned failure, rotating aging modules during a planned shutdown, or building a strategic spare parts inventory for a long-running AC 800M installation, this module is sourced and prepared to meet industrial-grade reliability expectations.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or procurement engineer plans the replacement of an ABB AI815 3BSE052604R1, the module itself is rarely the only component that requires attention. A thorough site inspection and spare parts review should cover the entire signal chain and cabinet environment to prevent repeat failures and ensure a clean restoration of control.

Start at the field wiring level. The AI815 accepts signals from pressure transmitters, temperature transmitters, and flow meters via the S800 I/O baseplate. If the module has failed due to overvoltage or signal surge, the field cable shielding and terminal blocks on the TB820V2 baseplate should be inspected for damage. The baseplate itself — a common wear item in high-cycle environments — should be checked for cracked connectors or oxidized contacts. Keeping a TB820V2 baseplate as a spare alongside the AI815 is standard practice in facilities running more than five S800 I/O stations.

Move up to the power supply level. The S800 I/O system is powered through the SD821 or SD822 24 VDC power supply modules. A degraded power supply delivering unstable voltage is a frequent root cause of intermittent analog input faults that are misdiagnosed as module failures. During any AI815 replacement, verify the output voltage and ripple of the SD821/SD822 with a calibrated meter. If the power supply is more than five years old in a continuous-duty installation, proactive replacement is advisable.

At the communication and controller level, the AI815 connects to the AC 800M controller — typically a PM861A or PM864A processor module — via the S800 I/O station’s ModuleBus. If the replacement AI815 does not come online after installation, the CI854B or CI858 communication interface module connecting the I/O station to the controller fieldbus should be checked for firmware compatibility and connection integrity. A spare CI854B is a high-value addition to any AC 800M spare parts kit.

For facilities managing older AC 800M installations, the TP830 termination panel and associated signal cables between the I/O station and the marshalling cabinet are also worth inspecting. Corroded or loose terminations at the TP830 can cause erratic readings that persist even after a module swap, leading to unnecessary repeat maintenance events.

Finally, consider the broader I/O mix in the same cabinet. If the AI815 handles critical process inputs, the adjacent AO815 analog output module and DI810 or DO810 digital I/O modules should be visually inspected for LED fault indicators during the same maintenance window. Addressing multiple aging modules in a single planned outage is far more cost-effective than responding to sequential unplanned failures.

Site Replacement Workflow

Step 1 — Pre-replacement verification. Before removing the faulty AI815, document the current channel configuration using ABB Control Builder or the Harmony system configuration tool. Note the module address, channel assignments, signal ranges, and any active diagnostics. This record will be essential for commissioning the replacement module.

Step 2 — Safe isolation. Place the affected control loops in manual mode at the DCS operator station. Inform the operations team that analog inputs from this module will be unavailable during the swap. For safety-instrumented loops, follow your site’s Management of Change procedure before proceeding.

Step 3 — Physical replacement. The AI815 is a hot-swap capable module within the S800 I/O architecture, meaning it can be replaced without powering down the entire I/O station in most configurations. Confirm hot-swap support for your specific station firmware version before proceeding. Remove the faulty module by pressing the release latch, slide the new AI815 3BSE052604R1 into the baseplate slot, and verify the module seating is secure.

Step 4 — Configuration restore. The S800 I/O system will automatically download the module configuration from the AC 800M controller upon insertion if the system is online. Verify that all eight channels report correct values within expected engineering unit ranges. Compare live readings against field instrument local indicators to confirm signal integrity.

Step 5 — Return to automatic. Once all channels are verified, return control loops to automatic mode and confirm stable operation for a minimum of 15 minutes before closing the maintenance work order. Log the replacement in your CMMS with the module serial number, installation date, and warranty expiry (12 months from shipment date).

This workflow applies equally to planned preventive replacements and emergency corrective maintenance, and is compatible with both new and refurbished-to-spec AI815 modules supplied by SMARTNEXMSK.

Spare Parts Support FAQ

Q1: Is this ABB AI815 3BSE052604R1 an original part, and how is it tested before shipment?
Yes. Every AI815 3BSE052604R1 supplied by SMARTNEXMSK is sourced from verified supply channels and undergoes functional testing prior to dispatch. Testing covers channel signal integrity, bus communication, and LED diagnostic response. A 12-month warranty is provided from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Q2: What is the recommended spare parts inventory strategy for an AC 800M / S800 I/O installation?
For installations with more than three S800 I/O stations, we recommend maintaining at least one AI815 per station type as a cold spare, alongside one SD821/SD822 power supply module and one CI854B communication interface. For critical process lines, a hot-standby spare stored in the control room cabinet is advisable. SMARTNEXMSK supports long-term supply agreements to ensure consistent availability of these modules over the system lifecycle.

Q3: Can the AI815 3BSE052604R1 replace older ABB S800 analog input modules such as the AI810 or AI820?
The AI815 is not a direct pin-compatible replacement for the AI810 or AI820, as these modules differ in channel count, signal type support, and baseplate compatibility. However, in many AC 800M system upgrades, the AI815 is used to consolidate multiple older single-type input modules into a single multi-range module. Compatibility must be verified against your specific baseplate type and Control Builder configuration before substitution. Contact our technical team for a compatibility assessment.

Q4: How quickly can the AI815 3BSE052604R1 be shipped, and what documentation is provided?
In-stock modules are dispatched within 1–3 business days. Each shipment includes a test report, packing list, and warranty certificate. Express international shipping is available for emergency maintenance situations. For large-quantity orders or long-term supply contracts, lead time and pricing can be confirmed by contacting our sales team directly.
