ABB AI830A 3BSE040662R1 Spare for S800 Automation

ABB AI830A 3BSE040662R1 Spare for S800 Automation: Precision RTD Input Replacement for Industrial Downtime Control

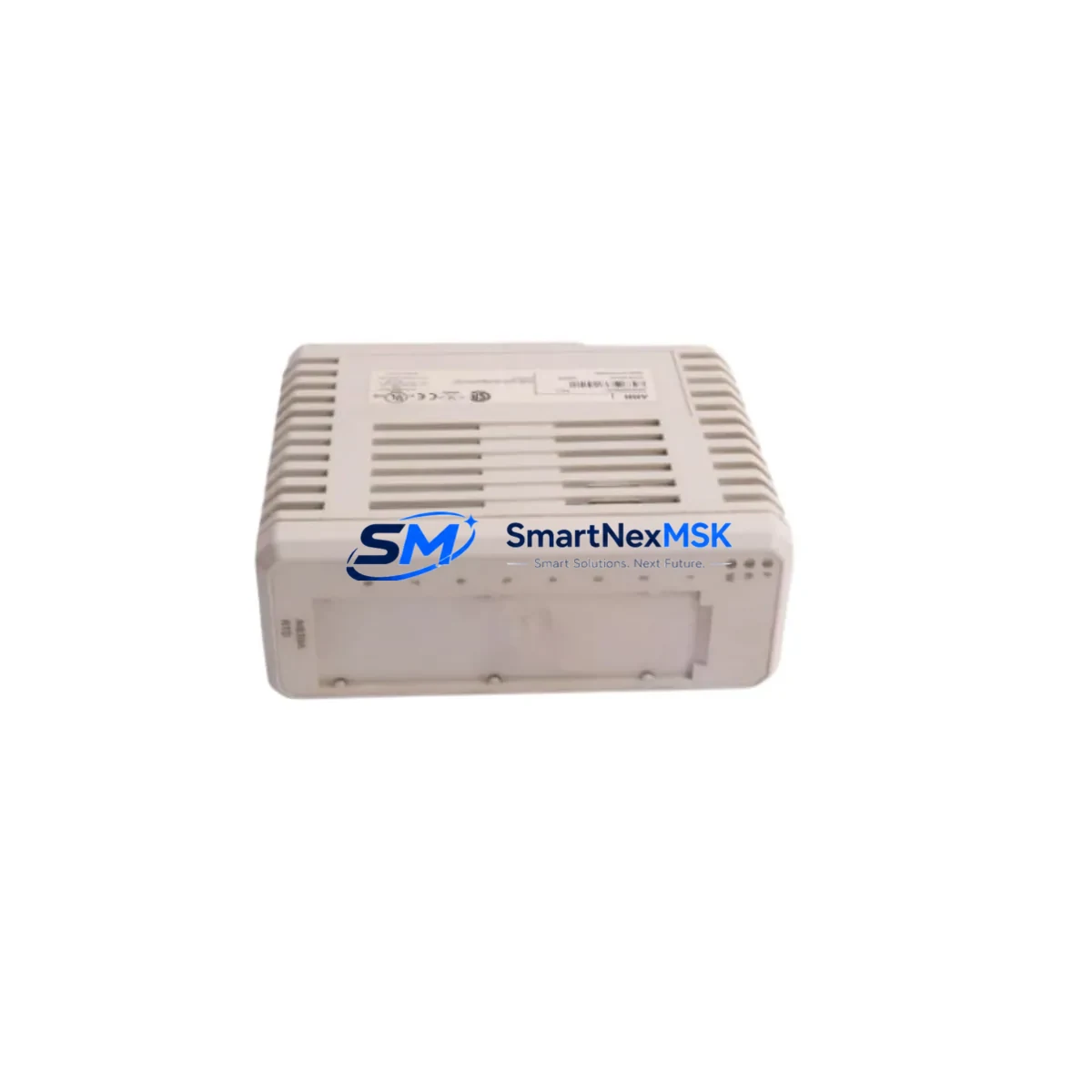

The ABB AI830A (catalog reference 3BSE040662R1) is an 8-channel RTD analog input module engineered for the ABB S800 I/O system and AC800M process controller platform. In continuous-process industries — including oil & gas, pulp & paper, power generation, and chemical processing — this module serves as a critical measurement node for temperature-based process control loops. When an AI830A fails or degrades, the downstream impact on PID control, alarm management, and safety interlock logic can be immediate and severe. Maintaining a verified spare in your parts inventory is the most reliable strategy for minimizing unplanned downtime and protecting production continuity.

This listing supplies an original ABB AI830A 3BSE040662R1 module — not a third-party substitute — sourced, inspected, and dispatched with a 12-month warranty. Each unit undergoes functional verification prior to shipment to confirm channel integrity, signal accuracy, and bus communication readiness.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or reliability engineer schedules replacement of the AI830A 3BSE040662R1, the scope of inspection should extend beyond the module itself. The S800 I/O architecture distributes I/O across a shared backplane and communication bus, meaning a single degraded component can affect adjacent modules and upstream controller logic.

Begin with the TB820V2 ModuleBus Optical Port — the communication interface between the S800 I/O station and the AC800M controller. A worn or contaminated optical fiber connection is a common root cause of intermittent AI830A read errors that are misdiagnosed as module failure. Inspect and clean the optical connectors before condemning the input module.

Next, verify the SD821 or SD822 power supply module feeding the I/O station. Voltage sag or ripple on the 24 VDC rail will cause RTD measurement drift across all channels of the AI830A, producing false temperature alarms. A calibrated power supply check should be part of every RTD module replacement procedure.

Review the TK850V007 or TK850V025 ModuleBus cable connecting the I/O station to the controller cabinet. Cable degradation, particularly in high-vibration or high-temperature environments, introduces communication latency that manifests as sporadic channel dropouts on the AI830A.

For field wiring, inspect the TB807 or TB810 terminal base on which the AI830A is mounted. Loose terminal screws, oxidized contacts, or moisture ingress at the terminal base are frequent causes of high-resistance RTD measurement errors. Replace the terminal base if contact resistance exceeds specification.

In the same control cabinet, check the AI810 8-channel 4–20 mA analog input module and AO810V2 analog output module for similar symptoms — shared power rail issues will affect all analog I/O modules simultaneously. If the AI830A is failing, a cabinet-wide analog I/O audit is warranted.

Where the process uses signal conditioning between field transmitters and the S800 rack, inspect any installed signal isolators or loop-powered barriers (such as MTL or P+F HART isolators) in the RTD signal path. A failing isolator will produce the same symptom profile as a defective AI830A channel.

For plants running extended S800 I/O strings, confirm the DP820 PROFIBUS communication module or CI854AK PROFIBUS DP adapter is operating within normal diagnostic parameters. Communication module faults can mask or amplify AI830A channel errors in the AC800M fault log.

Finally, if the control system includes an ABB Panel 800 or CP600 HMI displaying RTD trend data, verify that the HMI tag configuration correctly maps to the replacement module’s channel addresses after installation. Incorrect tag mapping post-replacement is a common commissioning error that delays return to normal operation.

Site Replacement Workflow

Step 1 — Pre-replacement verification. Confirm the failed module’s catalog number (3BSE040662R1) against the S800 I/O station label and the AC800M hardware configuration in Control Builder M. Verify that the replacement AI830A carries the same hardware revision or a confirmed compatible revision. ABB’s backward compatibility policy for S800 I/O modules generally permits direct substitution within the AI830A product family without software reconfiguration.

Step 2 — Safe isolation. The S800 I/O system supports hot-swap replacement of I/O modules without powering down the I/O station, provided the process loop is placed in manual mode and the relevant controller channels are forced to a safe output state. Coordinate with the control room operator before extraction.

Step 3 — Module extraction and installation. Release the module latch, slide the AI830A from the TB807/TB810 terminal base, and insert the replacement unit. The module will self-identify on the ModuleBus within seconds. Confirm the green RUN LED illuminates and no fault LEDs are active.

Step 4 — Channel verification. In Control Builder M or the AC800M diagnostic interface, confirm all 8 RTD channels return valid engineering-unit values. Compare live readings against reference thermometers or known-good process values to validate measurement accuracy before returning the loop to automatic control.

Step 5 — Documentation. Record the replacement in the plant CMMS, update the spare parts inventory, and flag the next scheduled replenishment of the AI830A spare. For critical process units, a minimum stock of one verified spare per I/O station is recommended.

Spare Parts Support FAQ

Q1: Is this AI830A 3BSE040662R1 a direct drop-in replacement for older AI830 revisions?
Yes. The AI830A is the current production revision of the AI830 RTD input module and is backward compatible with all S800 I/O stations running AC800M firmware 5.0 and above. No hardware configuration changes are required in Control Builder M for a like-for-like substitution. For systems running earlier firmware, contact our technical team to confirm revision compatibility before ordering.

Q2: How is the module tested before shipment?
Each AI830A 3BSE040662R1 is powered up and subjected to a functional channel scan across all 8 RTD inputs prior to dispatch. Communication bus handshake, LED status, and measurement accuracy are verified. Units that do not pass functional verification are not shipped. A test report is available on request.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects, functional failure under normal operating conditions, and DOA (dead-on-arrival) units. It does not cover damage resulting from incorrect installation, overvoltage, or environmental conditions outside the module’s rated specification. Warranty claims are processed with priority turnaround to minimize your plant downtime.

Q4: Can you support long-term or blanket spare parts orders for S800 I/O systems?
Yes. We support scheduled spare parts programs for plants managing aging S800 I/O infrastructure. Long-term supply agreements, consignment stock arrangements, and multi-SKU procurement packages are available. Contact our sales team to discuss your site’s specific inventory strategy and annual consumption requirements.
