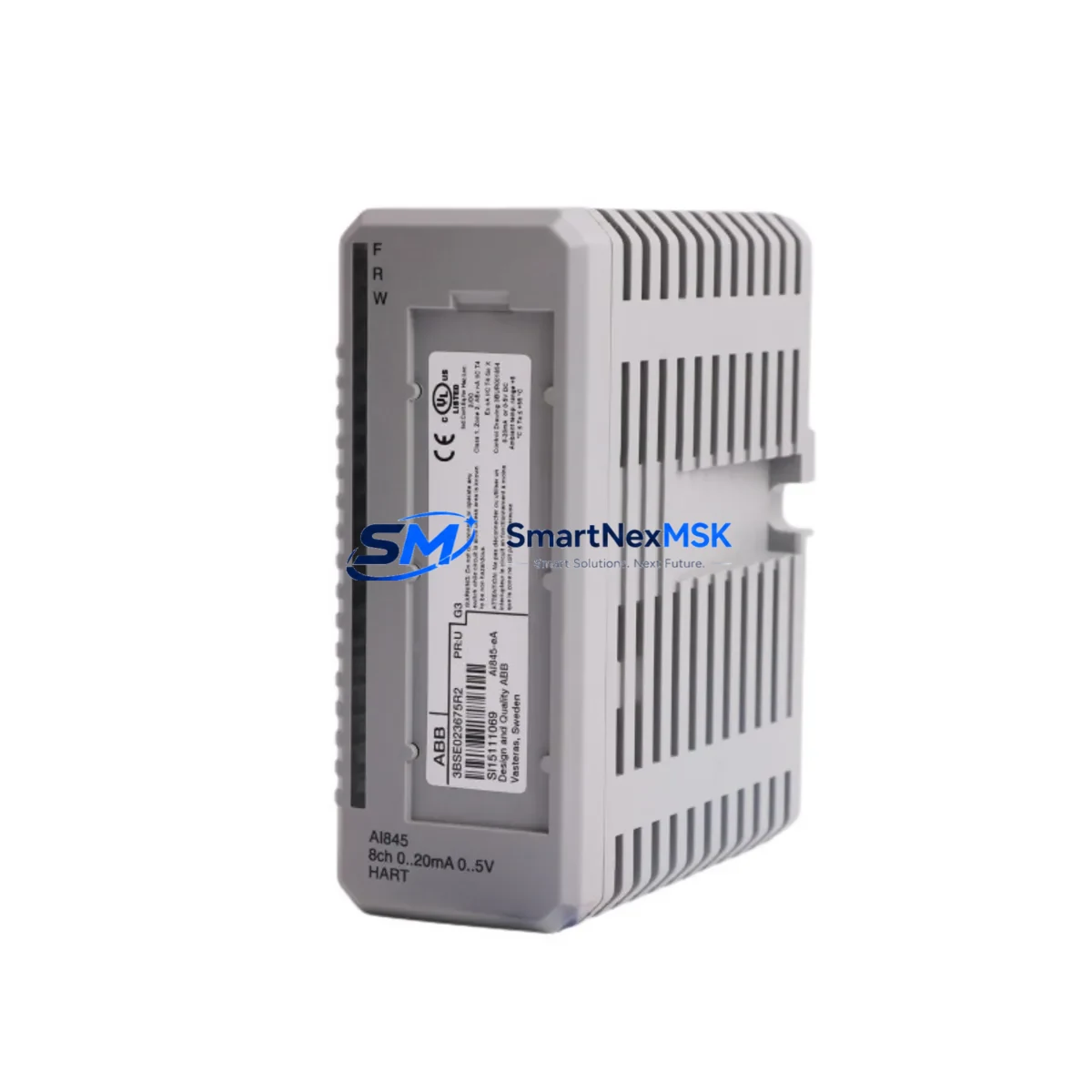

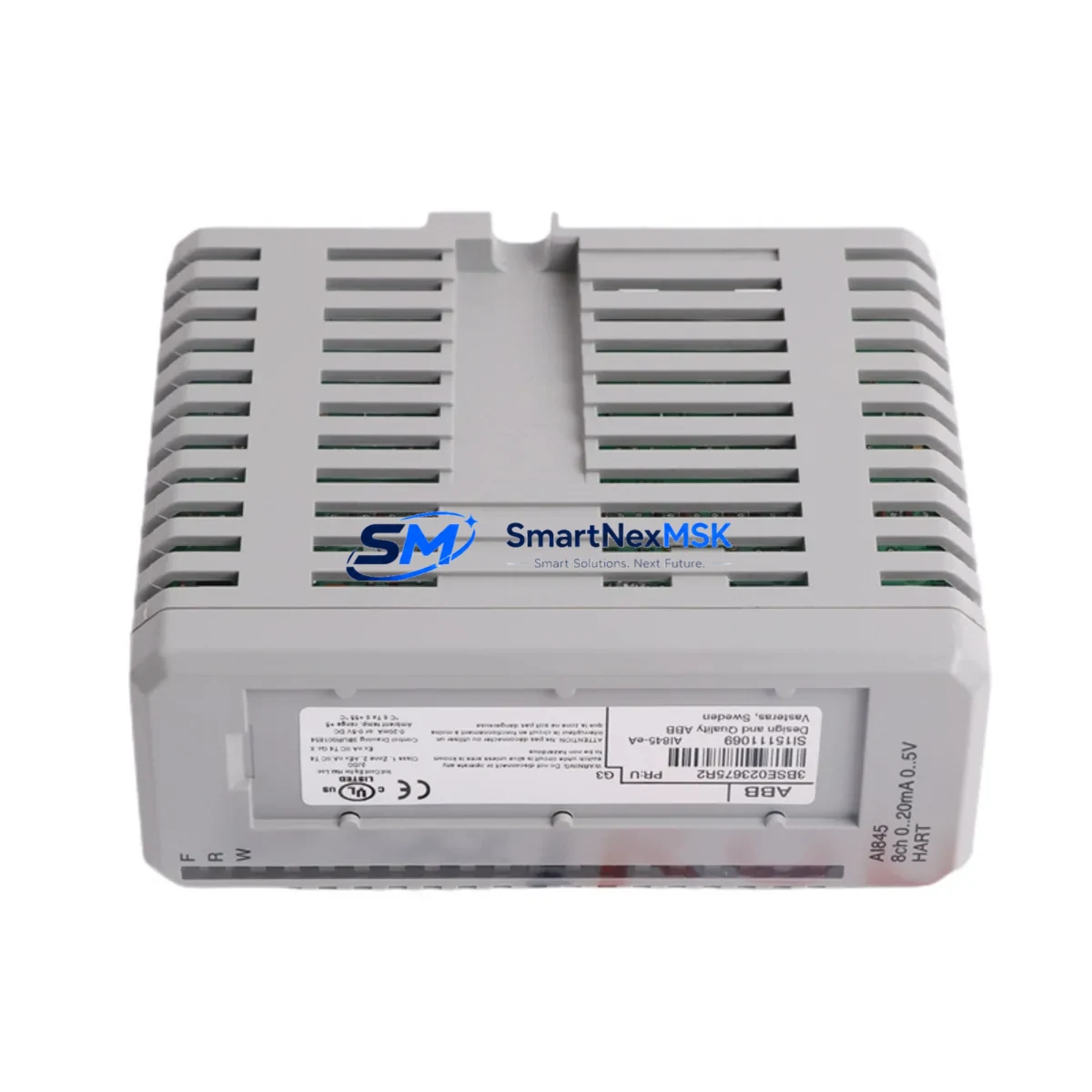

The ABB AI845 (3BSE023675R1) is a 16-channel, 16-bit analog input module designed for the S800 I/O system, fully compatible with the AC800M Distributed Control System (DCS). In process industries — including oil & gas, power generation, chemical processing, and pulp & paper — this module serves as a critical signal acquisition node, converting 4–20 mA and voltage signals from field transmitters into high-resolution digital values for the AC800M controller. Maintaining a verified spare of the AI845 in your parts inventory is a fundamental strategy for minimizing unplanned downtime and protecting continuous production.

When an AI845 fails or degrades in the field, the consequences extend beyond a single I/O channel. Loss of analog input data can trigger process alarms, force manual override, or cause a controlled shutdown of an entire process unit. Maintenance engineers and reliability teams managing AC800M-based control systems should treat the AI845 as a Tier-1 critical spare — one that must be available on-site or through a verified supplier with short lead times.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing an AI845 in an operating AC800M system is rarely an isolated task. A disciplined maintenance engineer will use the module swap as an opportunity to inspect the surrounding I/O station and control cabinet for related wear or latent faults. The following components should be evaluated as part of any AI845 replacement workflow:

S800 I/O Station Backplane & Power Supply (SA811, SA812): The AI845 draws power from the S800 station backplane. Before installing a replacement module, verify that the station power supply — typically an SA811 or SA812 — is delivering stable voltage within specification. A degraded power supply can cause intermittent channel errors that mimic module failure.

ModuleBus Coupler (CI830, CI840, CI854A): The AI845 communicates with the AC800M controller via a ModuleBus coupler. If the AI845 replacement does not resolve the fault, the CI830 or CI854A coupler should be inspected for firmware version compatibility and communication integrity. Couplers with outdated firmware may not correctly enumerate a replacement module.

Analog Output Modules (AO845, AO890): In closed-loop control applications, the AI845 analog inputs are paired with analog output modules such as the AO845 or AO890. When replacing an AI845, verify that the corresponding output channels are functioning correctly and that loop calibration is intact after the swap.

Digital Input/Output Modules (DI810, DO810, DI885): Control cabinets housing the AI845 typically also contain digital I/O modules for interlock and permissive logic. During a planned maintenance window, inspect DI810 and DO810 modules for contact wear, LED status anomalies, and terminal block integrity.

Signal Isolators & Barriers: Field transmitters connected to the AI845 often pass through galvanic isolators or Zener barriers in hazardous-area installations. Degraded isolators can introduce signal offset or noise that appears as AI845 channel drift. Replace suspect isolators as part of the corrective maintenance cycle.

Terminal Blocks & Field Wiring: Loose or corroded terminal connections on the AI845 field wiring are a common root cause of intermittent analog faults. Inspect all terminal blocks, verify torque on screw terminals, and check for insulation degradation on signal cables during the replacement procedure.

AC800M Controller Module (PM864, PM866): If multiple S800 I/O modules are reporting faults simultaneously, the root cause may reside in the AC800M processor module rather than the I/O hardware. Verify PM864 or PM866 firmware version and check for controller-level diagnostics before replacing individual I/O modules.

Redundant Communication Cables (CI854A Redundant Coupler): In redundant S800 configurations, the CI854A coupler uses dual PROFIBUS or Optical ModuleBus links. Inspect fiber optic cables and connectors for contamination or bend-radius violations that could cause intermittent communication loss attributed to the AI845.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Before removing the faulty AI845, document all channel configurations, engineering unit ranges, and alarm setpoints from the AC800M engineering tool (Control Builder M). Export the current hardware configuration as a backup. Confirm the replacement AI845 (3BSE023675R1) matches the installed firmware baseline if firmware-dependent features are in use.

Step 2 — Safe Module Removal: The S800 I/O system supports hot-swap replacement without powering down the I/O station, provided the process permits temporary loss of the affected analog channels. Notify the control room operator before removal. Slide the AI845 out of the station rail and inspect the backplane connector for bent pins or contamination.

Step 3 — Module Installation & Auto-Configuration: Insert the replacement AI845 into the same slot position. The AC800M system will automatically detect the new module and restore the previously configured channel parameters from the controller database. No manual re-parameterization is required in standard installations.

Step 4 — Channel Verification: After installation, verify all 16 analog input channels against known field transmitter values. Use the AC800M online diagnostic view to confirm channel status, signal quality, and absence of hardware fault codes. Perform a loop check on critical process channels before returning the system to automatic control.

Step 5 — Documentation & Spare Replenishment: Record the replacement in the plant maintenance management system (CMMS). Immediately initiate a purchase order for a replacement AI845 spare to restore your on-site buffer stock. A minimum of one verified spare per installed AI845 is recommended for critical process units.

Spare Parts Support FAQ

Q1: Is this AI845 (3BSE023675R1) compatible with all AC800M controller versions?
The AI845 is compatible with all AC800M controller generations (PM851 through PM866) when used with a supported S800 ModuleBus coupler (CI830, CI840, or CI854A). Compatibility is determined by the coupler firmware and the Control Builder M hardware library version. We recommend confirming your coupler firmware version before installation in legacy systems running older AC800M software baselines.

Q2: What testing is performed before shipment?
Each AI845 unit undergoes functional verification prior to dispatch, including power-on self-test confirmation and visual inspection of the backplane connector and module housing. Units are shipped in anti-static packaging with individual identification. A 12-month warranty covers hardware defects identified under normal operating conditions.

Q3: How should I manage AI845 spare inventory for a large AC800M installation?
For installations with 10 or more AI845 modules, a minimum spare ratio of 10% (at least one module) is recommended. For critical process units with no redundant I/O path, maintain at least two verified spares on-site. Spares should be stored in a climate-controlled environment, inspected annually, and rotated into service on a first-in, first-out basis to prevent shelf degradation.

Q4: Can the AI845 replace older S800 analog input modules such as the AI810 or AI820?
The AI845 is not a direct drop-in replacement for the AI810 (8-channel) or AI820 (8-channel HART) due to differences in channel count, connector type, and configuration parameters. However, in system upgrade projects where the I/O station is being reconfigured, the AI845 can replace two AI810 modules in a consolidated design. Compatibility must be verified in Control Builder M before committing to a hardware change in a running system.
