ABB AI910S 3KDE175511L9100 Maintenance-Ready Spare S800 Automation

ABB AI910S 3KDE175511L9100 Maintenance-Ready Spare S800 Automation

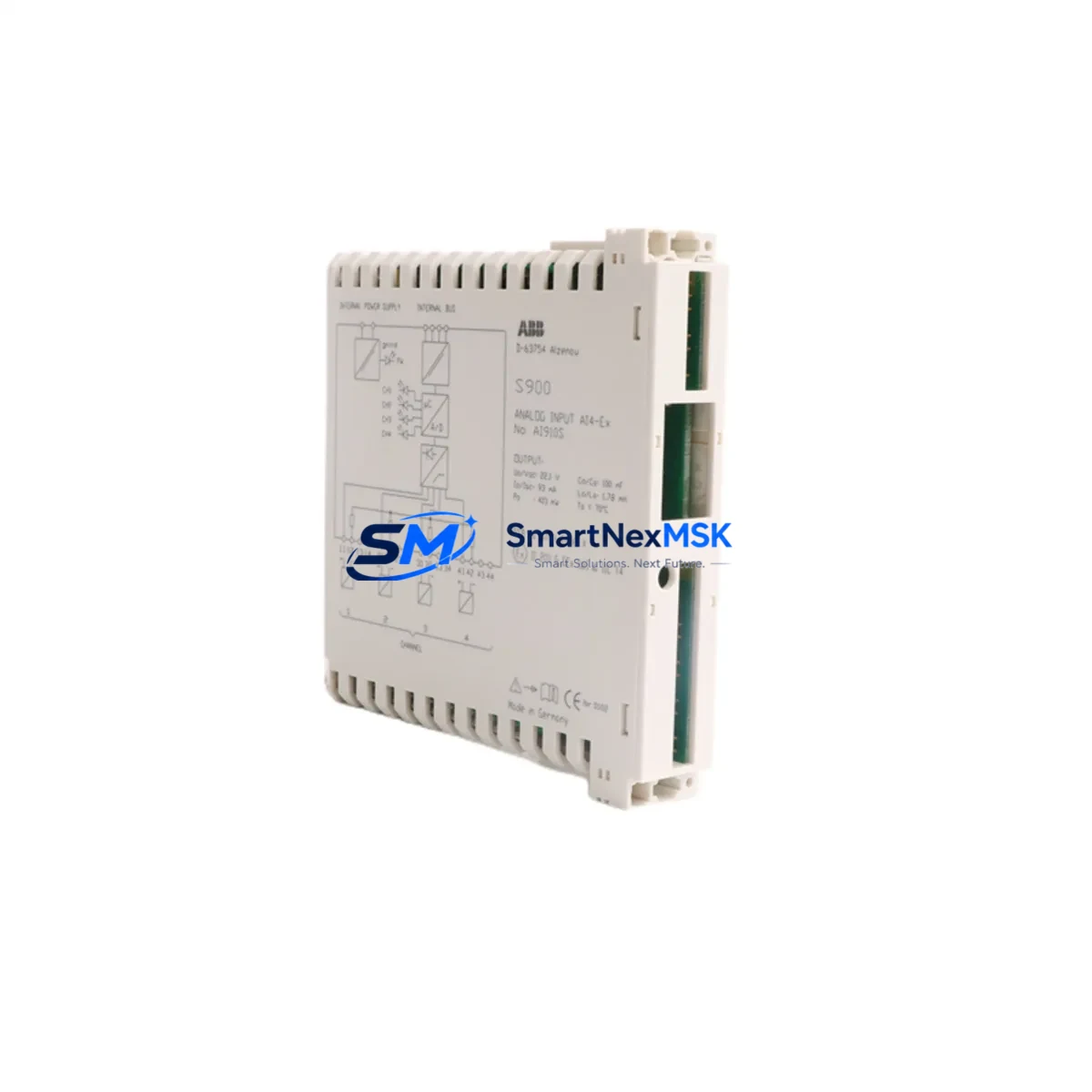

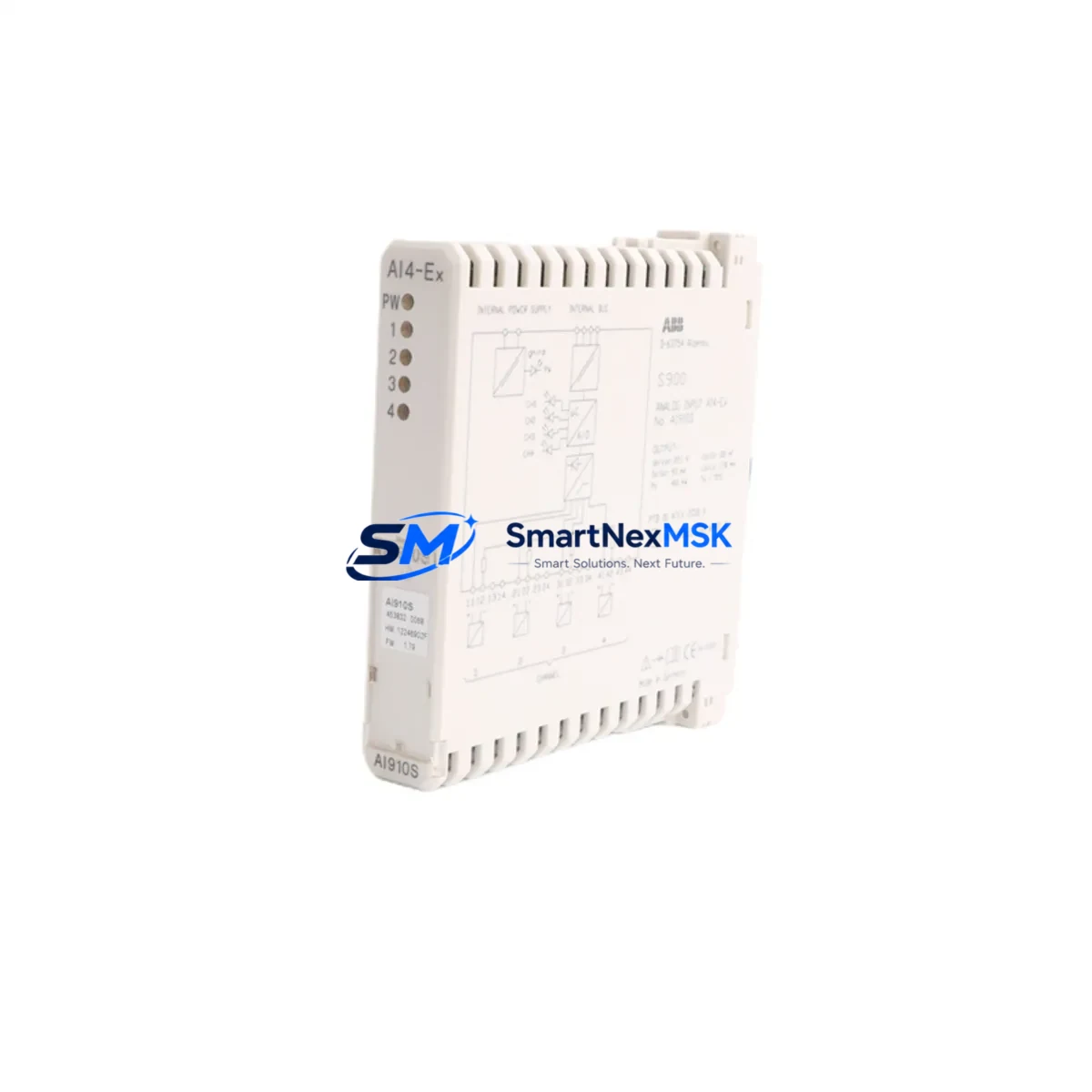

The ABB AI910S (3KDE175511L9100) is a 4-channel analog input module engineered for the S800 I/O system, fully compatible with ABB’s AC 800M process automation controller platform. In industrial facilities where continuous uptime is non-negotiable — petrochemical plants, pulp and paper mills, power generation stations, and water treatment infrastructure — this module serves as a critical signal acquisition node between field instrumentation and the control system. Maintaining a verified spare of the AI910S in your parts inventory is one of the most cost-effective strategies for minimizing unplanned downtime and protecting process integrity.

Each unit supplied by SMARTNEXMSK is sourced from authorized distribution channels, individually tested prior to dispatch, and backed by a 12-month warranty. We specialize in long-term supply continuity for legacy and current-generation ABB S800 I/O hardware, ensuring your maintenance team can execute rapid replacements without waiting weeks for OEM lead times.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or reliability engineer schedules a planned inspection or responds to an analog input fault alarm on an AC 800M system, replacing the AI910S module is rarely an isolated task. A thorough site replacement procedure should include inspection of the associated MTU (Module Termination Unit), which provides the physical wiring interface and must be verified for terminal corrosion, loose field wiring, and correct shielding continuity. The CI854 PROFIBUS DP communication interface module or CI840 ModuleBus coupler connecting the S800 I/O cluster to the AC 800M controller should also be checked for firmware version compatibility and communication error counters.

Field wiring connected to the AI910S typically carries 4–20 mA signals from transmitters such as pressure transducers, RTD temperature elements, or flow meters. During replacement, engineers should verify loop power supply integrity — the SD821 or SD822 24 VDC power supply modules feeding the S800 rack should be load-tested and their output voltage confirmed within tolerance. A degraded power supply is a common root cause of intermittent analog input errors that are misdiagnosed as module failure.

For facilities running mixed I/O configurations, it is good practice to simultaneously inspect adjacent modules in the same S800 cluster: the AO910S analog output module, DI910 digital input module, and DO910 digital output module. These modules share the same backplane bus and power rail, meaning a fault in one can stress neighboring modules. Relay output modules such as the RB820 should also be checked for contact wear if they are part of the same control loop interlock circuit.

Signal isolation is another critical consideration. Where the AI910S interfaces with field devices in electrically noisy environments — variable frequency drives, large motor starters, or high-voltage switchgear — installing or verifying signal isolators and surge protection barriers on the input terminals is strongly recommended. Keeping a stock of DIN-rail-mounted signal isolators alongside your AI910S spare reduces the risk of a replacement module being damaged by ground loops or transient overvoltages immediately after installation.

For older AC 800M systems approaching end-of-support lifecycle, maintaining a documented spare parts list that includes the AI910S, its associated MTU, the relevant CI coupler, and at least one PM8xx controller module is the foundation of a resilient maintenance strategy. SMARTNEXMSK maintains long-term inventory of S800 I/O hardware to support exactly this kind of lifecycle extension program.

Site Replacement Workflow

Step 1 — Fault Isolation: Confirm the fault is isolated to the AI910S by reviewing the AC 800M diagnostic log in Control Builder M. Check for “Module Missing” or “Hardware Fault” events on the affected I/O cluster address.

Step 2 — Safe Isolation: Place the affected control loop in manual mode at the DCS operator station. Isolate field power to the transmitters connected to the faulty module using the appropriate loop isolation switches or fused terminal blocks.

Step 3 — Module Removal: The AI910S is hot-swappable on supported AC 800M firmware versions. Confirm hot-swap capability in your system documentation before proceeding. If hot-swap is not enabled, follow your site’s control system shutdown procedure for the affected cluster.

Step 4 — Replacement Installation: Slide the new AI910S onto the MTU until the locking tab engages. The module address is set by the MTU position — no manual addressing is required. The AC 800M controller will automatically detect and configure the replacement module using the stored hardware configuration.

Step 5 — Verification: Confirm all four analog input channels return to expected engineering unit values at the operator station. Check for any residual alarms. Return control loops to automatic mode and document the replacement in the site maintenance log.

This workflow is compatible with both direct MTU-mounted configurations and extended S800 clusters connected via fiber-optic ModuleBus extenders. The AI910S replacement process does not require controller restart in hot-swap mode, making it one of the fastest field repairs available in the AC 800M architecture — a key advantage for facilities with strict maximum allowable downtime targets.

Spare Parts Support FAQ

Q1: Is the AI910S 3KDE175511L9100 compatible with all AC 800M controller versions?
The AI910S is compatible with all AC 800M PM8xx series controllers (PM851 through PM866) running S800 I/O firmware. Compatibility with specific firmware versions should be verified against ABB’s S800 I/O hardware compatibility matrix. SMARTNEXMSK can assist with compatibility verification prior to order confirmation.

Q2: What pre-shipment testing is performed on each AI910S unit?
Every AI910S unit undergoes a power-on functional test verifying module initialization, channel communication, and self-diagnostic response before dispatch. Units that fail any test stage are quarantined and not shipped. A test record is available upon request for quality-critical procurement processes.

Q3: How should the AI910S be stored as a long-term spare?
Store in original anti-static packaging in a dry environment between -25°C and +70°C with relative humidity below 95% non-condensing. Avoid storage near strong electromagnetic fields or corrosive atmospheres. Inspect annually for physical damage and re-test if stored for more than 24 months before deployment.

Q4: What is covered under the 12-month warranty?
The 12-month warranty covers functional defects arising under normal operating conditions consistent with ABB’s published environmental and electrical specifications for the AI910S. It does not cover damage resulting from incorrect installation, overvoltage events beyond module ratings, or physical mishandling. Warranty claims are processed with a target response time of 3 business days from receipt of the returned unit.
