ABB AI930N 3KDE175513L9300 Safety-Enhanced HART Analog Input

ABB AI930N 3KDE175513L9300 Safety-Enhanced HART Analog Input Module: Reliable Control in Harsh Industrial Sites

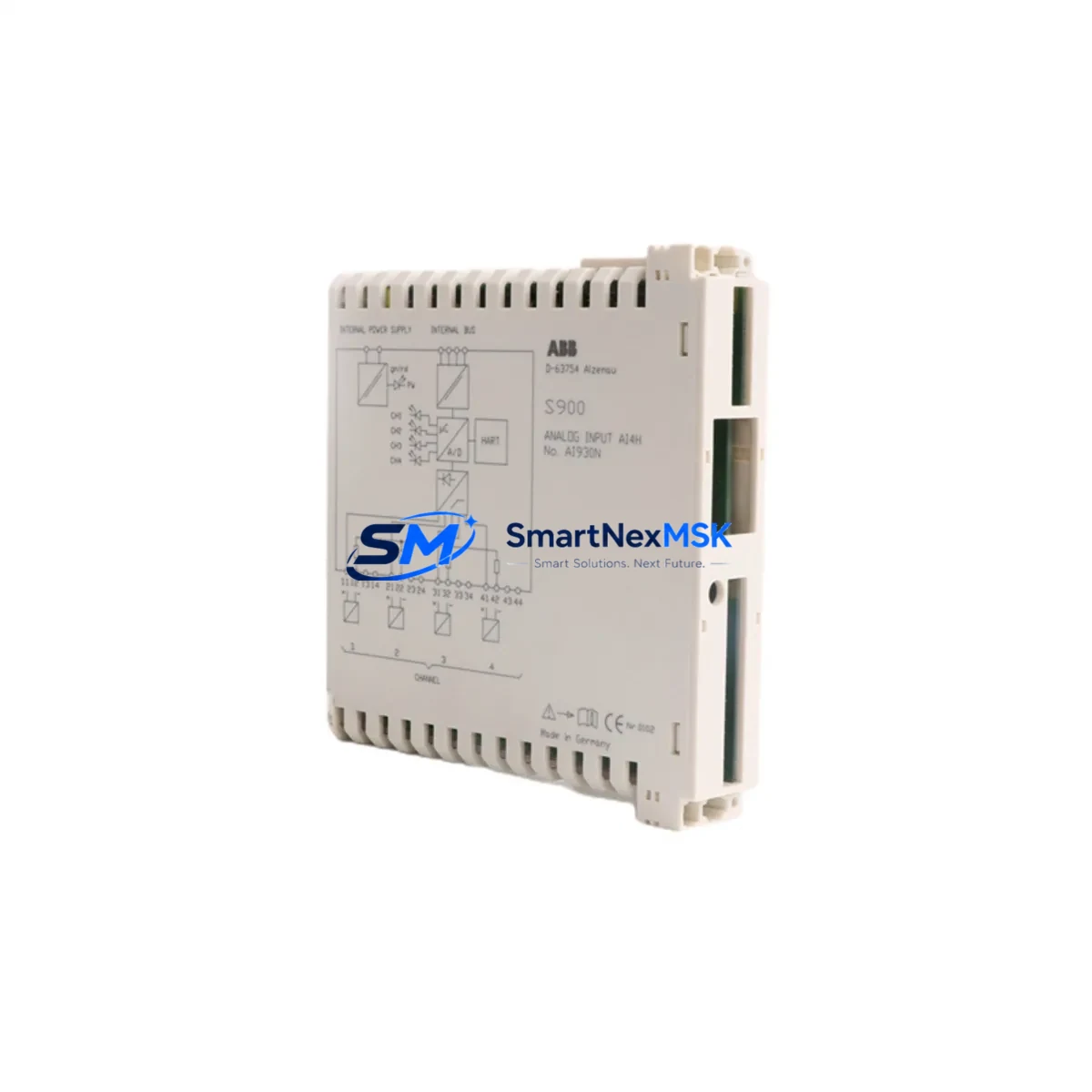

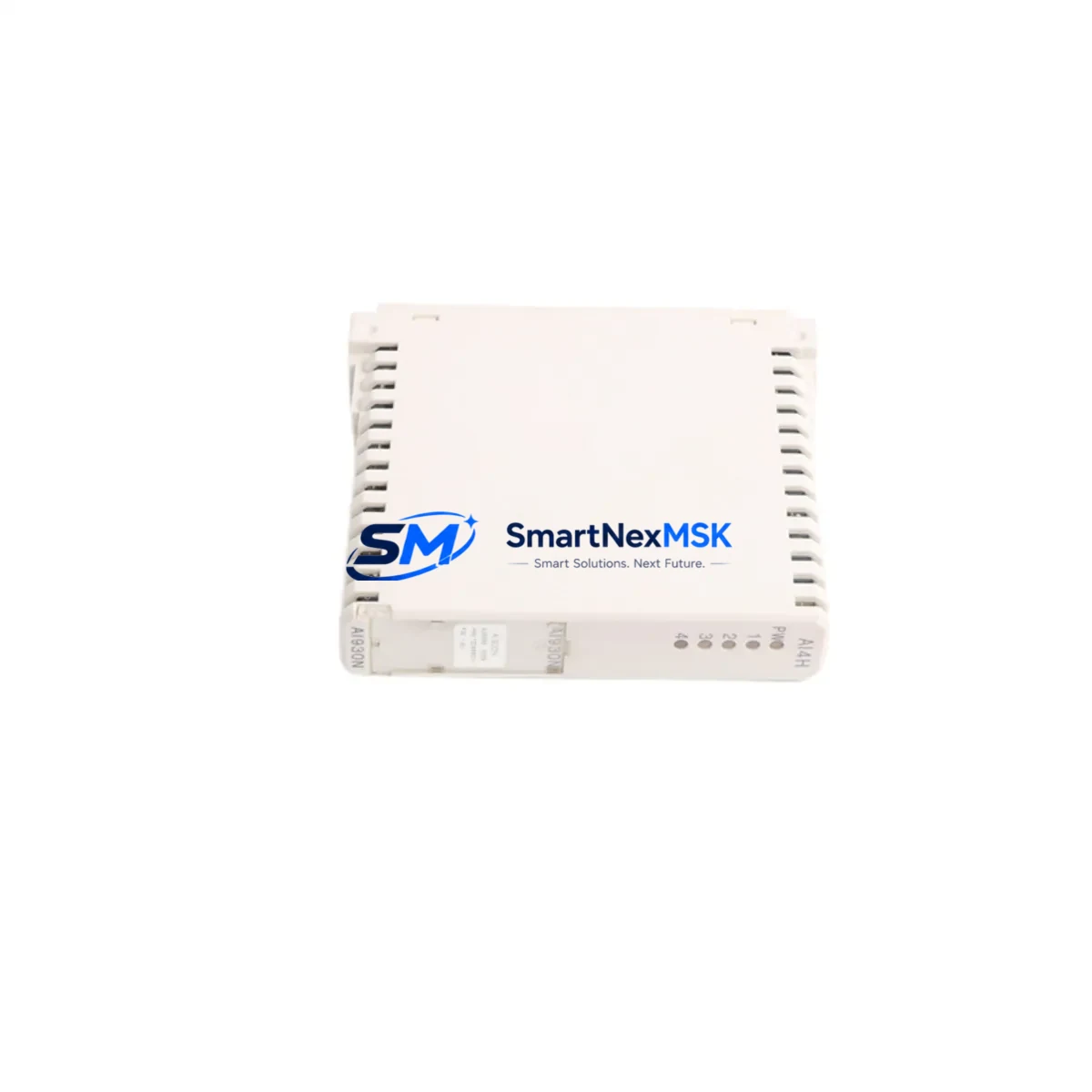

The ABB AI930N (3KDE175513L9300) is a ruggedized HART analog input module engineered for mission-critical process control within the ABB AC800M Distributed Control System (DCS). Designed to operate reliably in high-load, high-interference, and continuous-production environments, this module delivers stable 4–20 mA signal acquisition with integrated HART communication — making it an indispensable component in safety-critical control cabinets across petrochemical, power generation, mining, water treatment, metallurgy, and port automation facilities.

In demanding industrial sites where signal integrity directly impacts personnel safety and process continuity, the AI930N’s robust hardware design minimizes the risk of signal drift, module misoperation, and communication anomalies. Its galvanic isolation architecture protects the control loop from ground loops and surge events, while its wide operating temperature range ensures consistent performance in both climate-controlled control rooms and harsh field enclosures.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered AC800M control cabinet, the AI930N does not operate in isolation — it functions as part of a layered protection architecture. The module interfaces directly with the ABB S900 I/O bus, receiving power and exchanging data through the backplane without requiring additional field wiring for bus communication, which inherently reduces connection points and potential failure nodes.

For power supply integrity, the AI930N relies on a stable 24 VDC rail typically sourced from redundant ABB SD823 or SD833 power supply modules. In installations where power quality is a concern — such as sites near heavy motor drives or arc furnaces — pairing the power rail with a dedicated surge protection device (SPD) rated to IEC 61000-4-5 Level 3 is strongly recommended to prevent transient-induced module faults.

On the communication side, the AI930N integrates with the ABB CI854A or CI857 PROFIBUS/HART communication interface modules, enabling transparent HART pass-through to the AC800M controller. This allows field device diagnostics — such as transmitter health status from Endress+Hauser Promag or Rosemount 3051 pressure transmitters — to be surfaced directly in the DCS without additional hardware. In safety interlock loops, this diagnostic transparency is critical for detecting instrument degradation before it causes a spurious trip or, worse, a missed shutdown.

To protect the analog signal wiring from electromagnetic interference in high-noise environments — common in proximity to variable frequency drives (VFDs), large contactors, or high-voltage switchgear — shielded twisted-pair cables terminated at a dedicated ABB TB820 or TB825 terminal base should be used. The terminal base provides a secure, vibration-resistant connection point that maintains signal continuity even under mechanical stress.

For installations in hazardous areas (Zone 1 or Zone 2), the AI930N is typically paired with Zener barriers or galvanic isolators (such as those from the P+F KFD or MTL700 series) installed in the safe-area cabinet, ensuring that intrinsically safe field circuits remain within energy limits defined by IEC 60079-11. This configuration is standard practice in upstream oil and gas, chemical processing, and pharmaceutical manufacturing where explosive atmospheres are present.

Redundancy-conscious engineers often deploy the AI930N alongside the ABB TP830 or TP854 termination panels to enable hot-swap module replacement without interrupting field wiring — a key feature for continuous-process plants where scheduled downtime is measured in hours per year, not days.

Critical Industrial Safety Applications

Petrochemical & Refinery: In crude distillation units and catalytic cracking plants, the AI930N monitors temperature, pressure, and flow transmitters across critical process streams. Its HART capability allows online calibration verification of field instruments without breaking the control loop, supporting SIL-rated safety instrumented systems (SIS) where proof-test intervals must be documented and minimized.

Power Generation: In coal-fired and combined-cycle power plants, the module acquires analog signals from boiler drum level transmitters, turbine bearing temperature sensors, and generator cooling system monitors. Signal drift in these loops can trigger unnecessary turbine trips or, in the worst case, mask developing faults — the AI930N’s 16-bit resolution and galvanic isolation directly mitigate both risks.

Mining & Mineral Processing: Conveyor belt load cells, crusher motor current sensors, and flotation cell level transmitters all feed into AC800M-based control systems where the AI930N provides reliable signal acquisition despite the high vibration, dust, and electrical noise characteristic of mining environments.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities use the AI930N to monitor flow, pH, turbidity, and dissolved oxygen transmitters. Continuous, uninterrupted signal acquisition is essential for regulatory compliance and for preventing chemical dosing errors that could compromise treated water quality.

Metallurgy & Steel: In electric arc furnace (EAF) and continuous casting operations, the electromagnetic environment is among the most severe in industry. The AI930N’s EMC-hardened design and galvanic isolation make it one of the preferred analog input solutions for these applications, where lesser modules frequently suffer from induced noise errors and premature failure.

Port Automation & Material Handling: Ship-to-shore crane control systems and automated stacking crane (ASC) installations rely on precise analog feedback from load cells and position sensors. The AI930N’s wide temperature range and vibration resistance support reliable operation in outdoor and semi-outdoor control enclosures exposed to coastal humidity and temperature cycling.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the ABB AI930N 3KDE175513L9300?
All AI930N modules supplied by SMARTNEXMSK carry a 12-month warranty from the date of shipment. This covers functional defects under normal operating conditions. Warranty claims are supported with direct technical assistance and replacement dispatch to minimize your site downtime.

Q2: What pre-shipment testing is performed on each module?
Every AI930N unit undergoes a comprehensive functional test protocol prior to dispatch, including power-on verification, channel signal integrity checks across the full 4–20 mA range, HART communication handshake validation, and visual inspection for physical damage. A test record is available upon request for quality-critical procurement processes.

Q3: Is this module compatible with my existing AC800M system and CI854A communication interface?
Yes. The AI930N 3KDE175513L9300 is fully compatible with the ABB AC800M controller platform and integrates with the S900 I/O bus via standard TB820/TB825 terminal bases. It is recognized by ABB Control Builder M software without requiring firmware modifications. Compatibility with CI854A, CI854B, and CI857 communication interfaces has been verified in field installations.

Q4: Can you guarantee long-term supply and support for this module?
SMARTNEXMSK maintains dedicated stock of ABB AC800M S900 I/O modules, including the AI930N, to support both planned maintenance schedules and emergency replacement requirements. We serve customers in petrochemical, power, mining, and process industries who require reliable spare parts availability beyond the OEM’s standard product lifecycle. Contact our team to discuss blanket order arrangements or consignment stock programs for critical spare management.
