ABB AINT-14C 68685826 Maintenance-Ready Spare for ACS800 Automation

ABB AINT-14C 68685826 Maintenance-Ready Spare for ACS800 Automation

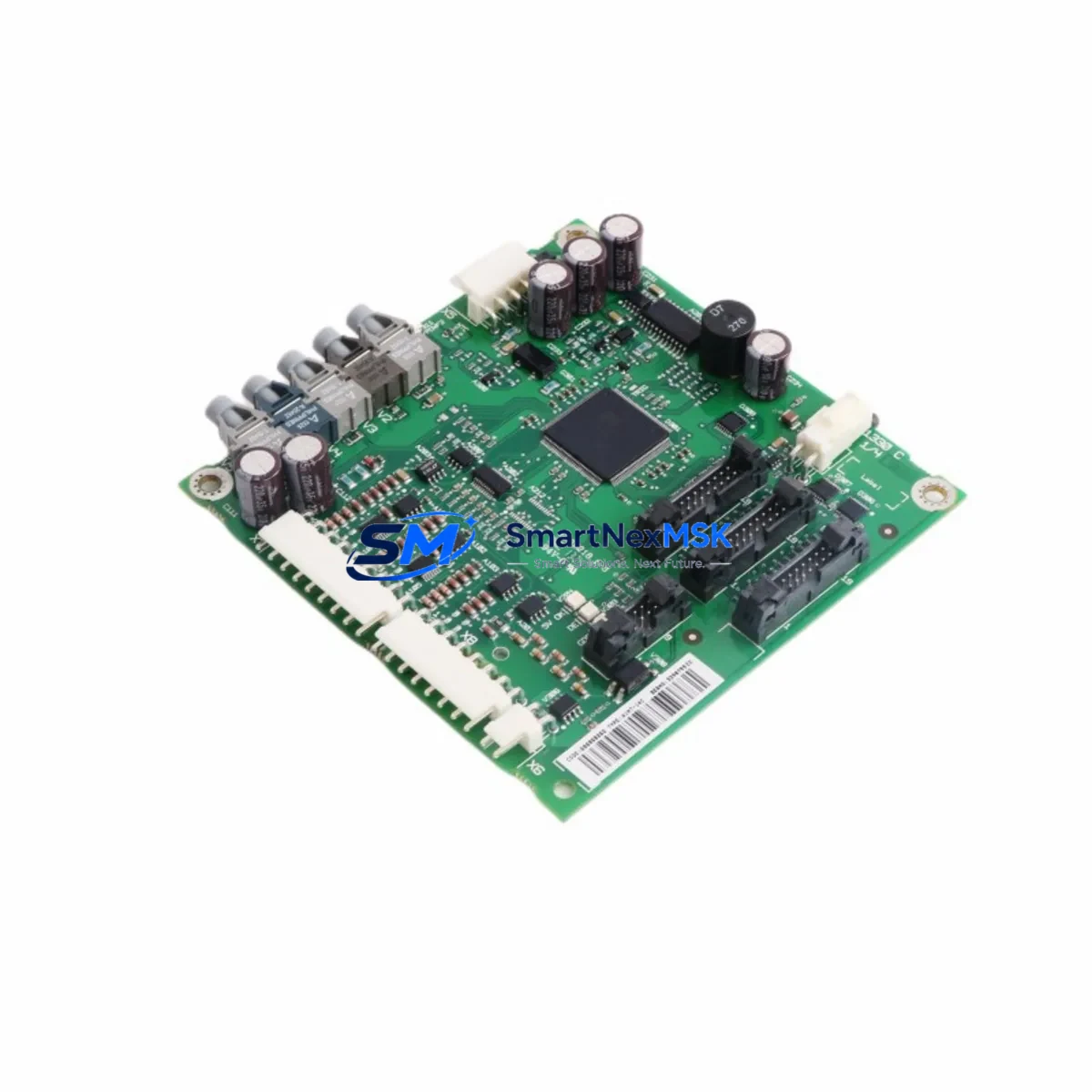

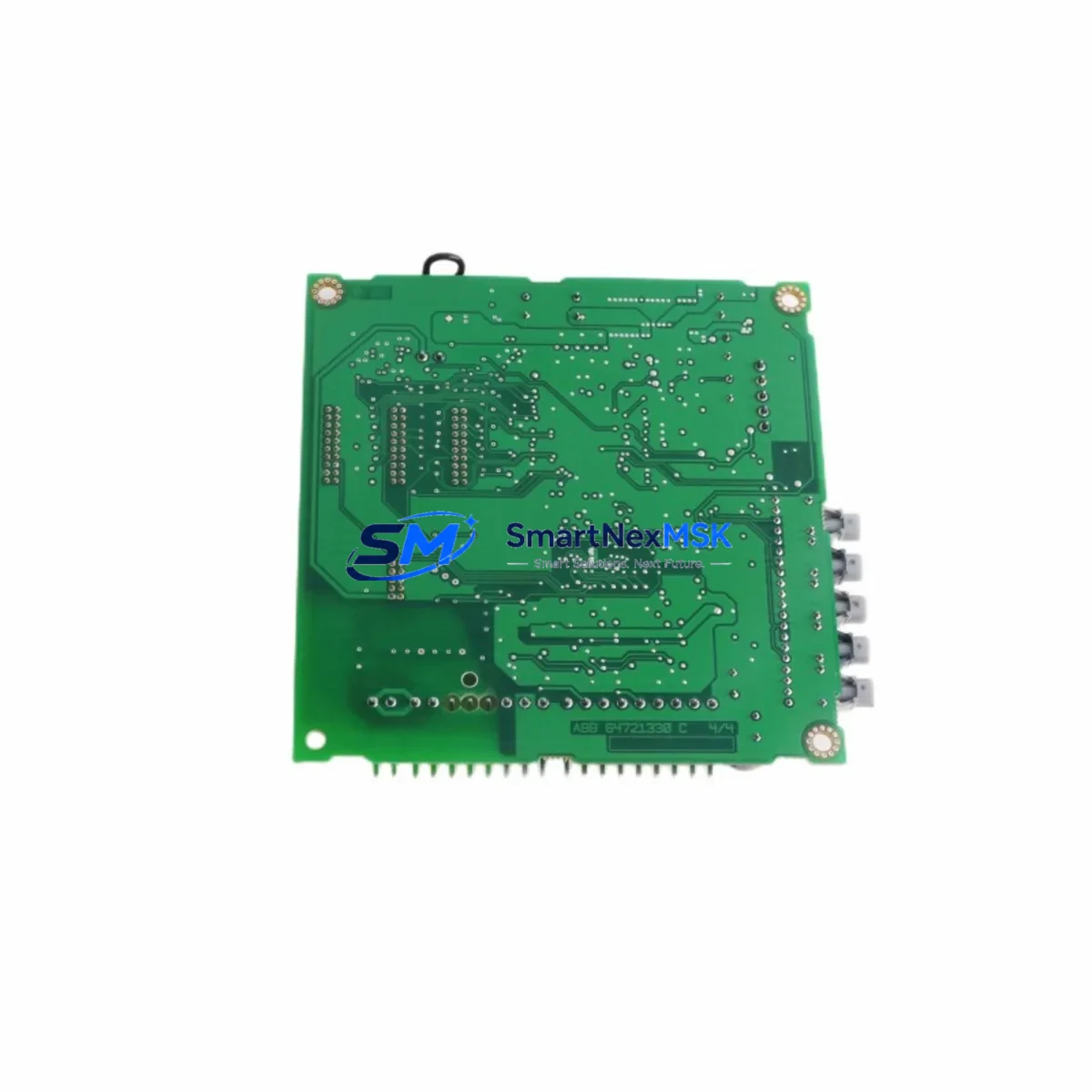

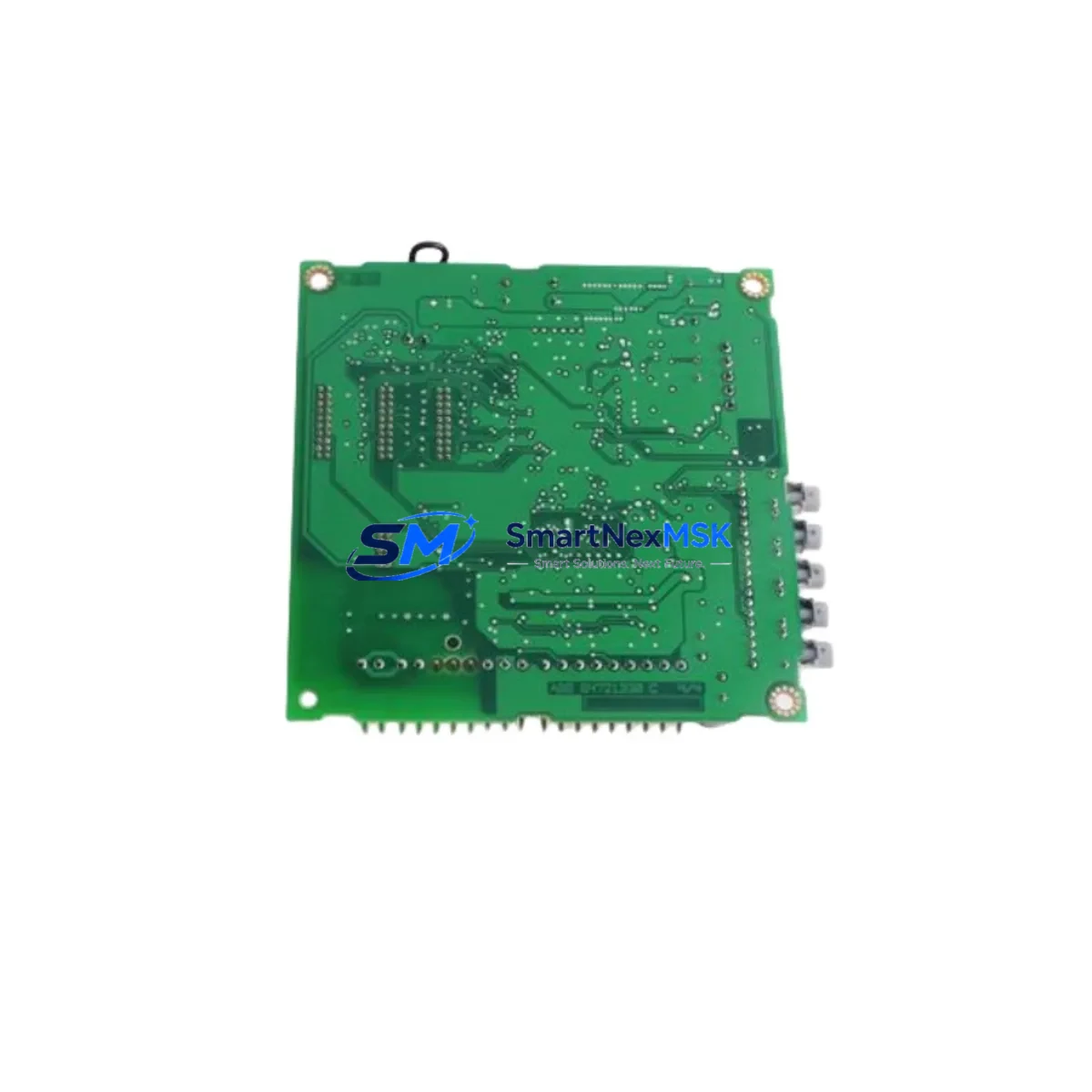

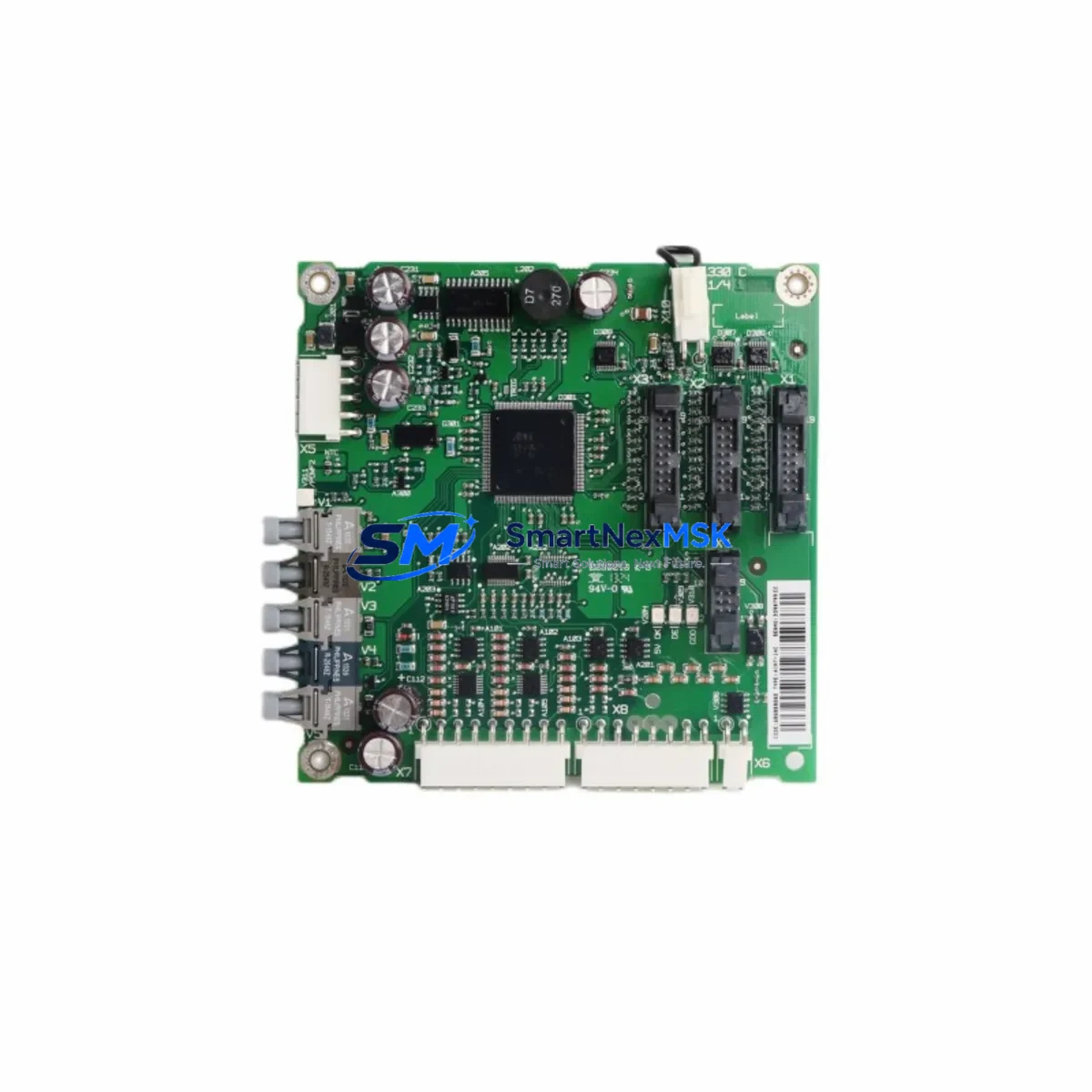

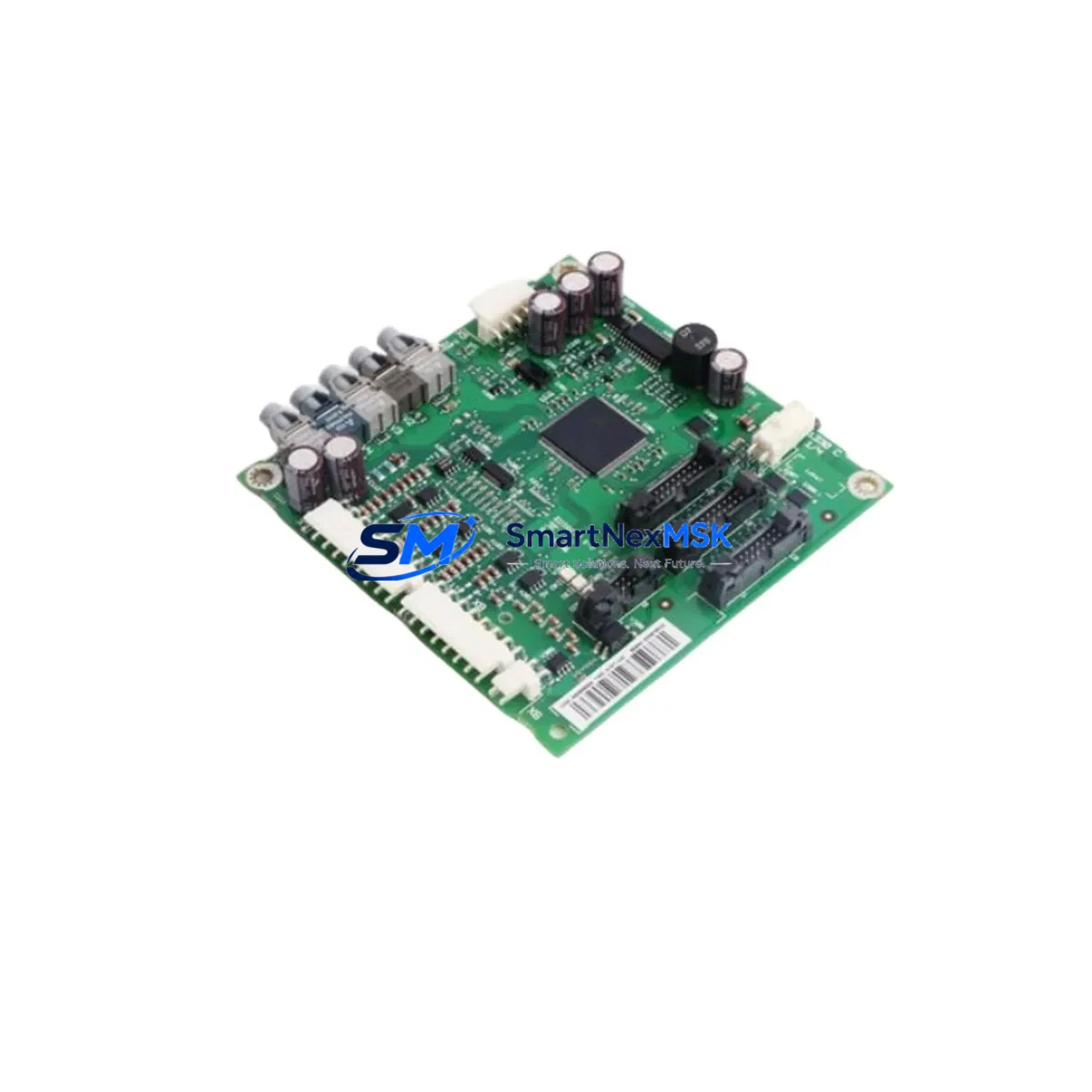

The ABB AINT-14C (part number 68685826) is an original motor control interface board designed for the ABB ACS800 series variable frequency drive platform. In industrial facilities where ACS800 drives govern critical motor loads — compressors, pumps, conveyors, hoists, and extruders — the AINT-14C serves as the primary communication and control bridge between the drive’s main control unit and the motor feedback circuitry. A failure of this board can result in immediate drive fault, unplanned motor shutdown, and costly production downtime. Holding a verified spare in your maintenance inventory is the most effective single action a maintenance engineer can take to protect uptime on ACS800-equipped lines.

This listing supplies an original ABB AINT-14C 68685826 board, sourced from authorized distribution channels, individually tested prior to dispatch, and covered by a 12-month warranty against manufacturing defects. Each unit is packaged in anti-static protective material and ships with a basic inspection report. Worldwide delivery is available, with expedited options for emergency breakdown situations.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or procurement engineer schedules replacement of the AINT-14C 68685826, the scope of inspection should extend beyond the board itself. The ACS800 control section is an integrated system, and a fault that has stressed the AINT-14C interface board may have also affected adjacent components. A thorough site inspection during the same maintenance window reduces the risk of a repeat shutdown.

Begin with the RMIO-11C or RMIO-02C main control board, which communicates directly with the AINT-14C. Check for fault history logs, verify firmware version compatibility, and inspect the board-to-board connector for corrosion or bent pins. Next, inspect the APOW-01 auxiliary power supply module, which provides the low-voltage control power to the AINT-14C and RMIO boards; a degraded APOW can cause intermittent board resets that mimic AINT faults. If the drive uses a fieldbus adapter — such as the RDCO-03 DDCS communication module or an RPBA-01 PROFIBUS adapter — verify that the adapter is seated correctly and that communication parameters are intact after the board swap.

On the motor side, inspect the encoder cable and connector running from the motor feedback device to the AINT-14C input terminals. Shielding integrity and connector seating are common failure points, particularly in high-vibration environments. Check the motor thermistor wiring at the AINT-14C thermistor input; an open or shorted thermistor circuit will generate a motor temperature fault immediately after board replacement if not addressed. For drives with I/O expansion, inspect the AIMA-01 I/O extension module and its ribbon cable connection to the main control section.

At the cabinet level, inspect the 24 VDC control power fuses and terminal blocks on the control wiring rail. Verify that the AGPS-11C or AGPS-21C gate driver board has not been affected by the same fault event — gate driver faults can sometimes be misdiagnosed as AINT-14C failures. If the installation includes a BAMU-01 battery module for parameter memory backup, confirm that the battery voltage is within specification. Finally, review the ACS800 control panel (CDP312R or ACS-CP-C) for any stored fault codes that may indicate a systemic issue rather than an isolated board failure.

Stocking the AINT-14C 68685826 alongside these associated components — particularly the RMIO main board, APOW power supply, and encoder cable assembly — constitutes a practical minimum spare parts kit for any facility running ACS800 drives in critical process roles.

Site Replacement Workflow

Step 1 — Isolation and lockout: Follow site LOTO procedure. Isolate the ACS800 drive from mains supply and allow the DC bus to discharge fully (minimum 5 minutes after power-off, verify with a calibrated voltmeter at the DC bus terminals).

Step 2 — Fault documentation: Before removing the faulty board, photograph the fault code displayed on the CDP312R panel and record all active and stored fault codes. This information is critical for root-cause analysis and for verifying that the replacement resolves the fault.

Step 3 — Board removal: Open the drive control section cover. Disconnect the encoder cable, thermistor cable, and any ribbon cables connected to the AINT-14C. Note the cable routing and connector positions. Remove the board by releasing the retaining clips or screws per the ACS800 hardware manual.

Step 4 — Inspection of mating connectors: Before installing the replacement AINT-14C 68685826, inspect all mating connectors on the RMIO board and cable harnesses for damage, corrosion, or contamination. Clean with contact cleaner if necessary.

Step 5 — Installation: Install the replacement board, reconnect all cables in the documented order, and close the control section cover. Restore control power only (not mains) and verify that the drive panel powers up without immediate fault.

Step 6 — Parameter verification: Confirm that drive parameters — particularly motor data group (Group 99), encoder configuration (Group 50), and thermistor settings (Group 35) — are correctly set. Restore from a parameter backup if available.

Step 7 — Test run: Perform a no-load test run, then a loaded test run at reduced speed before returning the drive to full production duty. Monitor encoder feedback signal quality and motor temperature readings during the test.

This workflow is applicable to all ACS800 frame sizes that use the AINT-14C interface board and is compatible with both single-drive and multi-drive cabinet configurations. Replacement time for a prepared maintenance team with a verified spare on hand is typically 45–90 minutes, compared to 2–5 days for an unplanned breakdown without a spare.

Spare Parts Support FAQ

Q1: Is this AINT-14C 68685826 compatible with all ACS800 drive frame sizes?
The AINT-14C is used across multiple ACS800 frame sizes. Compatibility depends on the specific drive variant and control section configuration. Please provide your full drive type code (found on the drive nameplate, e.g., ACS800-01-0016-3) when placing your order so we can confirm compatibility before shipment.

Q2: How is the board tested before shipment?
Each AINT-14C 68685826 unit undergoes a pre-shipment functional check covering power-up integrity, connector continuity, and visual inspection for component damage. A basic inspection report is included with each shipment. For critical applications, please contact us to discuss extended testing options.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, contamination, or physical impact. Warranty claims are processed with return of the defective unit; replacement or refund is issued upon verification.

Q4: Can you supply multiple units for a spare parts inventory program?
Yes. We support both single-unit emergency orders and bulk procurement for planned spare parts inventory programs. Volume pricing is available for orders of 3 or more units. Long-term supply agreements with reserved stock allocation are available for facilities with multiple ACS800 installations. Contact our sales team to discuss your inventory strategy.
