ABB AO845 3BSE023676R1 Maintenance-Ready Spare S800 I/O

ABB AO845 3BSE023676R1 Maintenance-Ready Spare S800 I/O: Spare Replacement & Industrial Downtime Risk Control

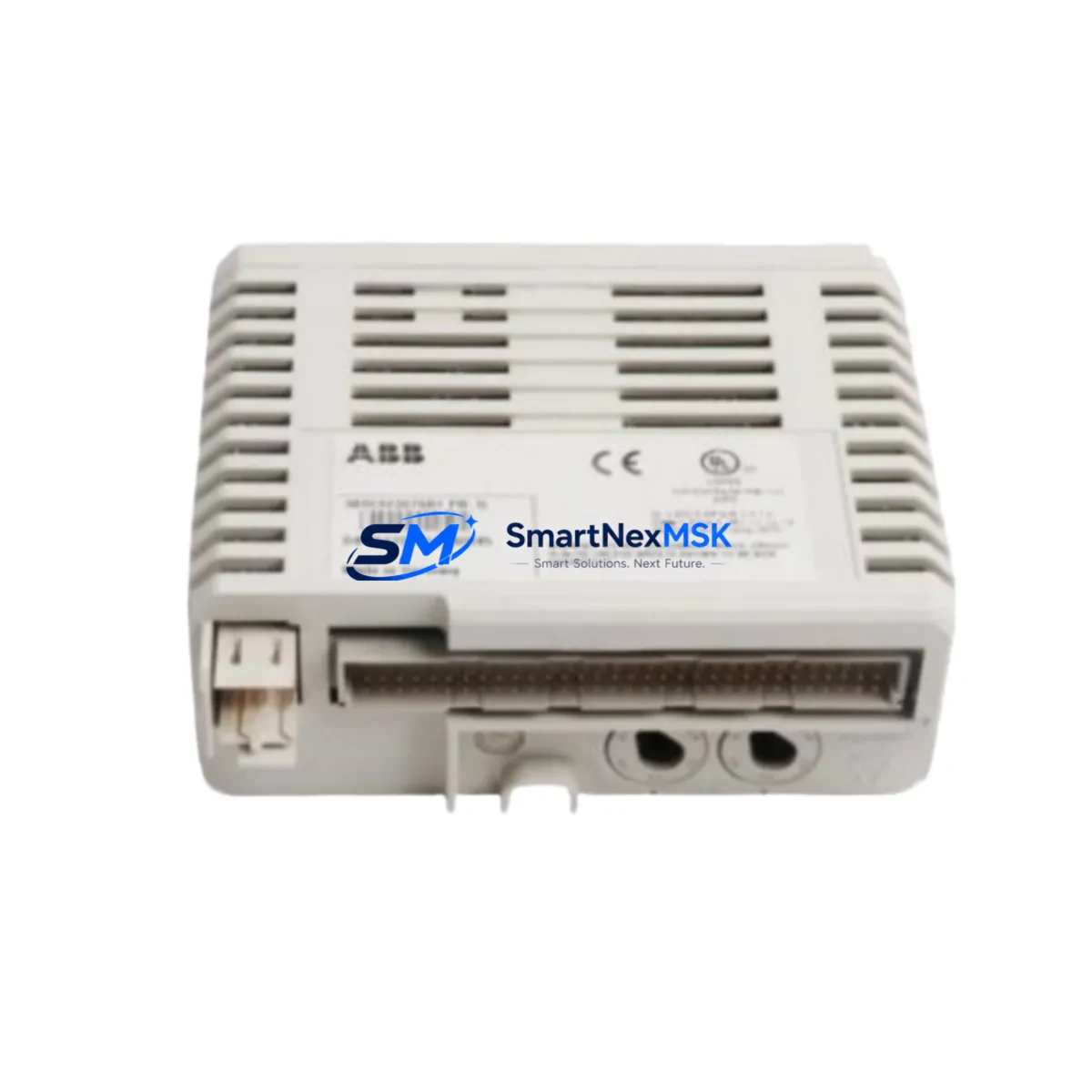

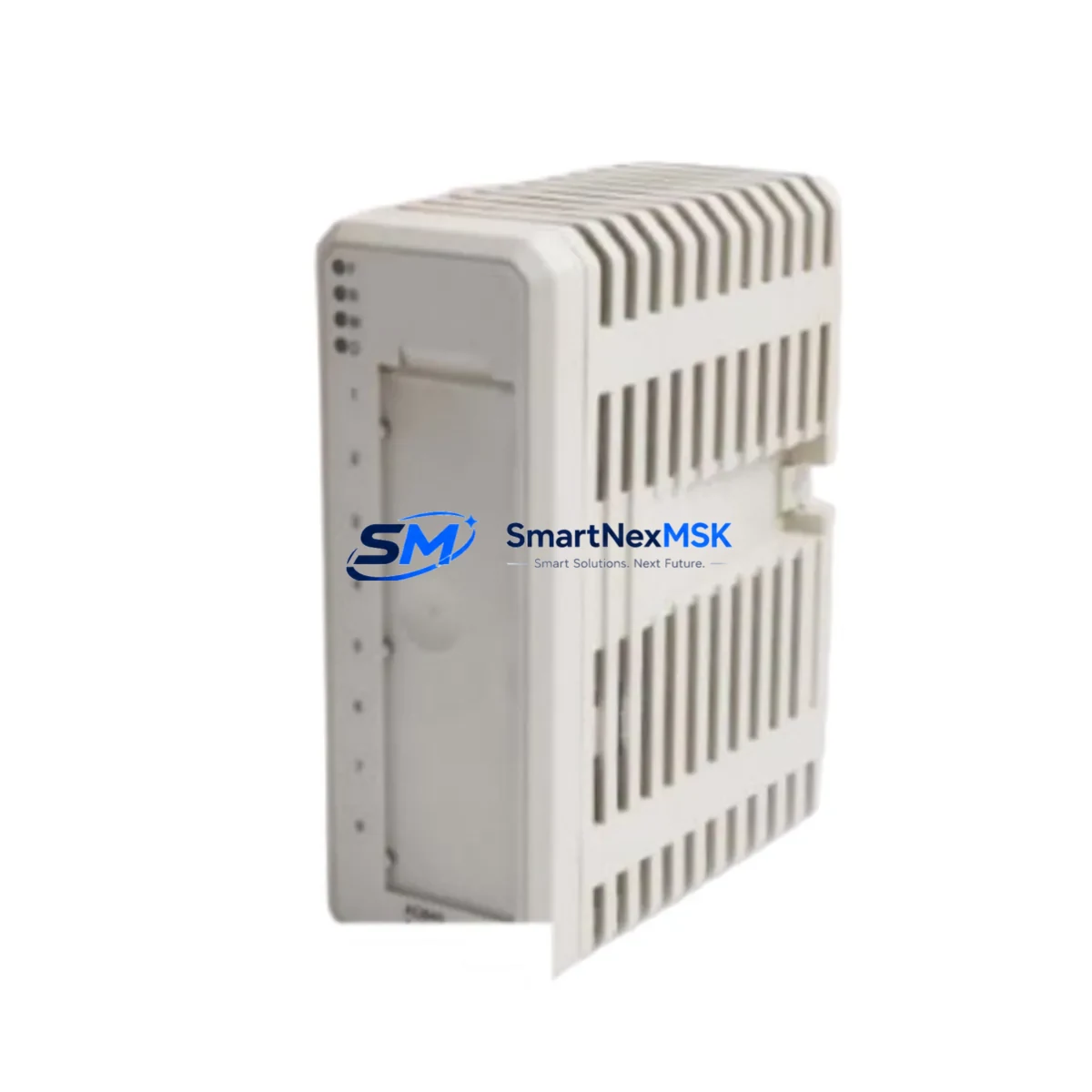

The ABB AO845 (part number 3BSE023676R1) is an 8-channel analog output module designed for the ABB S800 I/O system, widely deployed in process automation, power generation, oil & gas, and chemical plant DCS environments. As a maintenance-ready original spare, the AO845 3BSE023676R1 enables maintenance engineers to execute rapid module-level replacement without reconfiguration, preserving system continuity and minimizing unplanned downtime. Each unit is tested before shipment and backed by a 12-month warranty, making it a reliable choice for both emergency replacement and planned spare parts inventory.

Whether you are managing a scheduled turnaround, responding to a field fault, or building a resilient spare parts buffer for aging ABB AC800M or AC800F controller cabinets, the AO845 3BSE023676R1 delivers the compatibility, traceability, and supply reliability that industrial procurement and maintenance teams require.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When the AO845 3BSE023676R1 is identified as a fault source during routine control cabinet inspection or fault isolation, a disciplined replacement workflow significantly reduces mean time to repair (MTTR). Before pulling the module, maintenance engineers should verify the 24 V DC power supply feeding the S800 I/O rack — a degraded or fluctuating supply rail is a common root cause of analog output drift and module faults that can be misdiagnosed as module failure. The TB820 termination board should be inspected for loose field wiring, corroded terminals, or damaged screw connections, as termination faults frequently outlast module replacements and cause repeat failures.

In the same cabinet inspection cycle, engineers should assess the CI854 PROFIBUS DP communication interface or CI801 ModuleBus modem for communication error counts, as a degraded fieldbus link can cause the AO845 to report output faults even when the module itself is healthy. The AI845 analog input module and DI810 / DO810 digital I/O modules sharing the same ModuleBus segment should be checked for error LEDs, as a single failing module can disrupt the entire I/O bus scan cycle.

For control cabinets running legacy ABB AC800M systems, it is advisable to maintain a co-located spare set that includes the PM861 or PM864 processor module, SM810 S800 I/O bus modem, and at least one AO845 3BSE023676R1 analog output spare. Signal isolators installed between the AO845 output channels and field instruments — particularly in hazardous area loops — should be tested for output accuracy during the same maintenance window. Fuse holders and 24 V DC fuse protection on the power distribution rail should be inspected and replaced on a scheduled basis to prevent nuisance trips that can be misattributed to module faults.

For plants operating older S800 I/O generations, the AO820 analog output module may be present alongside AO845 units in the same cabinet. Procurement engineers should confirm the exact part number (3BSE023676R1 for AO845) when ordering replacements, as the AO820 and AO845 are not pin-compatible despite sharing the same form factor. Maintaining a documented spare parts list that cross-references module model, part number, firmware revision, and termination board type eliminates ordering errors during emergency procurement.

Site Replacement Workflow

Step 1 — Fault Confirmation: Use the ABB AC800M diagnostic tool or Control Builder M to confirm the AO845 module is reporting a hardware fault or output deviation. Document the channel number and fault code before proceeding.

Step 2 — Safe Isolation: Place the affected control loop in manual mode at the DCS operator station. Notify the process operator before isolating the output signal. De-energize the S800 I/O rack segment if required by site safety procedures.

Step 3 — Module Removal: Disconnect the TB820 termination board field wiring if necessary. Release the AO845 module locking tab and slide the module out of the ModuleUnit. Note the slot position for reinstallation.

Step 4 — Replacement Installation: Insert the new AO845 3BSE023676R1 into the same slot. The S800 I/O system performs automatic module recognition — no manual address configuration is required. Re-energize the rack and confirm the module status LED shows green.

Step 5 — Loop Verification: Return the control loop to automatic mode. Verify output signal accuracy at the field instrument using a calibrated loop tester. Confirm DCS faceplate readings match field measurements before releasing the loop to process control.

Step 6 — Documentation: Record the replacement in the plant maintenance management system (CMMS), including the removed module serial number, replacement part number (3BSE023676R1), date, technician, and post-replacement test results. Replenish the spare parts inventory to maintain the minimum stock level.

Spare Parts Support FAQ

Q1: Is the AO845 3BSE023676R1 a direct drop-in replacement for older AO845 units?
Yes. The AO845 3BSE023676R1 is backward compatible with all S800 I/O ModuleUnit slots that previously housed AO845 modules. The S800 I/O system performs automatic module recognition upon insertion, eliminating the need for manual reconfiguration in Control Builder M. Verify the termination board type (TB820 or equivalent) matches your existing installation before ordering.

Q2: What pre-shipment testing is performed on the AO845 3BSE023676R1?
Each AO845 3BSE023676R1 unit undergoes functional testing prior to dispatch, including output channel verification across the full 4–20 mA range, ModuleBus communication check, and visual inspection for physical damage. A 12-month warranty is provided from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Q3: How should the AO845 3BSE023676R1 be stored as a long-term spare?
Store the module in its original anti-static packaging in a dry, temperature-controlled environment (recommended: 0°C to +40°C, relative humidity below 75% non-condensing). Avoid storage near strong electromagnetic fields or corrosive atmospheres. Inspect stored modules annually for physical condition and update the spare parts register with the inspection date. For plants with extended maintenance intervals, consider rotating spare modules into service to prevent electrolytic capacitor degradation.

Q4: Can the AO845 3BSE023676R1 be used in safety-instrumented systems (SIS)?
The AO845 is a standard S800 I/O module and is not certified for use in IEC 61508 SIL-rated safety loops as a standalone safety device. For safety-instrumented system applications, consult ABB’s S800 I/O safety documentation and use ABB-certified safety I/O modules. The AO845 3BSE023676R1 is suitable for basic process control (BPCS) analog output applications in DCS environments.
