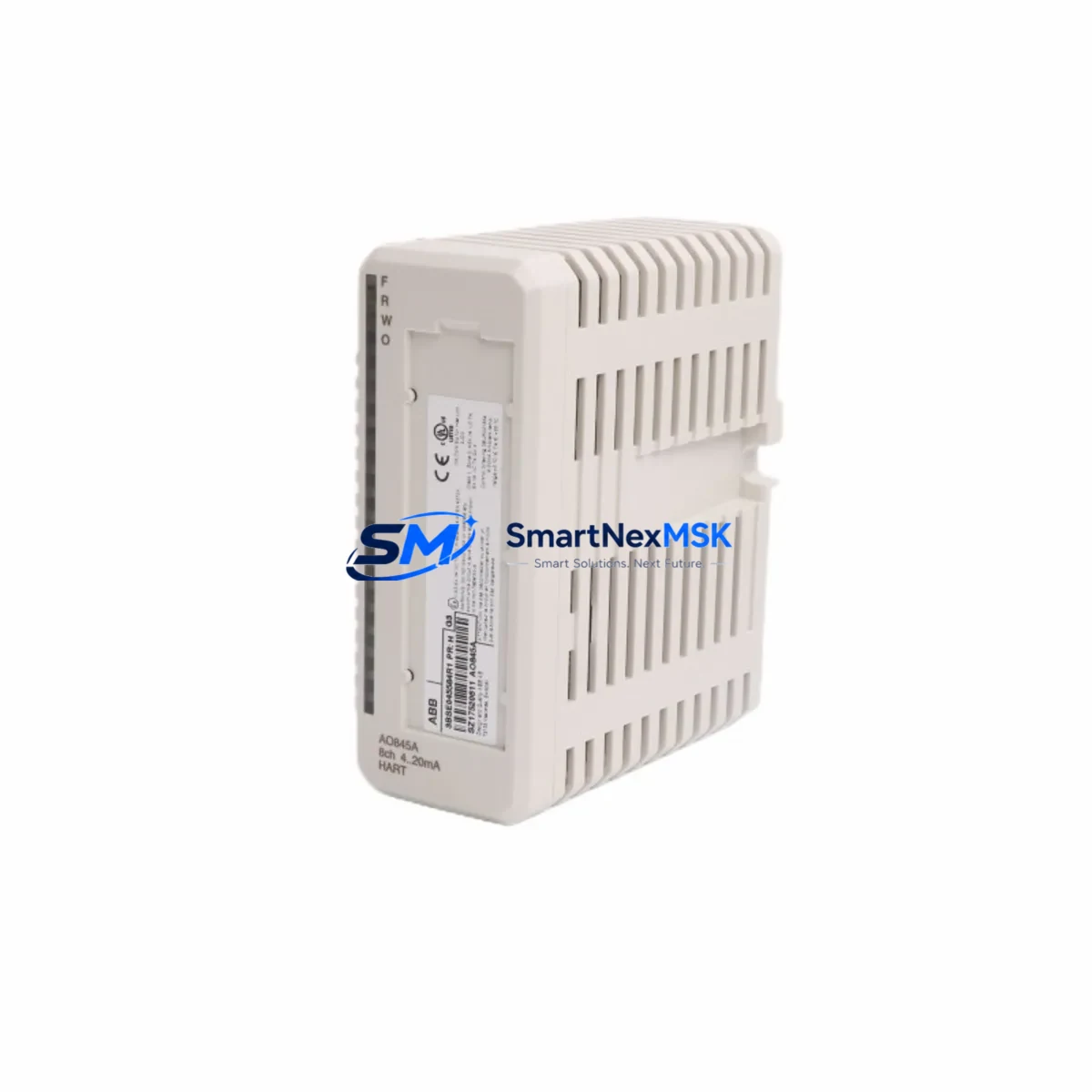

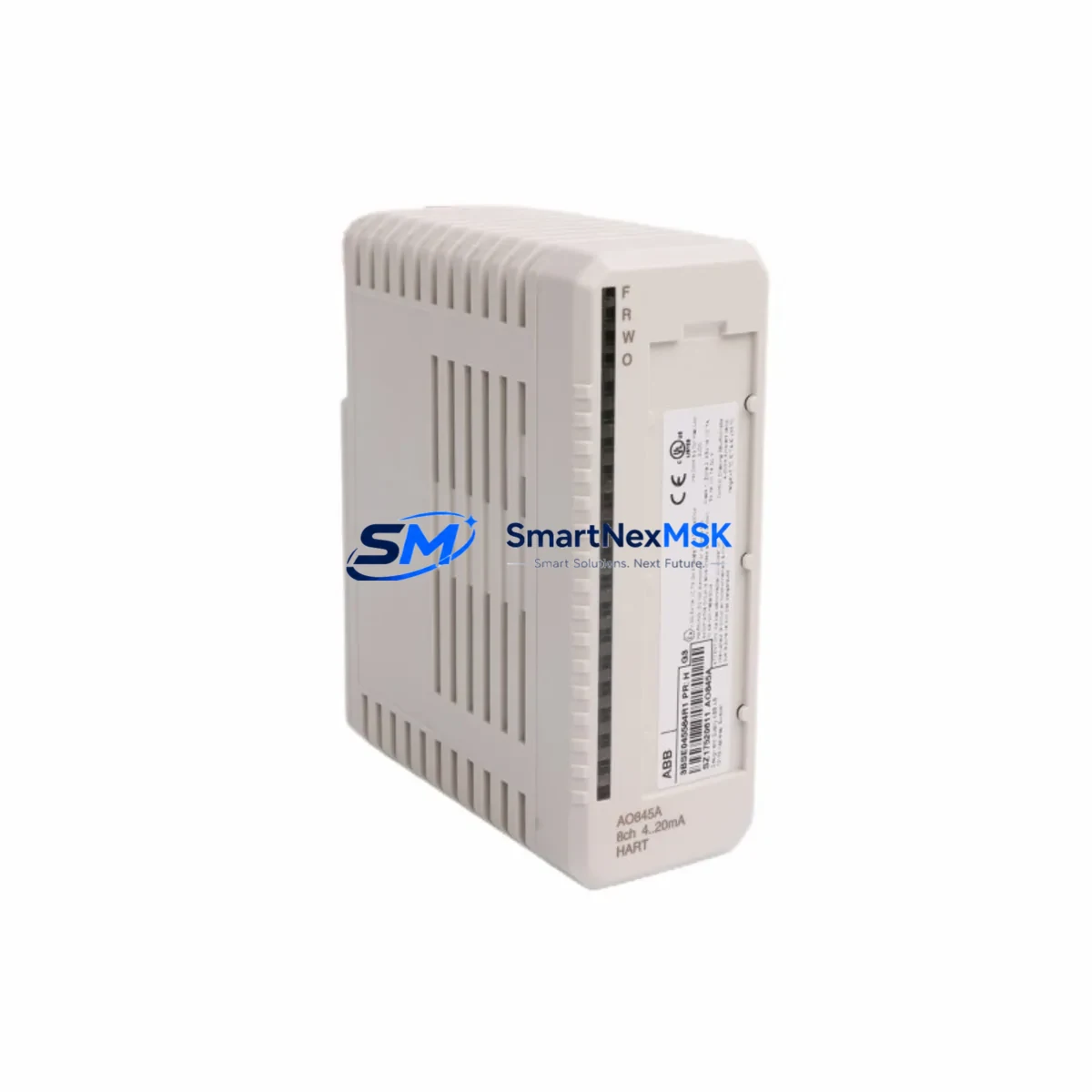

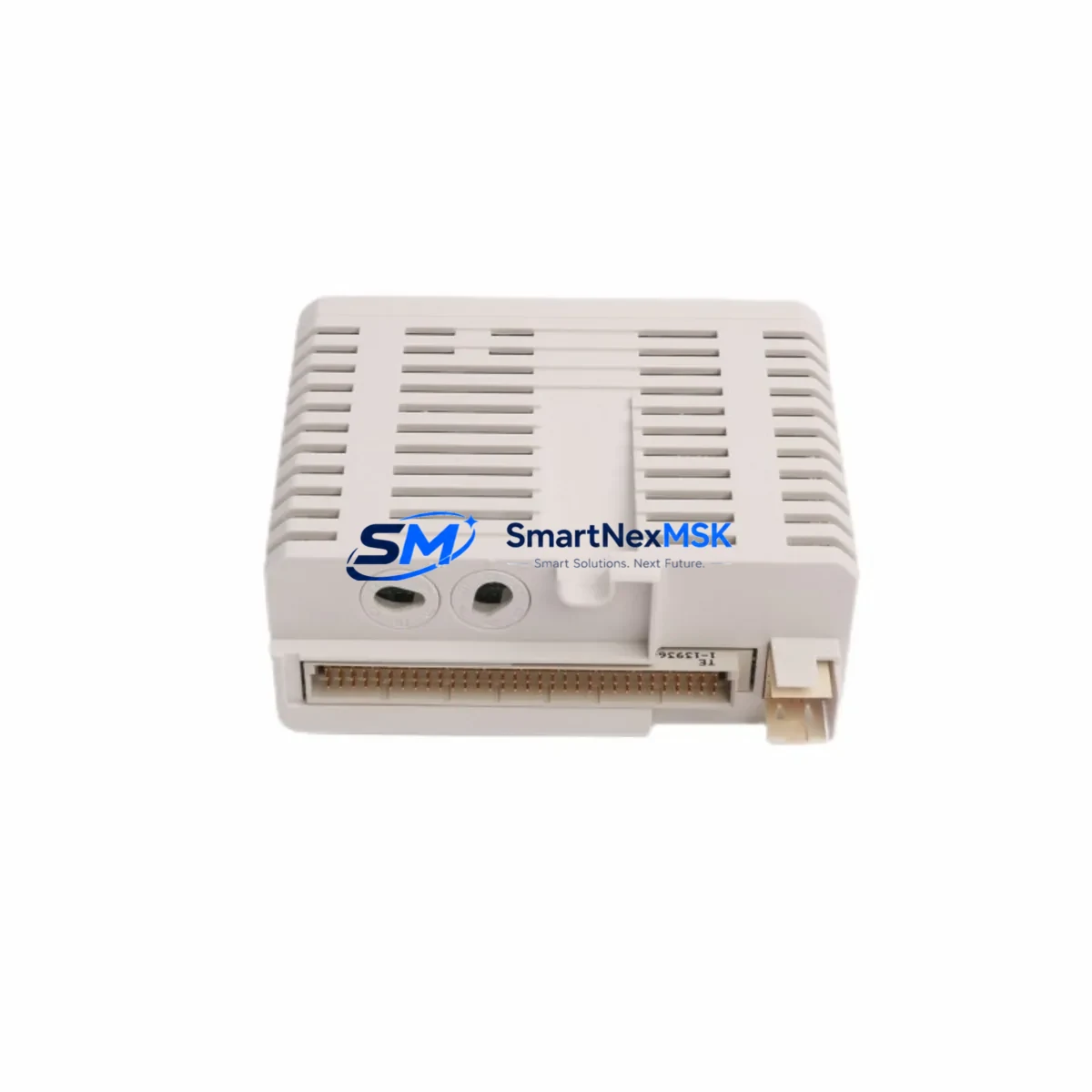

The ABB AO845A (part number 3BSE045584R1) is an original 8-channel redundant analog output module engineered for the ABB S800 I/O system and AC 800M Distributed Control System (DCS). Designed for continuous process industries including oil & gas, power generation, pulp & paper, and chemical manufacturing, this module delivers precision 4–20 mA analog output signals with full redundancy support — making it a critical spare for any facility running ABB’s AC 800M controller platform.

For maintenance engineers and procurement teams managing aging DCS infrastructure, securing a verified original AO845A 3BSE045584R1 is a proactive step toward eliminating unplanned downtime. This module is factory-tested, ships with a 12-month warranty, and is sourced from authorized supply chains to ensure full compatibility with existing S800 I/O backplanes and AC 800M controller configurations.

Whether you are executing a planned turnaround, responding to a field fault, or building out your critical spare parts inventory, the AO845A 3BSE045584R1 is a direct replacement that requires no firmware reconfiguration when installed into a compatible S800 I/O station.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the AO845A 3BSE045584R1 in the field, a thorough inspection of the surrounding S800 I/O station is essential to prevent repeat failures and ensure a clean restoration of control loop integrity. Maintenance engineers should treat this replacement as an opportunity to audit the full analog output circuit.

Begin by verifying the condition of the TB845 or TB840A termination unit — the field wiring interface that mates with the AO845A. Corroded terminals or loose field wiring at the termination unit are a common root cause of analog output drift and should be addressed before the new module is commissioned. Inspect the S800 I/O backplane for mechanical damage, connector wear, and proper seating of adjacent modules.

Check the SD821 or SD822 power supply module feeding the I/O station. An unstable or degraded power supply can cause intermittent analog output errors that are often misdiagnosed as module faults. If the station has been in service for more than five years, consider scheduling a proactive replacement of the power supply module alongside the AO845A.

For redundant configurations, confirm that the paired AO845A redundancy partner module is also in good health. A redundant pair where one module is marginal provides false confidence — both modules should be verified or replaced together during a planned outage. Review the CI854A or CI858 communication interface module connecting the I/O station to the AC 800M controller; communication faults at this level can mask analog output issues and complicate fault isolation.

Procurement engineers building a critical spare parts list for AC 800M-based DCS systems should also consider stocking the AI835A analog input module and AI845A 8-channel analog input module, which share the same S800 I/O platform and are frequently required alongside analog output replacements during loop commissioning or fault recovery. The DI810 and DO810 digital I/O modules are additional high-turnover spares in the same I/O station that should be included in any comprehensive spare parts strategy.

For facilities running mixed analog and digital control loops, the AO810V2 analog output module is a related spare covering single-ended 4–20 mA applications in the same S800 family. Keeping one unit on the shelf alongside the AO845A ensures coverage across both redundant and non-redundant analog output architectures within the same control cabinet.

Site Replacement Workflow

The AO845A 3BSE045584R1 supports hot-swap replacement in redundant S800 I/O configurations, allowing maintenance teams to execute a module swap without a full process shutdown when redundancy is active. The following workflow minimizes downtime and ensures system integrity:

Step 1 — Pre-replacement verification: Confirm the replacement AO845A 3BSE045584R1 matches the firmware revision of the installed module (check the module label and AC 800M Control Builder project). Verify the termination unit (TB845/TB840A) is undamaged and field wiring is correctly labeled.

Step 2 — Redundancy transfer: In the AC 800M Control Builder or DCS operator station, initiate a manual switchover to transfer control to the redundant AO845A partner. Confirm all 8 analog output channels have transferred cleanly before proceeding.

Step 3 — Module extraction: Remove the faulty AO845A from the backplane. The S800 I/O station supports tool-free module extraction. Inspect the backplane connector for contamination or pin damage.

Step 4 — Module insertion and commissioning: Insert the replacement AO845A 3BSE045584R1. The module will auto-configure from the AC 800M project database. Verify all channel status LEDs indicate normal operation and confirm analog output values at the field device level using a loop calibrator.

Step 5 — Redundancy restoration: Switch control back to the primary module position and confirm redundancy status is restored in the DCS. Log the replacement in the maintenance management system (CMMS) and update the spare parts inventory.

This workflow applies equally to legacy AC 800M installations where the AO845A is replacing an older or discontinued analog output module. The S800 I/O platform’s backward compatibility ensures that the 3BSE045584R1 part number is a direct fit for all AC 800M controller generations without requiring hardware or software modifications.

Spare Parts Support FAQ

Q1: Is the AO845A 3BSE045584R1 compatible with all AC 800M controller versions?
Yes. The AO845A is compatible with all AC 800M controller modules including PM851, PM856, PM860, PM861, PM864, and PM866, across all firmware generations. It operates on the standard S800 ModuleBus and requires no special configuration for integration into an existing AC 800M project.

Q2: How is the module tested before shipment?
Every AO845A 3BSE045584R1 unit undergoes functional testing prior to dispatch, including channel-by-channel analog output verification and communication bus integrity checks. A test report is available upon request. All units ship with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Q3: Can this module replace older or discontinued ABB analog output modules in the S800 family?
The AO845A 3BSE045584R1 is the current production part for 8-channel redundant analog output in the S800 I/O system and is the recommended replacement for any earlier S800 analog output variants. Compatibility should be confirmed against the AC 800M Control Builder project configuration before installation. Our technical team can assist with compatibility verification prior to order.

Q4: What is your lead time and long-term supply commitment for this part?
Stock is maintained for immediate dispatch. For facilities requiring long-term supply agreements or blanket orders to support multi-year maintenance contracts, we offer scheduled delivery programs. Contact our sales team to discuss inventory reservation and supply continuity arrangements for critical spare parts.
