ABB ASDI-03 3HNA010255-001 Safety-Enhanced Axis Computer

ABB ASDI-03 3HNA010255-001 Safety-Enhanced Axis Computer for Harsh Industrial Sites

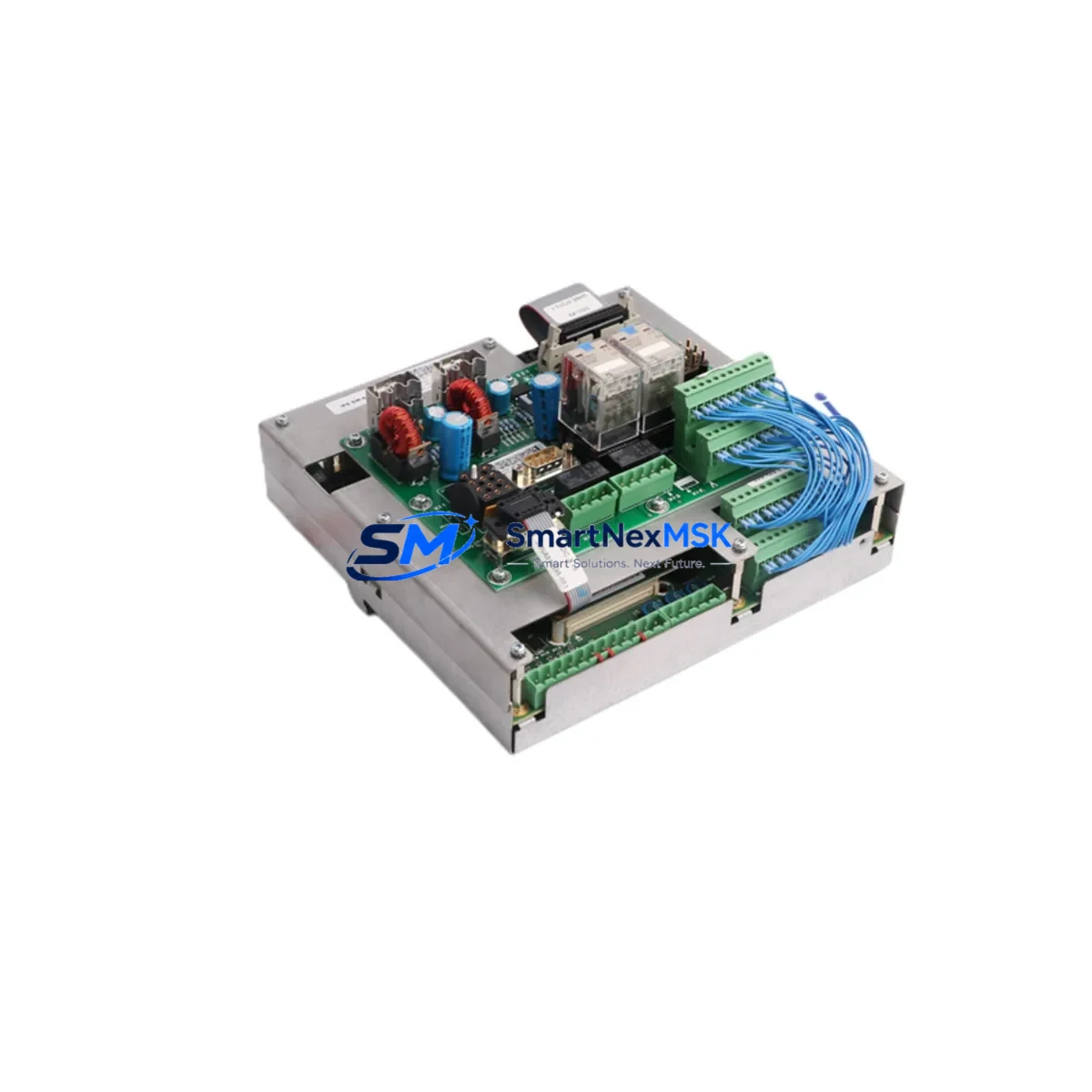

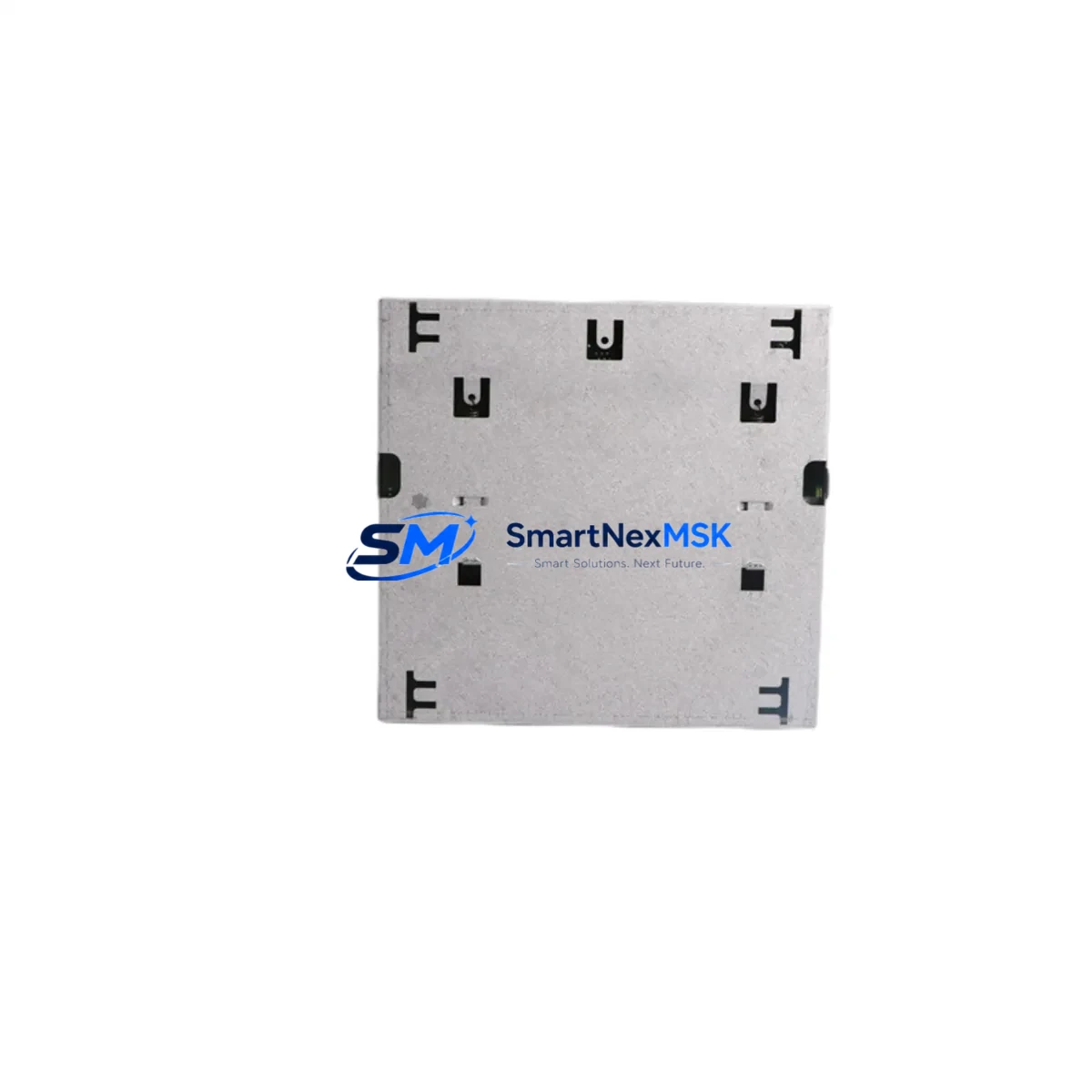

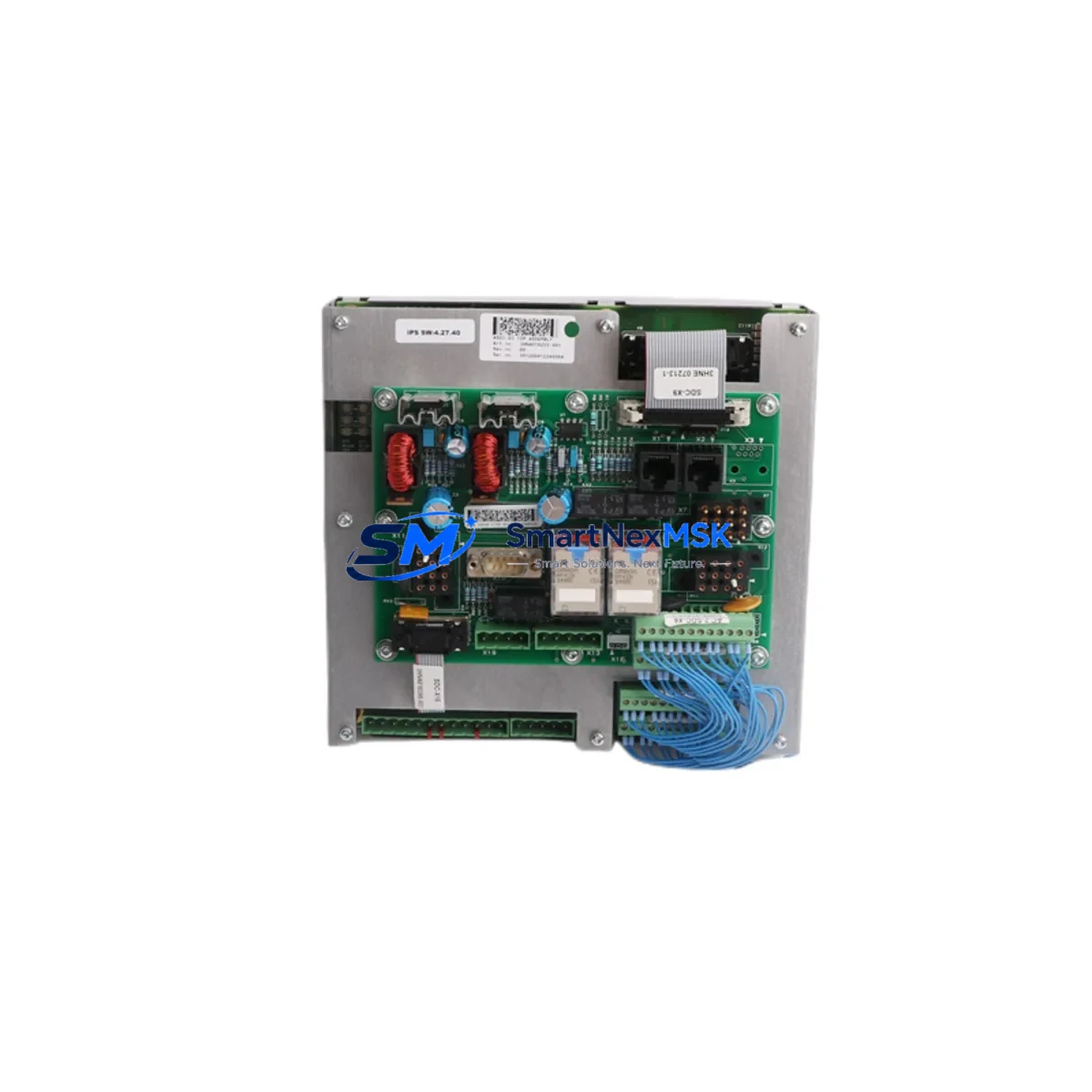

The ABB ASDI-03 (3HNA010255-001) is a ruggedized axis computer module engineered for the IRC5P paint robot controller platform. Designed to operate reliably in the most demanding industrial environments — including automotive paint booths, petrochemical processing lines, and continuous heavy-manufacturing cells — this module delivers the signal integrity, thermal stability, and fault-tolerant architecture that safety-critical control loops demand. Whether deployed in a hazardous-area control cabinet or integrated into a multi-axis coordinated motion system, the ASDI-03 is built to eliminate unplanned downtime and protect personnel and assets.

In high-load, high-interference production environments, axis computer failures are among the leading causes of robot emergency stops and unscheduled line shutdowns. The ASDI-03 addresses this risk through hardened PCB design, conformal coating for moisture and chemical resistance, and robust EMC shielding that suppresses signal drift even when operating adjacent to high-frequency drives, servo amplifiers, and arc welding equipment. Its deterministic real-time processing ensures that axis position feedback, velocity commands, and safety interlock signals are executed without latency — a non-negotiable requirement in coordinated multi-robot cells where a single missed cycle can trigger a cascade fault across the entire production line.

Safety Reliability Table

Control Cabinet Protection Strategy

The ASDI-03 does not operate in isolation — its safety performance is directly tied to the integrity of the surrounding control architecture. In a properly configured IRC5P cabinet, the axis computer works in concert with the ABB DSQC 661 main computer board, which manages high-level task execution and communicates motion commands downstream to the ASDI-03 for real-time axis interpolation. Power stability is maintained by the ABB DSQC 609 power supply unit, which provides regulated 24 VDC to the controller backplane; any voltage ripple or dropout at this stage can cause the ASDI-03 to log axis fault codes or trigger a protective stop. For this reason, installations in facilities with unstable grid power should also incorporate a dedicated UPS module or line conditioner upstream of the IRC5P cabinet.

Signal integrity between the ASDI-03 and the servo drive units — typically the ABB DSQC 668 or DSQC 672 drive modules — depends on clean backplane communication and properly terminated cable assemblies. In paint booth environments where solvent vapors and electrostatic discharge are persistent hazards, the ABB DSQC 643 I/O module and associated field wiring must be routed with adequate separation from high-voltage servo cables to prevent induced noise from corrupting axis feedback signals. The ABB DSQC 652 digital I/O board, commonly used for safety relay outputs and zone interlock signals, should be inspected alongside the ASDI-03 during any axis fault investigation, as a degraded I/O board can generate spurious safety stop commands that appear to originate from the axis computer.

For facilities running coordinated multi-robot cells, the ABB DSQC 1000 controller computer or equivalent IRC5 main computer should be verified for firmware compatibility with the ASDI-03 revision in use. Mismatched firmware versions between the axis computer and the main controller are a documented source of intermittent communication faults and should be resolved before commissioning a replacement module. Additionally, the ABB SafeMove2 safety option board, where installed, interfaces directly with the axis computer’s position monitoring functions — ensuring that speed, zone, and orientation limits are enforced at the hardware level, independent of the application software.

Critical Industrial Safety Applications

The ABB ASDI-03 3HNA010255-001 is deployed across a wide range of safety-critical industrial sectors where robot control reliability is directly linked to personnel safety and production continuity.

Automotive Paint & Body Shops: In automotive OEM and Tier-1 paint facilities, IRC5P-based paint robots operate continuously across three-shift production schedules in solvent-rich, electrostatically sensitive environments. The ASDI-03’s conformal coating and EMC hardening make it the preferred replacement module when axis faults or communication errors interrupt spray sequences, preventing costly color-match failures and booth purge cycles.

Petrochemical & Refinery Automation: In petrochemical plants where robotic systems are used for inspection, valve actuation, or material handling in classified hazardous zones, the axis computer’s deterministic control response and surge-protected I/O ensure that motion commands are executed predictably even during grid disturbances or nearby high-voltage switching events.

Steel & Metallurgical Processing: In continuous casting lines, rolling mills, and heat treatment facilities, robots equipped with IRC5P controllers face extreme thermal cycling, heavy electromagnetic interference from induction furnaces, and vibration from rolling equipment. The ASDI-03’s robust design tolerates these conditions while maintaining the axis position accuracy required for precise material handling and torch cutting operations.

Mining & Mineral Processing: Remote mining operations depend on robot systems for drilling, blasting preparation, and ore handling. In these environments, spare parts availability and rapid replacement capability are critical. The ASDI-03’s in-stock availability and pre-tested dispatch protocol minimize mean time to repair (MTTR) when an axis computer failure occurs at a remote site.

Water Treatment & Utilities: Robotic systems used in water treatment infrastructure for pipe inspection, valve control, and chemical dosing require continuous, fault-free operation. The ASDI-03 supports the safety interlock chains that prevent unauthorized motion in confined-space or high-pressure environments, contributing to both operational safety and regulatory compliance.

Port & Logistics Automation: In automated container terminals and heavy-load handling systems, IRC5P-based robots perform repetitive high-cycle operations where axis computer reliability directly affects throughput. A single axis fault can halt an entire unloading sequence; the ASDI-03’s tested and warranted replacement units allow maintenance teams to restore operations within hours rather than days.

Safety and Quality FAQ

Q1: What warranty coverage is provided with the ABB ASDI-03 3HNA010255-001?
Every ASDI-03 unit supplied by SMARTNEXMSK is covered by a 12-month warranty against manufacturing defects and functional failure from the date of shipment. If the module fails under normal operating conditions within the warranty period, we will provide a replacement or full refund. This warranty applies to both new and professionally refurbished units and is documented with each shipment.

Q2: How is the module tested before shipment?
All ASDI-03 units undergo a full functional pre-shipment test that verifies power input regulation, backplane communication integrity, axis signal processing, and safety interlock response. Units that do not pass all test parameters are quarantined and not dispatched. A test record is available upon request for quality-critical procurement processes.

Q3: Is this module compatible with all IRC5P controller revisions?
The ASDI-03 (3HNA010255-001) is designed for the ABB IRC5P paint robot controller platform. Compatibility with specific IRC5P cabinet revisions and firmware versions should be verified against your controller’s serial number and software version. Our technical team can assist with compatibility confirmation prior to purchase — contact us at sales@smartnexmsk.com with your controller details.

Q4: Can long-term supply and repeat orders be arranged for maintenance programs?
Yes. SMARTNEXMSK maintains ongoing inventory of ABB IRC5P spare parts including the ASDI-03 and related axis computer modules. We support planned maintenance programs, annual blanket orders, and emergency procurement for facilities that require guaranteed spare parts availability. Contact our sales team to discuss volume pricing, lead time commitments, and consignment stock arrangements.
