ABB BCU-02 3AUA0000110429 Spare for ACS800 Automation

ABB BCU-02 3AUA0000110429 Spare for ACS800 Automation: Spare Replacement & Industrial Downtime Risk Control

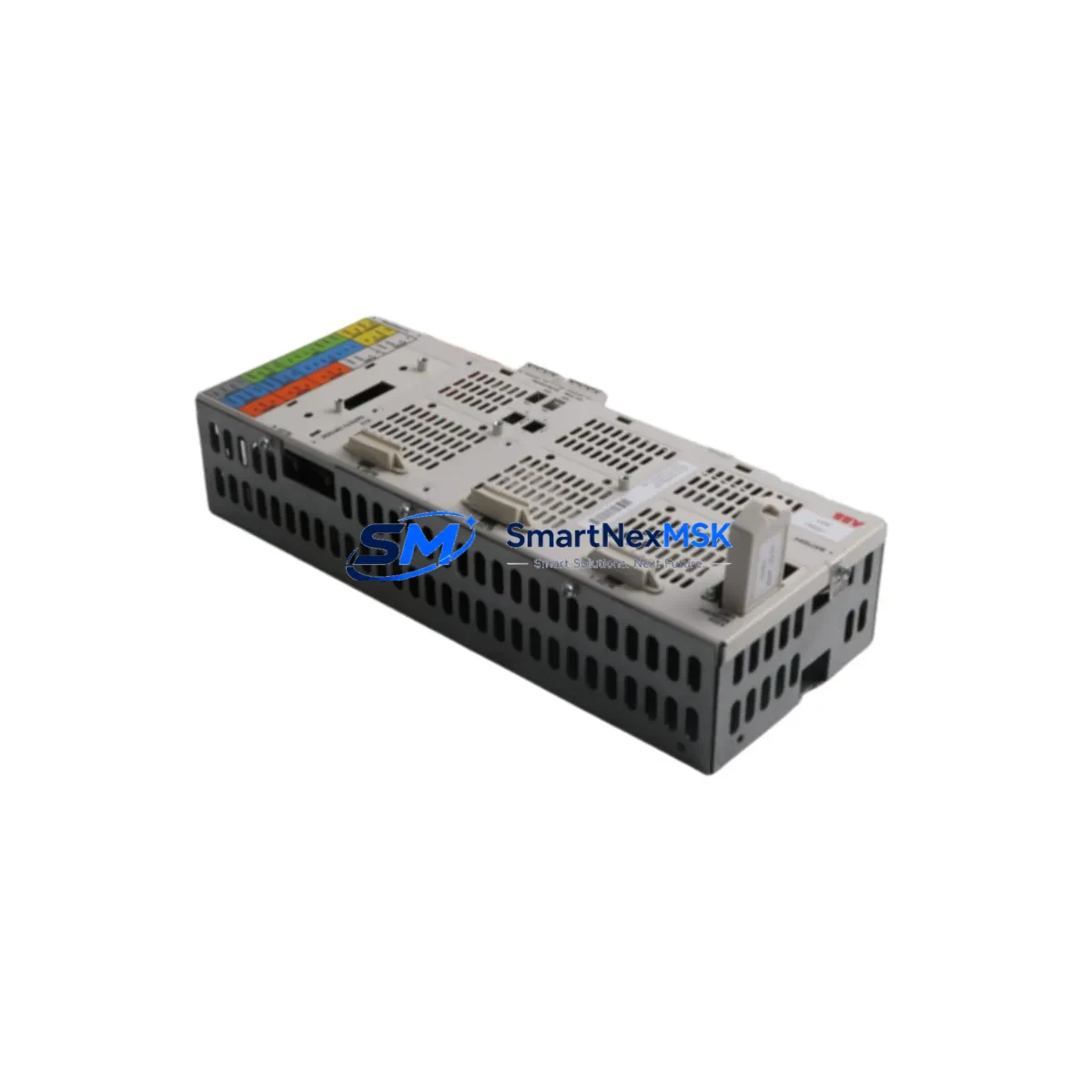

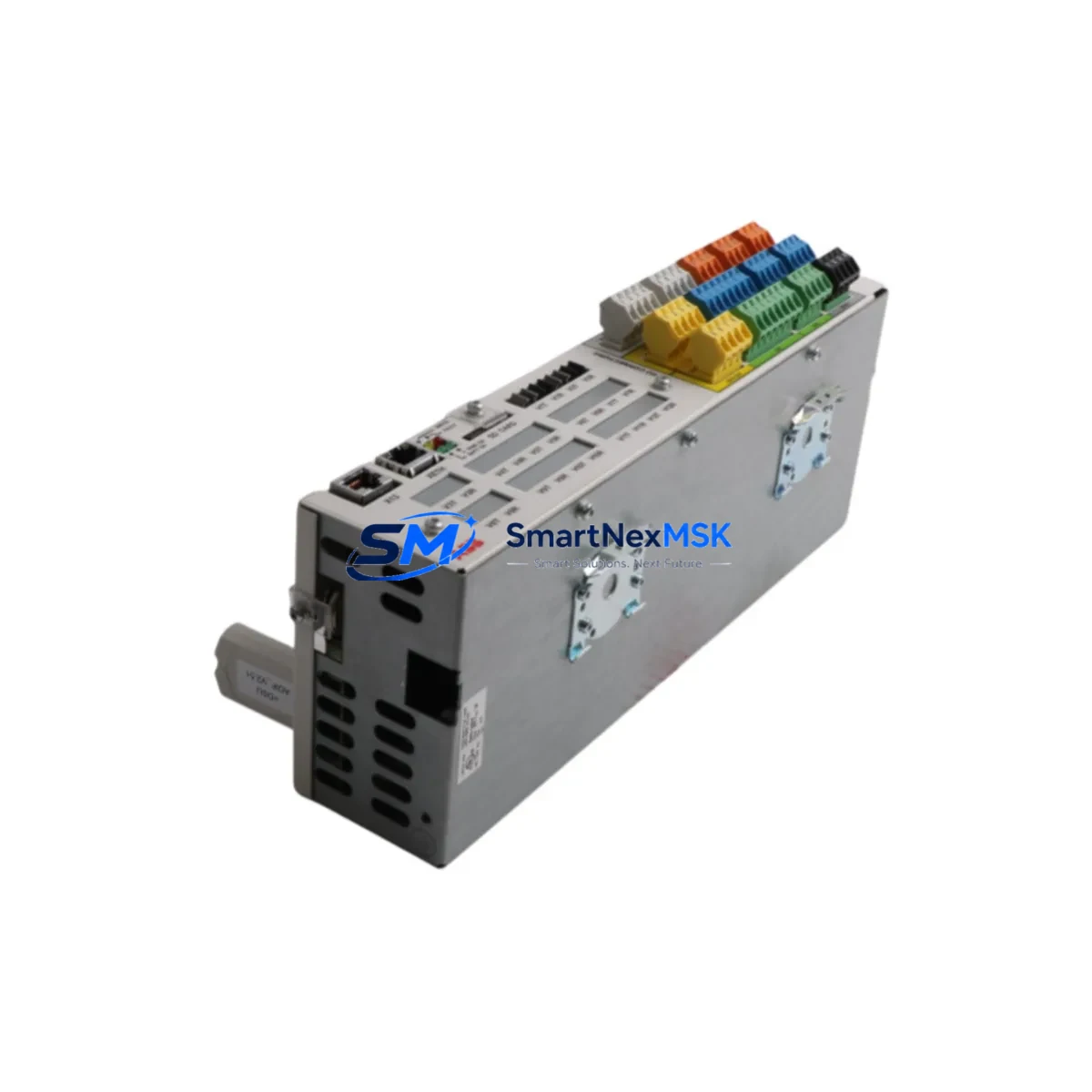

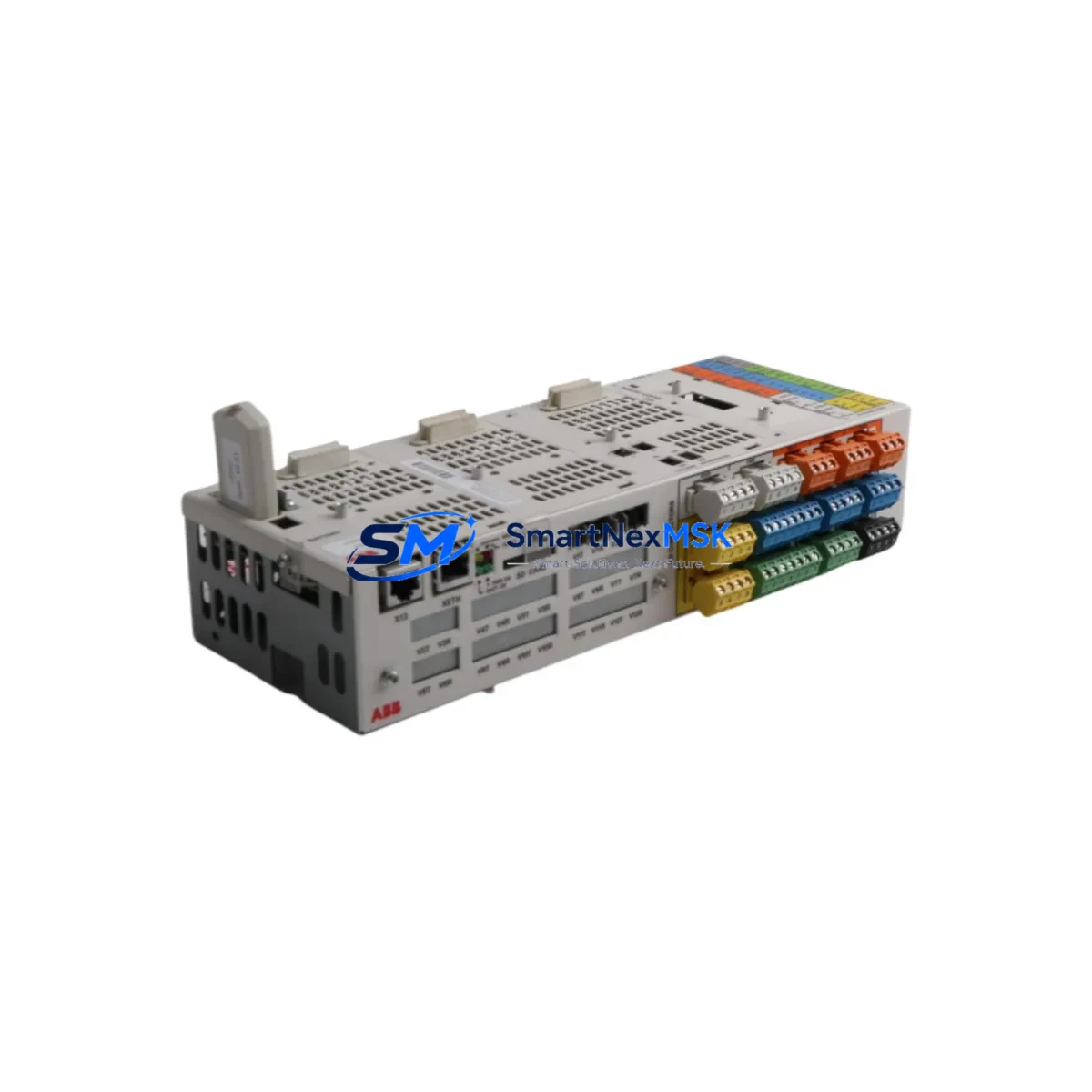

The ABB BCU-02 (part number 3AUA0000110429) is the dedicated drive control unit for the ABB ACS800 series variable frequency drive platform — one of the most widely deployed industrial drive families in process automation, material handling, and heavy-duty motor control applications worldwide. When this control board fails or degrades, the entire drive becomes inoperable, resulting in unplanned downtime that can cascade across production lines, conveyor systems, pump stations, and compressor banks.

At SMARTNEXMSK, we stock the BCU-02 3AUA0000110429 as a maintenance-ready original spare, pre-tested before shipment, backed by a 12-month warranty, and available for fast global dispatch. Whether you are executing a planned overhaul, responding to an emergency fault, or building a strategic spare parts inventory for aging ACS800 installations, this unit is sourced, verified, and ready to deploy.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the BCU-02 3AUA0000110429 is rarely an isolated task. Maintenance engineers and procurement teams working on ACS800 drives should treat this replacement as an opportunity to audit the full control section and associated electrical circuit. A thorough inspection during a planned or emergency BCU-02 swap should include the following components and subsystems:

The APBU-44C pulse encoder interface unit and RTAC-01 or RTAC-02 resolver interface modules share the same control backplane and are subject to the same thermal and vibration stresses as the BCU-02. If the drive has been running in a high-cycle or high-ambient environment, these should be inspected or replaced concurrently. Similarly, the RDCO-01 or RDCO-02 DDCS communication adapter — which handles fiber optic communication between the BCU and the inverter section — should be checked for connector integrity and signal quality, as a degraded DDCS link can cause intermittent faults that mimic BCU failures.

On the power side, the APOW-01 auxiliary power supply board provides the 24 VDC rail that feeds the BCU-02 and its associated I/O. A failing APOW-01 can cause BCU undervoltage resets and should be tested before concluding that the BCU itself is the root cause. The AINT-xx inverter control interface board and AGPS-xx gate driver power supply are also worth inspecting during any extended shutdown, as these boards govern IGBT firing and are critical to drive restart after a control section replacement.

For sites running ACS800 drives in networked configurations — particularly those using PROFIBUS, DeviceNet, or Modbus TCP — the RPBA-01 PROFIBUS adapter or RDNA-01 DeviceNet adapter installed in the BCU’s fieldbus slot should be re-seated and re-parameterized after a BCU swap, as node address and baud rate settings are stored on the adapter itself. Maintenance teams should also verify the integrity of RAIO-01 analog I/O extension modules and RDIO-01 digital I/O extension modules, which connect to the BCU via the I/O bus and are frequently overlooked during fault isolation.

Finally, control cabinet inspections should include terminal block torque checks, fuse continuity verification on the 24 VDC auxiliary circuit, and a review of the JCU-01 or JCU-02 control unit if the site operates mixed ACS880/ACS800 installations. Documenting firmware versions and parameter backups before and after BCU replacement is essential for rapid recommissioning and long-term system traceability.

Site Replacement Workflow

The BCU-02 3AUA0000110429 is a direct replacement for the original ABB factory-fitted control unit in ACS800 single drives and multidrive configurations. The replacement procedure is designed to minimize downtime and preserve system configuration:

Step 1 — Pre-replacement preparation: Back up all drive parameters using the ACS800 control panel (CDP312R or ACS-CP-C) or DriveStudio PC tool. Record the firmware version, application macro, and fieldbus node settings. Photograph the existing wiring and I/O terminal assignments.

Step 2 — Safe isolation: De-energize the drive following local LOTO (Lockout/Tagout) procedures. Wait for the DC bus to discharge fully (minimum 5 minutes after power-off, verify with a calibrated voltmeter). Remove the control panel and any fieldbus adapter before handling the BCU board.

Step 3 — Board swap: Remove the faulty BCU-02 by releasing the retaining clips and disconnecting the ribbon cables and fiber optic connectors. Install the replacement BCU-02 3AUA0000110429, ensuring all connectors are fully seated. Re-install the fieldbus adapter and control panel.

Step 4 — Recommissioning: Restore parameters from backup. Verify motor data, control mode, and I/O assignments. Run a no-load test before reconnecting the mechanical load. Confirm fieldbus communication is re-established and all fault codes are cleared.

Step 5 — Documentation: Update the maintenance log with the replacement date, part number, and firmware version. Register the 12-month warranty start date with SMARTNEXMSK.

This workflow applies equally to emergency replacements and planned overhauls, and is compatible with all ACS800 hardware revisions that originally shipped with the BCU-02 control unit.

Spare Parts Support FAQ

Q1: Is the BCU-02 3AUA0000110429 compatible with all ACS800 drive ratings?
The BCU-02 is the standard control unit for the ACS800 single drive series across a wide range of power ratings. Compatibility depends on the hardware revision of your specific drive frame. We recommend providing your drive’s full nameplate data (type code and serial number) when ordering, so our technical team can confirm the correct BCU variant before shipment.

Q2: What pre-shipment testing is performed on each BCU-02 unit?
Every BCU-02 3AUA0000110429 dispatched from SMARTNEXMSK undergoes functional power-on testing, communication interface verification, and visual inspection for component integrity. Units that do not pass all test criteria are not shipped. A test report is available upon request for critical infrastructure applications.

Q3: How should the BCU-02 be stored as a long-term spare?
Store in original anti-static packaging in a dry, temperature-controlled environment (10°C to 40°C, relative humidity below 75% non-condensing). Avoid proximity to strong magnetic fields or high-vibration areas. For long-term storage beyond 12 months, inspect the board annually and verify electrolytic capacitor condition before deployment.

Q4: What does the 12-month warranty cover, and how is a warranty claim initiated?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, or environmental contamination beyond the rated IP class. To initiate a warranty claim, contact SMARTNEXMSK with the original invoice, a description of the fault, and the drive’s operating history. Replacement or repair will be arranged within the warranty period at no additional cost.
