ABB BGDR-01C Retrofit-Ready Gate Driver for ACS/DCS Control Systems

ABB BGDR-01C Retrofit-Ready Gate Driver for ACS/DCS Control Systems: Compatible Modernization & Smooth Legacy Upgrade

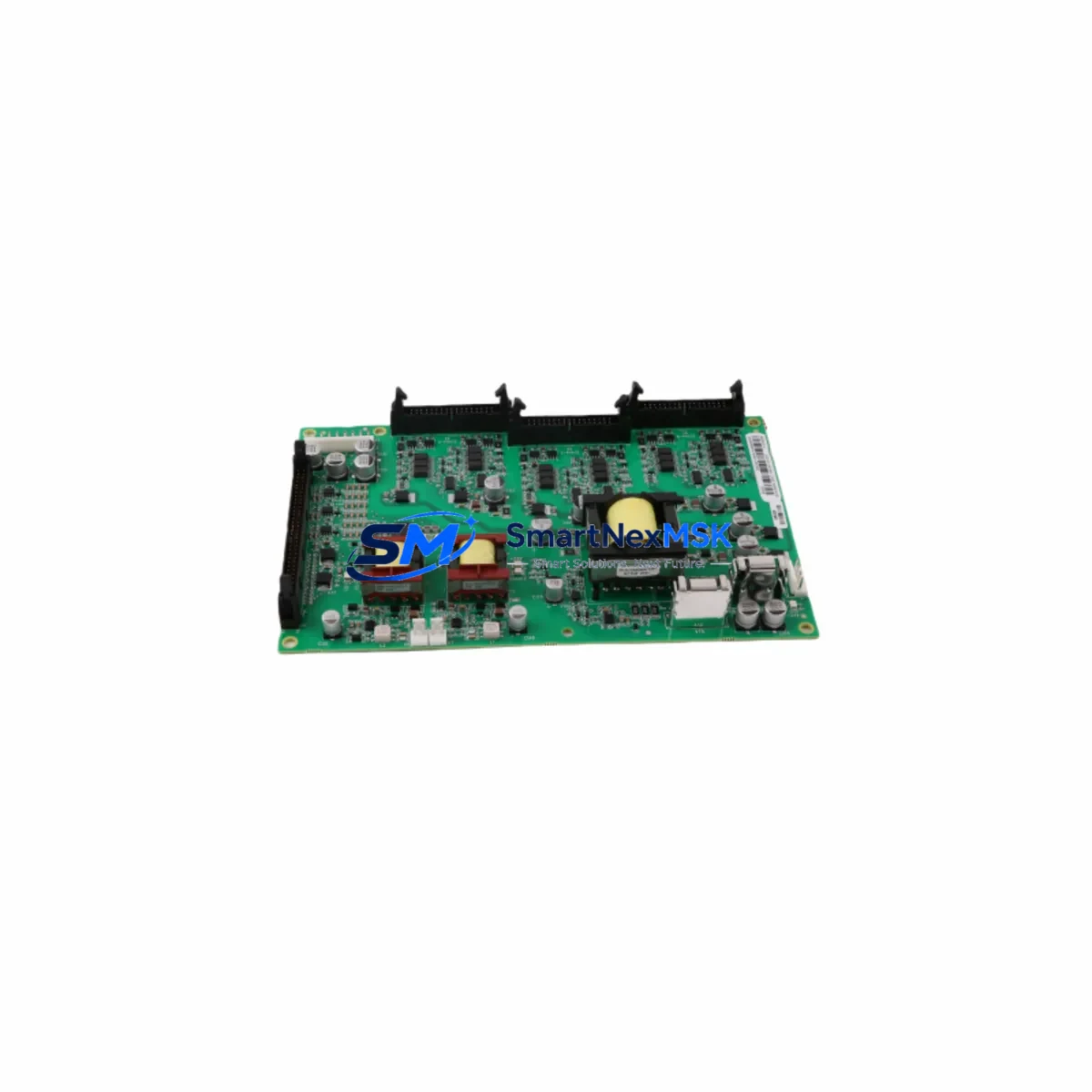

The ABB BGDR-01C is a gate driver board engineered for ABB’s ACS and DCS series variable-speed drives and DC drive control platforms. As original BGDR-01C units reach end-of-life or become increasingly difficult to source through standard distribution channels, industrial facilities operating legacy ABB drive systems face a critical decision: locate a verified replacement board or risk extended unplanned downtime. SMARTNEXMSK maintains in-stock inventory of the BGDR-01C and compatible gate driver assemblies, enabling rapid dispatch and minimizing production interruption for customers across manufacturing, utilities, marine, and process industries.

The BGDR-01C functions as the interface between the drive’s control logic and the IGBT power module stack. It receives firing pulses from the main control board — typically an SDCS-CON-4 or SDCS-CON-2 in DCS800 series applications, or an AINT or RMIO board in ACS800 configurations — and translates those signals into precisely timed gate drive outputs. Any degradation in the BGDR-01C manifests as asymmetric switching, overcurrent trips, or catastrophic IGBT failure, making timely replacement essential to protecting the broader drive investment.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful BGDR-01C retrofit begins well before the replacement board arrives on site. Engineers should pull the drive’s parameter backup using DriveWindow or DriveStudio software, capturing the full parameter set from the SDCS-CON-4 or RMIO-02 control board. This ensures that motor nameplate data, speed reference scaling, torque limits, and PID tuning values can be restored exactly after the swap — eliminating the need for a full recommissioning cycle.

Before powering down the drive cabinet, verify the DC bus voltage has fully discharged using a calibrated meter. The BGDR-01C is mounted in close proximity to the IGBT power module (such as the IGBT stack assembly used in ACS800 R7 and R8 frames), and residual bus voltage presents a lethal hazard. Confirm that the SDCS-POW-4 or APOW power supply board is de-energized and that the 24 VDC auxiliary supply feeding the control section is isolated.

During physical installation, inspect the fiber-optic cables connecting the BGDR-01C to the control board. These plastic optical fiber links carry the gate firing pulses and are susceptible to bending damage or contamination at the ferrule ends. Clean connectors with an appropriate fiber optic cleaning tool before reconnecting. If the existing fiber runs show yellowing or brittleness — common in drives that have operated in high-temperature enclosures for over a decade — replace them with fresh SNAP-type fiber segments before completing the retrofit.

Terminal wiring on the BGDR-01C is minimal, as the board communicates primarily through the backplane connector and fiber links rather than discrete wiring. However, confirm that any auxiliary feedback signals — such as temperature sensor inputs from the IGBT module’s NTC thermistor — are correctly seated. A loose thermistor connection will cause the drive to trip on an IGBT overtemperature fault immediately upon restart, which is frequently misdiagnosed as a board defect.

For DCS800 applications where the BGDR-01C interfaces with a thyristor bridge rather than an IGBT stack, the gate driver timing parameters stored in the SDCS-CON-2 or SDCS-CON-4 must be verified against the replacement board’s revision level. ABB issued several hardware revisions of the BGDR-01C over the DCS800 product lifecycle; confirm the revision suffix on the board label matches the drive’s documented hardware configuration. If the HMI panel — typically an ACS-CP-D or CDP312R — displays a fault code referencing gate driver communication loss after the swap, check the fiber link polarity and the board address DIP switch settings before escalating.

In multi-drive installations where several ACS800 or DCS800 units share a common DC bus via a BAMU or BCON bus adapter module, coordinate the retrofit sequence carefully. Taking one drive offline while others remain active on the shared bus requires that the bus pre-charge circuit and the BAMU isolation contactors are correctly managed to prevent voltage spikes that could damage the replacement BGDR-01C during initial energization.

Downtime Control During System Migration

Minimizing downtime during a BGDR-01C replacement requires a structured pre-outage preparation protocol. The most effective approach is to stage the replacement board on the bench, perform a visual inspection for transit damage, and verify the board’s self-test LED sequence against the ABB hardware manual before the planned maintenance window opens. This eliminates the risk of discovering a DOA board after the production line has already been stopped.

Where process continuity is critical — such as in continuous paper mills, chemical dosing systems, or water treatment facilities — consider implementing a temporary bypass or manual control mode on the affected drive while the BGDR-01C swap is completed. For DCS800 applications driving DC motors on winding or unwinding stands, coordinate with the process control team to ensure the SDCS-CON-4’s tension control logic is placed in manual hold before isolation.

After installing the replacement BGDR-01C, restore the parameter backup via DriveWindow before running the motor ID run. Confirm that the drive’s output current waveform is symmetrical across all three phases using a clamp meter or power analyzer before returning the drive to automatic control. Document the board serial number, installation date, and any parameter changes in the site maintenance log. This record supports warranty claims and provides traceability for future audits.

SMARTNEXMSK ships all BGDR-01C units with a functional test certificate confirming that the board has been powered and verified prior to dispatch. This pre-shipment testing protocol reduces the risk of commissioning delays caused by infant-mortality failures and gives maintenance teams confidence that the replacement board is ready for immediate installation.

Retrofit Support FAQ

Q1: Is the BGDR-01C a direct replacement for all DCS800 and ACS800 frame sizes?
The BGDR-01C is compatible with specific frame sizes within the ACS800 and DCS800 series. Compatibility depends on the drive’s frame designation (R2–R8 for ACS800; D1–D8 for DCS800) and the hardware revision of the existing gate driver assembly. Always cross-reference the part number on the installed board with the ABB hardware manual for your specific drive type before ordering. SMARTNEXMSK’s technical team can assist with cross-referencing if you provide the drive nameplate data.

Q2: What commissioning steps are required after installing the BGDR-01C?
After physical installation and parameter restore, perform a motor ID run (if the drive uses vector control) to re-identify the motor model. Verify the gate delay parameters in the SDCS-CON-4 or AINT board parameter group. Check the drive’s event log for any residual fault codes related to gate driver communication or IGBT temperature. Run the drive at low speed under no-load conditions before returning to full production load. Document all steps in the site commissioning record.

Q3: Can the BGDR-01C be installed without rewiring the drive cabinet?
In the vast majority of retrofit scenarios, the BGDR-01C is a plug-in replacement requiring no discrete rewiring. The board connects via the backplane connector and fiber-optic links. The only wiring check required is the NTC thermistor connector and any auxiliary feedback terminals specific to your drive frame. If your existing drive has been modified from the factory configuration, consult the as-built wiring diagram before proceeding.

Q4: What does the 12-month warranty cover, and how is a claim initiated?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, or operation outside the board’s rated parameters. To initiate a warranty claim, contact SMARTNEXMSK with the board serial number, installation date, fault description, and drive event log extract. Replacement boards are dispatched upon claim approval, and defective units are returned for failure analysis.
