ABB BP910S 3KDE175831L9100 Safety-Enhanced PROFIBUS-DP Connector

ABB BP910S 3KDE175831L9100 Safety-Enhanced PROFIBUS-DP Connector: Reliable Control in Harsh Industrial Sites

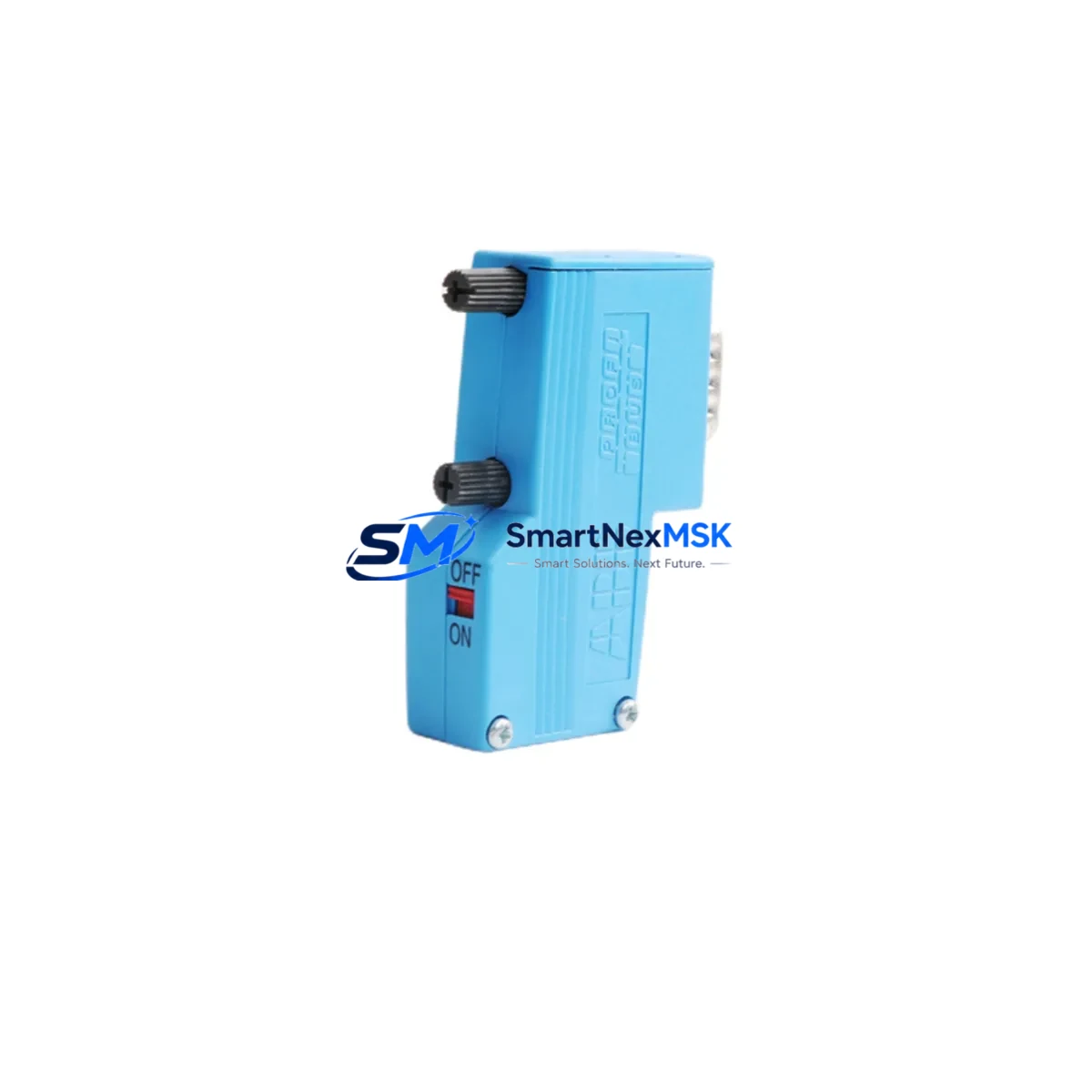

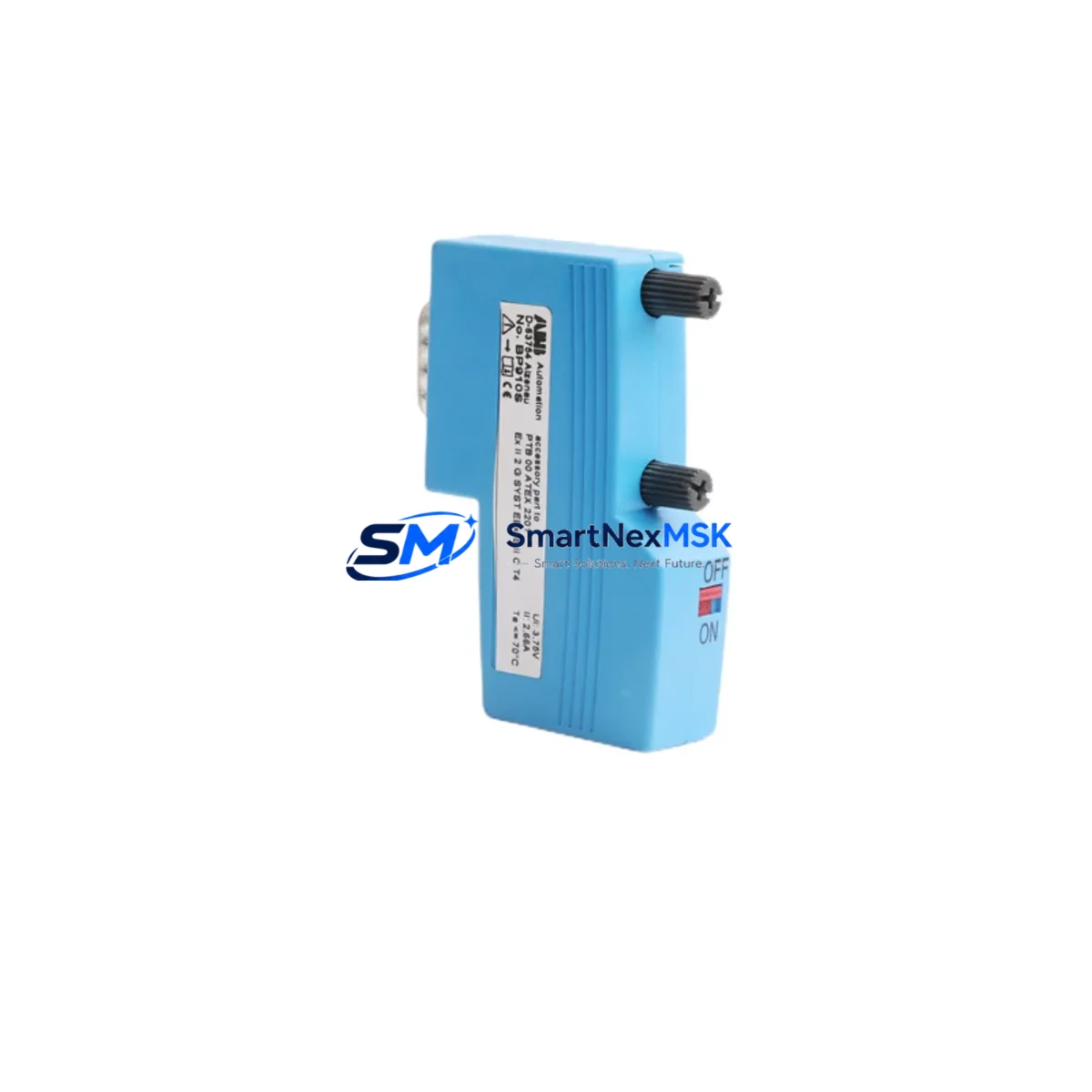

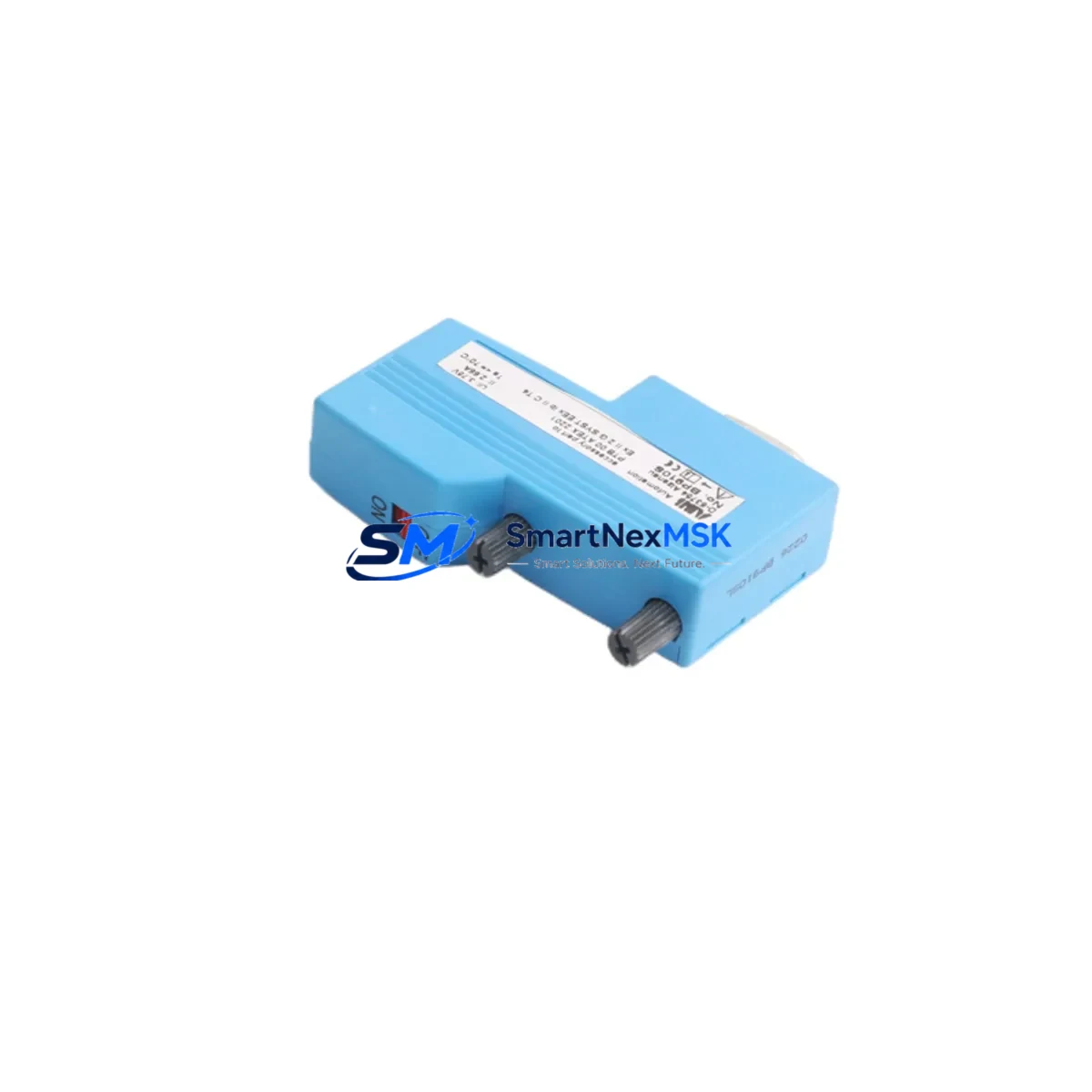

In high-stakes industrial environments where control continuity is non-negotiable, the ABB BP910S 3KDE175831L9100 ruggedized PROFIBUS-DP bus connector delivers the signal integrity and mechanical resilience that safety-critical automation systems demand. Designed specifically for the ABB AC500 PLC platform, this connector serves as the physical backbone of PROFIBUS-DP fieldbus networks — the communication layer that links PLCs, remote I/O modules, drives, and field instruments across continuous production lines, hazardous process areas, and heavy industrial control cabinets.

PROFIBUS-DP networks are the nervous system of countless safety interlocks, emergency shutdown sequences, and process control loops. A degraded or failed bus connector can cascade into signal drift, communication timeouts, spurious module trips, or complete fieldbus segment loss — all of which translate directly into unplanned downtime, safety incidents, and costly production interruptions. The BP910S 3KDE175831L9100 is engineered to eliminate these failure modes through robust shielding, precision termination geometry, and a ruggedized housing rated for the mechanical and electromagnetic stresses of real industrial sites.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered industrial control cabinet, the BP910S 3KDE175831L9100 does not operate in isolation — it is one node in a layered protection architecture. The PROFIBUS-DP segment it terminates typically connects the ABB AC500 CPU module (PM573 or PM583 series) to distributed I/O racks such as the ABB TB511-ETH or DC532 digital I/O modules, enabling deterministic scan-cycle communication even under high electromagnetic interference from variable frequency drives, contactors, and high-current bus bars sharing the same cabinet.

To protect the integrity of this communication path, the BP910S is commonly deployed alongside ABB PROFIBUS repeaters (DP/RS485) on long cable runs exceeding 100 meters, which regenerate signal levels and isolate segment faults. On the power supply side, the ABB CP-E 24VDC SITOP-class power supply units provide the stable 24 V rail that both the AC500 CPU and its I/O backplane require — voltage ripple or brownout events on this rail are a leading cause of spurious module resets and communication loss, making power quality a direct safety concern.

For installations in areas with significant surge exposure — near large motor starters, welding equipment, or outdoor cable runs — ABB surge protective devices (SPDs) from the OVR series are installed upstream of the control cabinet’s 24 V distribution to clamp transient overvoltages before they reach the fieldbus wiring. The BP910S’s own 360° shield clamp provides the last line of EMI defense at the connector level, bonding the cable braid directly to the cabinet earth through the connector’s metal shell.

In safety-instrumented systems (SIS) or critical interlock loops, the PROFIBUS-DP segment may also carry signals from ABB HART-enabled analog input modules (AI523) monitoring pressure transmitters, temperature sensors, or flow meters whose readings feed directly into safety logic. A connector failure in this path does not merely cause a communication alarm — it can mask a genuine process deviation, delaying protective action. This is why connector quality, proper termination, and periodic inspection are treated as safety-critical maintenance tasks in IEC 61511-compliant facilities.

Additional components commonly found in the same control cabinet or fieldbus segment include ABB S800 I/O modules for high-density process I/O, PROFIBUS-DP to PROFINET gateways (ABB CI854) for hybrid network architectures, and ABB REF615 or REM615 protection relays in power distribution panels where PROFIBUS-DP is used for substation automation and motor protection interlocking.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In continuous process units — crude distillation, hydrocracker, or gas compression trains — PROFIBUS-DP networks link the DCS/PLC to hundreds of field instruments and actuators. The BP910S 3KDE175831L9100 ensures that bus termination is stable and EMI-immune in environments with high RF noise from variable speed drives on pumps and compressors. A failed connector in a safety interlock segment can delay ESD (Emergency Shutdown) signal propagation, a scenario that process safety engineers treat as a critical risk.

Electric Power Generation and Transmission: In thermal power plants and hydroelectric stations, ABB AC500 PLCs with PROFIBUS-DP I/O manage turbine governor controls, excitation systems, and auxiliary protection panels. The ruggedized BP910S connector maintains bus continuity in high-vibration turbine halls and switchgear rooms where loose or degraded connectors are a known cause of nuisance trips and protection relay misoperation.

Mining and Mineral Processing: Underground and surface mining operations subject control equipment to extreme dust, vibration, and temperature cycling. PROFIBUS-DP networks in conveyor control, crusher automation, and ventilation safety systems rely on mechanically robust connectors like the BP910S to survive the physical environment without requiring frequent maintenance interventions that are costly and hazardous in confined or remote locations.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities use PROFIBUS-DP to integrate PLCs with pump VFDs, valve actuators, and analytical instruments. Reliable bus connectivity is essential for maintaining dosing accuracy, overflow prevention interlocks, and regulatory compliance monitoring — all of which depend on uninterrupted fieldbus communication.

Metallurgy and Steel Production: Rolling mills, electric arc furnaces, and continuous casting lines generate some of the most severe electromagnetic environments in industry. The BP910S’s full-shield metal housing and precision termination geometry are specifically valued in these applications, where lesser connectors exhibit signal degradation within months of installation due to inductive coupling from high-current bus bars and furnace transformers.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the BP910S 3KDE175831L9100?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. If the connector fails to maintain PROFIBUS-DP bus integrity due to a defect in materials or workmanship within 12 months of shipment, we will provide a replacement unit at no charge. Warranty claims are processed with priority to minimize your site downtime.

Q2: What pre-shipment testing is performed on this connector?
Every BP910S 3KDE175831L9100 unit undergoes functional verification before dispatch, including continuity testing of all signal pins, shield clamp integrity check, and visual inspection of the locking latch and cable entry. Units that do not meet ABB’s original specification are quarantined and not shipped. A test record is available upon request for quality-critical procurement.

Q3: Is this connector compatible with third-party PROFIBUS-DP devices, or only ABB AC500 PLCs?
The BP910S 3KDE175831L9100 is a standard IEC 61158-compliant PROFIBUS-DP connector with a 9-pin Sub-D interface. It is fully compatible with any PROFIBUS-DP master or slave device from any manufacturer — including Siemens S7, Schneider Modicon, and Rockwell ControlLogix systems — as long as the device uses the standard PROFIBUS-DP physical layer. It is not proprietary to ABB AC500.

Q4: Can you guarantee long-term supply for ongoing maintenance and spare parts programs?
Yes. We maintain dedicated stock of the BP910S 3KDE175831L9100 to support both immediate replacement needs and planned spare parts programs. For facilities with multiple PROFIBUS-DP segments, we recommend holding at least two spare connectors per segment as part of a minimum viable spare parts inventory. We can provide volume pricing and scheduled delivery agreements for maintenance contracts requiring guaranteed availability over 12–36 month horizons.
