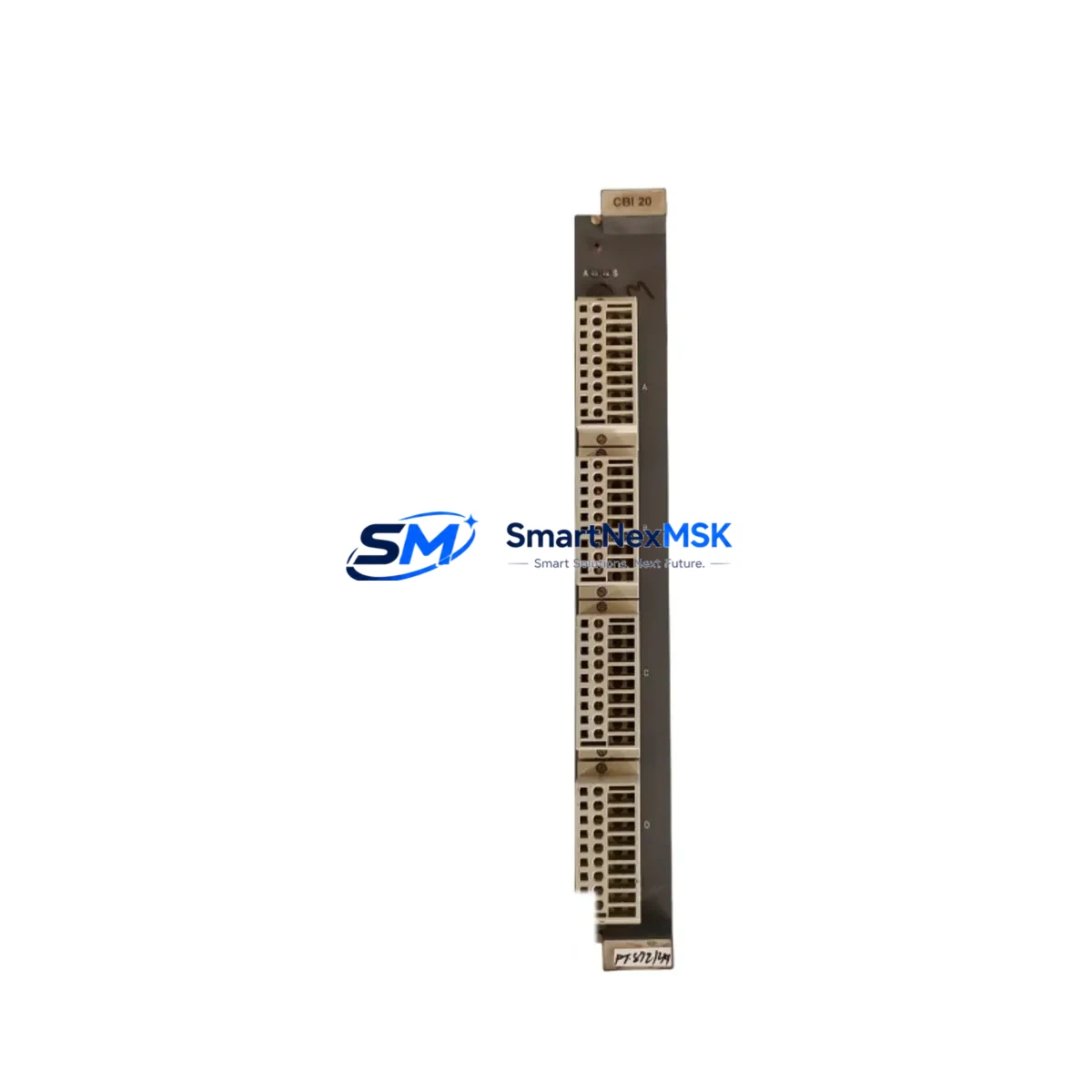

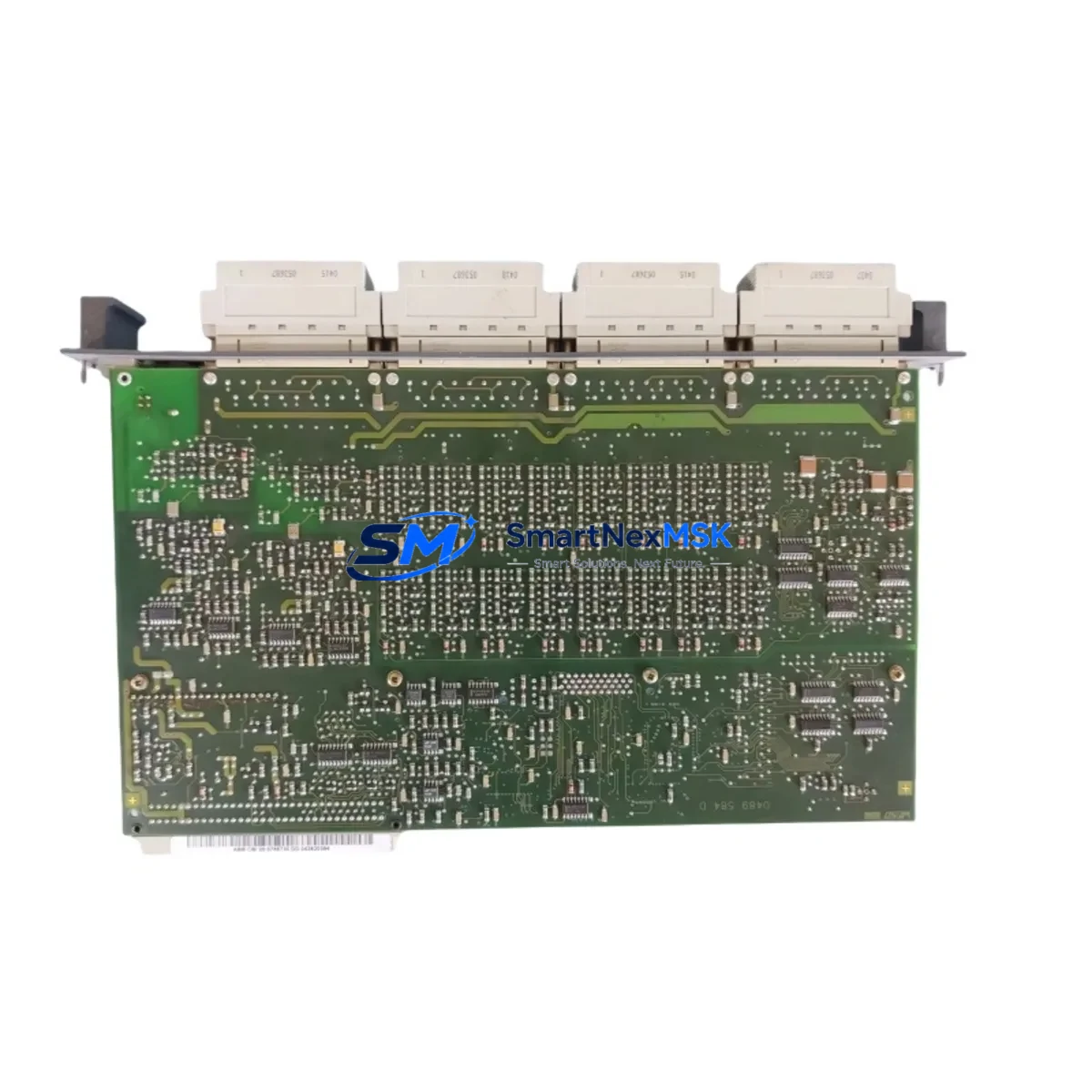

ABB CBI22 Safety-Enhanced Digital Input Module

ABB CBI22 Safety-Enhanced Digital Input Module for Harsh Industrial Sites

The ABB CBI22 is a 16-channel, 24V DC digital input module engineered for the AC500 and S500 PLC platforms, purpose-built to deliver uninterrupted signal integrity in the most demanding industrial environments. Whether deployed in petrochemical processing units, high-voltage power distribution substations, underground mining control rooms, or continuous steel manufacturing lines, the CBI22 maintains reliable digital input acquisition even under conditions of extreme electromagnetic interference, voltage fluctuation, mechanical vibration, and wide thermal variation. For engineers responsible for safety-critical control loops and interlock systems, the CBI22 represents a proven, field-hardened solution that reduces the risk of spurious trips, missed signals, and unplanned shutdowns.

In high-load production environments where control continuity is non-negotiable, the CBI22’s robust input filtering and galvanic isolation architecture protect the control system from field-side transients and surge events. When a proximity sensor, limit switch, or safety relay feeds a signal into the CBI22, the module’s internal filtering suppresses noise spikes that would otherwise cause false triggering in less ruggedized alternatives. This is particularly critical in applications where the CBI22 shares a control cabinet with variable frequency drives, motor starters, or high-current contactors — all of which generate significant conducted and radiated interference.

Safety Reliability Table

Control Cabinet Protection Strategy

Deploying the ABB CBI22 within a safety-oriented control cabinet requires a systematic approach to signal integrity, power quality, and module coordination. In a typical AC500-based control cabinet, the CBI22 is mounted on an S500 I/O terminal unit alongside complementary modules such as the ABB DEI22 digital input expansion, the ABB DAO01 analog output module, and the ABB DC532 digital combination module. Together, these modules share the S500 I/O bus, which provides deterministic, high-speed data exchange with the central processing unit — typically an ABB PM573 or PM591 CPU module.

Power supply quality is foundational to CBI22 reliability. A dedicated 24V DC SITOP PSU100S or equivalent DIN-rail power supply with active power factor correction and output buffering ensures that input voltage to the CBI22 remains within specification even during grid disturbances or motor start-up inrush events. For installations in areas with frequent voltage sags, an uninterruptible power supply module or capacitor buffer module should be integrated upstream of the I/O bus power feed.

In safety interlock applications — such as emergency shutdown systems, fire and gas detection interfaces, or machine guarding circuits — the CBI22 input channels are typically wired to safety relay outputs, door interlock switches, or pressure switch contacts. Proper cable segregation, shielded twisted-pair wiring, and ferrite core suppression on field cables entering the cabinet are essential to prevent conducted interference from corrupting input states. The CBI22’s internal input filter time constants can be configured via the ABB Automation Builder programming environment, allowing engineers to balance response speed against noise immunity based on the specific field device characteristics.

For communication-intensive installations where the AC500 CPU manages both safety I/O and process data via PROFIBUS DP or Modbus TCP, the CBI22 operates transparently within the I/O bus architecture, ensuring that digital input states are reported to the CPU without adding latency to the communication cycle. In distributed I/O configurations using the ABB CI590-CS31-HA CS31 bus coupler, multiple CBI22 modules can be deployed across remote I/O stations up to 1,000 meters from the CPU, extending the safety monitoring perimeter across large plant footprints.

Critical Industrial Safety Applications

The ABB CBI22 is actively deployed across a broad spectrum of safety-critical industrial sectors. In petrochemical refineries and LNG terminals, the module monitors valve position feedback, high-pressure limit switches, and emergency shutdown pushbutton states within SIL 2-rated safety instrumented systems. Its galvanic isolation and surge immunity are essential in these environments, where field wiring may run hundreds of meters through areas subject to lightning-induced transients and ground potential differences.

In electrical power generation and transmission substations, the CBI22 captures breaker status, protection relay trip signals, and transformer tap position feedback. The module’s wide operating temperature range and immunity to high-frequency interference from switching equipment make it well-suited for both indoor switchgear rooms and outdoor kiosk installations. Water treatment and wastewater management facilities rely on the CBI22 to monitor pump run/fault status, level switch states, and chemical dosing system interlocks — applications where continuous, unattended operation over extended periods demands the highest levels of module reliability.

In metallurgical plants and continuous casting lines, the CBI22 withstands the intense electromagnetic environment generated by arc furnaces, induction heaters, and large DC drive systems. Port and terminal automation systems use the CBI22 within crane control and conveyor interlock circuits, where rapid, accurate digital input response is essential to prevent mechanical collisions and protect personnel. Across all these applications, the CBI22’s combination of robust hardware design, broad platform compatibility, and ABB’s global support infrastructure makes it the preferred choice for engineers who cannot afford control system failures.

Safety and Quality FAQ

Q1: What warranty coverage is provided with the ABB CBI22?
Every ABB CBI22 unit supplied by SMARTNEXMSK is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes a full functional test including input channel verification, bus communication check, and power consumption measurement. Units that do not meet ABB’s original performance specifications are not shipped.

Q2: Is the CBI22 compatible with both AC500 and S500 PLC configurations?
Yes. The CBI22 is designed for the S500 I/O bus system, which is used across the AC500 PLC family. It is compatible with all AC500 CPU modules from the PM554 entry-level processor through to the PM595 high-performance CPU, as well as distributed I/O configurations using CS31 bus couplers. Compatibility with specific firmware versions should be confirmed against the ABB AC500 system catalog prior to installation.

Q3: Can the CBI22 be used in safety-rated (SIL) control architectures?
The CBI22 is a standard I/O module and is not independently SIL-certified. However, it is widely used as a field input interface within broader safety architectures where the safety function is implemented at the CPU or safety relay level. For fully SIL-certified I/O, ABB’s AC500-S safety PLC range with dedicated safety I/O modules should be specified. SMARTNEXMSK can advise on appropriate module selection for your specific safety integrity requirements.

Q4: What is the lead time and long-term supply availability for the CBI22?
SMARTNEXMSK maintains stock of the ABB CBI22 to support both immediate replacement needs and planned maintenance programs. For urgent breakdown situations, same-day dispatch is available for in-stock units. For long-term supply agreements covering planned maintenance schedules or multi-site rollouts, contact our sales team to discuss volume pricing and reserved stock arrangements. We are committed to supporting the CBI22 throughout its operational lifecycle.
