ABB CI540 3BSE001077R1 Safety-Enhanced I/O Bus Extension

ABB CI540 3BSE001077R1 Safety-Enhanced I/O Bus Extension Module: Reliable Control in Harsh Industrial Sites

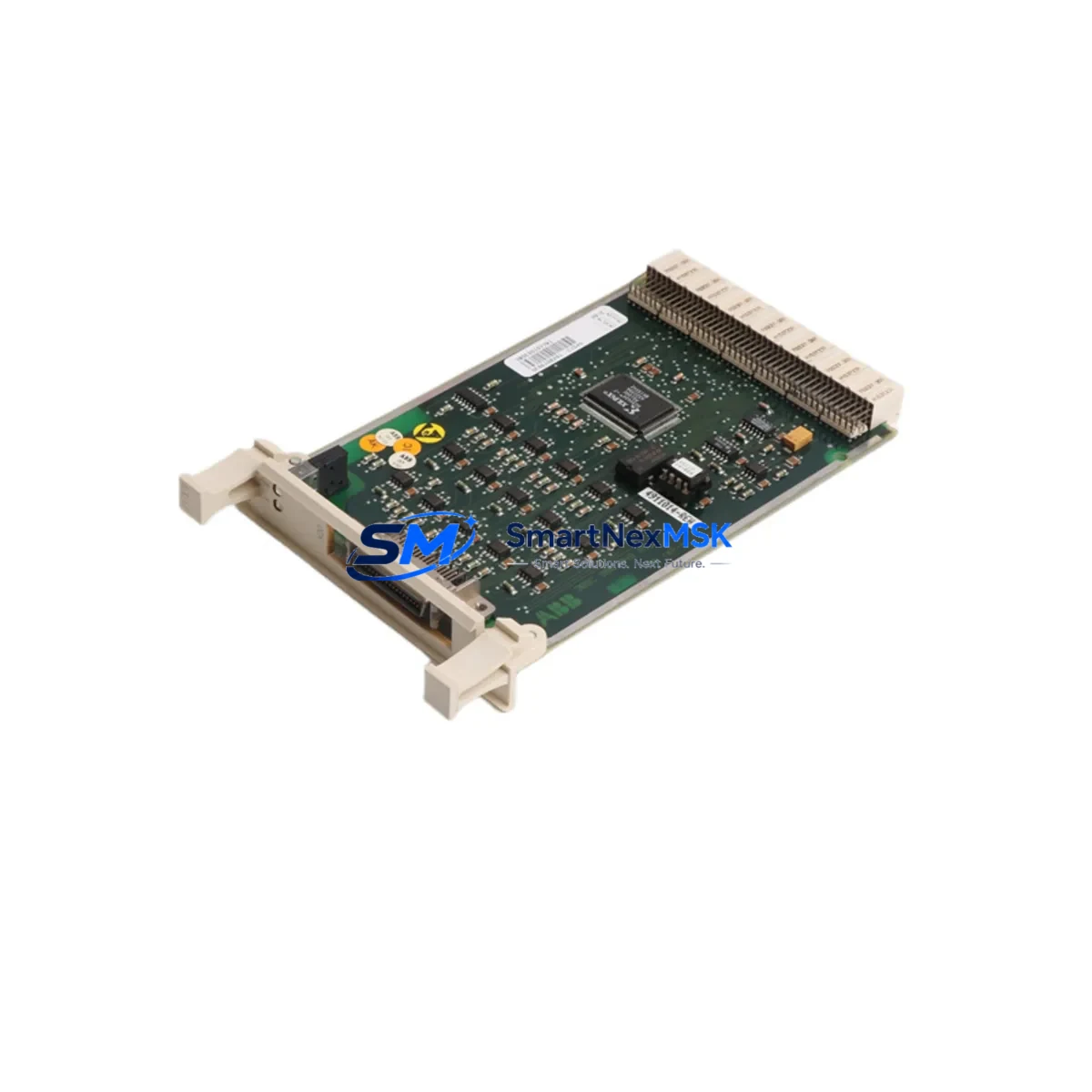

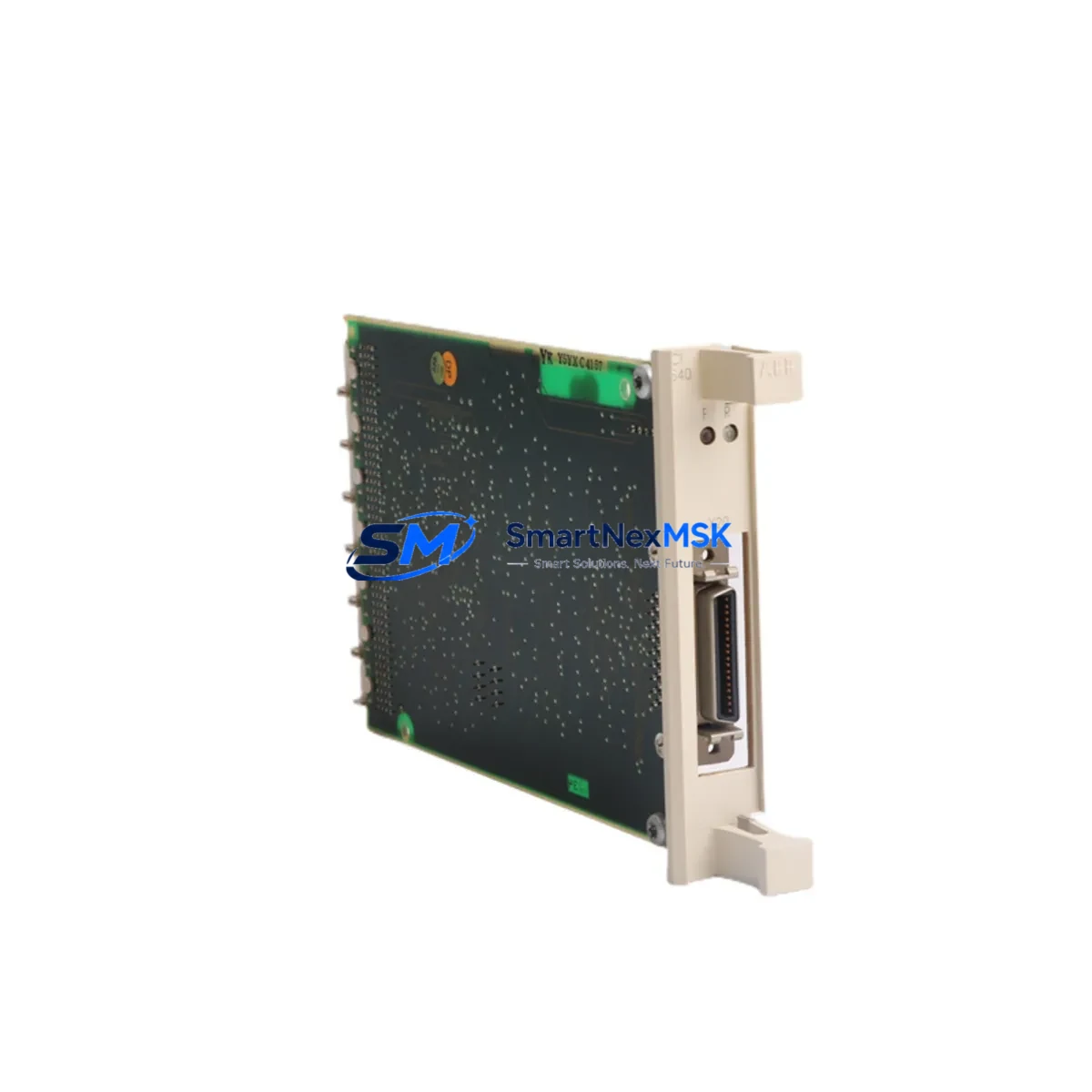

The ABB CI540 3BSE001077R1 is a ruggedized S100 I/O Bus Extension Module engineered for the ABB Advant OCS and Master DCS platforms. Designed to operate reliably in high-noise, high-load, and continuous-production industrial environments, this module extends the S100 I/O bus with full signal integrity, enabling distributed control architectures to maintain deterministic communication even under severe electromagnetic interference, power fluctuations, and thermal stress. For facilities where control interruption is not an option — petrochemical plants, power generation stations, metallurgical smelters, mining operations, and water treatment infrastructure — the CI540 3BSE001077R1 delivers the bus extension reliability that safety-critical loops demand.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered Advant OCS control cabinet, the CI540 3BSE001077R1 does not operate in isolation — it is one node in a layered protection architecture. The S100 bus it extends carries I/O signals from field instruments back to the ABB PM511 / PM510 processor modules, which execute the control logic. Any bus interruption at the extension layer directly threatens the scan cycle integrity of these processors, potentially triggering spurious outputs or watchdog faults in safety-critical interlocks.

To protect against power-related disruptions, the CI540 is typically deployed alongside ABB SD821 or SD822 24 VDC power supply modules, which provide regulated, filtered bus power with redundancy options. In high-surge environments — such as substations or motor control centers — additional ABB SACE surge protective devices or third-party DIN-rail SPDs are installed upstream to absorb transient energy before it reaches the backplane.

Signal integrity on the extended bus is further protected by proper cable shielding and termination. Engineers pairing the CI540 with ABB TB820 / TB825 Modulebus Optical Port modules in larger Advant architectures benefit from galvanic isolation between bus segments, eliminating ground-loop interference that commonly causes signal drift in long cable runs across industrial facilities. For analog I/O racks connected downstream, modules such as the ABB AI810 8-channel analog input module and ABB AO810 analog output module rely on stable bus communication delivered by the CI540 to maintain ±0.1% measurement accuracy — a requirement in flow control and pressure regulation loops.

In digital I/O applications, the CI540 supports racks populated with ABB DI810 digital input modules and ABB DO810 digital output modules, which drive field devices including solenoid valves, motor starters, and safety relays. A bus extension fault at the CI540 level would cause these outputs to fall to their fail-safe states — an acceptable safety outcome, but one that halts production. Maintaining a qualified spare CI540 3BSE001077R1 in the site’s critical spare inventory is therefore standard practice in facilities operating under IEC 61511 functional safety management programs.

For communication-intensive architectures where the Advant OCS connects to SCADA systems or plant historians via ABB CI522A or CI532V communication interface modules, the CI540’s role in maintaining a clean, low-latency S100 bus is equally important. Communication anomalies — missed polls, CRC errors, or timeout faults — frequently trace back to degraded bus extension hardware rather than the communication modules themselves.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In continuous distillation and reaction control systems, the CI540 3BSE001077R1 extends the S100 I/O bus to remote I/O racks monitoring temperature, pressure, and flow in hazardous zones. Its stable bus communication supports the fast scan cycles required by emergency shutdown (ESD) and burner management systems (BMS), where a missed I/O scan can delay a safety response by a full cycle time.

Power Generation and Grid Substations: Turbine control and excitation systems built on the Advant OCS platform depend on the CI540 to maintain uninterrupted I/O bus communication during load transients and switching surges. In these environments, the module’s EMC robustness prevents spurious trips that would force costly unplanned outages.

Mining and Mineral Processing: Conveyor control, crusher automation, and flotation cell management systems in underground and open-pit mining operations subject control hardware to extreme vibration, dust ingress, and wide temperature swings. The CI540’s ruggedized construction and wide operating temperature range make it a reliable choice for these demanding conditions.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities running 24/7 rely on Advant OCS systems for pump sequencing, chemical dosing, and filtration control. The CI540 ensures that distributed I/O racks across large treatment plants remain synchronized with the central processor, preventing dosing errors or pump cavitation caused by stale I/O data.

Metallurgy and Steel Production: In electric arc furnace (EAF) and continuous casting control systems, the CI540 operates in environments with intense electromagnetic fields generated by high-current bus bars and induction heating equipment. Its shielded bus architecture maintains signal integrity where lesser hardware would introduce noise-induced faults into the control loop.

Port and Material Handling Automation: Ship-to-shore crane control and automated stacking crane systems using Advant OCS platforms benefit from the CI540’s ability to extend I/O bus reach across large mechanical structures, maintaining reliable communication between the central controller and distributed drive and sensor I/O racks.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the CI540 3BSE001077R1?
The 12-month warranty covers functional failure of the module under normal industrial operating conditions. If the CI540 fails to perform its I/O bus extension function within the warranty period due to a manufacturing or component defect, we will provide a replacement unit. The warranty period begins from the date of shipment. Contact sales@smartnexmsk.com to initiate a warranty claim.

Q2: What outgoing inspection and testing is performed before shipment?
Every CI540 3BSE001077R1 unit undergoes a full functional test prior to dispatch. This includes bus communication verification, power consumption check, and visual inspection for connector integrity and PCB condition. Units that do not pass functional testing are not shipped. A test report is available upon request for critical spare applications.

Q3: Is the CI540 3BSE001077R1 compatible with all Advant OCS and Advant Master configurations?
The CI540 is designed for the ABB S100 I/O bus and is compatible with Advant OCS (MOD 300) and Advant Master systems using S100 I/O racks. Compatibility depends on your specific system configuration, firmware revision, and rack type. We recommend confirming your system’s S100 bus topology and processor module type (e.g., PM511, PM510) before ordering. Our technical team can assist with compatibility verification — contact sales@smartnexmsk.com.

Q4: Can you support long-term supply and replacement for decommissioned ABB Advant systems?
Yes. We maintain ongoing inventory of legacy ABB Advant OCS and S100 I/O components specifically to support facilities that cannot migrate to newer platforms due to process criticality or capital constraints. The CI540 3BSE001077R1 is a regularly stocked item. For sites requiring a standing supply agreement or priority allocation for critical spare programs, please contact our sales team to discuss volume and lead-time arrangements.
