ABB CI610 3BHT300003R1 Spare for Advant OCS Automation

ABB CI610 3BHT300003R1 Spare for Advant OCS Automation: Spare Replacement & Downtime Risk Control

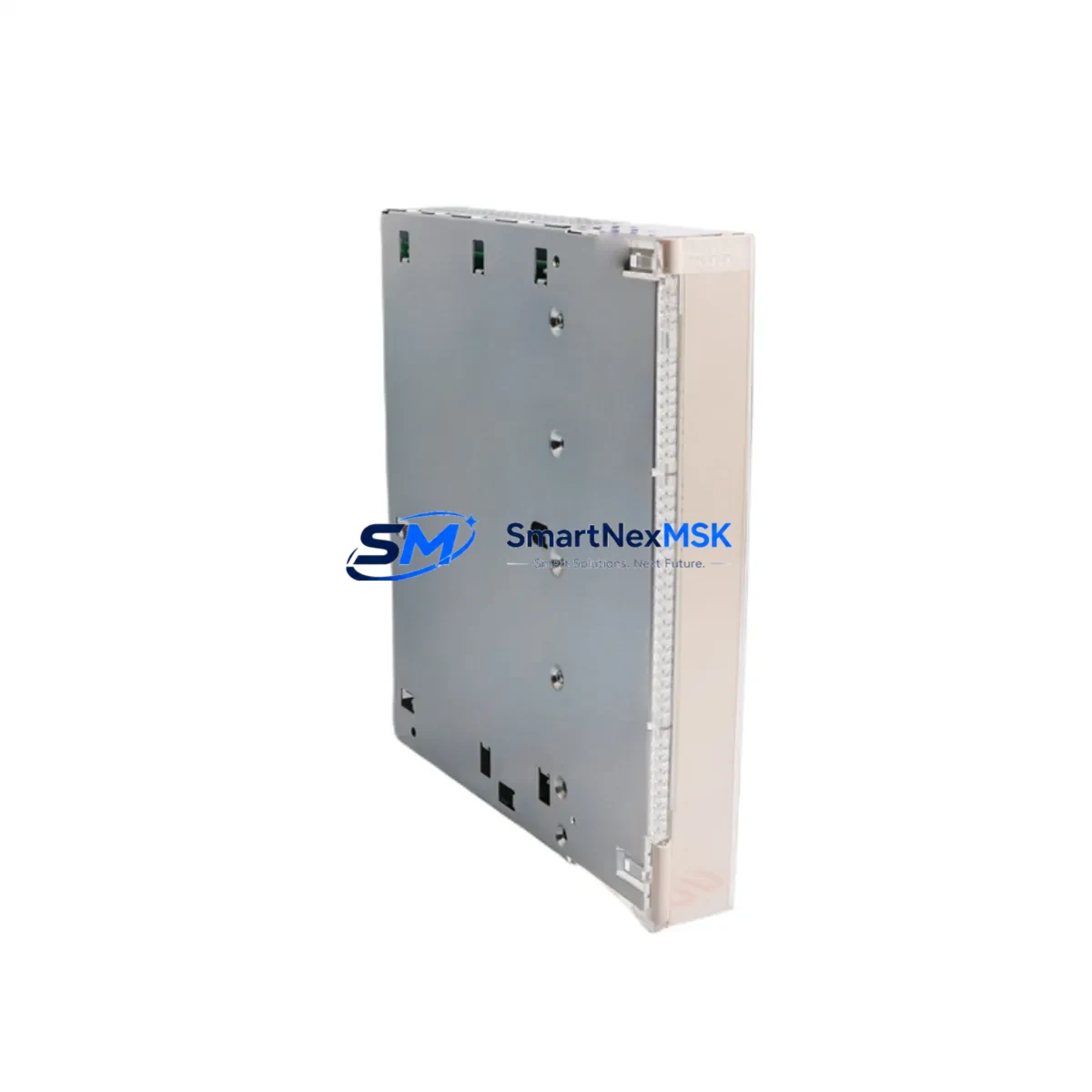

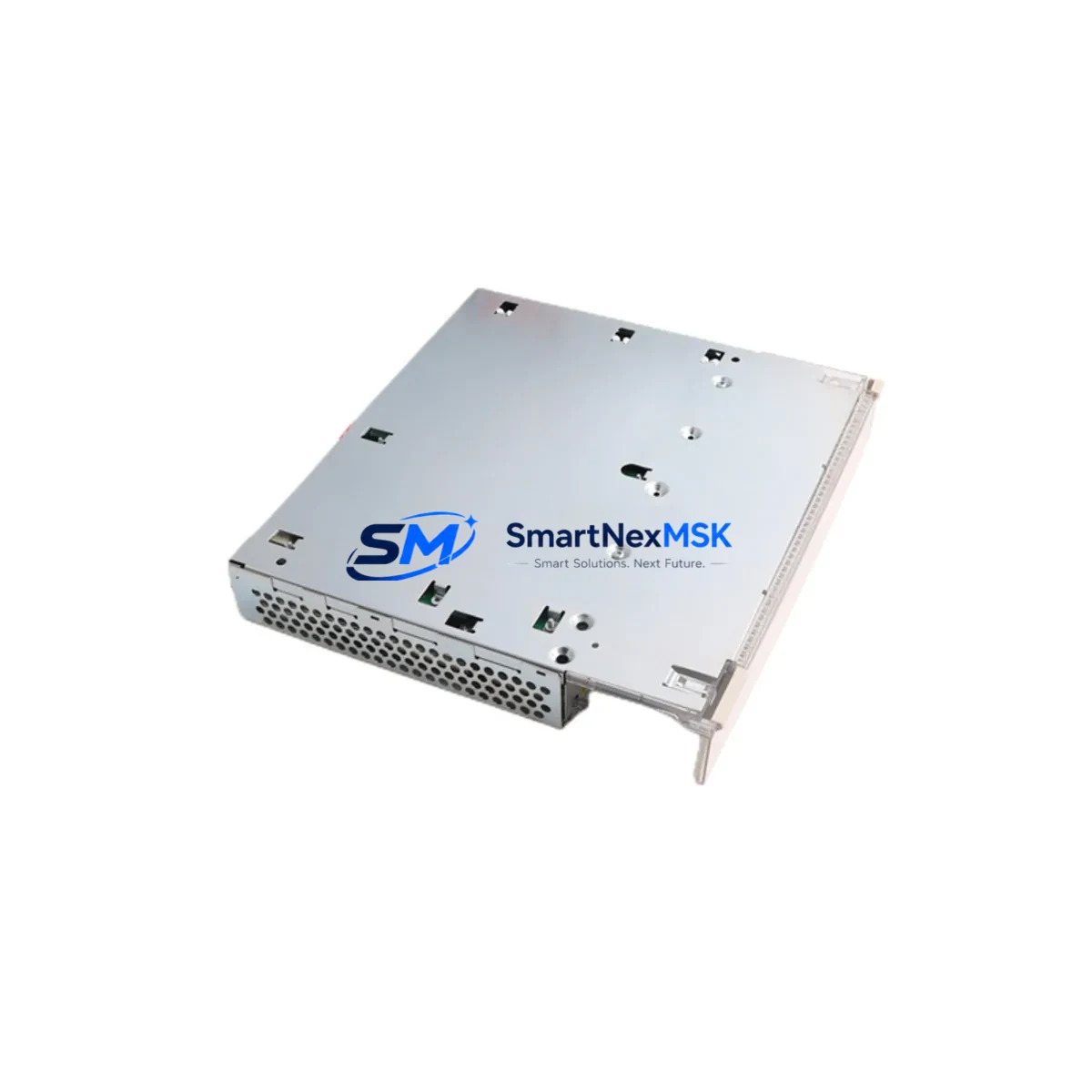

The ABB CI610 (3BHT300003R1) is an original I/O bus extender module designed for the ABB Advant OCS (Open Control System) platform — a distributed control architecture widely deployed in power generation, pulp and paper, chemical processing, and heavy manufacturing facilities. As a critical communication backbone component, the CI610 extends the Advant I/O bus between the controller station and remote I/O clusters, enabling reliable data exchange across the control cabinet and field device network.

For maintenance engineers managing aging Advant OCS installations, the CI610 3BHT300003R1 represents a high-priority spare. Bus extender failures are rarely isolated events — they typically cascade into loss of I/O visibility, controller faults, and unplanned process shutdowns. Holding a verified, tested replacement unit in your spare parts inventory is the most effective strategy for minimizing mean time to repair (MTTR) and protecting production continuity.

Each unit supplied by SMARTNEXMSK is sourced from original ABB production, function-tested prior to dispatch, and covered by a 12-month warranty. We maintain stock for rapid fulfillment to support both planned maintenance windows and emergency breakdown recovery.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a CI610 3BHT300003R1 bus extender is flagged during a routine control cabinet inspection or fault diagnostic, experienced maintenance engineers know that the replacement scope rarely ends with the module itself. The Advant OCS architecture interconnects multiple hardware layers, and a degraded bus extender often indicates stress on adjacent components that share the same I/O bus segment.

During planned replacement of the CI610, it is standard practice to simultaneously inspect the S100 I/O bus cable assemblies and their termination connectors — cable insulation fatigue and connector oxidation are common contributors to intermittent bus errors that are frequently misdiagnosed as module failure. The TB820 Modulebus Modem and TB825 Modulebus Optical Modem modules, which handle communication between the controller and I/O clusters on the Advant Modulebus, should be checked for firmware version alignment and signal integrity.

On the power supply side, the SD821 and SD822 power supply modules feeding the S100 I/O bus rail should be load-tested during the same maintenance window. Voltage ripple or marginal output from an aging power supply can cause intermittent bus extender resets that are difficult to reproduce under normal diagnostic conditions. Procurement engineers should consider holding at least one SD821 or SD822 as a paired spare alongside the CI610.

I/O module integrity is equally important. The DI810 digital input module and DO810 digital output module connected downstream of the CI610 bus segment should be inspected for channel faults, blown fuse indicators, and terminal block corrosion. If the facility uses analog process signals, the AI810 analog input module and AO810 analog output module warrant calibration verification after any bus extender replacement, as bus interruptions can cause analog modules to latch in a fault state.

For sites with Advant OCS systems integrated into a wider SCADA or DCS network, the CI626 AF100 communication interface or CI627 Fieldbus interface module should be included in the inspection checklist. Communication interface modules are sensitive to bus topology changes and may require re-initialization after a bus extender swap. Finally, the PM510 processor module event log should be reviewed post-replacement to confirm clean bus re-establishment and absence of residual fault codes.

Site Replacement Workflow

Replacing the CI610 3BHT300003R1 in an active Advant OCS installation requires a structured approach to minimize downtime and avoid secondary faults. The following workflow reflects best practices for industrial spare part replacement in live control environments:

1. Pre-Replacement Verification: Confirm the replacement unit’s part number (CI610) and revision matches the installed module. Cross-reference the 3BHT300003R1 catalog number against the system’s hardware configuration record. Verify that the new unit has been function-tested and that the 12-month warranty certificate is included.

2. Controlled Shutdown Sequence: Coordinate with the process control team to place the affected I/O bus segment in a safe state. For Advant OCS systems, this typically involves transferring control to redundant paths where available, or placing the controller in manual mode. Document the current bus configuration and I/O module addressing before powering down the cabinet section.

3. Physical Replacement: Disconnect the S100 bus cables from the CI610 in sequence, noting cable labeling and connector orientation. Remove the module from the DIN rail or rack slot. Install the replacement CI610 3BHT300003R1, reconnect bus cables in reverse order, and verify connector seating. Inspect the backplane contacts for debris or corrosion before insertion.

4. Power-Up and Bus Re-Establishment: Restore power to the cabinet section and monitor the CI610 status LEDs for normal bus initialization. On the AC450 or AC410 controller, verify that all downstream I/O modules on the extended bus segment report online status. Review the controller event log for any bus fault or address conflict messages.

5. Functional Test and Handover: Perform a channel-level I/O test on all modules connected to the replaced bus segment. Confirm analog signal accuracy and digital I/O response before returning the system to automatic control. Update the maintenance record with the replacement date, new module serial number, and post-replacement test results.

This structured approach reduces the risk of repeat failures, supports traceability for regulatory compliance, and ensures that the replacement CI610 3BHT300003R1 delivers its full service life within the Advant OCS system.

Spare Parts Support FAQ

Q1: Is the CI610 3BHT300003R1 compatible with all Advant OCS controller generations?
The CI610 is designed for the ABB Advant OCS S100 I/O bus architecture and is compatible with AC450, AC410, and AC400 series controller stations. Compatibility with specific hardware revisions should be confirmed against the system’s hardware configuration record. SMARTNEXMSK can provide technical cross-reference support prior to order confirmation.

Q2: What pre-shipment testing is performed on each CI610 unit?
Every CI610 3BHT300003R1 dispatched by SMARTNEXMSK undergoes functional verification including bus communication integrity testing, power rail checks, and connector inspection. Units are shipped with a test report and are covered by a 12-month warranty against functional defects under normal operating conditions.

Q3: How should the CI610 be stored as a long-term spare?
For long-term spare storage, the CI610 should be kept in its original anti-static packaging in a climate-controlled environment (10°C–40°C, relative humidity below 75% non-condensing). Avoid storage near strong magnetic fields or corrosive atmospheres. Annual visual inspection of connector contacts is recommended for spares held longer than 24 months.

Q4: Can SMARTNEXMSK support ongoing supply for Advant OCS spare parts beyond the CI610?
Yes. SMARTNEXMSK maintains an active inventory of Advant OCS hardware including I/O modules, communication interfaces, power supplies, and processor modules. For facilities managing long-term Advant OCS system life extension programs, we offer spare parts planning consultation and priority stock reservation for critical components. Contact our team to discuss your site’s spare parts requirements.
