ABB CI626A 3BSE005023R1 Maintenance-Ready Spare AC800M

ABB CI626A 3BSE005023R1 Maintenance-Ready Spare AC800M: Spare Replacement & Industrial Downtime Risk Control

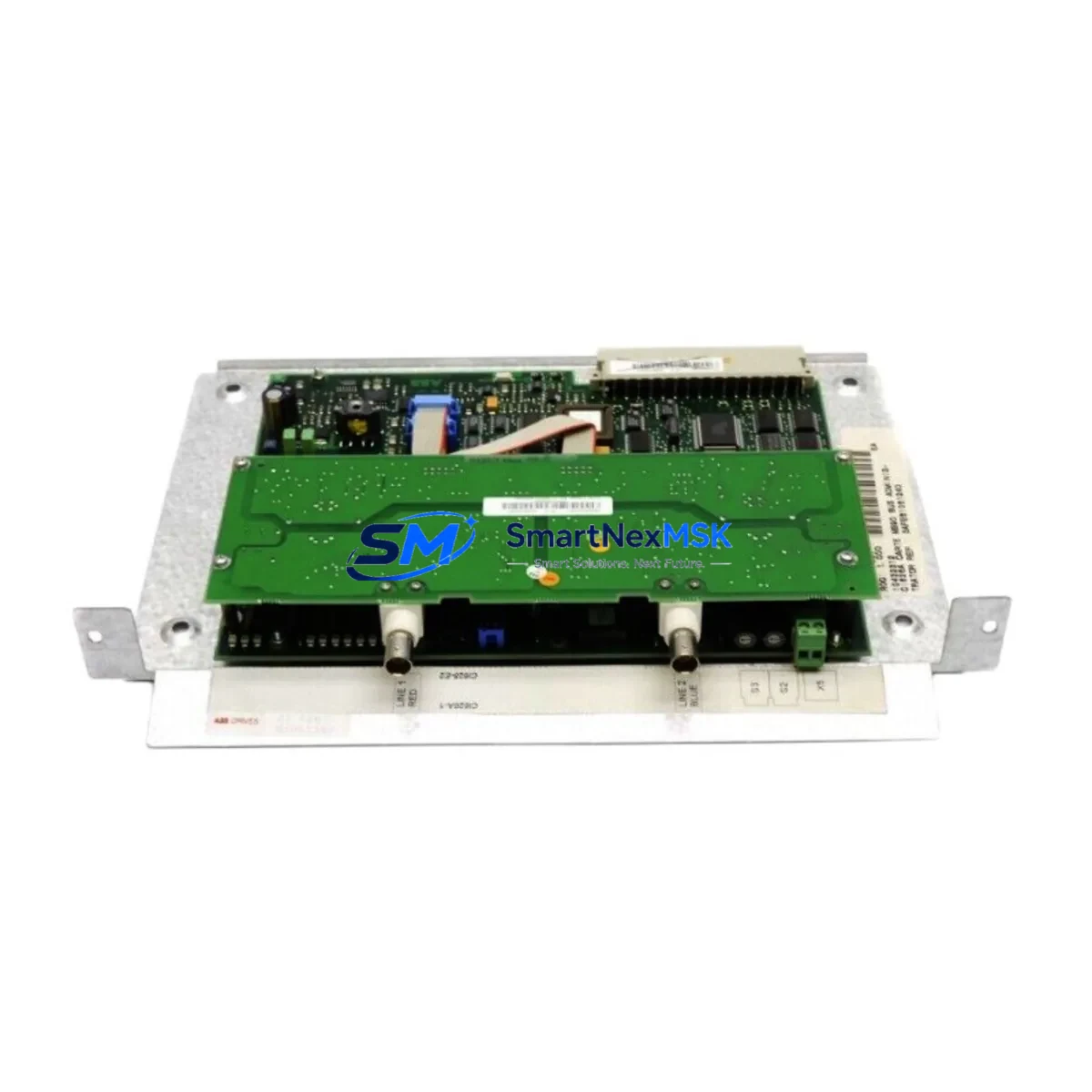

The ABB CI626A (part number 3BSE005023R1) is an original communication interface module designed for the ABB AC800M Distributed Control System (DCS) platform. In industrial facilities where continuous process control is non-negotiable, maintaining a verified spare of the CI626A on the shelf is a frontline strategy against unplanned downtime. This module serves as the communication backbone between the AC800M controller and field devices, and its failure can cascade into full process interruption. Sourced as an original ABB component, this spare is pre-tested, serialized, and shipped with a 12-month warranty to support your maintenance and procurement teams with confidence.

Whether you are managing a petrochemical plant, a power generation facility, a water treatment station, or a discrete manufacturing line running on ABB DCS infrastructure, the CI626A 3BSE005023R1 is a critical node in your control architecture. Maintenance engineers and spare parts planners alike recognize that holding a ready replacement eliminates the lead-time risk that comes with sourcing modules reactively during a fault event. Our stock is inspected, firmware-verified, and packaged for safe long-distance transport.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a CI626A 3BSE005023R1 communication fault is detected — whether through a diagnostic alarm on the AC800M engineering workstation, a loss of PROFIBUS DP segment communication, or a physical inspection during a scheduled cabinet walkthrough — the replacement procedure should be treated as part of a broader system health check rather than an isolated swap.

Maintenance engineers should simultaneously inspect the PM864 or PM866 processor module seated in the same rack, as processor-to-communication module handshake errors can originate from either side. The TB820 or TB840 Termination Unit connecting field I/O to the S800 backplane should be checked for loose terminal connections and signs of thermal stress. If the CI626A interfaces with a PROFIBUS segment, the fieldbus cable termination resistors and DP connectors at both ends of the segment must be verified — a degraded termination is a common root cause of intermittent communication faults that are misdiagnosed as module failure.

Power integrity is equally critical. The SS822 or SS832 power supply module feeding the AC800M rack should be load-tested during the maintenance window. A sagging 24 VDC rail under full I/O load can cause the CI626A to reset intermittently without triggering a hard fault code. Alongside the power supply, inspect the SD802 or SD812 power distribution board for signs of overheating or connector oxidation.

For facilities running mixed I/O architectures, the AI810, AO810, DI810, and DO810 S800 I/O modules on the same backplane should be functionally verified after the CI626A replacement, as a communication interruption may have caused I/O modules to latch in a safe-state output condition. Re-initialization of the fieldbus segment from the Control Builder M engineering tool is recommended after module swap to ensure clean address assignment and parameter download.

If your facility uses AF100 or PROFIBUS PA segments downstream of the CI626A, verify that field instruments — flow transmitters, pressure sensors, and valve positioners — have re-established communication and are reporting within expected ranges before returning the loop to automatic control. Keeping a CI626A 3BSE005023R1 as a designated hot-spare in your control room cabinet, alongside a spare PM864 processor module and a set of pre-configured SD802 power distribution boards, represents a minimum viable spare parts strategy for AC800M-based process control systems.

Site Replacement Workflow

Replacing the CI626A 3BSE005023R1 on-site is a structured procedure that, when executed correctly, minimizes loop downtime to under 30 minutes for a prepared maintenance team. Begin by placing the affected PROFIBUS segment in manual control from the DCS operator station and notifying the process team of the planned interruption. Power down the affected rack slot using the backplane isolation procedure documented in ABB’s AC800M Hardware Configuration manual — do not hot-swap the CI626A without confirming the slot supports live insertion in your specific firmware revision.

Remove the faulty module by releasing the front-panel locking lever and sliding the module clear of the backplane connector. Inspect the backplane connector pins for bent contacts or contamination before inserting the replacement CI626A 3BSE005023R1. Seat the new module firmly, re-engage the locking lever, and restore rack power. The AC800M processor will automatically detect the new module and begin parameter download if the project configuration is stored on the processor — verify this in Control Builder M before returning the segment to automatic.

This workflow is equally applicable when upgrading from an older CI626 (without the A suffix) to the CI626A revision, which offers improved diagnostic capabilities and broader PROFIBUS DP compatibility. The CI626A is a direct form-fit-function replacement for the CI626 in all standard AC800M rack configurations, making it the preferred upgrade path for aging systems where the original module revision is no longer available through standard ABB distribution channels. Documenting the replacement in your CMMS with the new module serial number and firmware version ensures traceability for future audits and warranty claims.

Spare Parts Support FAQ

Q1: Is the CI626A 3BSE005023R1 compatible with all AC800M controller versions?
The CI626A is designed for the ABB AC800M platform and is compatible with PM861, PM864, and PM866 processor modules across standard rack configurations. Compatibility with specific firmware versions should be confirmed against ABB’s AC800M compatibility matrix. We recommend providing your processor module part number and current firmware revision when placing an order so our technical team can confirm fit before shipment.

Q2: What testing is performed before shipment?
Each CI626A 3BSE005023R1 unit undergoes functional verification including power-on self-test, communication port integrity check, and visual inspection for connector and board condition. Units are serialized and records are retained. All shipments include an inspection report and are covered by a 12-month warranty from the date of dispatch.

Q3: How should I manage CI626A inventory for a multi-unit DCS installation?
For facilities with three or more AC800M racks utilizing CI626A modules, a minimum of one spare per five installed units is a widely adopted maintenance benchmark in process industries. Given the module’s role as a communication gateway, a single failure can affect an entire PROFIBUS segment. Stocking a spare reduces mean time to repair (MTTR) from days — if sourcing reactively — to under an hour with a shelf-ready replacement.

Q4: Can this spare replace an older CI626 (without the A suffix)?
Yes. The CI626A is the current production revision and is a direct replacement for the earlier CI626 in all standard AC800M rack configurations. The A revision includes enhanced diagnostics and improved fieldbus compatibility. No hardware modification to the rack or backplane is required. Firmware download from the AC800M processor is automatic upon module insertion when using Control Builder M with a valid project configuration loaded.
