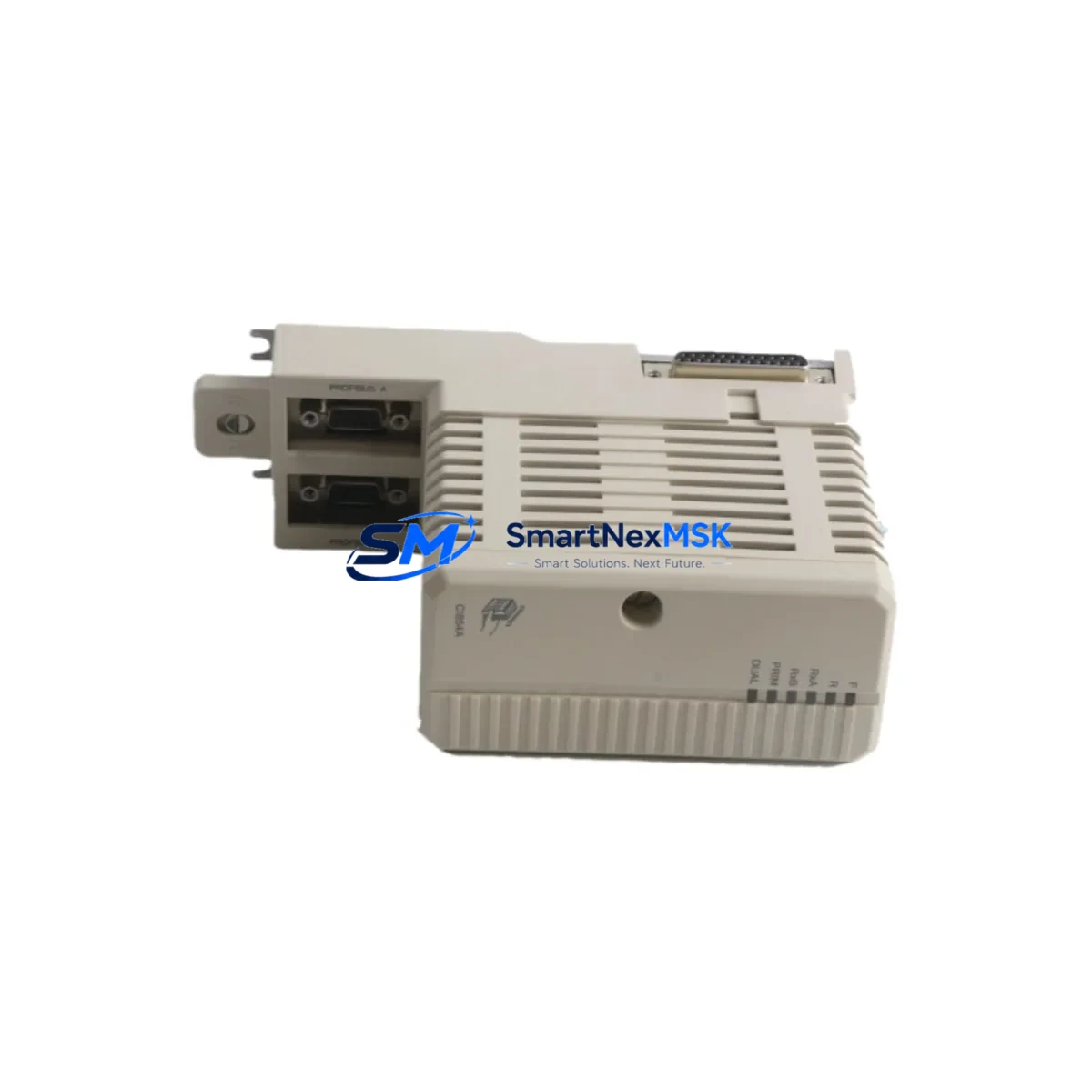

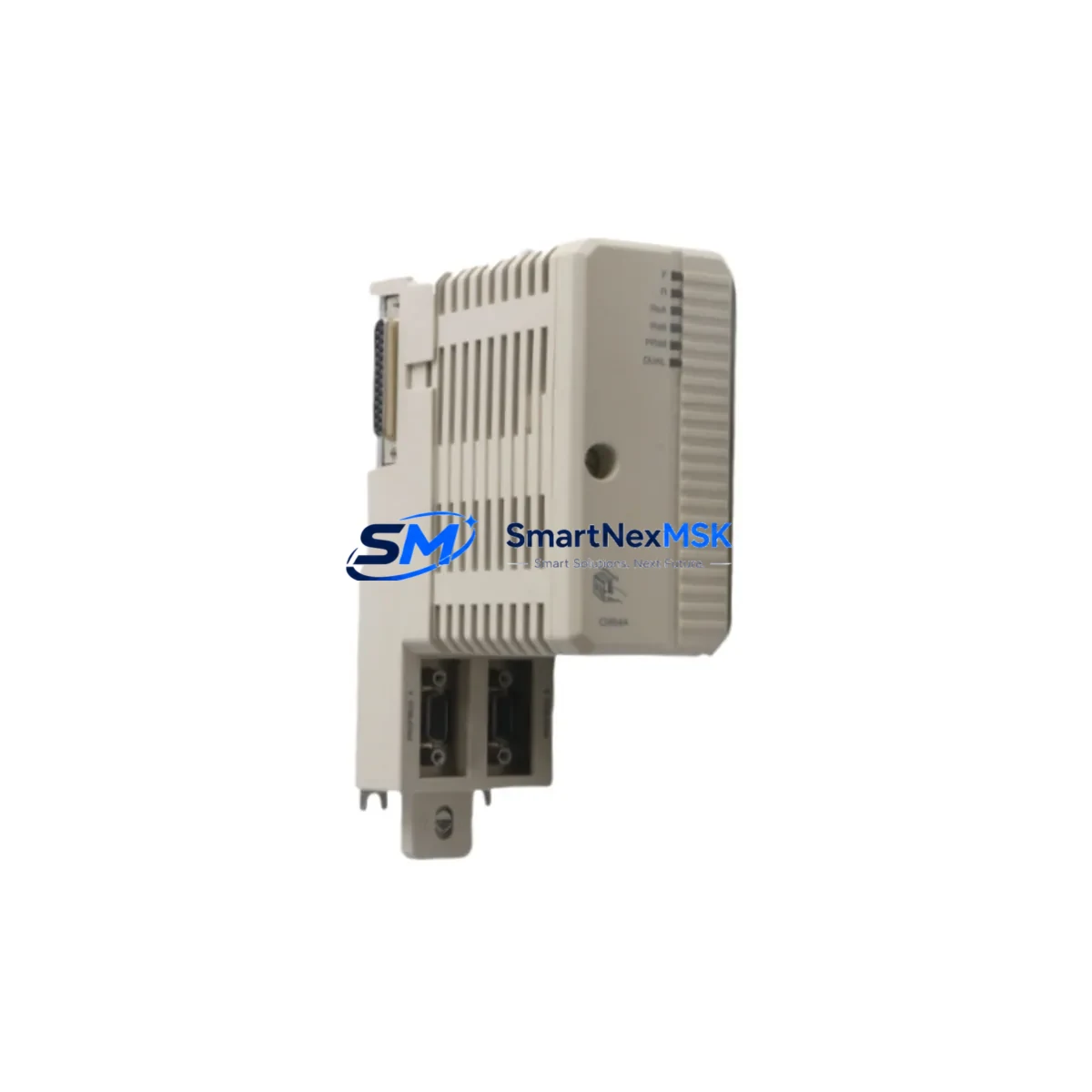

The ABB CI773F is an original PROFIBUS DP master communication module designed for the ABB AC 800M Distributed Control System (DCS). As a critical fieldbus interface component, the CI773F enables high-speed, deterministic communication between the AC 800M controller and field devices including variable frequency drives, remote I/O stations, intelligent transmitters, and motor control centers. For maintenance engineers managing continuous process plants, power generation facilities, or large-scale manufacturing lines, holding a verified CI773F spare in inventory is a fundamental risk-mitigation strategy against unplanned communication failures and extended process downtime.

This listing supplies a genuine, original ABB CI773F module — not a clone or third-party substitute — sourced from authorized industrial channels. Every unit undergoes functional verification and communication integrity testing prior to shipment. A 12-month warranty is included, covering manufacturing defects and operational failures under normal industrial service conditions. Worldwide logistics with tracked express shipping ensures rapid delivery to support emergency maintenance scenarios.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a CI773F communication fault is detected — typically surfaced as a PROFIBUS DP bus error, slave device timeout, or controller diagnostic alarm — the replacement procedure should be treated as a system-level maintenance event, not an isolated module swap. Experienced maintenance engineers know that a communication module failure rarely occurs in isolation; it is often accompanied by degraded conditions in adjacent components that, if left unaddressed, will trigger a repeat failure within weeks.

Before or during a CI773F replacement, the following components and subsystems should be inspected and, where necessary, replaced as part of the same maintenance window:

PROFIBUS DP Cable and Bus Termination: Inspect the PROFIBUS DP trunk cable for insulation damage, connector corrosion, and improper termination. Active bus terminators at both ends of the segment must be verified. A degraded cable is the most common root cause of repeated CI773F faults.

AC 800M Controller Module (PM861 / PM864 / PM866): Verify the host controller’s firmware version and diagnostic logs. If the CI773F failure coincided with a controller reboot or watchdog trip, the PM-series processor module itself should be inspected for thermal stress or memory errors. Keeping a PM864 or PM866 spare alongside the CI773F is standard practice in high-availability DCS environments.

S800 I/O Modules (AI810, AO810, DI810, DO810): If the PROFIBUS segment serves remote S800 I/O stations, inspect the AI810 analog input modules and DI810 digital input modules at each remote I/O cluster. A failing I/O module can generate excessive bus traffic that stresses the CI773F master.

Power Supply Module (SD821 / SD822 / SD823): Verify the 24 VDC supply rail feeding the AC 800M cabinet. Voltage sags or ripple on the SD821 or SD822 power supply can cause intermittent CI773F resets. Measure supply voltage under full load before declaring the communication module as the sole fault.

PROFIBUS DP Repeaters and Optical Links: For long-distance or electrically noisy segments, PROFIBUS repeaters or fiber-optic links (such as the ABB RPBA-01 or equivalent) should be tested for signal integrity. A degraded repeater can cause asymmetric communication errors that mimic a CI773F hardware fault.

Relay Output Modules and Signal Isolators: In control cabinets where the PROFIBUS segment interfaces with relay output modules or signal isolators, inspect for contact wear, coil resistance drift, and isolation barrier degradation. These components can introduce ground loops that corrupt PROFIBUS signal quality.

Cabinet Grounding and EMC Shielding: Verify that all cable shields are terminated at a single grounding point within the control cabinet. Poor EMC shielding is a systemic cause of PROFIBUS communication instability that will persist regardless of how many CI773F modules are replaced.

HMI Communication Interface: If the AC 800M system communicates with an operator HMI via OPC or Ethernet, verify that the HMI server’s communication driver is not generating excessive polling traffic that could indirectly load the CI773F’s processing resources.

Maintaining a structured spare parts kit — including the CI773F, at least one PM-series controller module, a set of S800 I/O modules, and a tested SD821 power supply — reduces mean time to repair (MTTR) for AC 800M DCS systems from hours to minutes.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Before removing the faulty CI773F, export the current PROFIBUS DP configuration from ABB Control Builder M. Record all slave addresses, GSD file assignments, and cyclic data mappings. This configuration backup is essential for rapid recommissioning after module swap.

Step 2 — Safe Isolation: Place the AC 800M controller in manual or safe-state mode per your site’s safety procedures. Notify the operations team of the planned communication interruption. For redundant systems, verify that the redundant controller path is active before isolating the primary CI773F.

Step 3 — Physical Replacement: The CI773F is a hot-swap capable module in most AC 800M configurations. Remove the faulty module by releasing the front locking mechanism and sliding it from the backplane. Insert the replacement CI773F and confirm the module LED status transitions from red fault to green operational within 30 seconds of insertion.

Step 4 — Configuration Restore and Bus Scan: Using ABB Control Builder M, perform a PROFIBUS DP bus scan to verify that all previously configured slave devices are detected and responding. Compare the live slave list against the pre-replacement configuration export. Address any missing slaves before returning the system to automatic control.

Step 5 — Functional Test and Handover: Confirm that all I/O signals routed through the PROFIBUS segment are reading correctly in the DCS. Verify alarm and interlock logic is functioning. Document the replacement in the site maintenance management system (CMMS) and update the spare parts inventory record.

This workflow is compatible with legacy AC 800M installations running firmware 4.x through current releases, ensuring that the CI773F replacement does not require a full system reconfiguration and minimizes process interruption to the shortest possible window.

Spare Parts Support FAQ

Q1: Is this CI773F module compatible with all AC 800M controller variants?
The CI773F is compatible with the full AC 800M controller family including PM861, PM864, and PM866 processor modules. It is designed for installation in the AC 800M S800 I/O backplane and communicates via the internal controller bus. Compatibility has been verified for AC 800M firmware versions 5.0 and above. For systems running firmware 4.x, please contact our technical team to confirm revision compatibility before ordering.

Q2: What testing is performed before shipment?
Every CI773F unit is functionally tested prior to dispatch. Testing includes power-on self-test verification, PROFIBUS DP communication initialization check, and backplane interface continuity confirmation. Units that fail any test stage are quarantined and not shipped. A test report is available upon request for quality-critical procurement processes.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers all manufacturing defects and operational failures occurring under normal industrial service conditions as defined in the ABB CI773F product specification. It does not cover damage resulting from incorrect installation, overvoltage events, physical impact, or unauthorized modification. Warranty claims are processed with a target replacement dispatch of 5 business days from fault confirmation.

Q4: Can you support long-term or blanket order supply for CI773F spares?
Yes. We support long-term supply agreements for maintenance teams managing large AC 800M DCS installations. Blanket orders with scheduled quarterly or annual releases are available, with price protection for the agreement term. This is particularly valuable for facilities managing aging AC 800M systems where OEM availability is declining. Contact our sales team to discuss volume pricing and supply scheduling.
