ABB CI852K01 Retrofit-Ready PROFIBUS DP for AC 800M Control Systems

ABB CI852K01 Retrofit-Ready PROFIBUS DP for AC 800M Control Systems

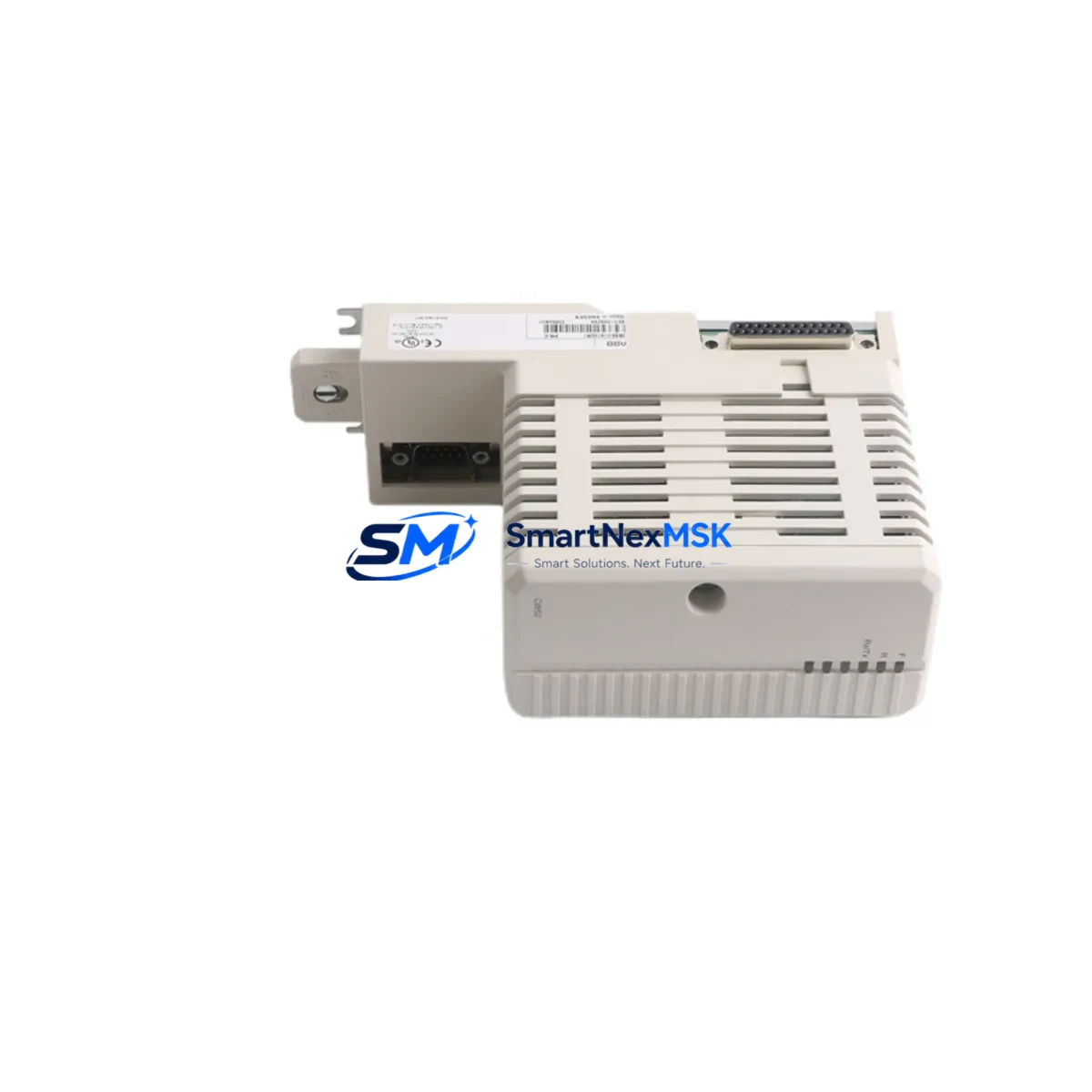

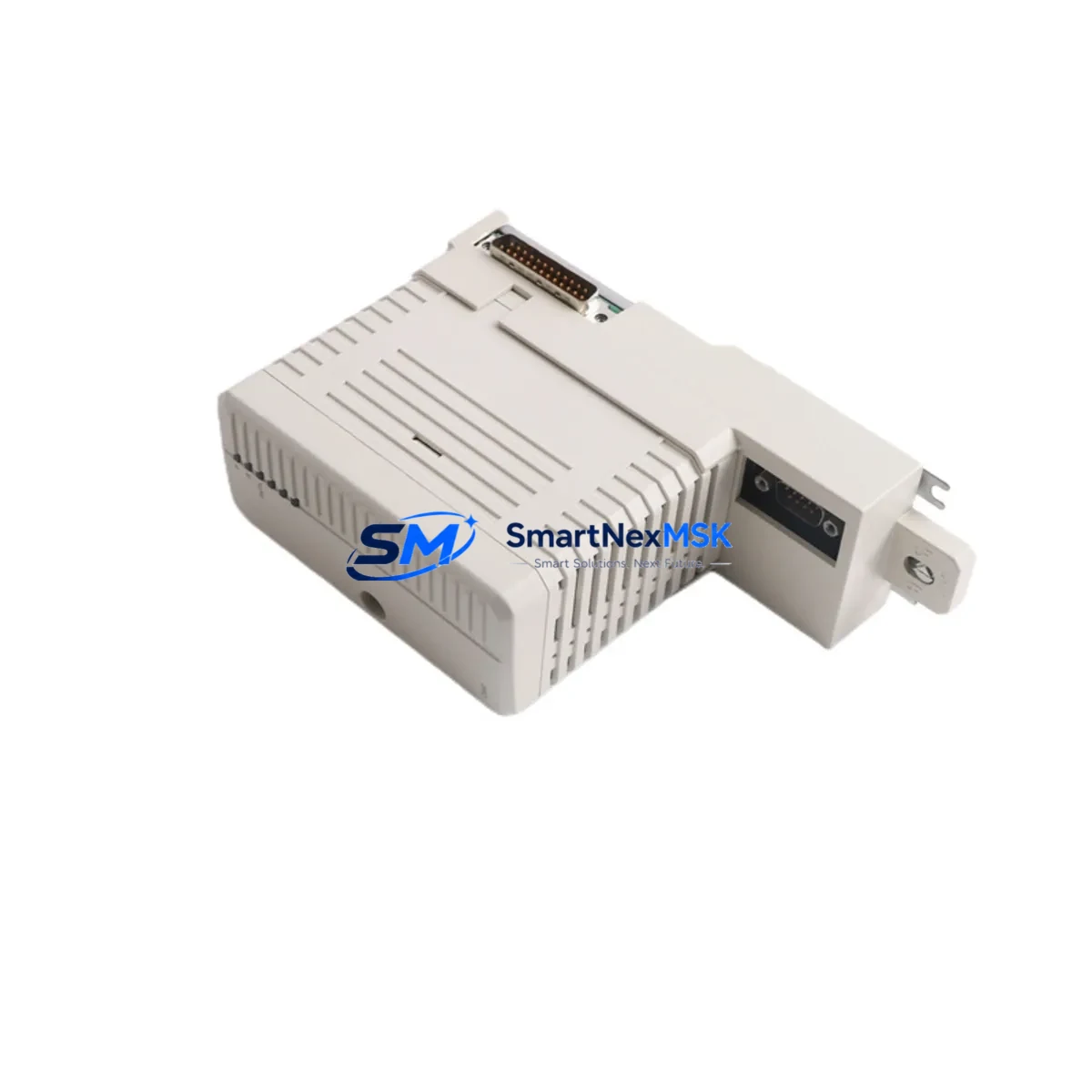

The ABB CI852K01 (part number 3BSE018102R1) is a PROFIBUS DP fieldbus communication module engineered for the AC 800M Distributed Control System platform. As legacy DCS installations age and OEM support windows close, the CI852K01 has become one of the most sought-after retrofit components for engineers tasked with modernizing control infrastructure without full system replacement. Whether you are replacing a failed unit on a running line, upgrading communication capacity in an existing control cabinet, or migrating from an older S800 I/O architecture, the CI852K01 provides a verified, drop-in compatible solution that preserves your existing program logic, HMI screens, and field wiring.

Sourced directly from authorized distribution channels and subject to full functional testing prior to shipment, every CI852K01 unit we supply is backed by a 12-month warranty covering both hardware defects and communication performance. Our inventory is maintained to support urgent retrofit and emergency replacement scenarios, with same-day dispatch available for in-stock units.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the CI852K01 into an existing AC 800M system begins well before the module arrives on site. Engineers should first audit the current rack configuration to confirm available communication module slots on the PM864 or PM866 controller. The CI852K01 occupies a dedicated fieldbus port on the CPU module, so slot availability and backplane addressing must be verified against the existing hardware configuration file in Control Builder M.

Power budget is a critical pre-installation check. The AC 800M power supply unit — typically the SD821 or SD822 — must have sufficient headroom to support the additional communication load introduced by the CI852K01 and any downstream PROFIBUS DP slaves such as ABB S800 I/O stations (AI810, AO810, DI810, DO810) or third-party field devices. If the existing power supply is already near capacity, a parallel SD823 unit may be required before the retrofit proceeds.

Terminal wiring for the PROFIBUS DP segment should be reviewed against the original network topology. The CI852K01 uses a standard DB9 PROFIBUS connector; cable shielding, termination resistors at both ends of the segment, and correct bus topology (no stubs exceeding 1.5 m at high baud rates) are essential for stable communication. If the existing segment was wired for an older CI852 module, the physical connection is pin-compatible and no rewiring is required.

Module addressing is configured entirely in software. After physical installation, the CI852K01 is recognized automatically by Control Builder M, and the existing PROFIBUS DP slave configuration — including GSD files, I/O mapping, and cyclic data exchange parameters — is retained without modification. This is a key advantage over cross-brand migration scenarios where full I/O remapping would be necessary.

For sites running ABB 800xA as the supervisory layer, the CI852K01 replacement is transparent to the HMI layer. Existing faceplates, trend displays, and alarm configurations remain intact. The same applies to installations using the ABB Freelance DCS or Symphony Plus platforms where the AC 800M acts as a remote controller node. Communication links to OPC DA/UA servers and historian systems such as ABB Asset Vision or third-party PI servers are re-established automatically once the module is online and the controller application is downloaded.

Sites that also need to expand I/O capacity during the same maintenance window should consider installing additional S800 I/O modules — such as the AI835 for HART-enabled analog inputs or the DI885 for high-density digital inputs — on the existing PROFIBUS DP segment served by the CI852K01. This avoids a second planned outage and maximizes the value of the retrofit window. If the site is also migrating from a legacy Advant OCS or MOD 300 platform, the CI852K01 combined with an AC 800M PM891 controller and a CI857K01 IEC 61850 communication module provides a complete migration path that preserves field wiring while modernizing the control and communication layers.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern for any retrofit involving a live production system. The CI852K01 replacement procedure is designed to be completed within a single planned maintenance window, typically two to four hours depending on site complexity.

Before the outage begins, the full controller application should be backed up from Control Builder M, including the hardware configuration, application program, and all PROFIBUS DP slave GSD definitions. This backup serves as the recovery baseline if any issue arises during commissioning. The existing CI852 or CI852K01 module should be photographed in situ — connector orientation, cable routing, and any site-specific labeling — before removal.

With the controller in STOP mode and the PROFIBUS DP segment de-energized, the old module is removed and the new CI852K01 is seated in the same slot. The controller is then powered up, the application is downloaded from Control Builder M, and the PROFIBUS DP master is started. Slave devices — including remote I/O stations, variable frequency drives, and intelligent field instruments — should come online in sequence as the master scans the segment. Any slave that fails to respond should be checked for power, address conflict, or termination error before the controller is released to RUN mode.

For critical processes where even a two-hour outage is unacceptable, a hot-standby configuration using a redundant PM866 controller pair with a CI852K01 on each CPU provides bumpless switchover. In this architecture, the failed communication module can be replaced on the standby controller while the primary remains in control, and switchover is initiated only after the replacement unit has been verified online — reducing effective process interruption to under 30 seconds.

Retrofit Support FAQ

Q: Is the CI852K01 a direct drop-in replacement for the original CI852 (3BSE018100R1)?
A: Yes. The CI852K01 is the current production revision of the CI852 and is fully backward compatible with all AC 800M controller generations. No hardware modification, wiring change, or software reconfiguration is required when replacing a CI852 with a CI852K01.

Q: What commissioning steps are required after installation?
A: After seating the module, open Control Builder M, verify the hardware configuration recognizes the CI852K01, download the existing application to the controller, and start the PROFIBUS DP master. Confirm all slave devices report online status in the diagnostic view. Total commissioning time is typically under 30 minutes for a standard single-segment installation.

Q: How is the unit tested before shipment?
A: Every CI852K01 unit undergoes a full functional test on an AC 800M test rack prior to dispatch. The test verifies PROFIBUS DP master initialization, slave communication at multiple baud rates, and correct backplane communication with the host controller. A test report is available on request.

Q: What does the 12-month warranty cover?
A: The warranty covers all hardware defects and communication failures attributable to the module itself for 12 months from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage, or use outside the specified operating environment. Warranty claims are processed with priority dispatch of a replacement unit to minimize site downtime.
