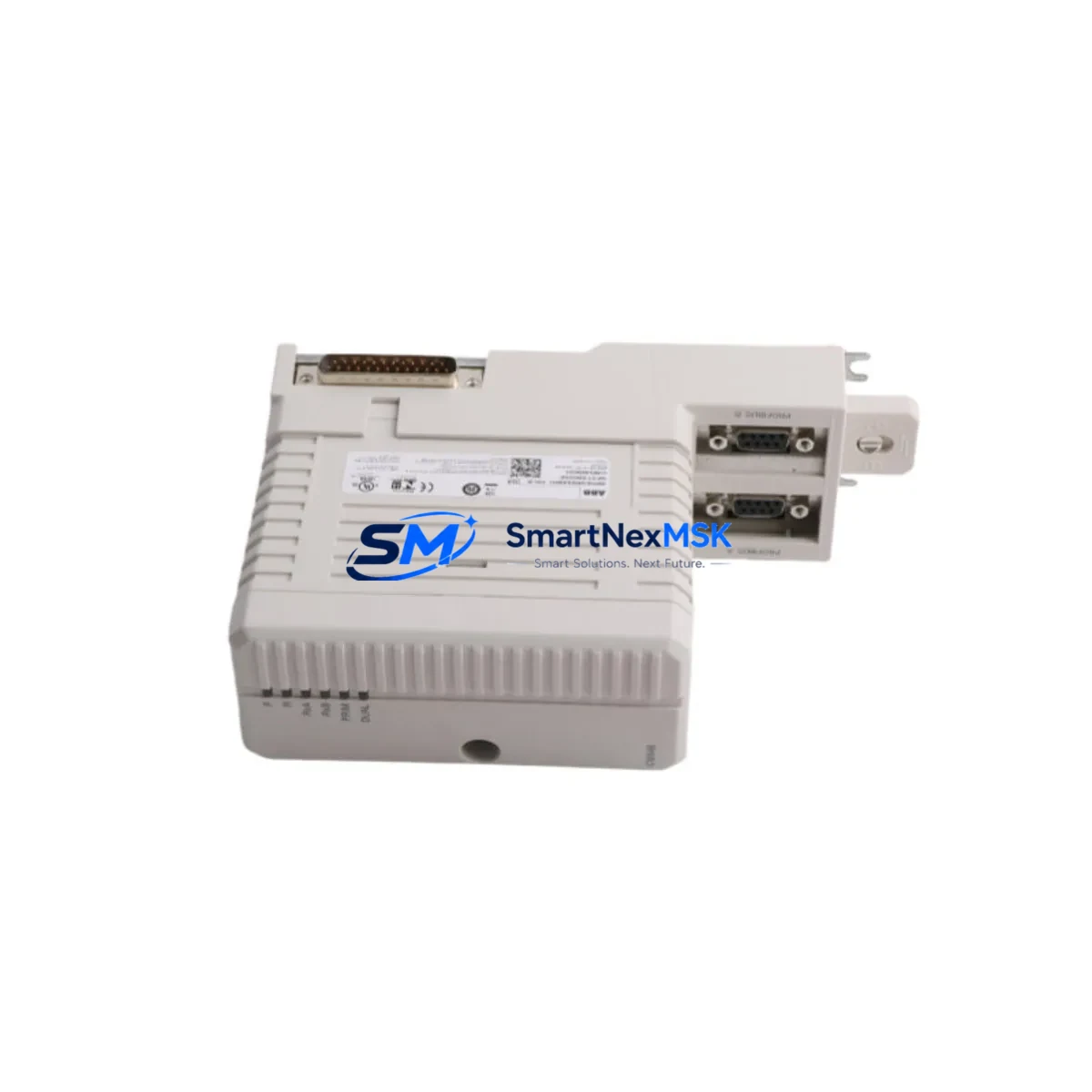

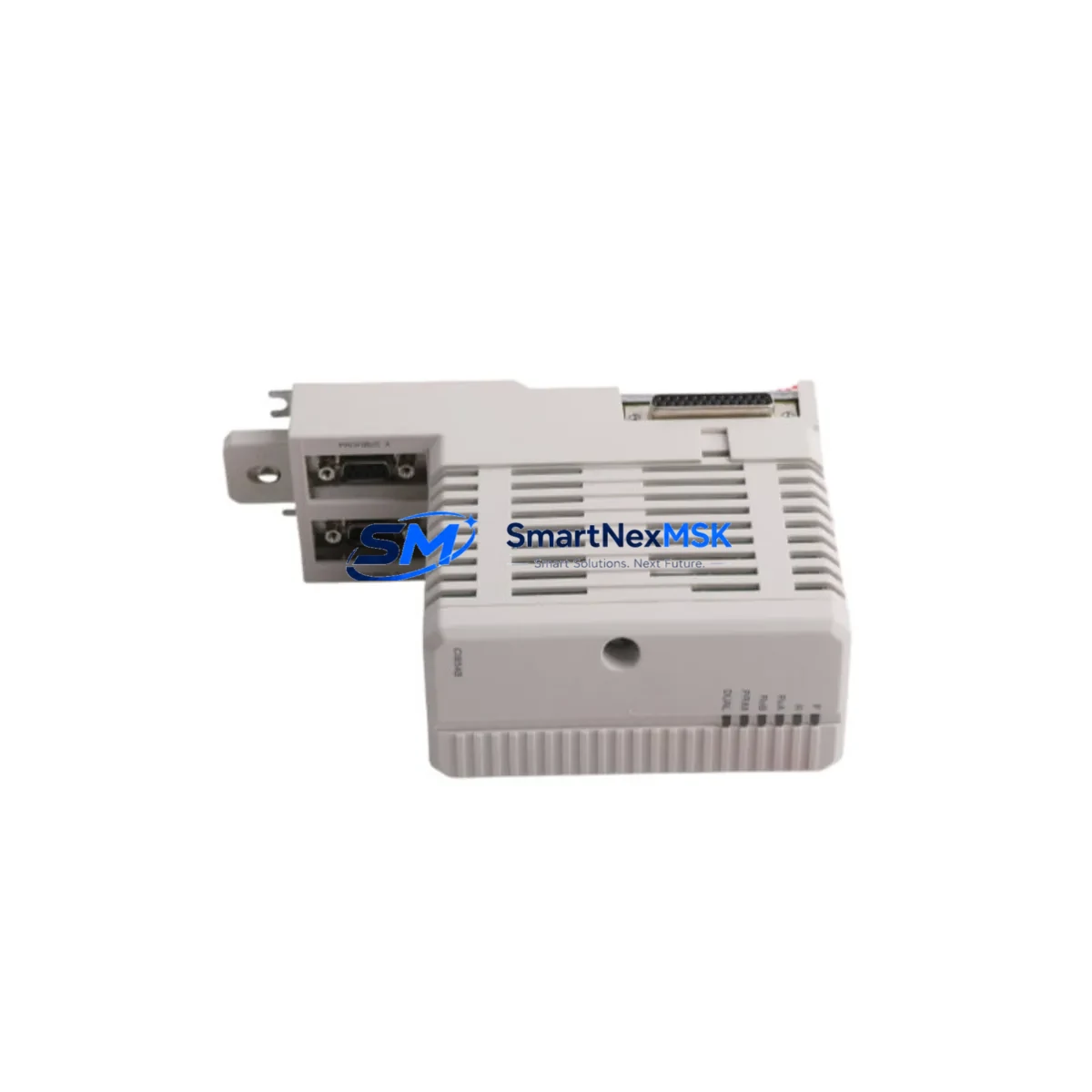

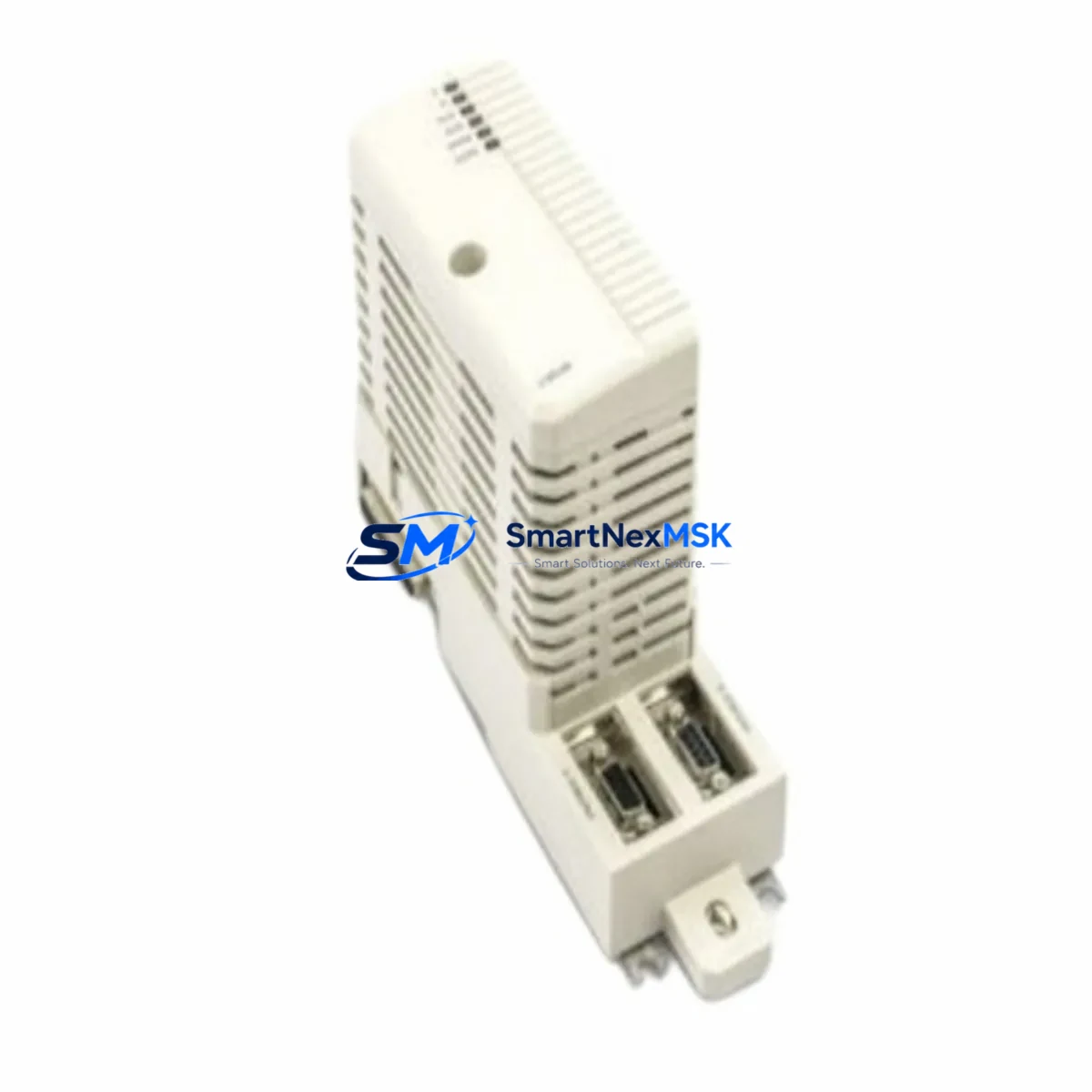

The ABB CI854BK01 (part number 3BSE069449R1) is an original PROFIBUS DP interface module engineered for the ABB AC800M Distributed Control System platform. For maintenance engineers and procurement teams managing continuous-process facilities — petrochemical, power generation, pulp and paper, or water treatment — this module represents a critical communication link between the AC800M controller and field instrumentation. Unplanned failure of the CI854BK01 can isolate entire PROFIBUS DP segments, triggering process shutdowns and costly downtime. Holding a verified, tested spare on the shelf is the single most effective mitigation strategy.

This listing supplies an original ABB CI854BK01 3BSE069449R1 that has been functionally tested prior to dispatch, backed by a 12-month warranty, and is available for fast worldwide shipment. Each unit is inspected for firmware label integrity, connector condition, and communication readiness before packaging.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a CI854BK01 failure is diagnosed or anticipated during a scheduled outage, experienced maintenance engineers know that replacing the PROFIBUS DP interface module in isolation rarely restores full system confidence. A disciplined inspection of the surrounding control cabinet and communication loop is essential to prevent repeat failures and ensure the replacement module operates within specification from day one.

Begin with the AC800M controller backplane and module rack: inspect the backplane bus connectors for oxidation or mechanical damage before seating the new CI854BK01. A compromised backplane can damage a replacement module within hours of commissioning. Next, verify the PM856 or PM864 processor module firmware version — the CI854BK01 requires a compatible firmware baseline on the CPU to initialise the PROFIBUS DP segment correctly; a firmware mismatch is a common cause of post-replacement communication faults.

On the field side, inspect the PROFIBUS DP trunk cable and termination resistors. A degraded cable shield or missing termination at segment endpoints will cause intermittent communication errors that are frequently misattributed to the interface module itself. While the cabinet is open, check the SA811F or SA801F power supply module output voltage and ripple — under-voltage on the backplane bus is a known stressor for communication modules and should be measured before the new CI854BK01 is powered up.

For sites running mixed S800 I/O, also inspect the TB820V2 or TB840A ModuleBus modem units connected downstream of the PROFIBUS segment. These modem modules translate between PROFIBUS DP and the S800 ModuleBus and are subject to the same environmental stresses as the CI854BK01. If the CI854BK01 failure was caused by a surge event, the TB820V2 units on the same segment should be treated as suspect and tested before returning the process to automatic control.

Procurement engineers building a comprehensive spare parts kit for an AC800M-based system should also consider stocking the CI857 Ethernet communication module for redundant supervisory connectivity, AI810 or AO810V2 analogue I/O modules for the most failure-prone field signal channels, and DI810 or DO810 digital I/O modules for discrete control loops. Fuse holders and TU810V1 or TU830V1 I/O terminal units are low-cost, high-impact additions to any AC800M spare parts inventory. For sites with legacy PROFIBUS PA instrumentation, a DP/PA coupler or segment protector should be included in the cabinet-level spare kit alongside the CI854BK01.

Site Replacement Workflow

Step 1 — Isolate and document. Before removing the failed CI854BK01, capture the current PROFIBUS DP segment configuration from ABB Control Builder or System 800xA. Export the hardware configuration file and note the GSD file version and node addresses assigned to each field device on the segment. This documentation is essential for rapid recommissioning after module swap.

Step 2 — Power down the module slot. The AC800M supports hot-swap on some configurations, but for CI854BK01 replacement it is best practice to perform a controlled shutdown of the affected controller or to use the redundant controller path if a redundant PM8xx pair is installed. This eliminates the risk of bus contention during module extraction.

Step 3 — Seat and secure the replacement module. Insert the new CI854BK01 3BSE069449R1 into the correct slot position as documented in the hardware configuration. Verify the module locking lever is fully engaged. Reconnect the PROFIBUS DP D-sub connector and confirm cable strain relief is intact.

Step 4 — Power up and verify. Restore power to the controller. Monitor the CI854BK01 status LEDs: the BF (Bus Fault) LED should extinguish within 30 seconds as the module scans the PROFIBUS DP segment and establishes communication with all configured slave devices. Use Control Builder or the 800xA hardware diagnostic view to confirm all slave nodes are online and data exchange is active.

Step 5 — Return to service and update records. Once all PROFIBUS DP slaves are confirmed online and process values are reading correctly, return the loop to automatic control. Update the maintenance management system (CMMS) with the replacement date, new module serial number, and any observations from the inspection. Schedule a follow-up cabinet inspection within 30 days to confirm stable operation.

This workflow minimises mean time to repair (MTTR) and ensures the replacement CI854BK01 is commissioned correctly, reducing the risk of a repeat failure caused by an underlying installation issue.

Spare Parts Support FAQ

Q1: Is this CI854BK01 an original ABB module or a third-party compatible?
This is an original ABB CI854BK01 carrying part number 3BSE069449R1, sourced from authorised distribution and surplus channels. Each unit is inspected and functionally tested before shipment. We do not supply counterfeit or reverse-engineered alternatives.

Q2: What is the warranty coverage and what does it include?
All CI854BK01 3BSE069449R1 units are covered by a 12-month warranty from the date of shipment. The warranty covers functional failure under normal operating conditions. Units that have been physically damaged after receipt, subjected to incorrect supply voltage, or installed in environments outside the rated operating range are excluded. Warranty claims are processed with a replacement-first policy to minimise your downtime.

Q3: Can the CI854BK01 replace the older CI854A or CI854B modules directly?
Yes. The CI854BK01 is the current production variant of the ABB AC800M PROFIBUS DP interface module family and is backward-compatible with the CI854A and CI854B in the same slot position. No hardware modification is required. Confirm the Control Builder hardware configuration reflects the CI854BK01 module type after replacement to ensure correct diagnostic reporting.

Q4: How is the module tested and packaged before shipment?
Each CI854BK01 undergoes a functional communication test on an AC800M test bench prior to dispatch. The module is then packed in an ESD-safe anti-static bag, placed in foam-lined protective packaging, and shipped with a test report. Express courier options with tracking are available for urgent maintenance requirements.
