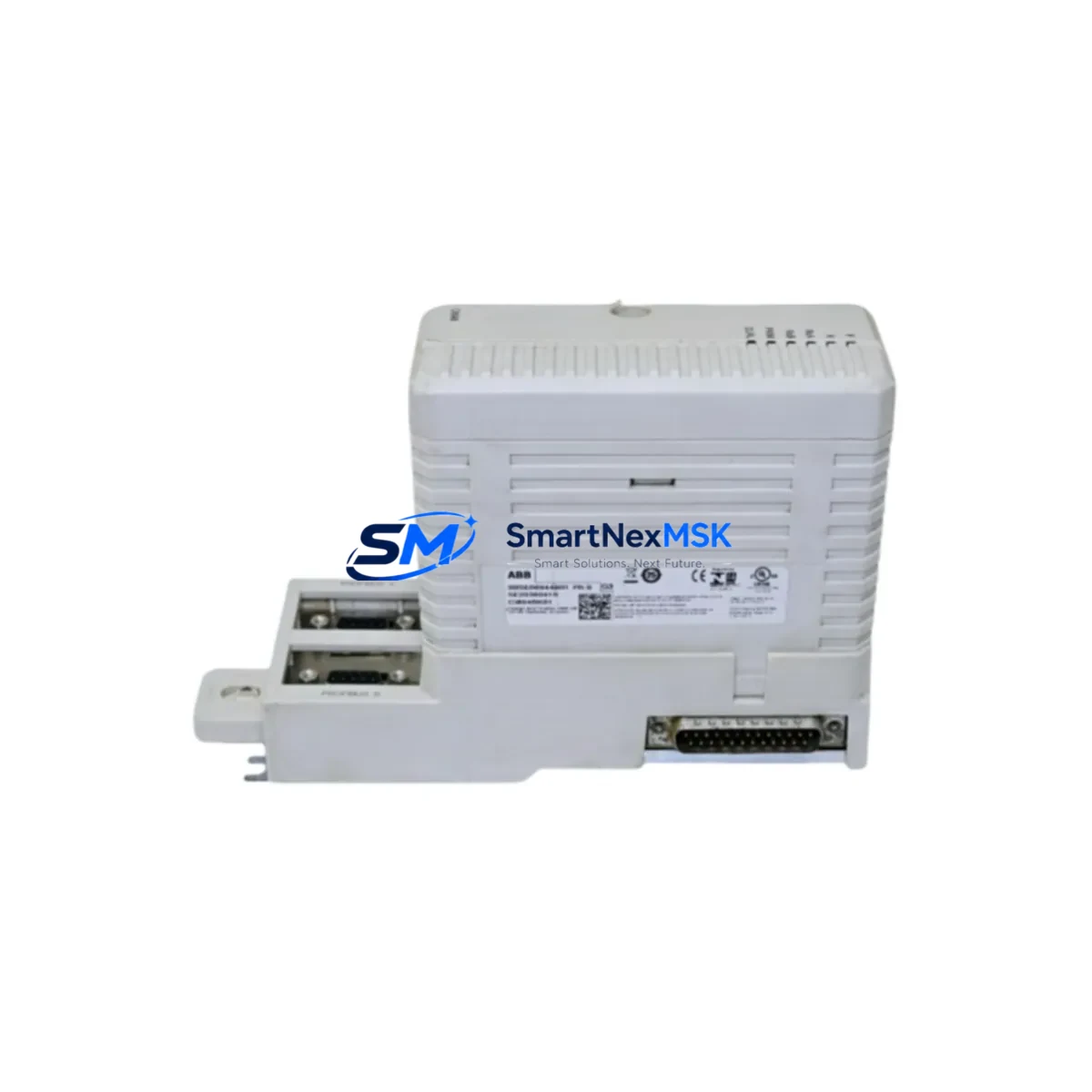

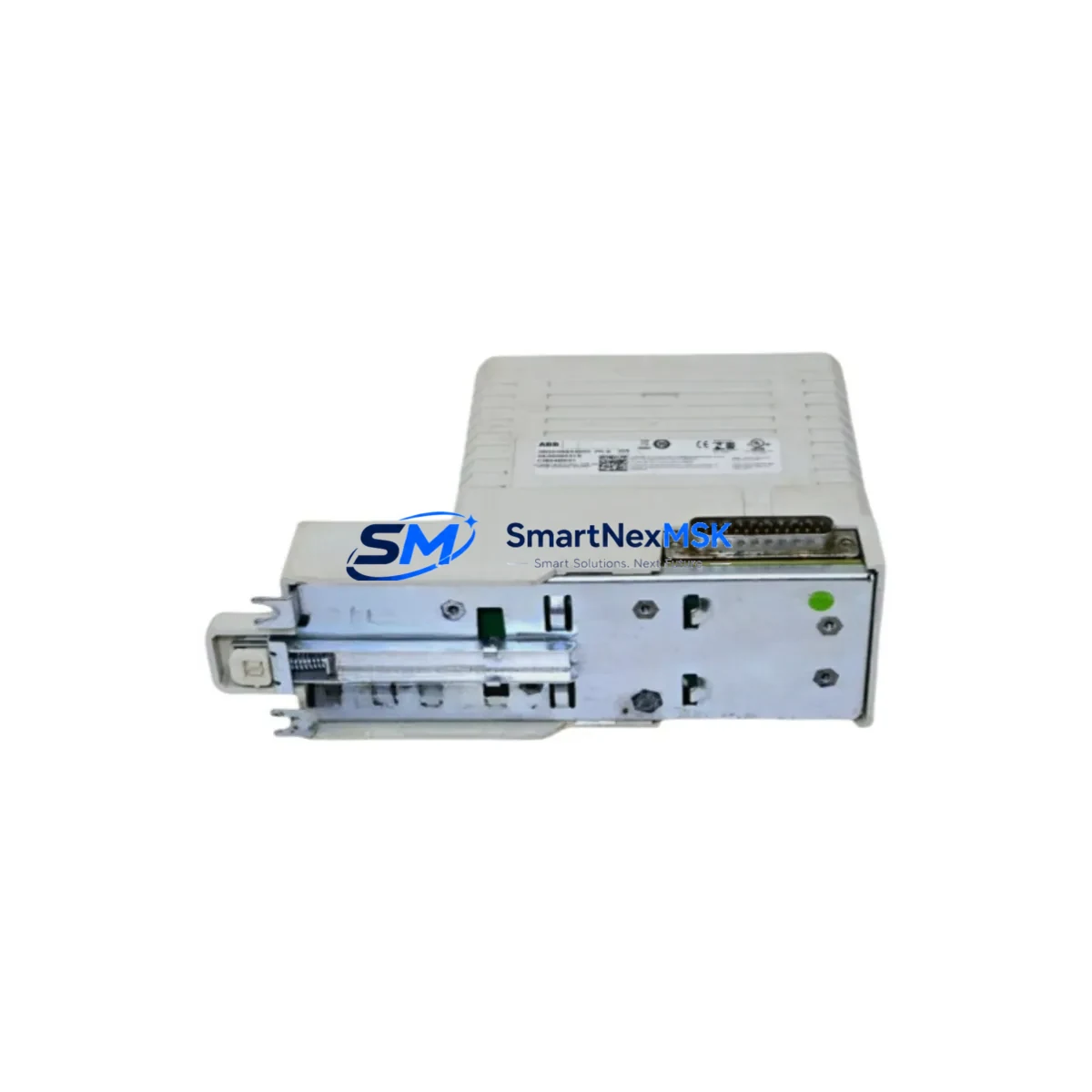

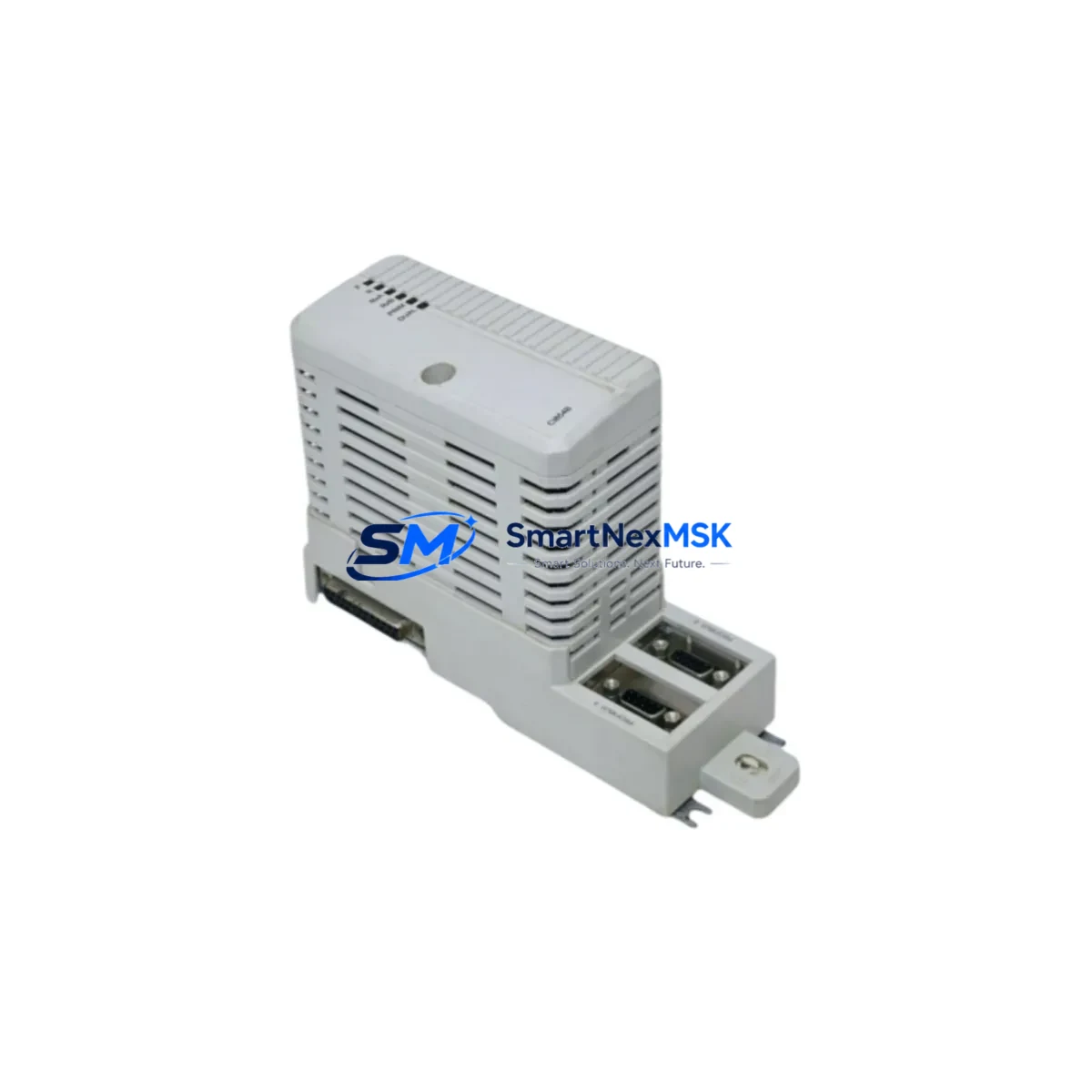

The ABB CI868AK01 is an original PROFINET IO interface module designed for the AC800M Distributed Control System platform. As a critical communication bridge between the AC800M controller and field-level PROFINET IO devices, the CI868AK01 is a high-priority spare part for any maintenance engineer responsible for continuous process operations. Whether you are managing a petrochemical plant, a pulp and paper facility, or a power generation site, an unplanned failure of this module can halt production within minutes. Stocking a verified original CI868AK01 is the most effective strategy to minimize mean time to repair (MTTR) and protect your uptime commitments.

Each CI868AK01 unit supplied by SMARTNEXMSK is sourced from authorized channels, individually tested prior to shipment, and backed by a 12-month warranty. Our quality control process includes functional verification of the PROFINET communication stack, firmware version confirmation, and physical inspection of connectors and housing. This ensures that the module you receive is ready for immediate installation without additional bench testing on site.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a CI868AK01 PROFINET IO interface module is flagged during a routine control cabinet inspection or fails during operation, the replacement workflow should extend beyond the module itself. Experienced maintenance engineers know that a PROFINET communication fault rarely occurs in isolation — adjacent components in the same I/O network and power distribution chain deserve simultaneous evaluation.

Start by verifying the AC800M controller module (such as the PM864 or PM866) that hosts the CI868AK01. A degraded controller backplane or a firmware mismatch can cause repeated interface module faults even after replacement. Next, inspect the S800 I/O modules connected downstream on the PROFINET segment — modules such as the AI810 analog input module or the DI810 digital input module may have accumulated diagnostic alarms that were masked by the communication fault.

The TB820V2 ModuleBus Modem and CI854AK01 PROFIBUS DP interface module are often installed in the same cabinet alongside the CI868AK01 and should be inspected for connector wear and firmware currency. If your system uses redundant communication paths, the paired PROFINET interface module on the redundant controller should also be checked for synchronization status.

On the power side, confirm that the SD821 or SD822 power supply module feeding the I/O backplane is delivering stable 24 VDC within tolerance. Voltage sags during motor starts or switching events are a common root cause of transient PROFINET faults that are misdiagnosed as module failures. A TU810V1 or TU830V1 termination unit with corroded terminals can also introduce intermittent communication errors that mimic a faulty CI868AK01.

For sites running older AC800M installations, consider scheduling a proactive replacement of the CI868AK01 alongside any aging CI854AK01 PROFIBUS interface modules and MB510 ModuleBus optical modem units as part of a planned shutdown. This bundled approach reduces the number of planned outages and ensures the entire communication layer is refreshed simultaneously, extending system life by several years without a full DCS migration.

Procurement engineers should maintain a minimum stock of one CI868AK01 per AC800M controller node in critical process areas. For plants with more than four AC800M controllers, a pooled spare strategy with two units in the central warehouse is recommended. SMARTNEXMSK supports long-term supply agreements to ensure consistent availability of this and related ABB AC800M spare parts.

Site Replacement Workflow

Step 1 — Preparation: Download the current AC800M project backup from Control Builder M before beginning any hardware work. Confirm the firmware version of the replacement CI868AK01 matches the existing module or is compatible with the controller firmware. If a firmware upgrade is required, coordinate with your DCS vendor or perform the upgrade on the bench before installation.

Step 2 — Safe Isolation: Place the affected controller in manual or fallback mode at the DCS operator station. Notify the operations team and obtain a permit to work. De-energize the I/O backplane section containing the CI868AK01 following your site lockout/tagout procedure.

Step 3 — Module Swap: Remove the faulty CI868AK01 by releasing the module locking lever and sliding it out of the backplane slot. Insert the replacement module, ensuring the backplane connector is fully seated. Re-energize the backplane and observe the module status LEDs — a solid green RUN LED confirms successful initialization.

Step 4 — PROFINET Commissioning: In Control Builder M, perform a hardware scan to confirm the CI868AK01 is recognized. Verify that all downstream PROFINET IO devices (remote I/O stations, drives, or safety modules) have re-established communication. Check the diagnostic log for any residual alarms.

Step 5 — Return to Service: Transfer control back to automatic mode at the operator station. Document the replacement in your maintenance management system (CMMS), including the serial number of the replaced module and the new unit. Update your spare parts inventory record accordingly.

This workflow is applicable whether you are replacing a failed CI868AK01 on an emergency basis or performing a scheduled swap during a planned shutdown. The process typically takes 30–90 minutes for a trained maintenance technician, making the CI868AK01 one of the more straightforward field replacements in the AC800M platform.

Spare Parts Support FAQ

Q1: Is the CI868AK01 you supply an original ABB module or a compatible substitute?
All CI868AK01 units supplied by SMARTNEXMSK are original ABB-manufactured modules. We do not supply third-party compatible substitutes for this part number. Each unit is individually inspected and tested before shipment to confirm authenticity and functionality.

Q2: What is covered under the 12-month warranty?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. If a module fails within the warranty period due to a verified defect, we will provide a replacement unit at no charge. The warranty does not cover damage caused by incorrect installation, overvoltage events, or physical mishandling on site.

Q3: How do I confirm compatibility between the CI868AK01 and my existing AC800M controller firmware?
Compatibility is determined by the firmware version of your AC800M controller (PM8xx series) and the version of Control Builder M in use. SMARTNEXMSK’s technical team can assist with compatibility verification if you provide your controller part number and current firmware version. We recommend confirming this before shipment to avoid any on-site delays.

Q4: Can you support long-term or repeat supply of the CI868AK01 for our maintenance program?
Yes. SMARTNEXMSK maintains stock of the CI868AK01 and related AC800M spare parts to support ongoing maintenance programs. We can arrange blanket purchase orders, reserved stock agreements, or scheduled delivery plans to ensure your site always has a verified spare available. Contact our sales team to discuss a supply arrangement tailored to your maintenance cycle.
