ABB CINT-4421C Retrofit-Ready Gate Driver for ACS800

ABB CINT-4421C Retrofit-Ready Gate Driver for ACS800 Control Systems

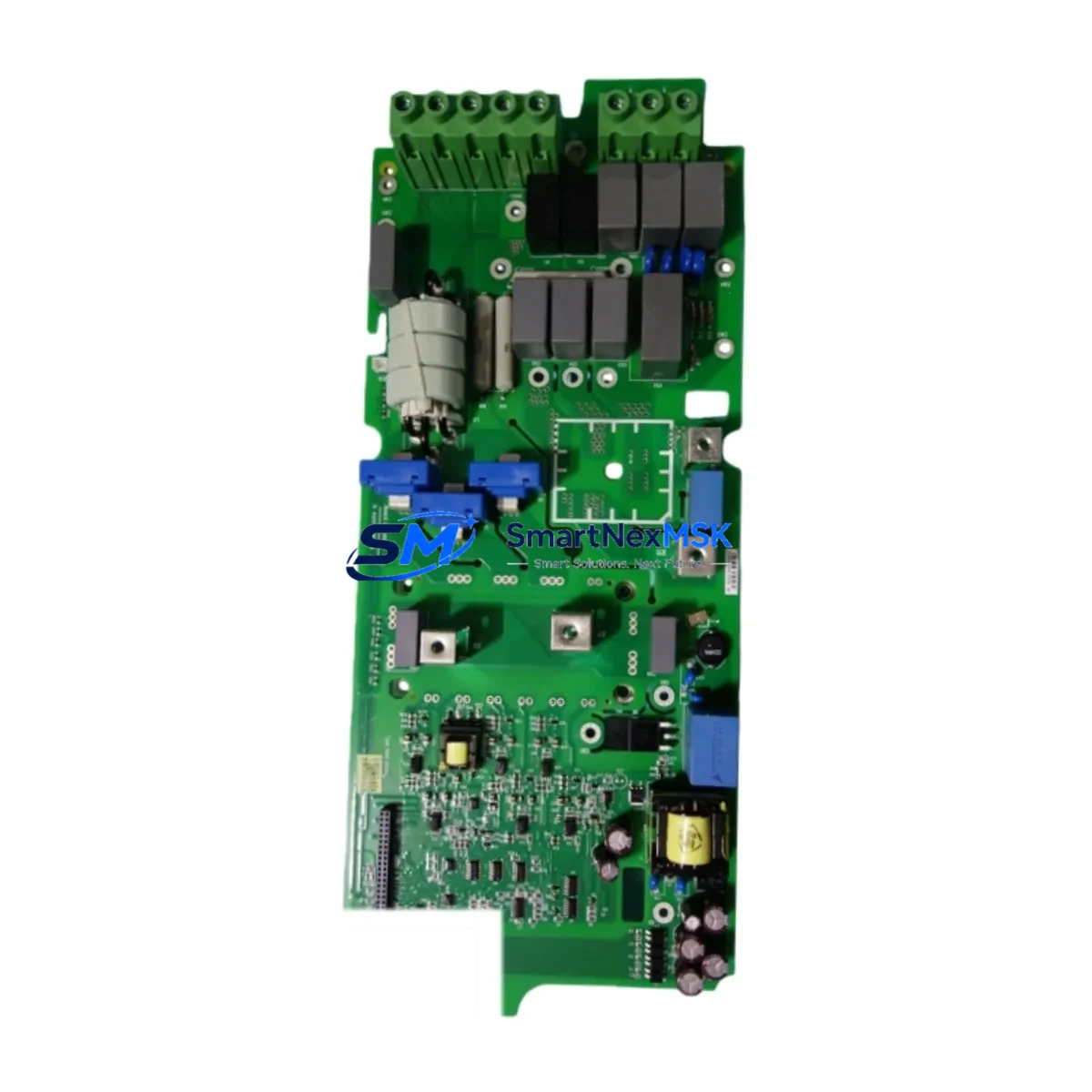

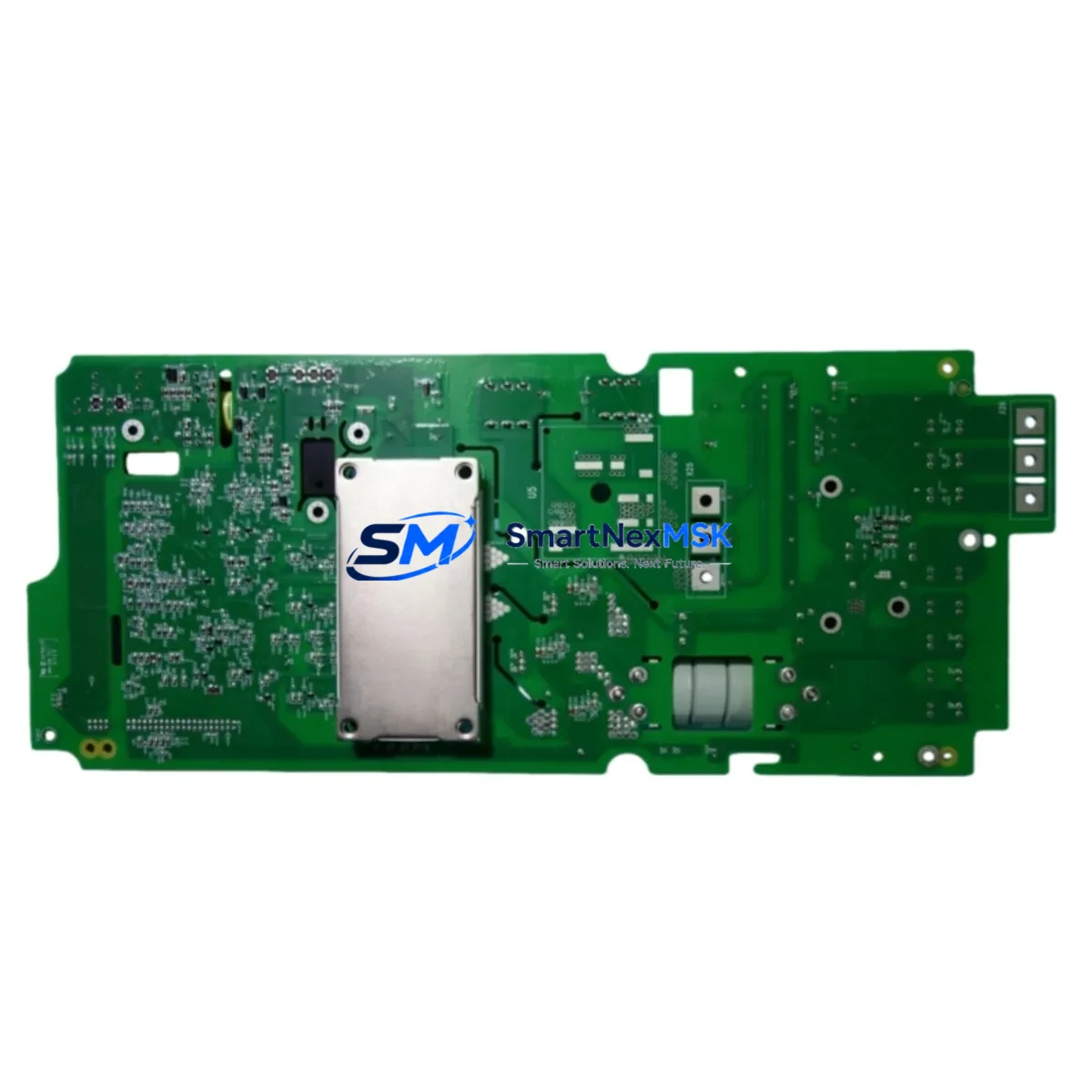

The ABB CINT-4421C is a gate driver card engineered for the ACS800 series variable frequency drive platform. As legacy ACS800 installations age and original gate driver boards reach end-of-life, the CINT-4421C has become one of the most sought-after retrofit components for engineers tasked with restoring drive functionality without replacing the entire drive cabinet. Whether you are recovering from an unplanned shutdown, executing a planned maintenance upgrade, or modernizing an aging production line, the CINT-4421C provides a verified drop-in replacement path that preserves your existing wiring harness, IGBT interface, and control logic.

Sourced directly from authorized distribution channels and subjected to pre-shipment functional testing, each CINT-4421C unit shipped by SMARTNEXMSK is verified against ABB’s original gate signal timing specifications. The card interfaces directly with the ACS800’s IGBT power module stack, delivering the precise gate pulse sequences required for stable torque control, soft-start behavior, and fault-safe shutdown. Engineers replacing a failed CINT-4421C in the field will find that terminal assignments, mounting hole patterns, and ribbon cable connectors are fully compatible with the original factory installation — no mechanical modification required.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful CINT-4421C retrofit begins well before the card arrives on site. Engineers should first confirm the ACS800 frame size and power rating to ensure the gate driver variant matches the IGBT module configuration in use. In multi-drive installations — common in pump stations, compressor halls, and conveyor systems — it is advisable to audit all ACS800 units simultaneously, as gate driver degradation often affects multiple drives in the same vintage batch.

Before removing the failed card, document the existing parameter set using DriveWindow or the ACS800’s integral keypad (ACS-CP-C or ACS-CP-D control panel). Save the full parameter backup to a laptop or USB memory unit. This step is critical: if the RMIO-11C main control board or the APOW-01 auxiliary power supply board has also been affected by the fault event, parameter memory may be partially corrupted, and a clean backup prevents extended commissioning time after the card swap.

During physical installation, inspect the AINT-02 or AINT-14 interface board (depending on frame size) for signs of thermal stress or arcing at the gate signal connectors. A compromised interface board will cause recurring gate driver failures even after a new CINT-4421C is installed. Similarly, verify that the DC bus capacitor bank shows no signs of bulging or electrolyte leakage — a degraded capacitor bank places abnormal stress on the gate driver during charging transients.

For drives integrated into a fieldbus network via RDCO-03 (DriveWindow Link), RPBA-01 (PROFIBUS-DP), or RETA-01 (Ethernet/IP) communication adapters, confirm that the fieldbus node address and baud rate parameters are correctly restored after the card replacement. In PROFIBUS installations, the GSD file version should be verified against the SCADA or DCS configuration to prevent cyclic data mapping errors that can appear as spurious drive faults post-commissioning.

Where the ACS800 is part of a larger control architecture — for example, coordinated with an ABB AC500 PLC or a third-party Siemens S7-300 controller via hardwired I/O — verify that the drive’s digital input assignments (DI1–DI6) and analog reference scaling (AI1, AI2) are correctly restored. Mismatched scaling on the speed reference input is a common source of post-retrofit performance deviation that is easily overlooked during bench testing but becomes apparent under load.

Downtime Control During System Migration

Minimizing production downtime during a gate driver replacement requires a structured swap protocol. The recommended approach is to pre-stage the replacement CINT-4421C alongside a printed copy of the existing parameter set before initiating any shutdown. In facilities where the ACS800 drives a critical process — such as a boiler feed pump, a cooling tower fan, or a main conveyor — coordinate the replacement window with the operations team to align with a scheduled maintenance slot or a low-demand production period.

Power down the ACS800 following the standard lockout/tagout procedure and allow a minimum of five minutes for the DC bus to discharge below 50 VDC before opening the drive cabinet. Use a calibrated multimeter to verify bus voltage at the DC bus terminals before touching any internal components. Remove the failed CINT-4421C using ESD-safe handling, install the replacement card, and reseat all ribbon cable connectors firmly.

On power-up, monitor the ACS800’s fault log (parameter group 04) for any residual fault codes that may have been latched prior to the shutdown. Clear active faults, restore the parameter backup, and perform a no-load test run before reconnecting the motor. For drives controlling variable-torque loads such as fans or pumps, a ramp-up test at 20%, 50%, and 100% speed setpoint confirms stable gate signal delivery across the full operating range before returning the drive to automatic control from the PLC or DCS.

In multi-axis or coordinated drive systems, ensure that the master-follower speed reference chain is re-established and verified before releasing the system to production. A single drive returning to service with an incorrect speed ratio can cause mechanical stress or product quality deviations that are more costly than the original downtime event.

Retrofit Support FAQ

Q1: Is the CINT-4421C a direct drop-in replacement for all ACS800 frame sizes?
The CINT-4421C is compatible with specific ACS800 frame sizes that use this gate driver variant. Before ordering, confirm your drive’s frame size (R2–R8) and the part number printed on the existing gate driver board. If the installed card carries a different suffix or revision code, contact SMARTNEXMSK with your drive nameplate data for a compatibility confirmation prior to purchase.

Q2: Will I need to re-enter all drive parameters after replacing the gate driver card?
In most cases, no. The CINT-4421C replacement does not affect the RMIO main control board where parameter data is stored. However, if the fault event that caused the gate driver failure also triggered a power supply anomaly affecting the RMIO-11C, parameter memory may have been reset. Always back up parameters before the swap using DriveWindow or the ACS-CP-C keypad as a precaution.

Q3: What wiring changes are required when installing the CINT-4421C?
No external wiring changes are required. The CINT-4421C connects to the ACS800 via internal ribbon cables and board-to-board connectors that are identical to the original factory configuration. Ensure all connectors are fully seated and that no ribbon cable is kinked or pinched during reassembly. Verify gate signal connector locking tabs are engaged before powering up.

Q4: What does the 12-month warranty cover, and what is the process for a warranty claim?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or operation outside the ACS800’s specified environmental ratings. To initiate a warranty claim, contact SMARTNEXMSK at sales@smartnexmsk.com with your order number, a description of the fault symptom, and any available fault log data from the ACS800. Replacement units are dispatched upon fault verification.
