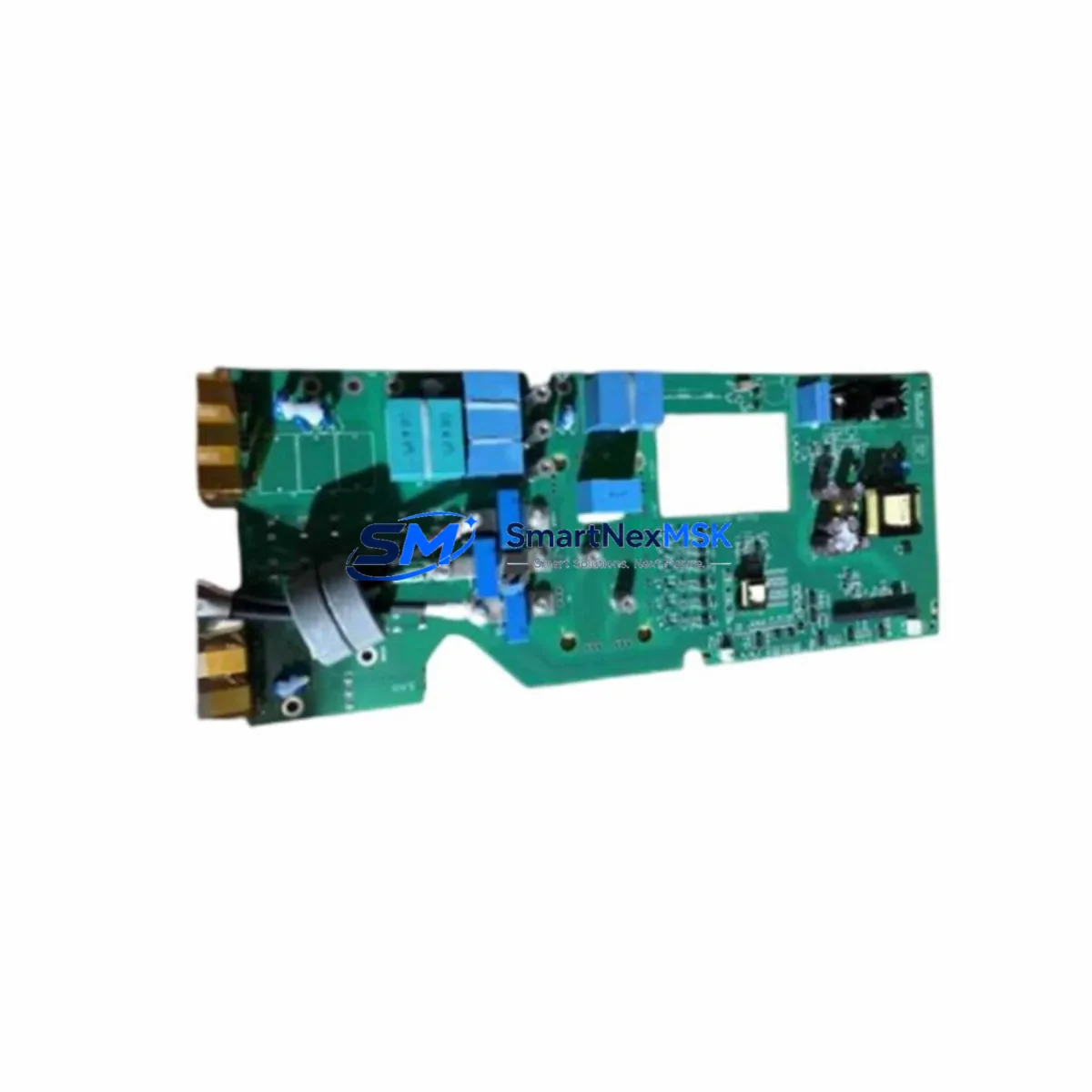

ABB CINT-45X1 Retrofit-Ready Drive Interface for AINT Series Control Systems
The ABB CINT-45X1 is a drive interface board engineered for seamless integration into ABB’s AINT Series drive control architecture. As legacy ACS600 and ACS800 drive platforms approach end-of-life, the CINT-45X1 has become a critical component in retrofit projects where engineers must maintain operational continuity while upgrading aging control infrastructure. Whether you are replacing a failed board in an active production line or executing a planned modernization of a multi-drive system, the CINT-45X1 delivers the compatibility, signal integrity, and communication reliability that industrial environments demand.
In retrofit scenarios, the CINT-45X1 interfaces directly with the AINT control board — the core processing unit responsible for motor control logic, fault diagnostics, and drive parameter management. Engineers replacing a damaged or obsolete AINT board must verify that the CINT-45X1 is correctly seated in the drive’s internal backplane slot, with ribbon cable connections firmly secured to avoid intermittent DDCS communication faults. The DDCS (Distributed Drive Control System) fiber-optic protocol used by ABB’s ACS600 and ACS800 platforms requires precise channel assignment, and any mismatch between the CINT module address and the master controller’s node configuration will result in communication loss at startup.
Before installation, technicians should confirm power supply rail compatibility. The CINT-45X1 draws logic power from the drive’s internal APOW power supply board. If the APOW unit is also being replaced as part of a broader upgrade, both boards should be bench-tested together prior to installation to validate voltage stability under load. Terminal wiring on the AINT board — including analog reference inputs, digital I/O assignments, and encoder feedback channels — must be documented from the original configuration before any board swap to ensure the replacement drive resumes the same control behavior without reprogramming.
For systems where the original ABB ACS600 or ACS800 drive is being retired entirely in favor of a newer ACS880 platform, the CINT-45X1 may serve as a transitional interface during phased migration. In this context, the existing NDIO I/O extension modules and NINT fieldbus adapter boards connected to the legacy drive must be audited for compatibility with the new control platform. If the site uses PROFIBUS-DP or Modbus RTU for PLC-to-drive communication, the fieldbus adapter configuration must be reconfigured to match the new drive’s node address and baud rate settings before the HMI screens are updated to reflect the new drive’s parameter map.
HMI integration is a frequently overlooked step in drive retrofit projects. When the CINT-45X1 is installed as part of an AINT board replacement, the operator panel — typically an ABB CDP312R or ACS-CP-C control panel — must be re-paired with the drive to restore local speed reference and fault reset functionality. If the site uses a SCADA system or DCS for supervisory control, the drive’s communication object list should be re-exported and validated against the existing tag database to prevent process variable mismatches after commissioning.
Field commissioning after a CINT-45X1 installation should follow a structured sequence: power-on self-test, parameter restore from backup file (using DriveWindow or DriveStudio software), I/O signal verification against the original wiring diagram, no-load motor run test, and finally a loaded run test at reduced speed before returning to full production speed. This sequence minimizes the risk of unexpected trips caused by parameter conflicts or wiring errors introduced during the board swap.
All CINT-45X1 units supplied by SMARTNEXMSK are sourced from verified industrial channels, functionally tested prior to shipment, and covered by a 12-month warranty against manufacturing defects and operational failure. Units are shipped with anti-static packaging and include a test report confirming DDCS link integrity and power rail voltage compliance.
Upgrade Compatibility Table
| Parameter | Details |
|---|---|
| Compatible Drive Series | ABB ACS600, ACS800, AINT Series |
| Interface Type | Internal backplane slot, ribbon cable connector |
| Communication Protocol | DDCS (Distributed Drive Control System) fiber-optic |
| Power Supply Dependency | ABB APOW internal power supply board |
| Replacement Compatibility | Direct drop-in for CINT-45X1 in AINT-based drives |
| Installation Requirement | Parameter backup recommended before swap; DriveWindow/DriveStudio for restore |
| Commissioning Tool | ABB DriveWindow 2, DriveStudio, CDP312R panel |
| Fieldbus Adapter Note | NDIO / NINT adapter re-configuration required if fieldbus address changes |
| HMI Re-pairing | Required after board replacement; re-pair CDP312R or ACS-CP-C panel |
| Warranty | 12 months from shipment date, covers manufacturing defects and operational failure |
Retrofit Planning for Existing Automation Systems
A successful CINT-45X1 retrofit begins with a thorough audit of the existing drive cabinet. Engineers should document the current AINT board firmware version, the DDCS node address assigned to the drive, and the state of all connected NDIO digital I/O extension modules. If the cabinet also houses an NINT-02 PROFIBUS adapter or an NINT-21 DeviceNet adapter, these modules must be removed and re-installed after the CINT board swap to avoid address conflicts on the fieldbus network.
In multi-drive systems where several ACS800 units share a common DDCS ring, replacing the CINT-45X1 on one drive requires temporarily removing that drive from the fiber-optic ring. The remaining drives should remain operational during this window, provided the master controller — typically an ABB AC800M DCS or a Siemens S7-300 PLC acting as the DDCS master — is configured to tolerate a missing node without triggering a system-wide fault. After reinstallation, the drive must be re-added to the ring and its node address confirmed before the master controller resumes cyclic communication.
For sites upgrading from ACS600 to ACS880, the CINT-45X1 may remain in service on the legacy drive during a parallel-run commissioning phase, allowing engineers to validate the new drive’s behavior against the old system before final cutover. During this phase, the APOW power supply board, AINT control board, and CINT interface board on the legacy drive should all be inspected for capacitor aging and thermal damage, as these components are common failure points in drives that have been in service for more than ten years.
Downtime Control During System Migration
Minimizing downtime during a CINT-45X1 replacement requires preparation before the maintenance window begins. A complete parameter backup using DriveWindow or DriveStudio should be saved to a laptop and a USB drive before the drive is powered down. The original wiring diagram — including terminal block assignments for the AINT board’s analog and digital I/O — should be printed and verified against the physical installation before any connectors are removed.
During the board swap, the DDCS fiber-optic cables should be labeled and photographed before disconnection to ensure correct re-termination. After the new CINT-45X1 is installed and the drive is powered up, the parameter file should be restored immediately and the drive run through a no-load test before reconnecting to the process. This approach typically allows a complete board replacement and recommissioning to be completed within a two-to-four hour maintenance window, preserving the original control logic and HMI tag structure without requiring PLC program modifications.
Retrofit Support FAQ
Q: Is the CINT-45X1 a direct drop-in replacement for the original board in my ACS800 drive?
A: Yes. The CINT-45X1 is designed as a direct replacement for the original interface board in AINT-based ACS800 and ACS600 drives. No mechanical modifications are required. Parameter restore from a backup file is recommended to ensure the drive resumes its original configuration.
Q: Do I need to reconfigure the DDCS node address after replacing the CINT-45X1?
A: The DDCS node address is stored in the AINT board’s parameter memory, not in the CINT board itself. If the AINT board is retained and only the CINT board is replaced, the node address will be preserved. If both boards are replaced simultaneously, the node address must be re-entered manually using the CDP312R panel or DriveWindow software.
Q: What wiring checks should be performed before powering up after a CINT-45X1 installation?
A: Verify that all ribbon cable connectors are fully seated, the DDCS fiber-optic cables are correctly terminated (TX to RX), the APOW power supply board is functioning within specification, and all NDIO and NINT adapter modules are securely installed. A visual inspection of the backplane slot for bent pins or debris should also be completed before power-on.
Q: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects and operational failure under normal industrial operating conditions. Units that fail due to incorrect installation, overvoltage events, or physical damage are not covered. SMARTNEXMSK provides a pre-shipment test report for each unit confirming DDCS link integrity and power rail compliance.
