ABB CMA130 3DDE300410 Retrofit-Ready Display Panel

ABB CMA130 3DDE300410 Retrofit-Ready Display Panel for Advant Control Systems

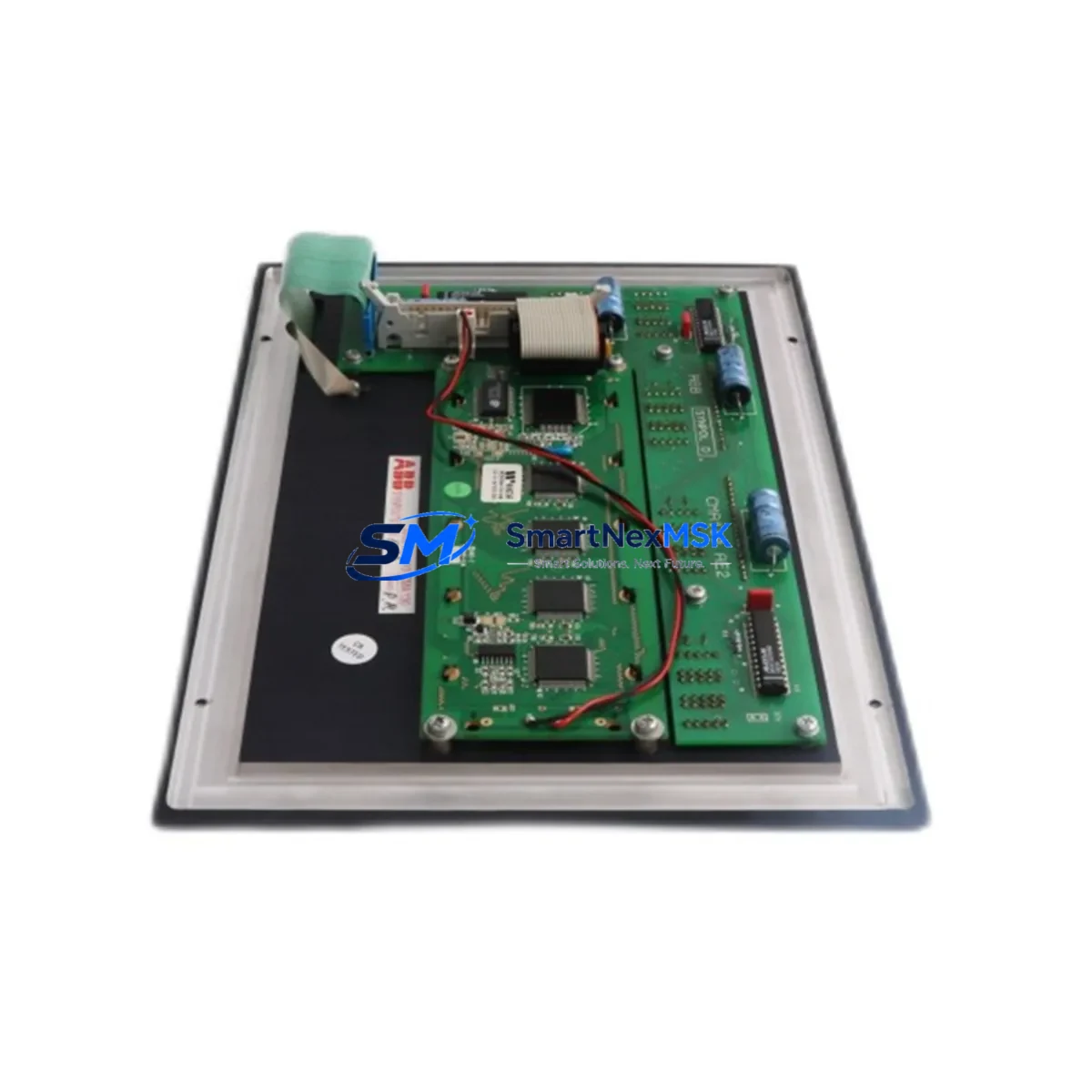

The ABB CMA130 (part number 3DDE300410) is a Display Front Panel module engineered for the Advant AC450 and AC400 series Distributed Control Systems. As legacy Advant installations approach end-of-life support cycles, the CMA130 has become one of the most sought-after retrofit components for control engineers tasked with extending the operational life of existing DCS cabinets without committing to a full platform migration. Whether you are replacing a failed unit, building a critical-spare inventory, or executing a phased modernization of your process control infrastructure, the CMA130 3DDE300410 provides a verified drop-in upgrade path that preserves your existing program logic, operator interface layouts, and field wiring.

This module interfaces directly with the Advant Controller 450 processor rack and is compatible with the standard Advant backplane bus architecture. Engineers migrating from earlier AC400 installations will find that the CMA130 maintains backward compatibility with the Advant Master communication protocol, eliminating the need to remap I/O addresses or rewrite function block programs in MasterPiece Engineer. The panel’s front-face connector layout and DIN-rail mounting footprint match the original factory specification, meaning no mechanical modifications to the control cabinet are required during swap-out.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful CMA130 retrofit begins well before the module arrives on site. Control engineers should start by auditing the existing Advant AC450 rack configuration, documenting the slot assignments of all installed modules including the DSPC 172 processor module, DSMB 127 memory backup unit, and any DSAI 130 or DSAO 120 analog I/O modules occupying adjacent slots. Confirming the rack’s power budget is critical — the DSQC 236 power supply unit must have sufficient headroom to support the CMA130 alongside co-installed communication modules such as the DSSB 146 serial interface or DSCS 140 coaxial communication module.

Terminal wiring on the CMA130 follows the standard Advant front-connector scheme. Before removal of the legacy unit, technicians should photograph or transcribe all terminal assignments and verify continuity against the original loop drawings. If the installation includes a CI520 or CI522 communication interface module for PROFIBUS integration, confirm that the module address settings on the CMA130 do not conflict with the existing node map. Address conflicts are among the most common causes of post-retrofit communication faults and can be resolved in minutes if identified during pre-installation planning.

For sites running Advant Station 500 series HMI panels, the operator display graphics linked to the CMA130’s status outputs typically require no modification after a like-for-like replacement. However, if the retrofit is part of a broader upgrade that includes replacing the DSMB 127 memory backup module or migrating historian data from the Advant Information Management system, a full HMI screen validation cycle should be scheduled during the commissioning window. Sites that have integrated third-party SCADA systems via the Advant OPC server should also verify that tag mappings remain intact after the module swap.

Where the retrofit scope extends to I/O expansion — for example, adding DSDI 110 digital input modules or DSDO 115 digital output modules to support new field instruments — the CMA130’s role as the display and status interface remains unchanged. The module continues to aggregate alarm and status signals from the expanded I/O bus without requiring reconfiguration, provided the total I/O count remains within the AC450 controller’s supported range. This makes the CMA130 an ideal anchor component for phased modernization projects where new I/O is added incrementally over multiple maintenance windows.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern for any control system retrofit. For CMA130 replacements on live Advant AC450 systems, the recommended approach is a hot-standby swap procedure where the replacement module is pre-configured offline — DIP switches set, address verified, and functional test completed on a bench rack — before the production system is taken offline. This reduces the live outage window to the physical swap and reconnection time, typically under 30 minutes for an experienced technician.

Before initiating the swap, the existing MasterPiece application program should be backed up to the DSMB 127 memory backup module and, where possible, to an offline engineering workstation running MasterPiece Engineer. This ensures that if an unexpected fault occurs during commissioning, the original program can be restored without delay. Field control loops should be placed in manual mode at the DCS level, and any interlock logic that references CMA130 status outputs should be temporarily bypassed in coordination with the process safety team.

After physical installation, the commissioning sequence should follow the standard Advant power-up procedure: rack power applied, processor module self-test confirmed, communication links to the MasterBus 300 network verified, and I/O module status checked against the pre-retrofit baseline. HMI alarm lists should be reviewed for any spurious faults generated during the swap, and all analog and digital I/O channels associated with the CMA130’s display functions should be exercised through a full-range functional test before returning the system to automatic control. Every unit supplied by SMARTNEXMSK is pre-tested prior to shipment and backed by a 12-month warranty, reducing the risk of commissioning delays caused by infant-failure defects.

Retrofit Support FAQ

Q1: Is the CMA130 3DDE300410 a direct replacement for all Advant AC450 display panel variants?
The CMA130 3DDE300410 is the standard Display Front Panel for the Advant AC450 and AC400 series. It is a direct replacement for units carrying the same part number. If your existing panel carries a different suffix or revision code, please share the full nameplate data with our technical team at sales@smartnexmsk.com so we can confirm cross-compatibility before shipment.

Q2: What commissioning steps are required after installing the CMA130?
After physical installation, verify DIP switch address settings match the original module’s configuration, apply rack power, and confirm the processor module self-test passes. Check MasterBus 300 communication status, validate I/O channel assignments, and perform a functional test of all display and alarm outputs. No firmware programming is required for a like-for-like replacement.

Q3: Can the CMA130 be used in a system that has been partially upgraded to PROFIBUS-DP I/O?
Yes. The CMA130 operates on the Advant backplane bus independently of the field I/O protocol. Systems that have added PROFIBUS-DP I/O via a CI520 or CI522 gateway module continue to use the CMA130 as the display interface without modification. Confirm that the PROFIBUS node addresses do not conflict with the CMA130’s backplane address assignment.

Q4: What does the 12-month warranty cover, and what is the return process?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions. Each unit is tested prior to shipment. In the event of a warranty claim, contact sales@smartnexmsk.com with the order reference and a description of the fault. We will arrange priority replacement or repair to minimize your system downtime.
