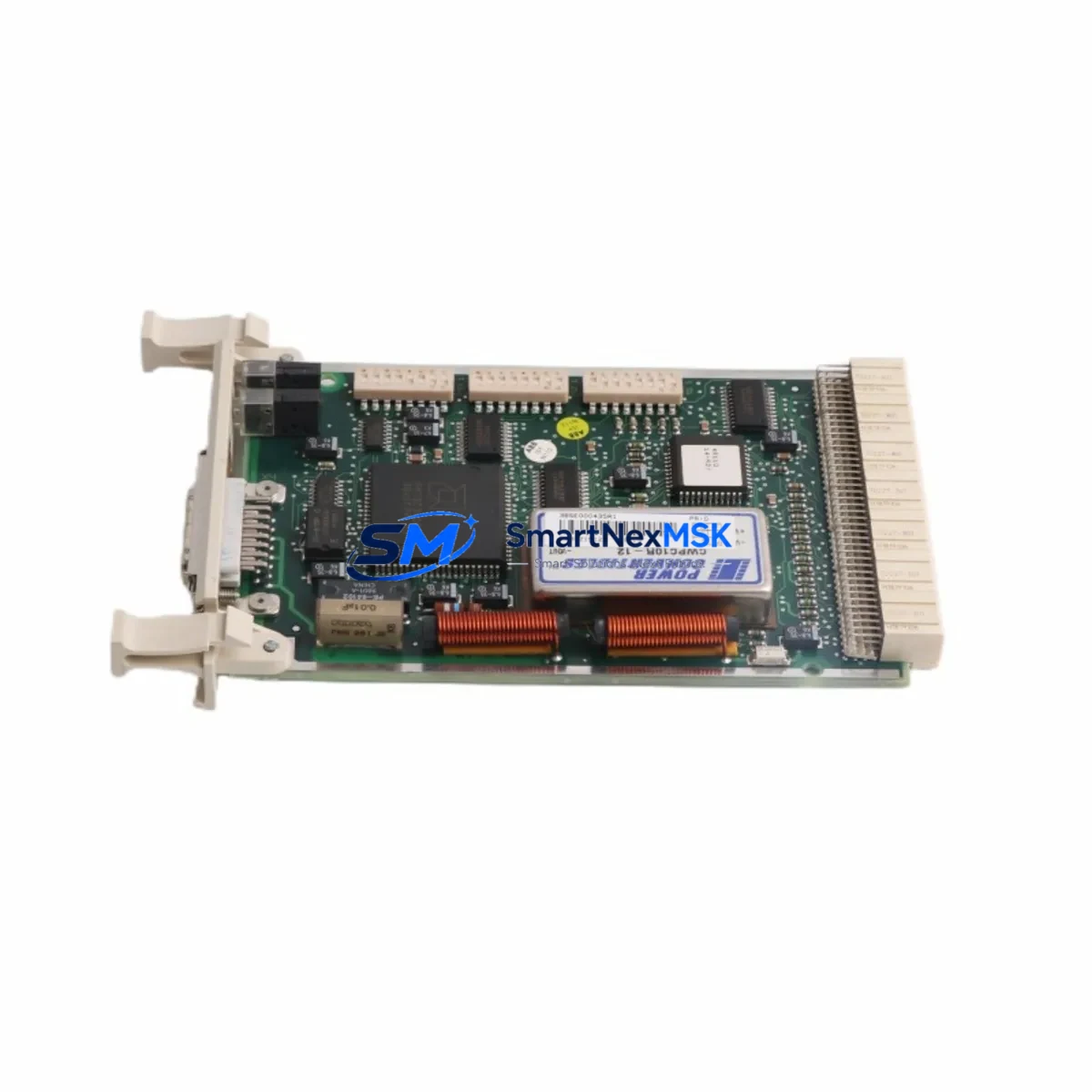

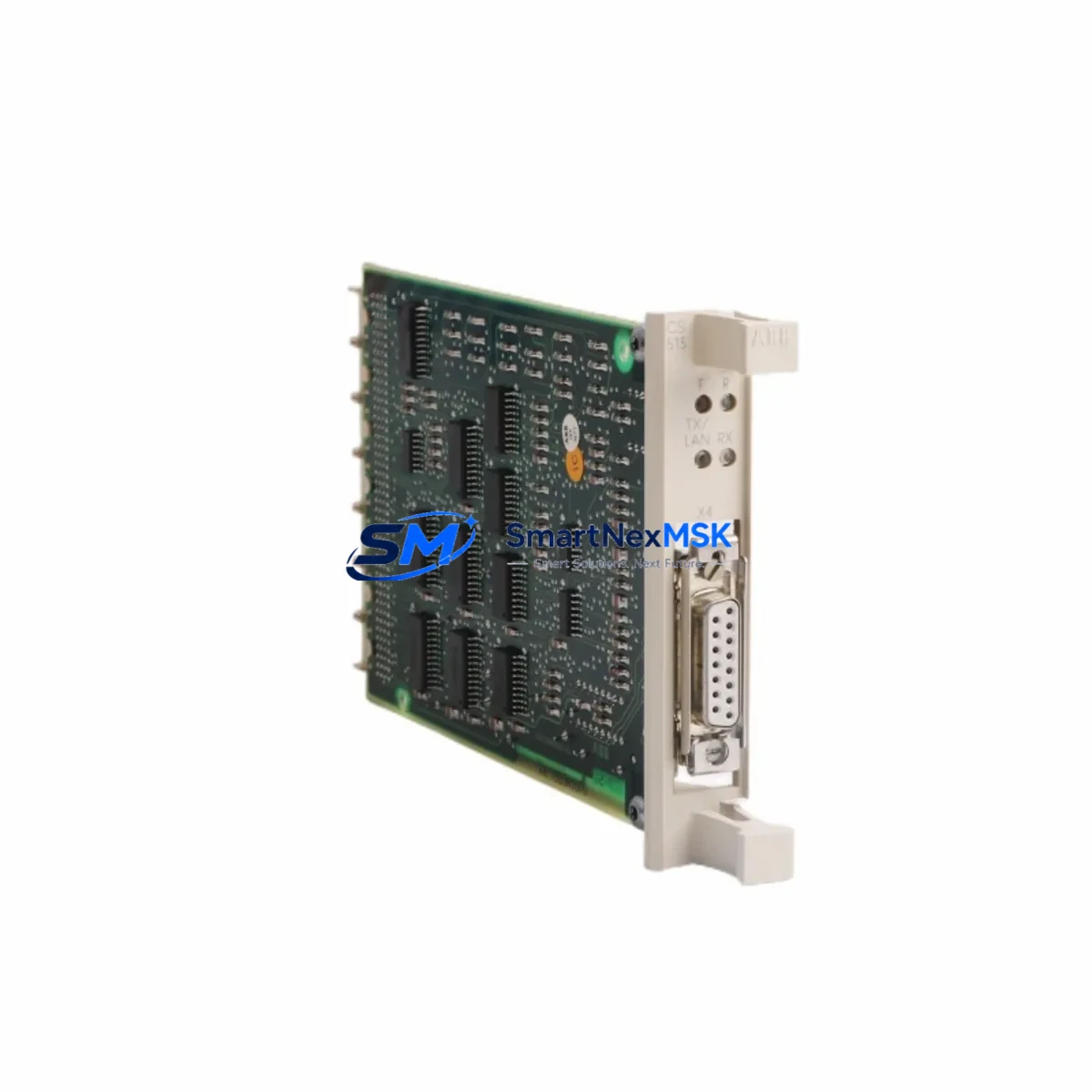

ABB CS513 3BSE000435R1 Safety-Enhanced MasterBus 300E Module

ABB CS513 3BSE000435R1 Safety-Enhanced MasterBus 300E Module: Reliable Control in Harsh Industrial Sites

The ABB CS513 (part number 3BSE000435R1) is a ruggedized MasterBus 300E communications module engineered for mission-critical deployment within ABB AC 800M Distributed Control System architectures. In high-load continuous production environments — petrochemical plants, power generation facilities, metallurgical smelters, mining operations, and port automation systems — communication integrity between the controller and field devices is not a convenience; it is a safety imperative. The CS513 3BSE000435R1 is purpose-built to sustain that integrity under the most demanding electrical and environmental conditions.

Signal drift and communication anomalies are among the leading causes of unplanned shutdowns in industrial control cabinets. The CS513 addresses this directly through its hardened MasterBus 300E interface, which maintains deterministic data exchange between the PM864A or PM865 processor modules and connected I/O clusters even when subjected to high-frequency electromagnetic interference from variable frequency drives, large motor starters, and arc furnace switching transients. Its internal surge suppression circuitry provides a critical buffer against voltage spikes that would otherwise propagate through the backplane and corrupt process data in adjacent modules such as the AI810 analog input module or the DI810 digital input module.

In safety instrumented systems and critical interlock loops — where a single communication failure can trigger an emergency shutdown or, worse, mask a genuine process hazard — the CS513’s deterministic latency and fault-detection capabilities are indispensable. When paired with the SC510 communication interface module and the TB820V2 ModuleBus optical modem, the CS513 forms a redundant, optically isolated communication backbone that eliminates ground loop interference and ensures that safety relay commands from the AC 800M controller reach field actuators without delay or distortion.

Power supply stability is equally critical. Fluctuations from the SD821 or SD822 power supply units can introduce noise into the communication bus if modules lack adequate filtering. The CS513 3BSE000435R1 incorporates onboard decoupling that isolates the MasterBus 300E segment from power rail disturbances, protecting the integrity of real-time process data flowing between the controller and remote I/O panels. This is particularly valuable in facilities where the control cabinet shares a power distribution panel with high-inrush equipment.

For facilities operating under IEC 61511 functional safety requirements or managing SIL-rated interlock loops, maintaining a verified spare inventory of the CS513 3BSE000435R1 is a standard risk mitigation practice. Mean time to repair is directly tied to spare parts availability; a confirmed in-stock module with a documented pre-shipment test record reduces recovery time from hours to minutes. Every CS513 unit shipped by SMARTNEXMSK undergoes functional verification prior to dispatch, with results traceable to the individual serial number.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust AC 800M control cabinet is never a single-module solution. The CS513 3BSE000435R1 operates most reliably when the surrounding cabinet architecture is engineered for protection at every layer. At the power layer, the SD821 24 VDC power supply and SD822 redundant power unit provide stable, filtered DC rails; pairing these with the DP820 digital output module and AO810V2 analog output module ensures that actuator commands are executed cleanly without voltage sag artifacts. At the communication layer, the SC510 serial communication interface and TB820V2 optical modem extend the MasterBus 300E segment to remote I/O clusters with full galvanic isolation, eliminating the ground potential differences that cause intermittent communication faults in large industrial facilities. At the I/O layer, the AI810 8-channel analog input module and DI810 24-channel digital input module feed process variables into the AC 800M controller through the same backplane that the CS513 serves, making the communications module the linchpin of the entire data acquisition chain. Surge arresters on incoming signal cables and proper cabinet grounding per IEC 60364 complete the protection strategy, ensuring that the CS513 and its companion modules operate within their rated electrical environment throughout the plant lifecycle.

Critical Industrial Safety Applications

The CS513 3BSE000435R1 is deployed across a wide spectrum of heavy industrial safety applications. In petrochemical refineries, it maintains real-time communication between the AC 800M safety controller and emergency shutdown valve positioners, ensuring that process isolation commands are executed within the required response time under IEC 61511. In thermal and hydroelectric power plants, it sustains turbine governor feedback loops and generator protection relay interfaces where communication latency directly affects grid stability. In underground and open-pit mining operations, the CS513 supports ventilation control, conveyor interlock, and hoisting safety systems in environments characterized by extreme vibration, dust ingress, and wide temperature swings. Water and wastewater treatment facilities rely on it for continuous monitoring of pump station control loops and chemical dosing systems where communication loss could result in regulatory non-compliance or environmental incidents. In metallurgical plants and steel mills, the module operates reliably adjacent to induction furnaces and rolling mill drives — some of the most electromagnetically hostile environments in industrial automation — maintaining the data integrity that prevents uncontrolled process excursions. Port and terminal automation systems use the CS513 to coordinate crane control, conveyor routing, and hazardous cargo handling interlocks across large distributed I/O networks.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the CS513 3BSE000435R1?
Every CS513 3BSE000435R1 unit supplied by SMARTNEXMSK carries a 12-month warranty covering functional defects under normal operating conditions. Warranty claims are supported by our serial-number-traceable pre-shipment test records, enabling rapid root-cause analysis and replacement without extended downtime.

Q2: How is each module tested before shipment?
Each CS513 undergoes a structured functional verification procedure prior to dispatch. This includes communication interface continuity checks, backplane connector integrity inspection, and operational validation against ABB AC 800M system parameters. Test results are documented and linked to the module’s serial number for full traceability.

Q3: Is the CS513 3BSE000435R1 compatible with all AC 800M controller generations?
The CS513 is designed for use with ABB AC 800M controllers, including the PM864A and PM865 processor modules, within MasterBus 300E / ModuleBus architectures. Compatibility with specific firmware versions or hardware revisions should be confirmed against the ABB AC 800M hardware configuration guide for your installation. Our technical team can assist with compatibility verification prior to order.

Q4: Can long-term supply continuity be guaranteed for critical spare parts programs?
SMARTNEXMSK maintains dedicated inventory reserves for high-demand ABB AC 800M components, including the CS513 3BSE000435R1, to support planned maintenance schedules and emergency replacement requirements. We work with industrial facilities operating multi-year spare parts programs and can provide supply commitment documentation upon request.
