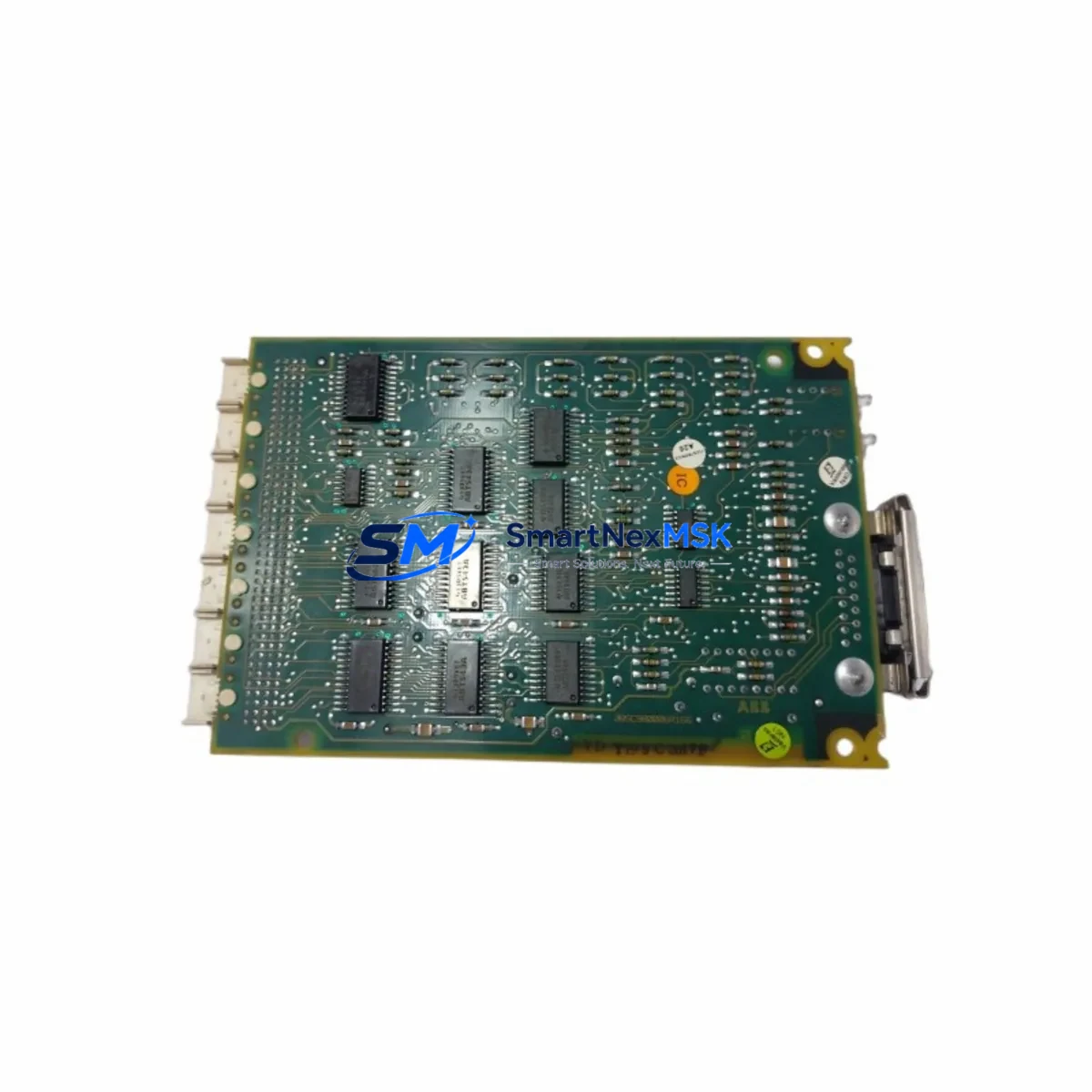

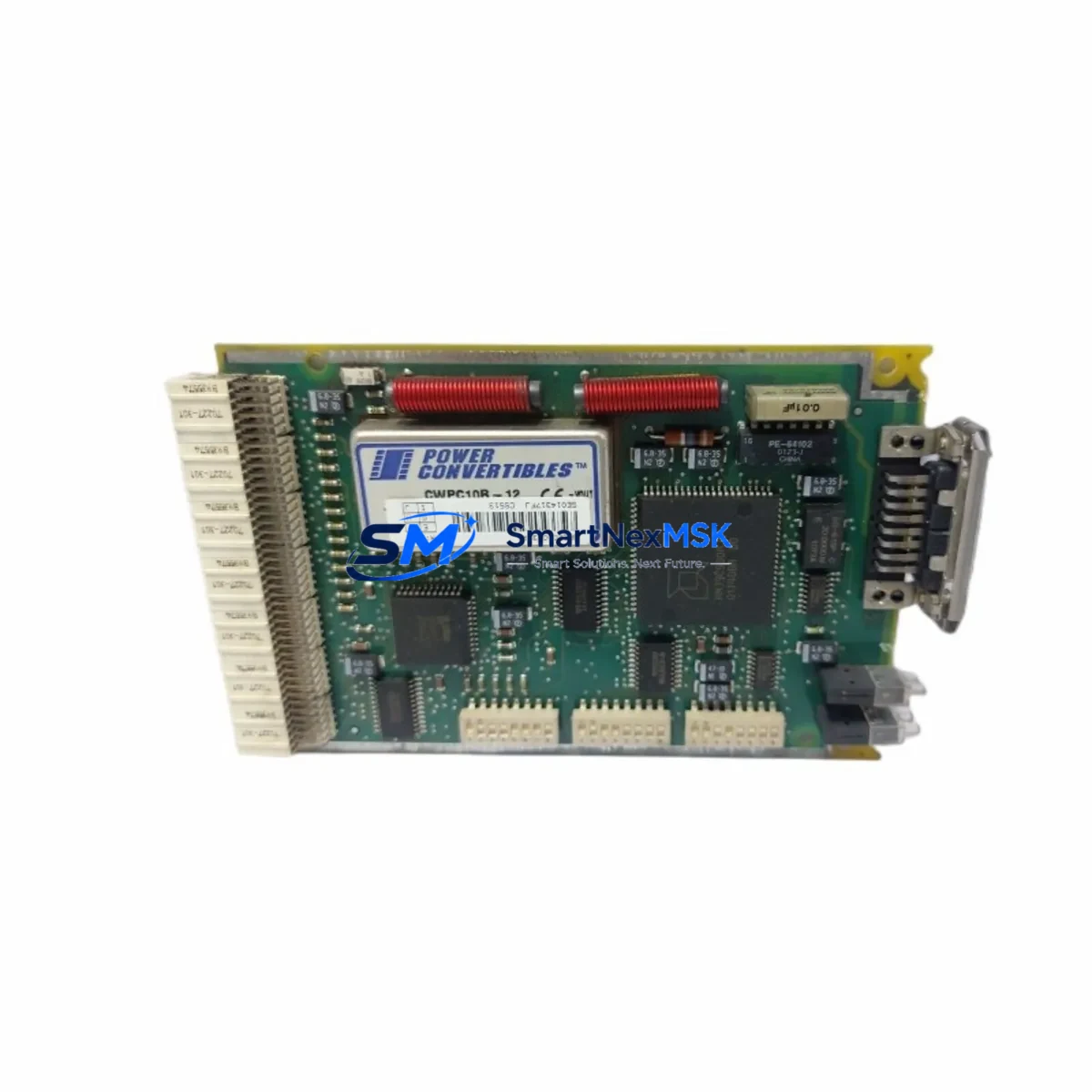

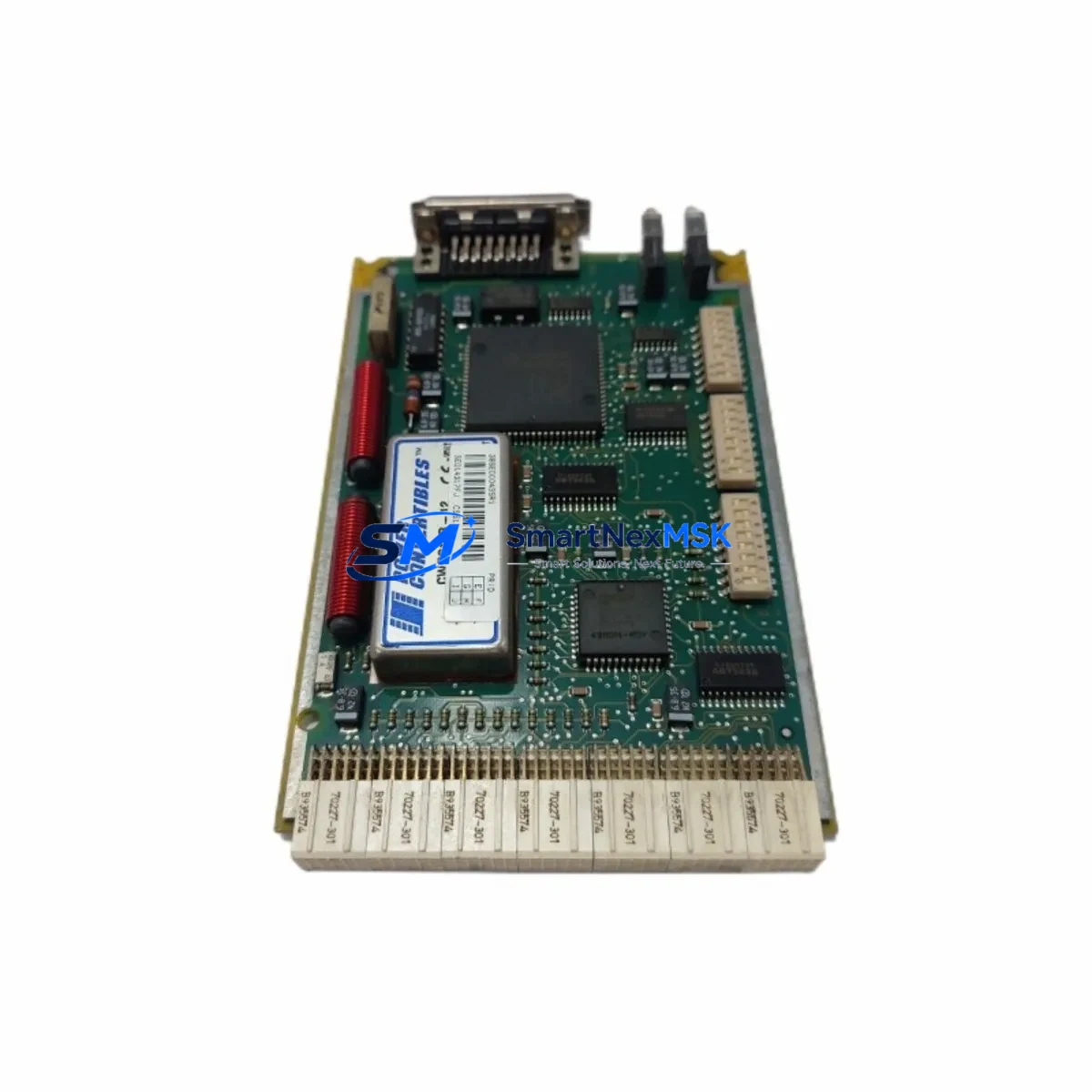

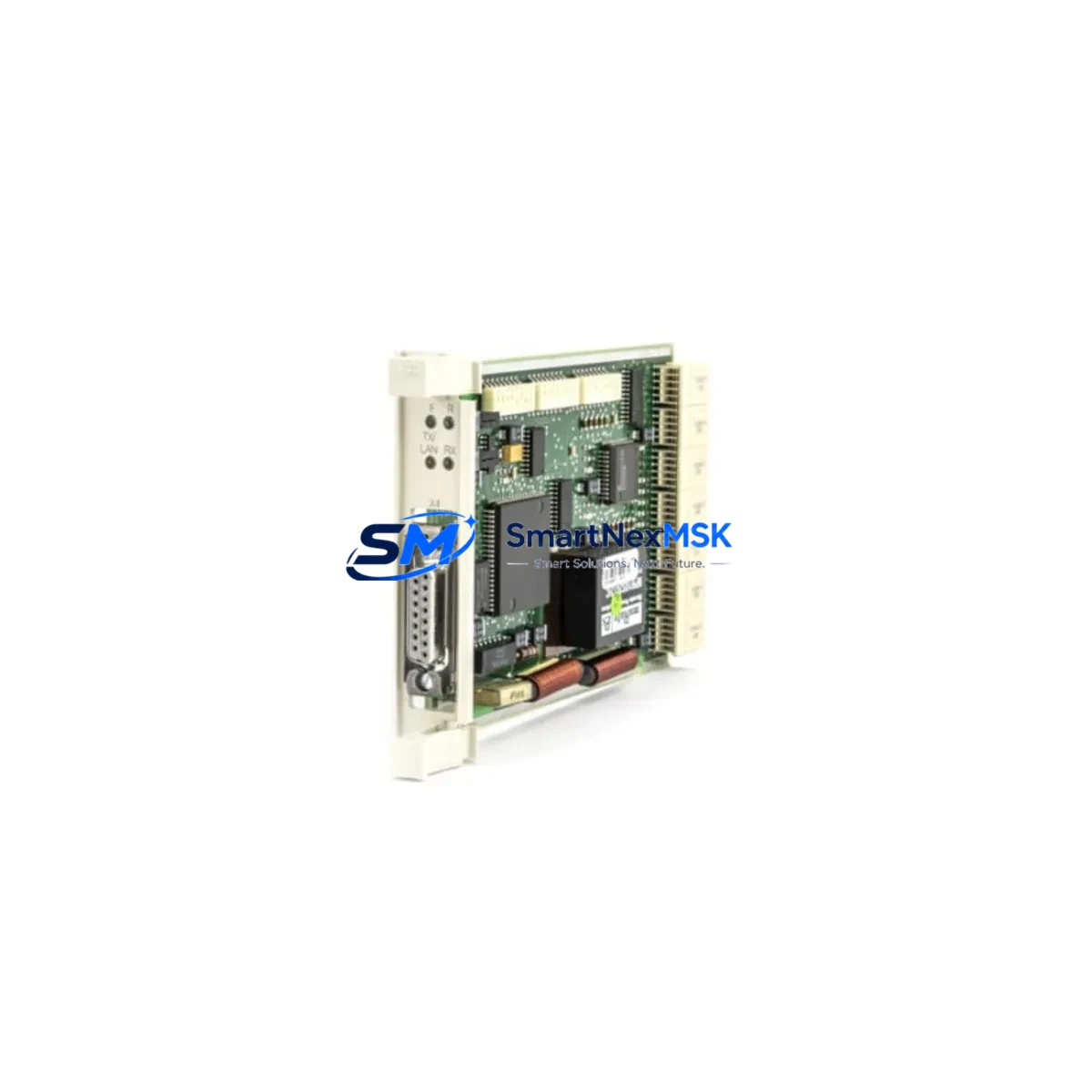

The ABB CS513 MasterBus 300E Communications Module is an industrial-grade fieldbus interface engineered for mission-critical control architectures where communication integrity directly determines process safety. Designed to operate within ABB’s AC 800M and AC 450 distributed control system platforms, the CS513 provides deterministic, low-latency data exchange between controllers, I/O nodes, and supervisory systems — even under the most demanding electromagnetic and thermal conditions found in continuous heavy-industry operations.

In high-load production environments such as petrochemical refineries, power generation facilities, and metallurgical plants, communication module failures are not merely inconvenient — they can trigger unplanned shutdowns, cascade interlock faults, or compromise safety instrumented system (SIS) response times. The CS513 addresses these risks through robust hardware design: its MasterBus 300E protocol stack delivers collision-free, token-passing communication that eliminates the signal contention and latency spikes common in less structured fieldbus topologies. This makes it a preferred choice for engineers specifying components in critical interlock loops, emergency shutdown (ESD) circuits, and high-availability redundant control architectures.

Signal integrity is maintained across the full operating temperature range through onboard transient voltage suppression and EMI shielding, protecting the module against the surge impulses and conducted interference generated by large motor drives, high-voltage switchgear, and arc furnace operations. When paired with ABB’s PM864A or PM865A processor modules, the CS513 forms a tightly integrated communication backbone that sustains loop execution rates without degradation — even when adjacent cabinet equipment introduces broadband noise. Engineers deploying the module alongside AI810 analog input modules or DO810 digital output modules benefit from synchronized data acquisition cycles that reduce the risk of control variable drift and false trip conditions.

Power supply stability is equally critical in harsh-site deployments. The CS513 is rated for operation from a 24 VDC bus, and when sourced from an ABB SD831 or SD832 redundant power supply unit, the module maintains continuous operation through mains fluctuations, brownouts, and momentary interruptions that would otherwise cause module resets and communication timeouts. For installations in classified hazardous areas or outdoor substations, the module’s conformal-coated PCB provides additional protection against humidity ingress, condensation cycling, and corrosive atmospheric contaminants — conditions routinely encountered in coastal chemical plants, offshore platforms, and mining concentrator facilities.

Replacement and spare-part logistics are a persistent operational concern for facilities running legacy ABB DCS infrastructure. The CS513 remains a stocked, tested component available for immediate dispatch, supporting both planned maintenance windows and emergency breakdown scenarios. Each unit undergoes pre-shipment functional verification covering communication initialization, protocol handshake integrity, and power-on self-test sequences — ensuring that field installation proceeds without the diagnostic delays associated with untested surplus stock. Compatibility extends across multiple generations of ABB Advant and Industrial IT controller hardware, making the CS513 a versatile spare that consolidates inventory requirements across mixed-vintage control system estates.

In water treatment and municipal utility applications, where continuous process availability is a regulatory obligation, the CS513 supports the redundant communication ring topologies used in SCADA-integrated DCS architectures. Its deterministic bus arbitration prevents the communication collisions that can cause momentary blind spots in supervisory data — a critical safeguard in facilities where pump station control, chemical dosing interlocks, and effluent monitoring systems share a common fieldbus segment. Similar reliability benefits apply in port and terminal automation, where crane PLC networks, conveyor sequencing controllers, and weighbridge systems demand uninterrupted data exchange across electrically noisy industrial environments.

For facilities managing long-term asset integrity programs, the CS513’s 12-month warranty provides documented assurance of component quality and supply chain traceability. Stocked inventory availability eliminates the extended lead times associated with OEM procurement channels, enabling maintenance planners to maintain lean spare-part holdings without exposing operations to extended mean-time-to-repair (MTTR) risk.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust control cabinet deployment built around the CS513 requires careful selection of complementary components across power, processing, I/O, and protection layers. At the processor level, the ABB PM864A and PM864AK01 controller modules provide the computational backbone that the CS513 serves, executing control algorithms and managing interlock logic at deterministic scan rates. Redundant power integrity is maintained by the ABB SD831 24 VDC power supply, which provides regulated, low-ripple DC to the communication bus — preventing the voltage sag events that can cause CS513 resets during high-inrush motor start sequences.

On the I/O side, ABB AI810 eight-channel analog input modules and ABB DI810 digital input modules feed process variables and field device status into the control loop via the MasterBus 300E network that the CS513 manages. Output commands are executed through ABB DO810 digital output modules, which drive field actuators, solenoid valves, and relay coils in response to controller decisions. Surge protection at the cabinet terminal level — using DIN-rail mounted SPD (surge protective device) assemblies — prevents transient energy from propagating into the CS513’s communication ports during nearby lightning events or capacitor bank switching operations.

For installations requiring communication network redundancy, the CS513 can be deployed in paired configurations supported by ABB’s redundancy management firmware, ensuring that a single module failure does not interrupt the supervisory data flow to the operator workstation or the safety PLC. Fiber-optic repeaters and MasterBus 300E segment couplers extend the physical reach of the network in large plant layouts, maintaining signal quality over distances that would degrade copper-based communication. Collectively, these cabinet-level design choices create a layered protection strategy that minimizes the probability of control interruption, signal drift, and unplanned process shutdown.

Critical Industrial Safety Applications

The ABB CS513 MasterBus 300E Communications Module is deployed across a broad spectrum of heavy-industry and process-industry control systems where communication reliability is a safety prerequisite. In petrochemical and refinery operations, the module supports the DCS communication infrastructure that links reactor temperature controllers, pressure relief interlock systems, and emergency depressurization sequences — environments where a communication timeout can delay a safety response by critical milliseconds. In power generation facilities, including coal-fired, gas turbine, and hydroelectric plants, the CS513 maintains the fieldbus links between turbine governor controllers, excitation system I/O, and plant-wide SCADA, supporting the fast loop execution rates required for frequency regulation and load-following control.

In mining and mineral processing applications — including SAG mill control, flotation cell automation, and tailings pump management — the module operates in control cabinets exposed to vibration, dust ingress, and wide ambient temperature swings. Its robust construction and conformal coating make it a reliable choice for these mechanically and chemically aggressive environments. Water and wastewater treatment facilities rely on the CS513 to maintain uninterrupted communication between SCADA servers and distributed pump station controllers, supporting the continuous monitoring of flow rates, chemical dosing ratios, and effluent quality parameters that are subject to environmental compliance obligations.

In metallurgical and steel production plants, where arc furnaces and induction heating systems generate intense electromagnetic interference, the CS513’s EMI-hardened design sustains communication integrity across the fieldbus segments connecting casting machine controllers, rolling mill drives, and cooling system automation. Port and terminal automation systems — including ship-to-shore crane controls, automated stacking crane networks, and bulk material conveyor sequencing — benefit from the module’s deterministic communication protocol, which prevents the data collisions that can cause positioning errors or conveyor synchronization faults in high-throughput logistics operations.

Safety and Quality FAQ

Q: What does the 12-month warranty cover for the ABB CS513?
A: The 12-month warranty covers functional failure of the CS513 under normal operating conditions, including communication initialization failures, protocol errors attributable to module hardware, and power-on self-test failures. Warranty claims are supported by our technical team, and replacement units are dispatched from verified stock to minimize site downtime.

Q: What pre-shipment testing is performed on each CS513 unit?
A: Every CS513 undergoes a structured pre-shipment verification protocol covering communication bus initialization, MasterBus 300E protocol handshake integrity, supply voltage acceptance testing, and power-on self-test sequence completion. Units that do not pass all test stages are quarantined and not dispatched, ensuring that field installation proceeds without diagnostic delays.

Q: Is the CS513 compatible with both legacy Advant OCS and current AC 800M platforms?
A: Yes. The CS513 is compatible across multiple generations of ABB controller hardware, including the Advant OCS, Master series, and AC 800M / Industrial IT platforms. This cross-generation compatibility makes it a versatile spare-part holding for facilities operating mixed-vintage ABB DCS infrastructure, reducing the number of distinct module types that must be stocked.

Q: Can long-term supply continuity be guaranteed for the CS513?
A: We maintain stocked inventory of the CS513 and actively manage supply chain sourcing to support both planned maintenance schedules and emergency breakdown requirements. Our procurement network covers verified industrial surplus and authorized distribution channels, providing supply continuity for facilities that depend on this module in safety-critical control loops. Inquiries about volume reservations and scheduled delivery programs are welcomed.
