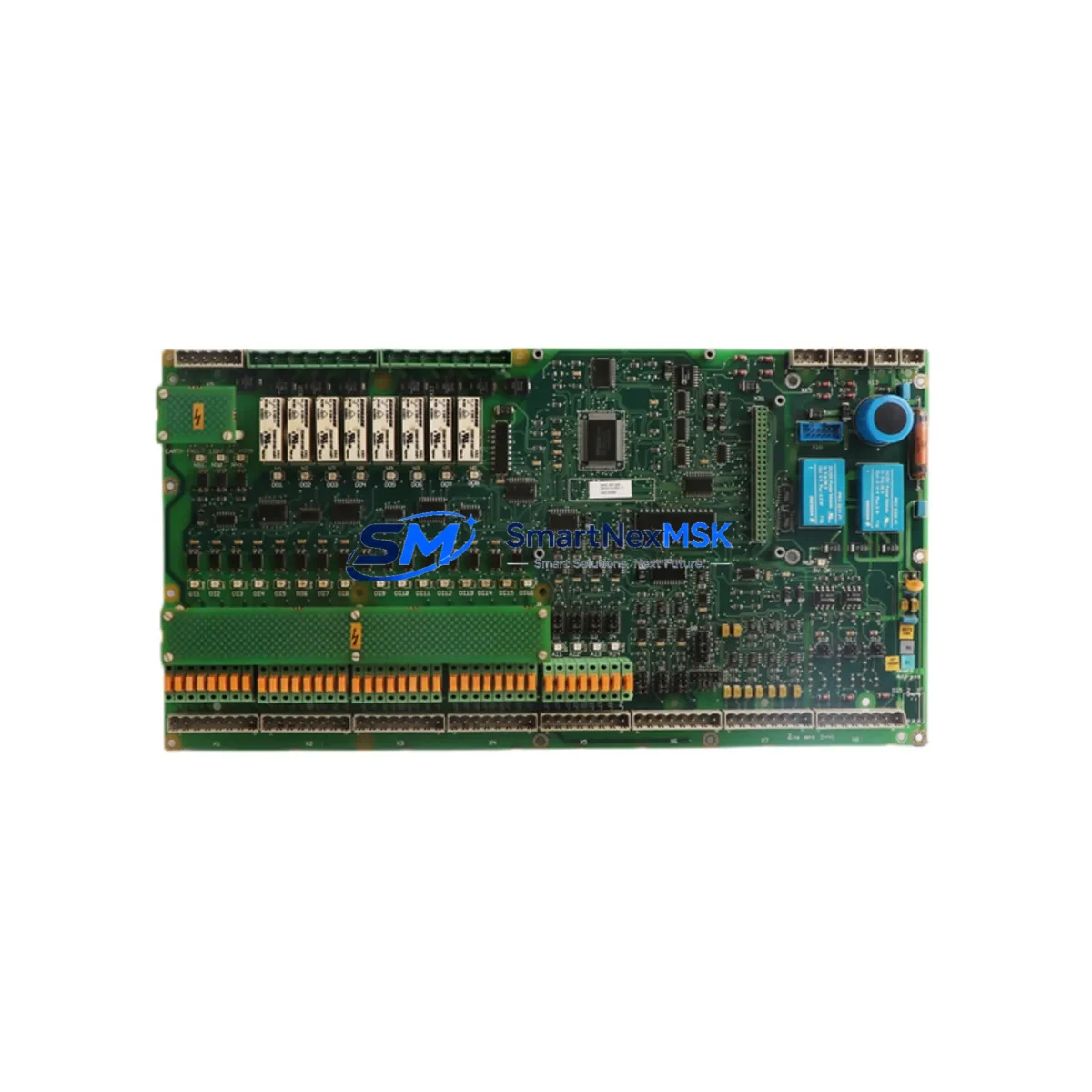

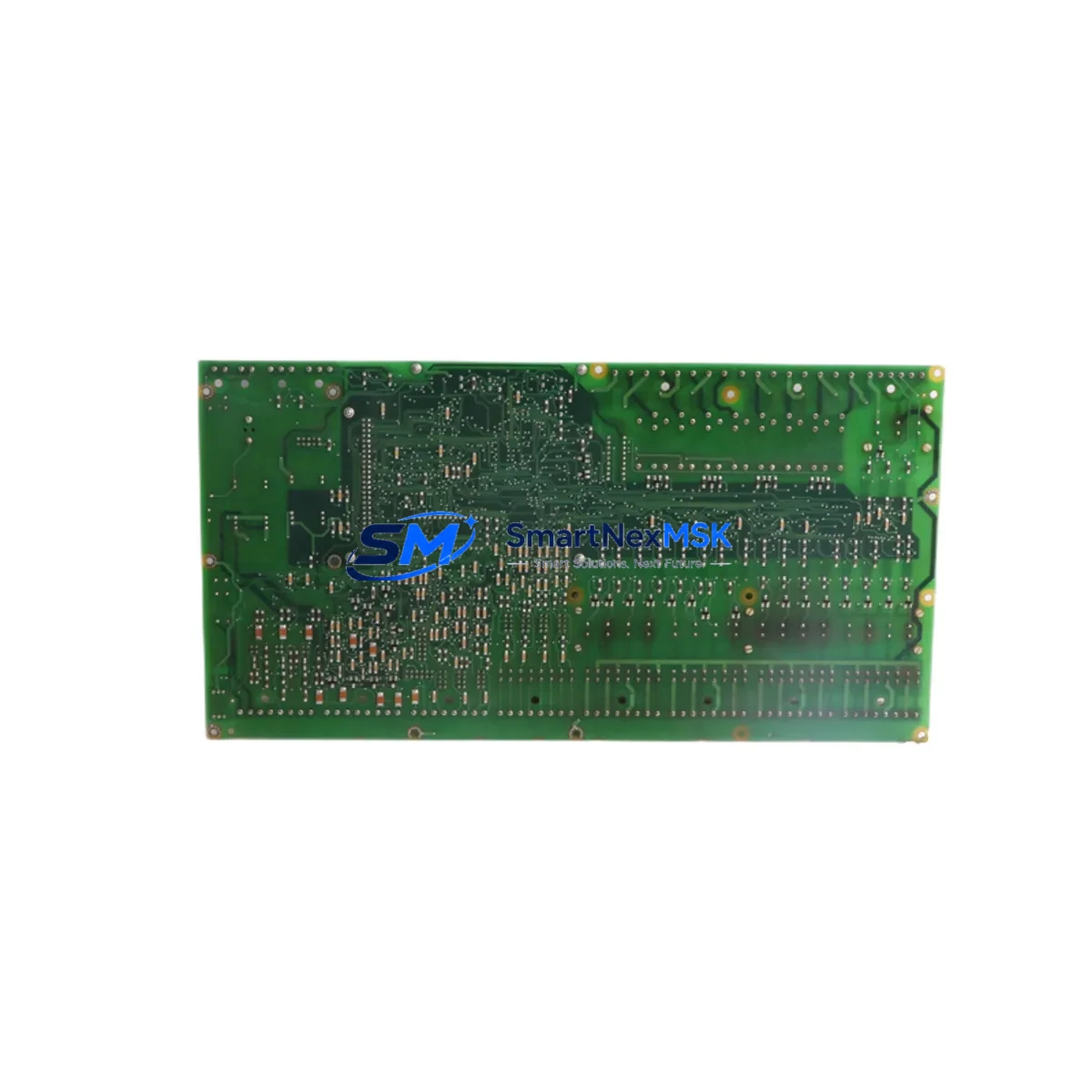

ABB DATX110 3ASC25H209 Retrofit Comm Module for AC450 DCS: Compatible Upgrade & Legacy System Migration
The ABB DATX110 3ASC25H209 is a communication interface module designed for the ABB AC450 Distributed Control System (DCS) platform. As a direct retrofit replacement for the DAPU100 3ASC25H204, this module enables seamless migration from end-of-life hardware without requiring full system redesign. Whether you are managing a brownfield plant upgrade, restoring a failed control node, or extending the operational life of an existing AC450 cabinet, the DATX110 3ASC25H209 provides the compatibility, reliability, and verified performance that industrial engineers demand.
SMARTNEXMSK maintains tested, shelf-ready inventory of this module to support urgent replacement scenarios. Each unit undergoes pre-shipment functional verification and ships with a 12-month warranty, giving procurement and maintenance teams confidence in both delivery timelines and post-installation reliability.
Upgrade Compatibility Table
| Parameter | DATX110 3ASC25H209 (Current) | DAPU100 3ASC25H204 (Legacy) |
|---|---|---|
| Module Type | Communication Interface Module | Communication Interface Module |
| Compatible Platform | ABB AC450 DCS | ABB AC450 DCS |
| Backplane Interface | AC450 standard backplane slot | AC450 standard backplane slot |
| Communication Protocol | INSUM / MasterBus 300 compatible | INSUM / MasterBus 300 compatible |
| Power Supply Requirement | 24 VDC via backplane | 24 VDC via backplane |
| Installation Format | Rack-mount, standard AC450 subrack | Rack-mount, standard AC450 subrack |
| Replacement Recommendation | Direct drop-in for DAPU100 3ASC25H204 | Discontinued — replaced by DATX110 |
| Commissioning Notes | Verify module address, re-download configuration via Master | N/A (legacy) |
| Warranty | 12 Months | N/A |
| Stock Status | Available — tested & verified | End of Life |
Retrofit Planning for Existing Automation Systems
Replacing a communication module in an active AC450 DCS environment requires careful pre-planning to avoid unintended process interruptions. Before removing the DAPU100 3ASC25H204 from the subrack, engineers should document the existing module address configuration, verify the backplane slot assignment, and confirm that the AC450 Master Controller — typically a DSPC172 or DSPC176 processor module — has a current backup of the control program and I/O mapping.
The AC450 subrack accommodates multiple module types in a shared backplane architecture. When the DATX110 3ASC25H209 is installed, the system’s DSTX452 or DSTX110 communication links should be verified for continuity before re-energizing the rack. If the plant uses a DSCS140 or DSCS150 serial communication module for field device integration, confirm that the new DATX110 does not conflict with existing bus arbitration settings.
For plants that also operate DSDI110 or DSDO110 digital I/O modules on the same subrack, it is important to verify that the I/O module addresses remain unchanged after the communication module swap. Address conflicts between the DATX110 and adjacent I/O modules are a common commissioning issue in AC450 retrofit projects and should be resolved in the engineering phase before physical installation begins.
If the control system interfaces with an ABB Advant Station 500 Series HMI or an Operate IT Pro Station, the HMI tag database should be reviewed to confirm that communication path references remain valid after the module replacement. In some configurations, the HMI communication driver references the module slot address directly, and a slot change will require a corresponding update in the HMI project file.
Plants migrating from older MasterBus 300 topologies to Ethernet-based supervisory networks may also need to evaluate whether a DARC008 or DARC016 remote I/O coupler is present in the system, as these devices interact with the communication layer managed by the DATX110. Confirming coupler firmware compatibility before the swap reduces the risk of communication dropouts during the transition period.
Downtime Control During System Migration
Minimizing unplanned downtime is the primary concern in any AC450 DCS module replacement. The recommended approach is to schedule the DATX110 3ASC25H209 installation during a planned maintenance window, with a pre-staged spare module that has been bench-tested and address-configured in advance.
Before the maintenance window opens, the engineering team should export the full AC450 configuration from the Master Controller using the ABB Master programming environment, and store a verified backup on an isolated engineering workstation. This ensures that if the module replacement triggers an unexpected fault, the original program logic can be reloaded without delay.
During the swap, the subrack should be powered down in the correct sequence — disabling field outputs before removing backplane power — to prevent transient signals from reaching connected field devices. After the DATX110 is seated and the rack is re-energized, the Master Controller will perform an automatic module scan. Engineers should monitor the diagnostic LEDs on the DATX110 and confirm that the module status registers in the Master programming environment show a healthy communication link before releasing the system back to process control.
For critical continuous-process applications where even a brief control interruption is unacceptable, a parallel hot-standby strategy using a redundant AC450 controller node should be considered. In this configuration, the standby node maintains process control while the primary node undergoes the module replacement, and control is transferred back after commissioning is verified. This approach is particularly relevant for plants operating DSPC172H redundant processor pairs.
Retrofit Support FAQ
Q1: Is the DATX110 3ASC25H209 a direct replacement for the DAPU100 3ASC25H204?
Yes. The DATX110 3ASC25H209 is the designated successor module for the DAPU100 3ASC25H204 within the ABB AC450 DCS platform. It occupies the same backplane slot, uses the same 24 VDC backplane power supply, and is compatible with the same MasterBus 300 communication architecture. No hardware modifications to the subrack or backplane are required for a direct swap.
Q2: What commissioning steps are required after installing the DATX110?
After physical installation, engineers should verify the module address setting matches the original DAPU100 configuration, re-download the communication configuration from the Master Controller, and confirm that all communication links — including any connected DSCS140 serial modules or DSTX452 communication links — are reporting healthy status. A full I/O scan and HMI communication check should be completed before returning the system to automatic control.
Q3: How do I verify wiring and terminal compatibility before the swap?
The DATX110 3ASC25H209 connects to the AC450 backplane via the standard edge connector — there are no field wiring terminals on the module itself. All field wiring remains connected to the I/O modules (such as DSDI110 or DSDO110) and is unaffected by the communication module replacement. Verify that the backplane connector pins are clean and undamaged before seating the new module.
Q4: What warranty and testing does SMARTNEXMSK provide with this module?
Every DATX110 3ASC25H209 shipped by SMARTNEXMSK is individually tested for power-on functionality and communication interface integrity before dispatch. All units are covered by a 12-month warranty from the date of shipment. In the event of a warranty claim, SMARTNEXMSK provides a replacement unit or full refund, subject to standard return inspection. Contact sales@smartnexmsk.com for warranty support.
