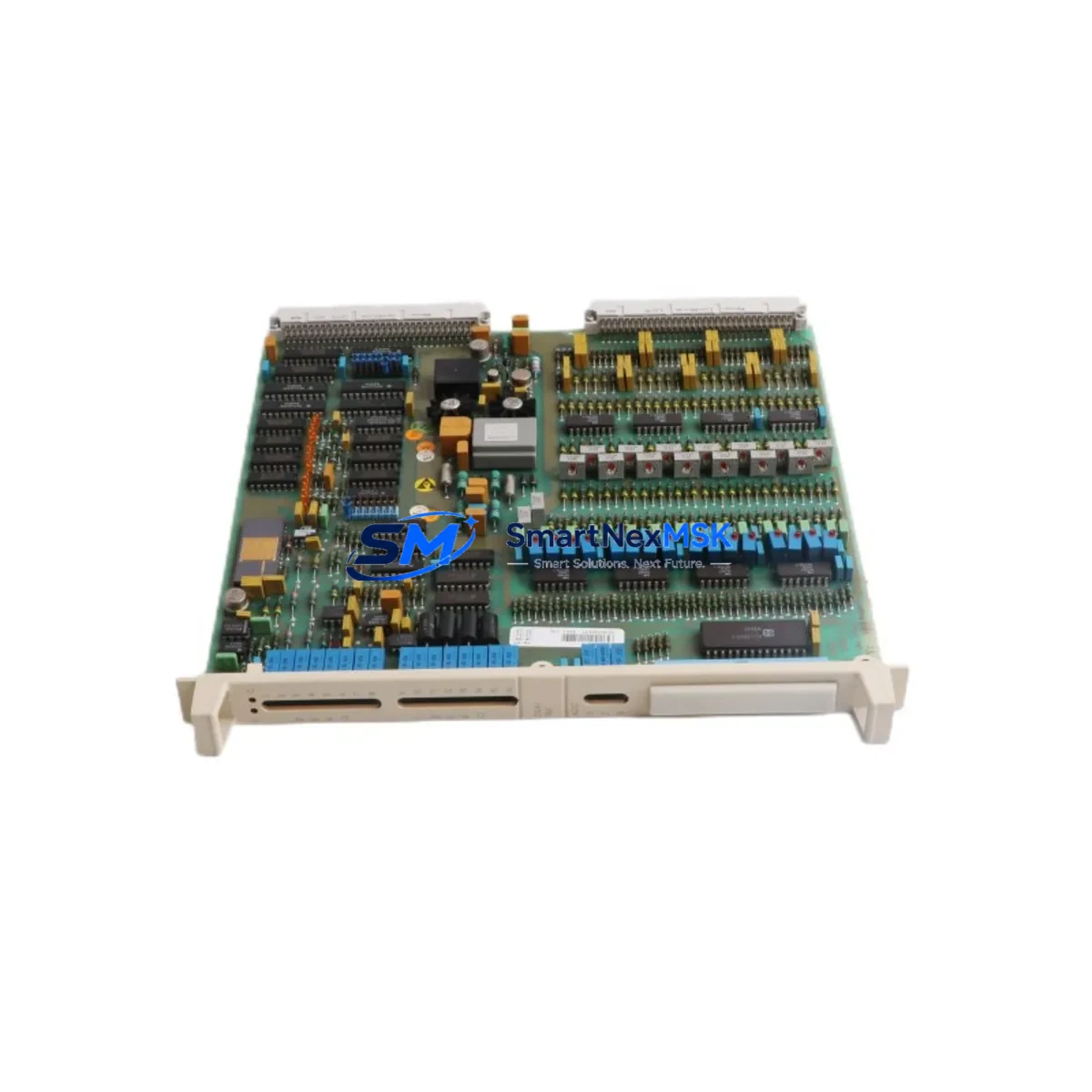

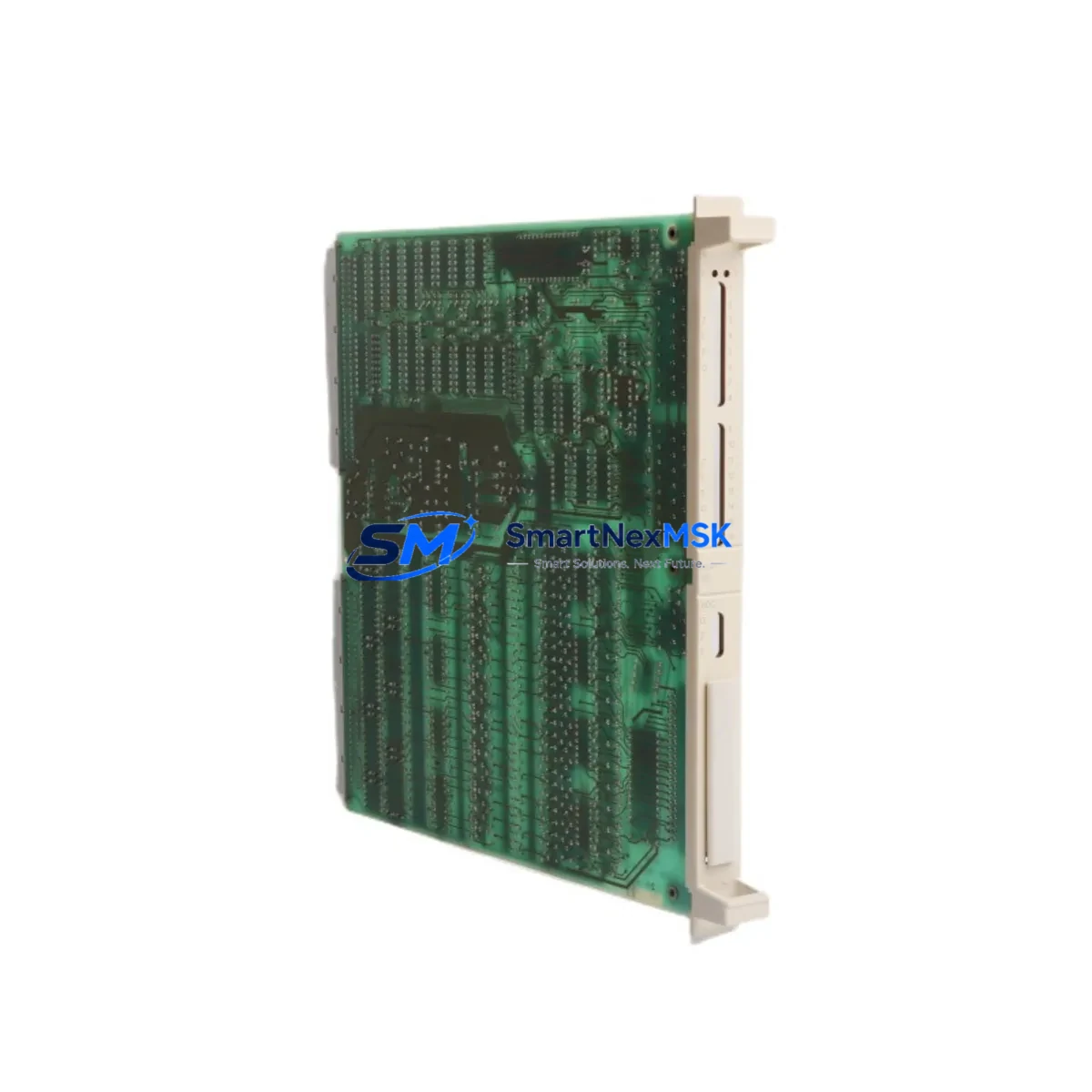

ABB DDSAI130 57120001-P Retrofit-Ready Analog Input Module for Advant Control Systems
The ABB DDSAI130 57120001-P is a high-reliability analog input module originally designed for ABB’s Advant Series distributed control systems. As legacy Advant OCS and Master installations approach end-of-life, this module has become one of the most sought-after retrofit components for engineers managing controlled migrations, emergency spare replacements, and phased control cabinet upgrades. SMARTNEXMSK maintains verified stock of the DDSAI130 57120001-P, fully tested and backed by a 12-month warranty, to support your system continuity without forcing a full platform migration.
Whether you are replacing a failed module in an active production line, building a spare parts buffer for a long-running Advant installation, or planning a structured migration toward ABB’s AC500 or System 800xA platform, the DDSAI130 57120001-P provides the signal acquisition performance and backplane compatibility your existing architecture requires. Each unit shipped by SMARTNEXMSK undergoes pre-shipment functional testing to confirm channel accuracy, terminal integrity, and communication handshake with the Advant processor bus before leaving our facility.
Upgrade Compatibility Table
| Parameter | DDSAI130 57120001-P | Retrofit Notes |
|---|---|---|
| Module Type | Analog Input, Multi-Channel | Direct replacement for same-slot Advant AI modules |
| Backplane Interface | Advant S100 I/O Bus | Verify rack generation before installation; S100 and S400 racks are not interchangeable |
| Signal Range | 4–20 mA / 0–10 V (configurable) | Confirm field wiring signal type matches configured input range |
| Terminal Wiring | Screw-type field terminals | Re-use existing field cable; verify terminal numbering against original loop drawings |
| Module Address | Hardware DIP-switch configurable | Match address setting of removed module exactly to avoid program re-mapping |
| Communication Compatibility | PROFIBUS DP / Advant fieldbus | No protocol conversion required for same-series swap |
| HMI / SCADA Impact | Tag addresses preserved | No HMI screen rebuild required if module address is matched |
| Program Compatibility | Full compatibility with MasterPiece 200/1 and AC410 logic | No ladder or function block modification needed for direct swap |
| Replacement Recommendation | Drop-in for same-slot Advant AI modules | Confirm firmware revision of host controller if mixing module generations |
| Commissioning Focus | Channel calibration, loop test, alarm setpoint verification | Use ABB Advant Builder or equivalent engineering tool for post-swap verification |
| Warranty | 12 Months | Covered from shipment date; includes functional defects under normal operating conditions |
Retrofit Planning for Existing Automation Systems
Successful integration of the DDSAI130 57120001-P into an aging Advant installation requires a structured pre-work checklist. Before pulling the failed module, engineers should document the existing DIP-switch address configuration, photograph the field terminal wiring layout, and confirm the rack slot assignment in the system’s I/O map. The Advant S100 rack and its associated DSAI130 or DSDP140 digital I/O modules share a common backplane bus, so any disruption to bus termination during the swap must be managed carefully to avoid cascading faults on adjacent slots.
Power budget verification is a frequently overlooked step. The DDSAI130 57120001-P draws its operating power from the rack’s internal 24 VDC bus, supplied by the DSPU110 or DSTD110 power supply unit. Before installing a replacement module, confirm that the power supply’s available current margin can support the module’s rated consumption, particularly in racks that have been incrementally expanded over years of operation. An undersized or aging power supply is a common root cause of intermittent module faults that are misdiagnosed as module failures.
For sites running MasterPiece 200/1 controllers or AC410 processor modules, the DDSAI130 57120001-P integrates without requiring changes to the existing control program, provided the module address matches the original. The DSBC172 or DSBC176 communication bus coupler modules that link the I/O rack to the controller should also be inspected during the retrofit window, as these components are equally aged and represent a common secondary failure point. Similarly, the DSDP140 digital output modules and DSDO115 relay output modules in adjacent slots should be visually inspected for capacitor bulge or terminal corrosion while the cabinet is open.
For sites planning a longer-term migration toward ABB’s System 800xA or AC500 platform, the DDSAI130 57120001-P serves as a bridge component that maintains production continuity while the migration is engineered in parallel. During this transition period, the existing PROFIBUS DP network, DSCS141 communication supervisory modules, and field instrument loops can remain fully operational, reducing the scope and risk of the eventual cutover. SMARTNEXMSK can supply not only the DDSAI130 57120001-P but also associated Advant spare components to support a phased decommissioning strategy.
Downtime Control During System Migration
Minimizing unplanned downtime during an analog input module replacement on a live Advant system requires preparation that begins well before the maintenance window opens. The first priority is to place the affected control loop in manual mode at the DCS operator station, ensuring that the process remains under operator control while the module is offline. For critical loops — such as flow, pressure, or temperature inputs feeding interlock logic — a temporary bypass or hardwired override may be required to maintain process safety during the swap interval.
The physical replacement of the DDSAI130 57120001-P is typically completed in under fifteen minutes by a technician familiar with Advant rack mechanics. The module is hot-swap capable in most Advant configurations, but this should be confirmed against the specific rack firmware version and controller configuration before attempting a live swap. After seating the new module, the controller will perform an automatic I/O scan and re-establish communication with the module within one to three scan cycles. The operator should monitor the DCS faceplate for the affected tag to confirm that the analog value returns to a valid, expected reading before returning the loop to automatic control.
Post-swap commissioning should include a full channel loop test using a calibrated 4–20 mA signal source to verify that each input channel reads accurately across the full engineering range. Alarm setpoints, high/low limits, and filter time constants stored in the controller program are not affected by the module swap and do not require re-entry. If the site uses an ABB Advant Builder or MOD 300 engineering workstation for configuration management, a configuration upload from the controller after the swap is recommended to confirm that the module’s hardware configuration matches the software database.
Retrofit Support FAQ
Q: Is the DDSAI130 57120001-P a direct drop-in replacement for the original Advant analog input module in the same rack slot?
A: Yes, provided the replacement module is configured with the same DIP-switch address as the original. No changes to the control program, HMI tag database, or PROFIBUS node configuration are required for a same-address swap in an Advant S100 rack.
Q: What pre-shipment testing does SMARTNEXMSK perform on the DDSAI130 57120001-P?
A: Each unit undergoes functional power-on testing, channel accuracy verification across the full 4–20 mA and 0–10 V input ranges, terminal continuity checks, and backplane connector inspection. A test report is available upon request. All units are covered by a 12-month warranty from the shipment date.
Q: Can the DDSAI130 57120001-P be used in an Advant S400 rack or only in S100 racks?
A: The DDSAI130 57120001-P is designed for the Advant S100 I/O bus architecture. It is not directly compatible with S400 racks, which use a different backplane bus standard. If your installation uses S400 racks, please contact our technical team to identify the correct replacement module for your specific rack generation.
Q: What is the lead time and warranty coverage for the DDSAI130 57120001-P?
A: In-stock units ship within 1–3 business days. All units carry a 12-month warranty covering functional defects under normal operating conditions. Express shipping options are available for emergency breakdown situations. Contact sales@smartnexmsk.com or call +86 18259474341 for availability confirmation and urgent order support.
