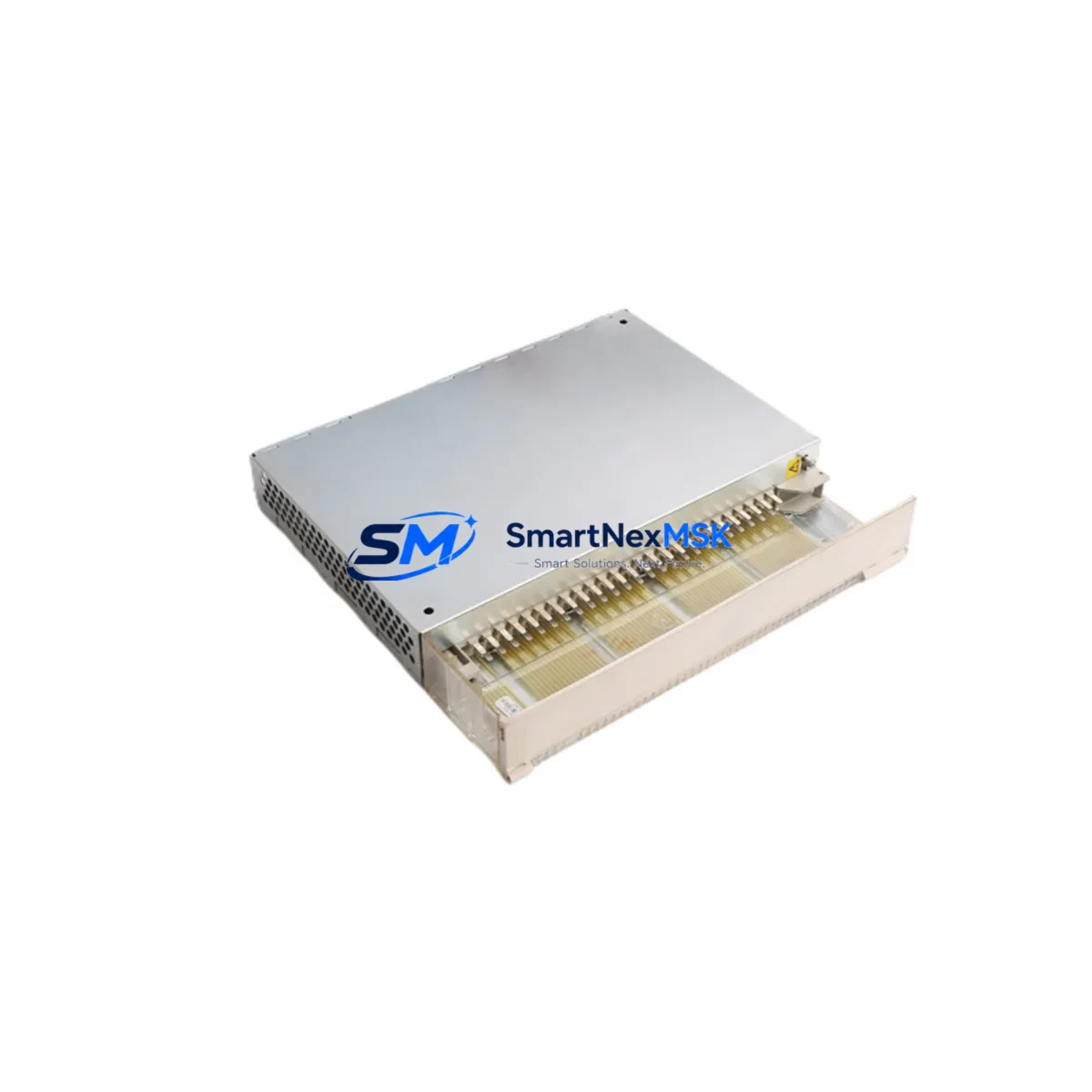

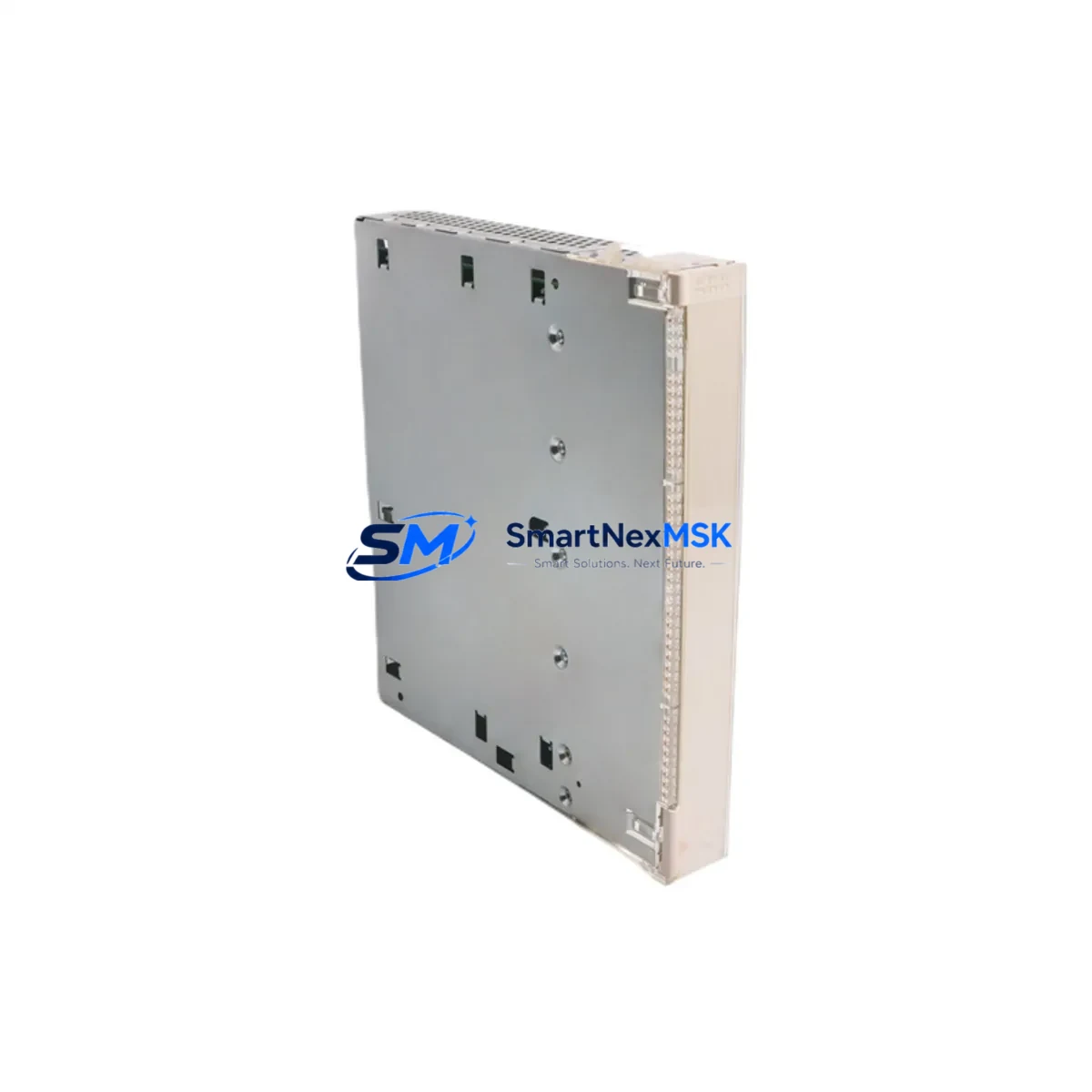

ABB DI620 3BHT300002R1 Safety-Enhanced Digital Input Module

ABB DI620 3BHT300002R1 Safety-Enhanced Digital Input Module for Harsh Industrial Sites

The ABB DI620 3BHT300002R1 is a ruggedized 24 VDC digital input module engineered for the ABB AC500 PLC platform — one of the most widely deployed programmable logic controller families in heavy industrial automation. Designed to operate reliably in environments characterized by high electromagnetic interference, wide temperature swings, mechanical vibration, and continuous duty cycles, the DI620 3BHT300002R1 delivers the signal integrity and operational stability that safety-critical control loops demand.

In modern industrial facilities — from petrochemical processing units and power generation substations to underground mining operations and port crane control systems — digital input modules are the first line of signal acquisition in any safety interlock or emergency shutdown (ESD) circuit. A compromised or unstable input channel can propagate false trip signals, mask genuine fault conditions, or delay protective action at the worst possible moment. The ABB DI620 3BHT300002R1 addresses these risks through robust hardware design, tight noise immunity margins, and full compatibility with the AC500 safety architecture.

Safety Reliability Table

Control Cabinet Protection Strategy

A single digital input module does not operate in isolation — its reliability is inseparable from the protection architecture of the entire control cabinet. When deploying the ABB DI620 3BHT300002R1 in a safety interlock or critical monitoring loop, the surrounding hardware ecosystem must be equally robust.

On the power supply side, pairing the AC500 rack with an ABB CP-E 24/10.0 power supply module or equivalent 24 VDC regulated rail ensures that input channel logic levels remain stable even during grid fluctuations or motor-start inrush events. For installations in areas prone to lightning strikes or heavy switching transients — common in outdoor substations and port facilities — an ABB OVR surge protection device mounted at the cabinet entry point prevents destructive voltage spikes from reaching the DI620’s input terminals, eliminating a primary source of module misoperation and unplanned downtime.

Communication integrity is equally critical. The AC500 platform’s ABB CM589-PNIO PROFINET communication module or ABB CM578-CN CANopen module handles real-time data exchange between the DI620 and the supervisory control layer. In high-noise environments such as arc furnace control rooms or variable-frequency drive (VFD) enclosures, shielded fieldbus cabling and proper cabinet grounding — verified against the ABB AC500 system grounding guide — are non-negotiable for preventing signal drift on the digital input channels.

For applications requiring functional safety up to SIL 2 or SIL 3, the DI620 3BHT300002R1 is typically deployed alongside ABB AC500-S safety CPU modules such as the PM564-S or PM573-ETH-S, and ABB SM560-S safety I/O modules, forming a certified safety loop capable of executing emergency shutdown sequences within defined reaction times. Relay output modules such as the ABB DO620 and DO630 are commonly paired with the DI620 in the same rack to close the input-to-output safety chain without introducing additional latency from external marshalling panels.

Terminal block wiring to the DI620’s field connectors should be protected by ABB S200 series miniature circuit breakers rated at 0.5 A–2 A, preventing a field wiring fault from propagating back into the module’s internal circuitry. Where intrinsic safety barriers are required — for example, in Zone 1 or Zone 2 hazardous areas — ABB HART-compatible Zener barriers or galvanic isolators should be installed between the field device and the DI620 input terminals to maintain personnel safety and signal isolation simultaneously.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In continuous process units such as crude distillation columns, hydrotreaters, and compressor trains, the DI620 3BHT300002R1 monitors valve position feedback, pressure switch states, and flame detector signals feeding into the plant’s safety instrumented system (SIS). Its high EMC noise immunity prevents spurious trips caused by the dense RF environment generated by wireless transmitters and variable-speed drives operating in the same facility.

Power Generation and Substation Automation: Thermal power plants and hydroelectric stations rely on fast, deterministic digital input scanning to detect turbine overspeed, generator differential protection relay outputs, and breaker status. The DI620’s IEC 61131-2 compliant input thresholds ensure correct signal interpretation even when long cable runs introduce resistive voltage drops between the field device and the control room panel.

Underground Mining Operations: In longwall coal mining or hard-rock metal extraction, control systems face extreme vibration, coal dust ingress, and frequent power interruptions. The DI620 3BHT300002R1’s ruggedized construction and wide operating temperature range make it a dependable choice for conveyor belt safety monitoring, methane gas detector interlocks, and emergency stop circuit acquisition in these demanding underground environments.

Water and Wastewater Treatment: Municipal water treatment facilities and industrial effluent plants use digital input modules to monitor pump run/fail status, high-level float switch signals, and UV disinfection system alarms. The DI620’s stable 24 VDC input logic ensures reliable acquisition of these low-energy field signals even in humid pump rooms where condensation and corrosive atmospheres are persistent challenges.

Metallurgy and Steel Production: Electric arc furnaces, continuous casting lines, and rolling mills generate some of the most severe electromagnetic interference found in any industrial environment. The DI620 3BHT300002R1, when properly installed within a well-bonded AC500 control cabinet, maintains signal integrity on critical interlock inputs — such as cooling water flow confirmation and hydraulic pressure monitoring — that protect both personnel and capital equipment from catastrophic failure.

Port and Material Handling Automation: Ship-to-shore cranes, automated stacking cranes, and conveyor transfer systems in port terminals require digital input modules that can withstand constant mechanical shock, salt-laden air, and wide ambient temperature cycles. The DI620’s compliance with IEC 60068-2-6 vibration and IEC 60068-2-27 shock standards confirms its suitability for mobile and semi-mobile control cabinet installations in these logistics-critical environments.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If the DI620 3BHT300002R1 exhibits any fault attributable to component or assembly quality, we will arrange replacement or repair at no additional cost. Claims are initiated by contacting sales@smartnexmsk.com with the order reference and a description of the observed fault.

Q2: What pre-shipment testing is performed on each unit?
Every DI620 3BHT300002R1 unit undergoes a full functional verification test prior to dispatch. This includes channel-by-channel input logic verification at nominal 24 VDC, backplane communication handshake confirmation with an AC500 CPU, and visual inspection for connector integrity and labeling accuracy. Units that do not pass all test criteria are quarantined and not shipped.

Q3: Is the DI620 3BHT300002R1 compatible with all AC500 CPU generations?
The DI620 3BHT300002R1 is designed for the ABB AC500 platform and is compatible with PM5xx series CPUs including the PM554, PM564, PM573, PM583, and PM592 families, as well as their ETH-suffix Ethernet variants. Compatibility with AC500-S safety CPUs for SIL-rated applications should be confirmed against the specific safety project’s hardware configuration requirements. We recommend consulting the ABB AC500 system catalog or contacting our technical team for project-specific validation.

Q4: Can long-term supply continuity be guaranteed for ongoing maintenance and spare parts programs?
Yes. We maintain dedicated stock of the DI620 3BHT300002R1 to support both immediate replacement needs and planned spare parts programs for facilities operating AC500-based control systems. For customers managing multi-site maintenance contracts or requiring scheduled annual replenishment, we offer reservation arrangements and priority allocation. Contact sales@smartnexmsk.com to discuss your long-term supply requirements.
