ABB DI801 3BSE020508R1 Spare for S800 Automation

ABB DI801 3BSE020508R1 Spare for S800 Automation: Spare Replacement & Industrial Downtime Risk Control

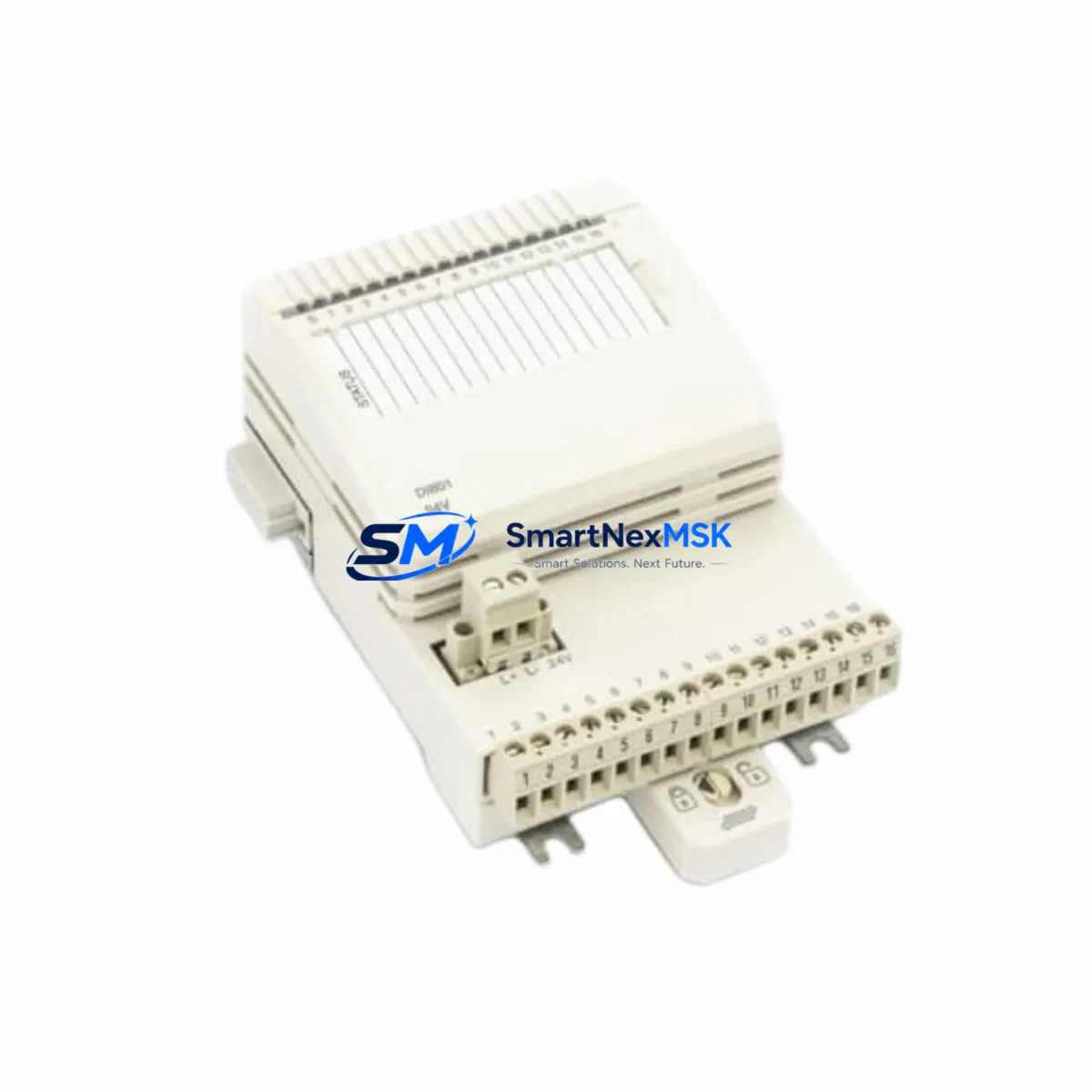

The ABB DI801 (3BSE020508R1) is an original digital input module designed for the S800 I/O system, widely deployed in AC800M Distributed Control System (DCS) architectures across process industries including oil & gas, pulp & paper, power generation, and chemical manufacturing. With 16 channels of 24 VDC digital input capability, the DI801 serves as a critical signal acquisition node between field instruments and the controller — making its availability in the spare parts inventory a non-negotiable element of any serious maintenance strategy.

At SMARTNEXMSK, every DI801 3BSE020508R1 unit is sourced as an original ABB component, subjected to pre-shipment functional testing, and dispatched with a 12-month warranty. Our supply chain supports both planned maintenance cycles and emergency replacement scenarios, ensuring that procurement engineers can secure verified stock without lead-time uncertainty.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a DI801 3BSE020508R1 is flagged for replacement during a planned shutdown or emergency callout, the maintenance scope should extend beyond the module itself. A disciplined site engineer will treat the DI801 swap as an opportunity to audit the surrounding electrical environment and prevent secondary failures.

Begin with the TB820V2 or TB840A termination unit — the physical interface between field wiring and the DI801. Corroded terminals, loose screw connections, or damaged terminal blocks are a common root cause of intermittent input faults that are incorrectly attributed to the module. Inspect and torque all field wiring connections before inserting the replacement DI801.

Next, verify the 24 VDC field power supply feeding the input channels. A degraded or undersized power supply — such as an aging SD802 or SD803 power distribution module — can cause marginal input voltage levels that produce erratic channel behavior even with a new DI801 installed. Measure supply voltage under load and confirm it remains within the 20.4–28.8 VDC operating window.

The CI854A or CI858 communication interface module connecting the S800 I/O cluster to the AC800M controller should also be inspected. A failing communication interface can mask DI801 faults or generate false diagnostics. Confirm that the ModuleBus is error-free and that the CI module’s status LED indicates healthy communication before closing out the work order.

For installations using AI810 or AI820 analog input modules in the same I/O cluster, cross-check that the shared backplane — typically a TB845 or TB840A — shows no signs of physical damage, oxidation, or bent connector pins. A compromised backplane can affect multiple modules simultaneously and is often overlooked during single-module replacement tasks.

If the DI801 is part of a safety-instrumented or interlock circuit, coordinate with the process safety team to verify that the replacement module’s channel mapping matches the original configuration in the AC800M engineering tool (Control Builder M). Incorrect channel assignment after a module swap is a documented source of nuisance trips and process upsets.

Procurement engineers building a recommended spare parts list for AC800M-based DCS cabinets should consider stocking the DI801 3BSE020508R1 alongside the DO801 3BSE020510R1 (digital output module), AI810 3BSE008516R1 (analog input), AO810V2 3BSE038415R1 (analog output), and the PM856 3BSE018161R1 processor module. A single-cabinet spare kit covering these five module types addresses the majority of unplanned downtime scenarios in S800-based process control systems.

For older installations where the S800 I/O cluster is connected via PROFIBUS DP using a DP820 or CI820V1 interface, ensure that the PROFIBUS termination resistors are intact and that the bus cable shielding is properly grounded. PROFIBUS signal integrity issues frequently surface during module replacement activities when the bus is briefly interrupted.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the failed module’s part number (DI801 / 3BSE020508R1) against the cabinet label and the Control Builder M hardware configuration. Verify that the replacement unit carries the same hardware revision if the site has strict revision-control policies.

Step 2 — Safe isolation: Place the affected I/O cluster in manual mode at the DCS operator station. Notify the process operator and obtain a permit-to-work before opening the cabinet. De-energize the 24 VDC field supply to the affected termination unit.

Step 3 — Module extraction: Release the DI801 locking tab and slide the module out of the backplane slot. Avoid touching the ModuleBus connector pins. Place the removed module in an anti-static bag for return or failure analysis.

Step 4 — Replacement insertion: Slide the new DI801 3BSE020508R1 into the correct slot until the locking tab engages. Re-energize the 24 VDC field supply. Observe the module’s RUN LED — it should illuminate green within 10 seconds as the module initializes on the ModuleBus.

Step 5 — Functional verification: From the DCS operator station, confirm that all 16 input channels are reporting correctly. Perform a channel-by-channel check against the field instrument status. Clear any latched diagnostics in Control Builder M and return the I/O cluster to automatic mode.

Step 6 — Documentation: Update the cabinet maintenance log with the replacement date, new module serial number, and technician sign-off. Record the failed module’s serial number for warranty claim processing if applicable.

This workflow is compatible with hot-swap-capable S800 configurations and supports zero-process-interruption replacement in redundant I/O architectures. For non-redundant installations, coordinate the replacement window with the production schedule to minimize downtime exposure.

Spare Parts Support FAQ

Q1: Is the DI801 3BSE020508R1 still available as a new original part, or only as tested surplus?
SMARTNEXMSK maintains stock of both new original and tested surplus DI801 units. All tested surplus units undergo functional verification on S800-compatible test benches before shipment. The condition is clearly stated on the order confirmation. Both conditions are covered by the 12-month warranty.

Q2: How do I verify compatibility between the DI801 and my existing AC800M system revision?
The DI801 3BSE020508R1 is compatible with all AC800M controller generations (PM851 through PM866) and all S800 I/O backplane variants (TB820V2, TB840A, TB845). If your site uses a specific hardware revision for strict configuration management, provide your current revision number when placing the order and our technical team will confirm compatibility before dispatch.

Q3: What is included in the pre-shipment testing process?
Each DI801 unit is powered up on a dedicated S800 test rig, all 16 input channels are stimulated with 24 VDC signals, and channel response is verified against ABB factory acceptance criteria. The ModuleBus communication interface is also tested. A test report is available upon request for quality-controlled procurement processes.

Q4: What is the recommended inventory strategy for DI801 modules in a large AC800M installation?
For installations with more than 10 DI801 modules in service, a minimum stock of 2 units is recommended to cover simultaneous failures during extended production campaigns. For critical process lines where downtime cost exceeds USD 10,000/hour, a dedicated hot-spare mounted in the cabinet is advisable. SMARTNEXMSK offers volume pricing for multi-unit spare kit orders to support strategic inventory programs.
