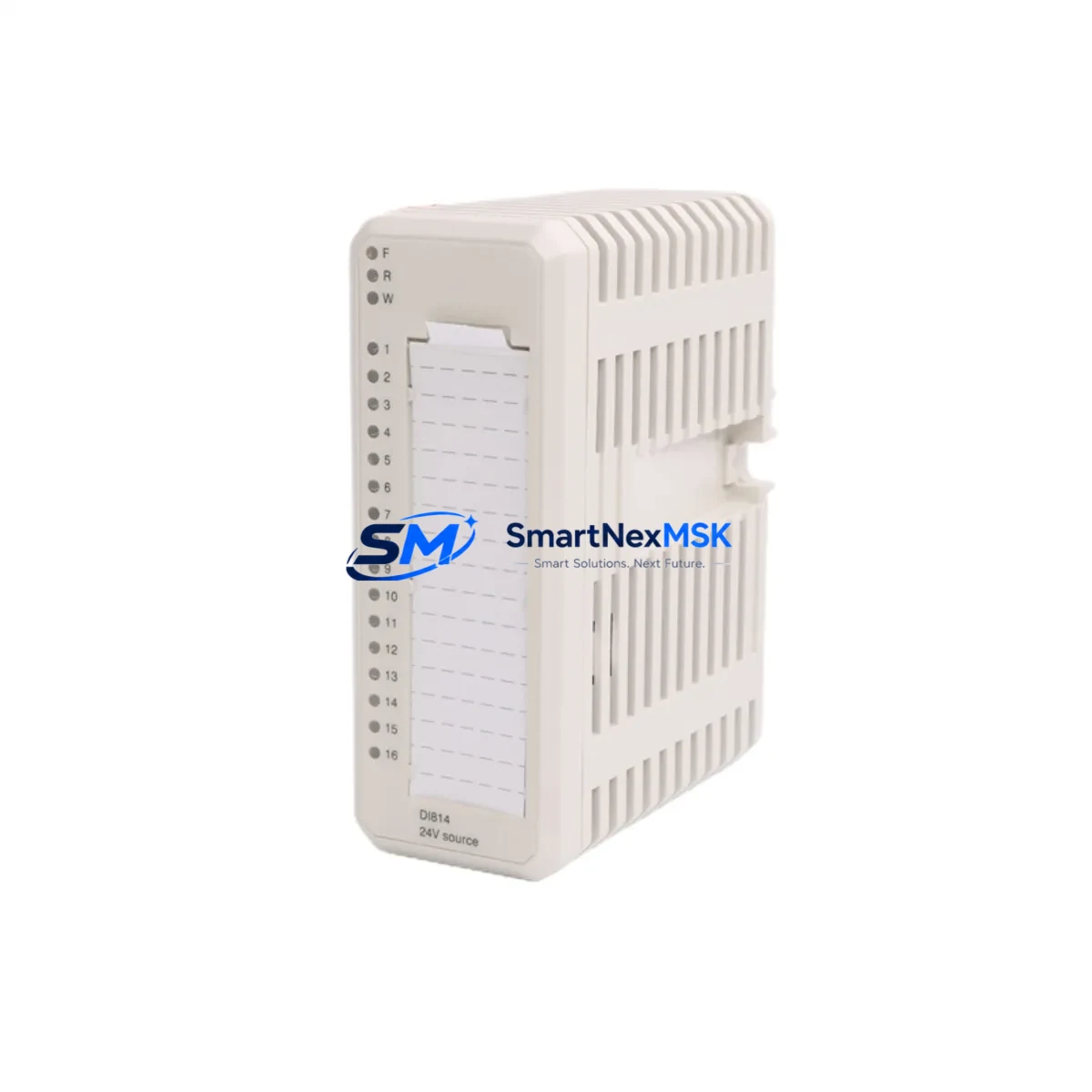

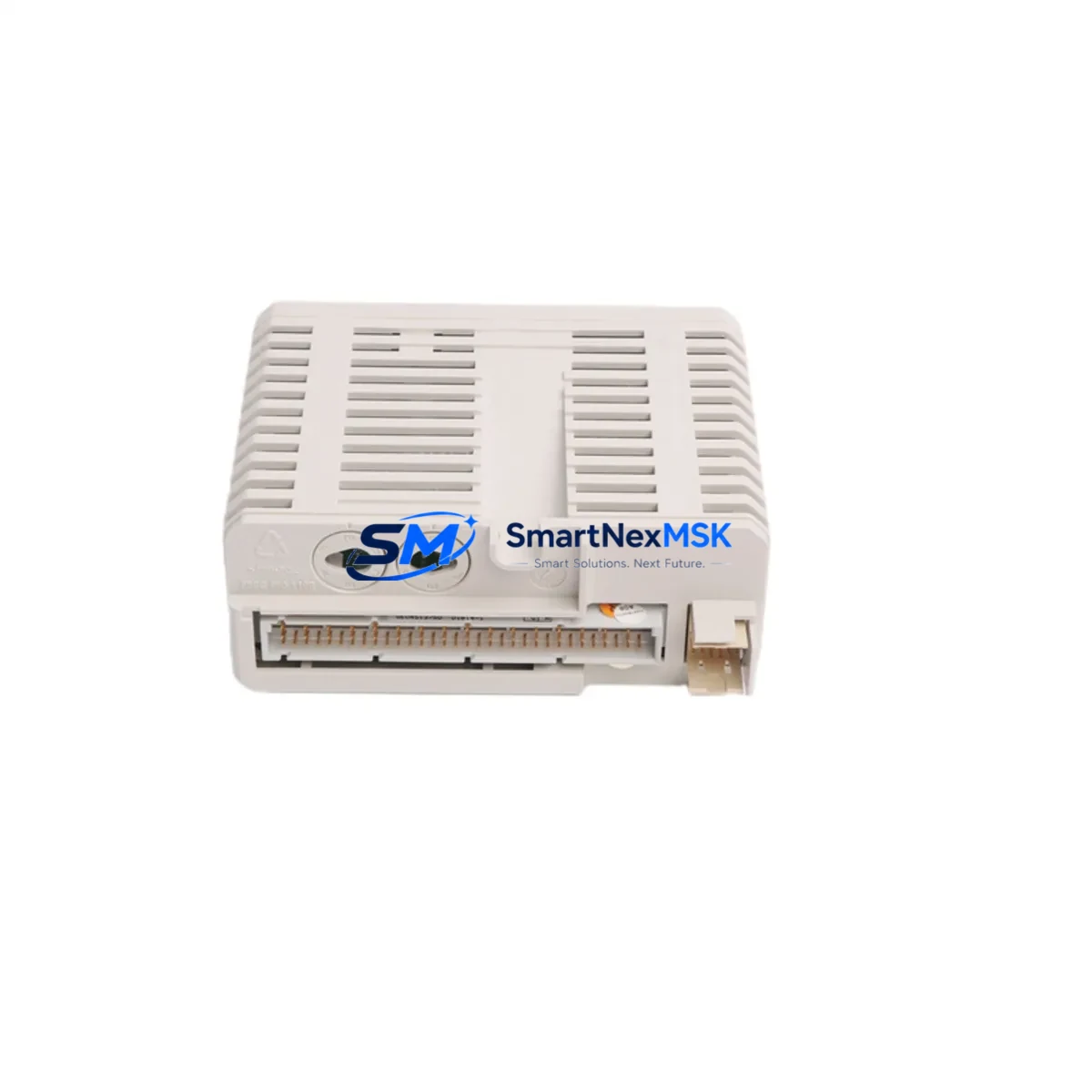

The ABB DI814 (part number 3BUR001454R1) is an original digital input module designed for the ABB S800 I/O system, widely deployed in AC800M Distributed Control System (DCS) architectures across power generation, oil & gas, chemical processing, and heavy manufacturing facilities. When a DI814 module fails or reaches end-of-life, the impact on process continuity is immediate — unplanned downtime in DCS-controlled environments can cost thousands of dollars per hour. Sourcing a verified, tested replacement from a reliable industrial spare parts supplier is the fastest path to restoring normal operation.

This listing provides an original ABB DI814 3BUR001454R1 module, sourced through established industrial supply channels, inspected and tested prior to shipment, and backed by a 12-month warranty. Whether you are executing a planned maintenance swap, responding to a fault alarm, or building a critical spare inventory for your control cabinet, this module ships ready for direct installation into your S800 I/O station.

Maintenance engineers and procurement engineers working on ABB AC800M systems will find this module a direct, plug-compatible replacement. No firmware reconfiguration of the I/O station is required when replacing a like-for-like DI814 module — the S800 I/O bus automatically recognizes the module type upon power-up, minimizing commissioning time and reducing the risk of configuration errors during emergency replacement.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a DI814 module is flagged for replacement during a scheduled outage or emergency shutdown, experienced maintenance engineers know that the module itself is rarely the only component that requires attention. A thorough inspection of the surrounding S800 I/O station and control cabinet is essential to prevent repeat failures and ensure a clean return to service.

Start by inspecting the TB820 ModuleBus Modem or TB840A termination unit that the DI814 is mounted on — connector pins and locking tabs degrade over time and can cause intermittent channel faults that are misdiagnosed as module failures. Check the 24 VDC field power supply feeding the digital input circuits; a drifting supply voltage is a common root cause of false input readings and module diagnostics. If your cabinet uses an SD821 or SD822 power supply module, verify output voltage stability under load before reinstalling the new DI814.

Inspect the CI854 or CI858 PROFIBUS communication interface module in the same I/O station — communication faults at the fieldbus level can mask or trigger downstream DI module alarms. Review the AI810 or AI820 analog input modules in adjacent slots for any shared grounding or shielding issues that could introduce noise into the digital input channels. For cabinets with mixed I/O, also check the DO814 or DO815 digital output modules in the same rack; output-side faults can create feedback conditions that stress input modules.

Examine field wiring terminations at the TB825 or TB826 termination boards for loose connections, corrosion, or insulation breakdown — particularly in high-humidity or high-vibration environments. If the system includes signal isolators or signal conditioners between field sensors and the DI814 input channels, test each isolator for correct output levels. Finally, verify that the AC800M controller module (PM860 or PM864) firmware is current and that the I/O configuration in Control Builder matches the physical module layout after replacement.

Site Replacement Workflow

Replacing the ABB DI814 3BUR001454R1 on-site is a straightforward procedure when the correct spare is on hand and the replacement follows a structured workflow:

1. Pre-replacement verification: Confirm the replacement module part number (3BUR001454R1) matches the installed module label. Cross-check the S800 I/O station address and slot position in the AC800M Control Builder project. Download and archive the current controller configuration before any hardware change.

2. Safe isolation: Follow your site’s lockout/tagout (LOTO) procedure for the affected I/O station. The S800 I/O system supports hot-swap of I/O modules in most configurations — verify this is enabled in your system configuration before attempting a live swap. If hot-swap is not confirmed, plan for a controlled process hold.

3. Module extraction and installation: Release the module locking lever, slide the DI814 out of the ModuleUnit, and insert the replacement module until the locking lever clicks into place. The S800 bus will automatically detect and initialize the new module within seconds.

4. Post-replacement validation: Monitor the module status LED — a steady green indicates normal operation. Verify all 16 input channels in the AC800M operator station or engineering workstation. Confirm that field signals are reading correctly against known process states before releasing the loop to automatic control.

5. Documentation: Record the replacement in your maintenance management system (CMMS), including the old module serial number, replacement date, and post-installation test results. Update your spare parts inventory to trigger reorder of a replacement DI814 for your critical spare stock.

Spare Parts Support FAQ

Q: Is this DI814 3BUR001454R1 compatible with all AC800M controller versions?
A: Yes. The DI814 is a standard S800 I/O module and is compatible with all AC800M controller generations (PM860, PM861, PM864, PM866) running Control Builder M. No hardware modification is required for direct replacement.

Q: What is the recommended spare inventory strategy for DI814 modules?
A: For critical process applications, maintain a minimum of one DI814 spare per 10 installed modules, or at least two spares per control cabinet. Given the 3–5 year typical field lifecycle and the risk of obsolescence as ABB transitions product lines, holding 2–3 units in your critical spare inventory is a prudent strategy for facilities with extended maintenance intervals.

Q: How is the module tested before shipment?
A: Each DI814 3BUR001454R1 unit undergoes a functional test prior to dispatch, verifying module communication, channel integrity, and diagnostic response. Modules that do not pass testing are not shipped. A 12-month warranty covers any defects in materials or workmanship from the date of receipt.

Q: Can this module replace older or discontinued ABB S800 digital input variants?
A: The DI814 3BUR001454R1 is the current production part number for this module type. It is backward-compatible with earlier S800 I/O station configurations. If you are replacing an older variant with a different suffix, confirm the channel count and input voltage specification match your termination unit wiring before installation. Our technical team can assist with compatibility verification prior to order.
