ABB DI818 3BSE069052R1 Maintenance-Ready Spare S800

ABB DI818 3BSE069052R1 Maintenance-Ready Spare S800: Spare Replacement & Industrial Downtime Risk Control

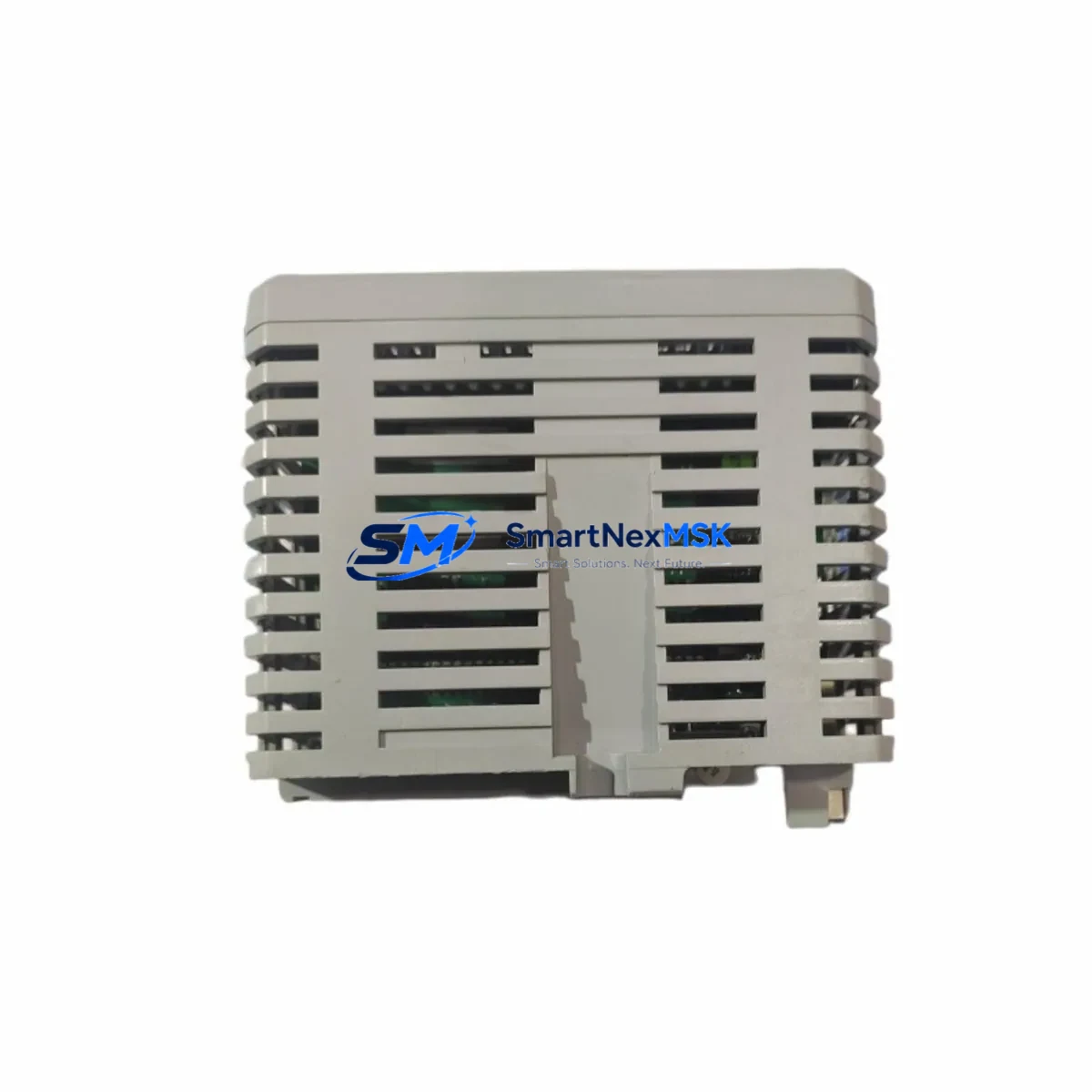

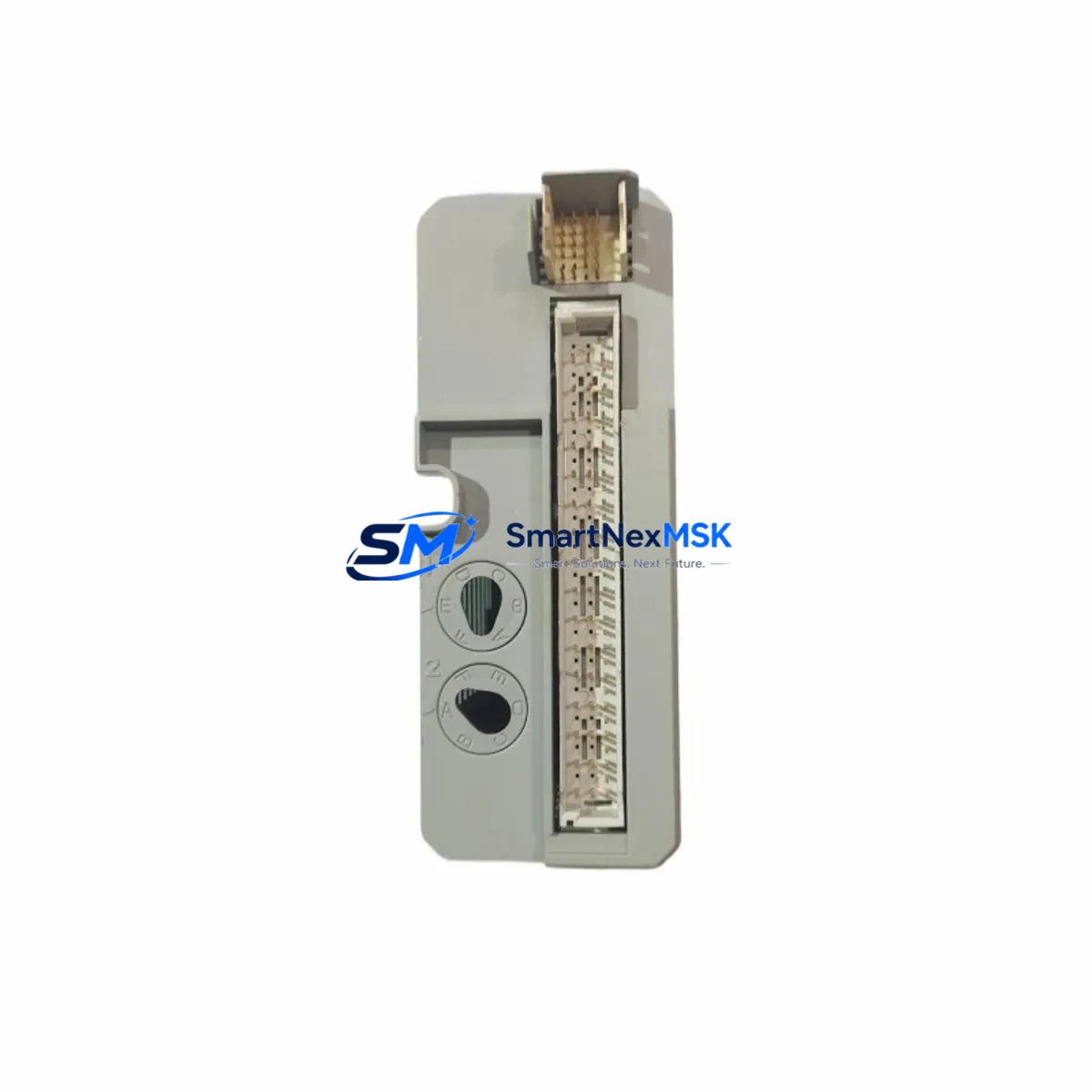

The ABB DI818 (3BSE069052R1) is a 24-channel digital input module designed for the S800 I/O system, fully compatible with ABB’s AC800M process controller platform. In industrial automation environments — from pulp and paper mills to power generation and chemical processing — the DI818 serves as a critical signal acquisition node, reading field-level discrete signals from limit switches, proximity sensors, push-buttons, and protective relay contacts. When this module fails or degrades, the controller loses visibility into field status, triggering process shutdowns, safety interlocks, or unplanned downtime events that can cost thousands of dollars per hour.

Stocking a verified original DI818 3BSE069052R1 as a maintenance spare is the single most effective measure a maintenance engineer can take to reduce mean time to repair (MTTR) for S800-based control systems. Our units are sourced from authorized channels, individually tested prior to dispatch, and covered by a 12-month warranty — giving procurement engineers the confidence to commit to long-term spare parts strategies without risk.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a DI818 3BSE069052R1 is flagged for replacement during a planned shutdown or emergency callout, experienced maintenance engineers know that the module itself is rarely the only component that needs attention. A thorough inspection of the surrounding S800 I/O station and control cabinet is essential to prevent repeat failures and ensure a clean return to service.

Start with the TB820 or TB840 baseunit that the DI818 plugs into — corrosion on the ModuleBus connector or a cracked baseunit housing can cause intermittent channel faults that mimic module failure. Check the SD802 or SD803 power distribution unit supplying 24 V DC to the I/O station; a sagging rail voltage is a common root cause of digital input misreads. If the cabinet houses an AI810 or AI820 analog input module on the same baseunit cluster, verify its channel calibration has not drifted, as shared power rail issues affect both digital and analog acquisition simultaneously.

Inspect the CI854 or CI858 PROFIBUS communication interface module if the S800 station communicates over fieldbus — a degraded CI module can cause the entire I/O station to drop off scan, making it appear as though individual modules like the DI818 have failed. Similarly, review the PM860 or PM864 AC800M processor module event log for any prior channel-fault alarms that may indicate a systemic wiring or grounding issue rather than a module defect.

On the field wiring side, inspect terminal blocks and cable shields connected to the DI818’s 24-channel inputs. Loose terminations, corroded ferrules, or damaged cable insulation are frequent contributors to sporadic input faults. If the system uses signal isolators or barriers between field instruments and the DI818 inputs — common in hazardous-area installations — verify that the isolators are within their rated operating range and have not developed leakage currents that could cause false input states.

For cabinets running legacy configurations, also check the DO818 or DO814 digital output modules in the same rack. Output modules driving solenoids and contactors generate inductive kickback that, over time, can degrade the power supply filtering and affect nearby input modules. A TU830 or TU831 termination unit inspection for loose screws and oxidized contacts rounds out a complete preventive maintenance pass on the S800 station.

Maintaining a minimum stock of one DI818 3BSE069052R1 per S800 I/O cluster — alongside a spare baseunit and a CI communication module — is the recommended spare parts strategy for facilities operating AC800M-based DCS systems with uptime requirements above 99%.

Site Replacement Workflow

Step 1 — Verify compatibility before ordering. Confirm the installed module’s label reads 3BSE069052R1. Earlier S800 digital input variants (DI810, DI811, DI814) use different baseunit pinouts and are not drop-in replacements. The DI818 is backward-compatible with TB820V1 and TB840A baseunits; confirm your baseunit revision before installation.

Step 2 — Safe isolation. Place the AC800M controller in manual or safe state via the engineering workstation (ABB Control Builder M). De-energize the 24 V DC supply to the affected I/O station using the SD802 power switch. Do not hot-swap the DI818 unless your system configuration explicitly supports hot-plug on that baseunit slot.

Step 3 — Module extraction and inspection. Remove the faulty DI818 by pressing the release latch on the baseunit. Inspect the ModuleBus connector on both the module and the baseunit for bent pins or contamination. Clean with isopropyl alcohol if necessary before inserting the replacement unit.

Step 4 — Insert and configure. Seat the new DI818 3BSE069052R1 firmly until the latch clicks. Re-energize the I/O station. The module will auto-configure from the AC800M controller’s stored configuration — no manual parameter download is required in standard S800 deployments. Verify all 24 channel LEDs reflect correct field states within 30 seconds of power-up.

Step 5 — Functional test and return to service. Perform a channel-by-channel input verification using the controller’s online diagnostic view. Confirm no fault codes appear in the PM860/PM864 event log. Return the process to automatic control and document the replacement in the maintenance management system (CMMS).

This workflow minimizes downtime to under 30 minutes for a trained technician, provided the spare DI818 3BSE069052R1 is on-site and pre-tested — which is exactly why proactive spare parts stocking is the most cost-effective maintenance strategy for S800-based systems.

Spare Parts Support FAQ

Q1: Is this DI818 3BSE069052R1 an original ABB module or a compatible substitute?
This is an original ABB DI818 with part number 3BSE069052R1, sourced from authorized supply channels. Each unit undergoes functional testing before shipment. We do not supply clones, refurbished-without-disclosure, or third-party compatible substitutes. The module ships with its original ABB labeling and documentation where available.

Q2: What is the warranty coverage and what does it include?
All DI818 3BSE069052R1 units carry a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, or physical mishandling. In the event of a warranty claim, we provide a replacement unit or full refund after fault verification.

Q3: How do I confirm compatibility with my existing S800 I/O station before purchasing?
The DI818 3BSE069052R1 is compatible with all standard S800 I/O baseunits (TB820V1, TB840A, TB845) and AC800M controllers running firmware 5.0 and above. Share your controller model (PM860, PM861, PM864, or PM866) and baseunit revision with our technical team at sales@smartnexmsk.com and we will confirm compatibility before you commit to the order.

Q4: What is your typical lead time and do you support emergency orders?
In-stock DI818 3BSE069052R1 units ship within 1–2 business days of order confirmation. For emergency breakdown situations, contact us directly at +86 18259474341 to arrange priority dispatch. We support air freight to most industrial regions globally and can provide tracking and export documentation for customs clearance.
