ABB DI880 3BSE028586R1 Retrofit-Ready Digital Input for S800 I/O

ABB DI880 3BSE028586R1 Retrofit-Ready Digital Input for S800 I/O Control Systems

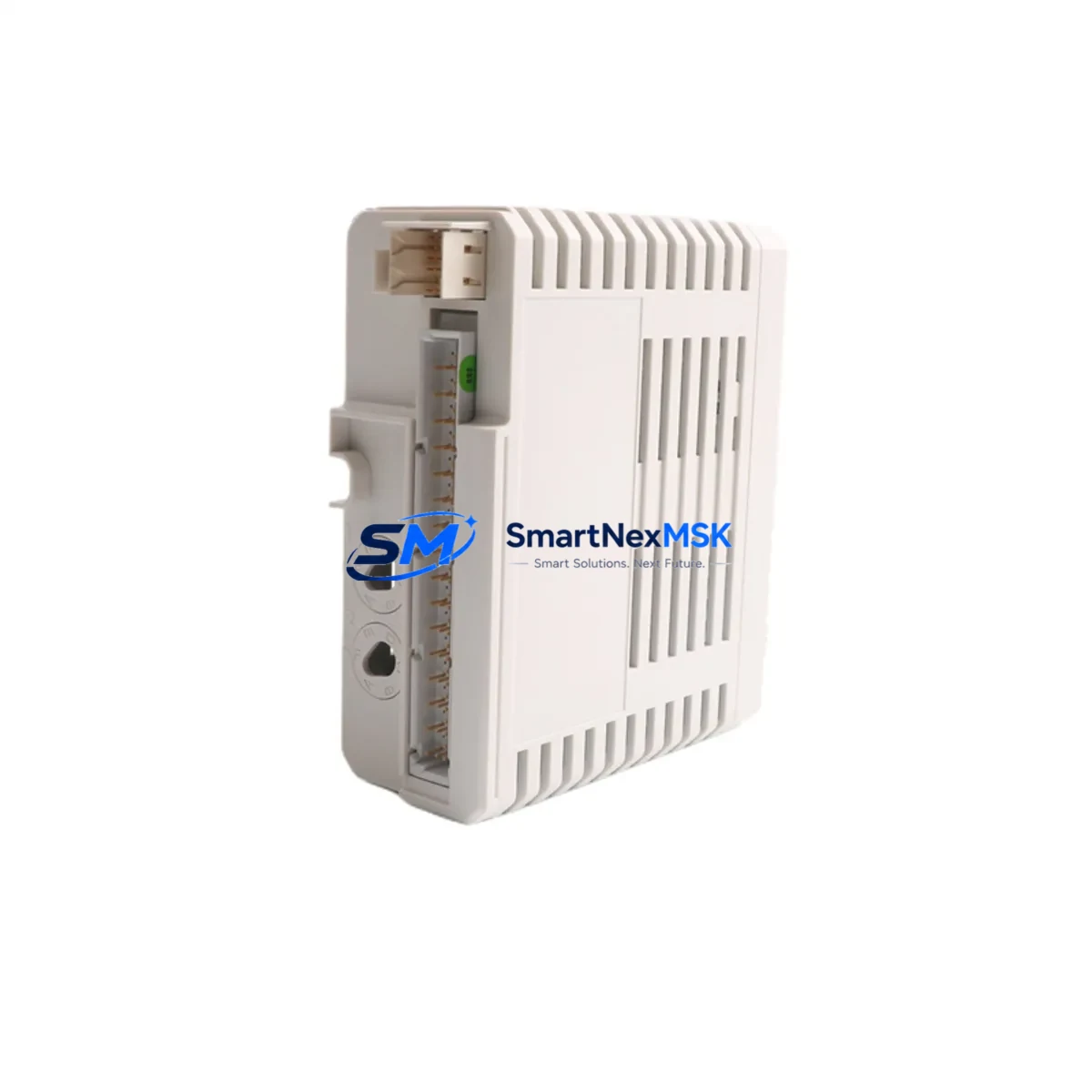

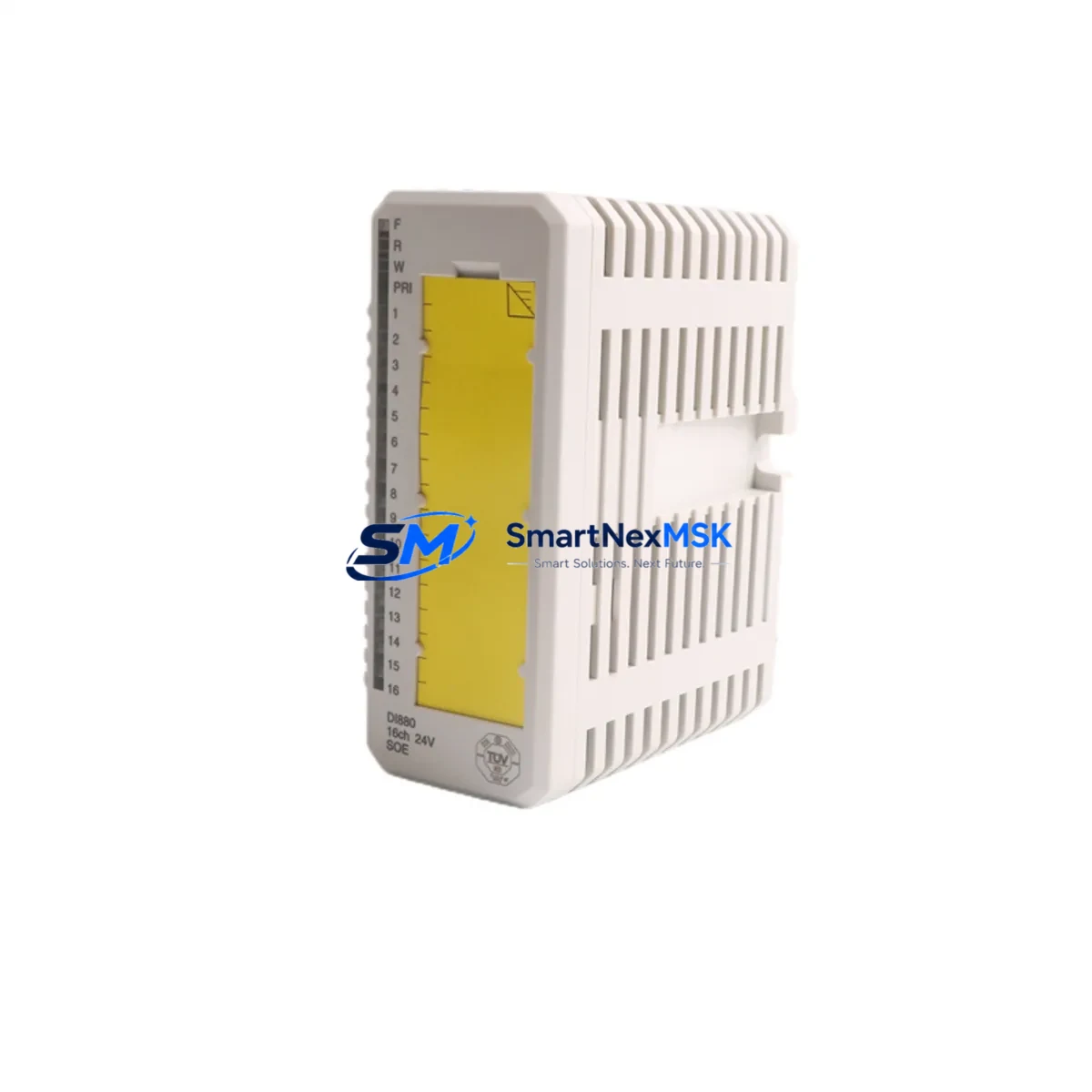

The ABB DI880 (3BSE028586R1) is a high-integrity 24-channel digital input module engineered for the S800 I/O platform — one of ABB’s most widely deployed distributed I/O systems in process automation, power generation, and manufacturing. As legacy control architectures age and OEM support windows close, the DI880 3BSE028586R1 has become a critical retrofit component for engineers tasked with extending the operational life of existing AC800M and AC800F controller-based systems without full platform migration.

Whether you are replacing a failed unit on a live production line, upgrading a control cabinet to meet new safety standards, or migrating from an older S800 I/O generation, the DI880 3BSE028586R1 provides a verified drop-in replacement path with minimal re-engineering. Each unit shipped by SMARTNEXMSK is function-tested prior to dispatch and covered by a 12-month warranty.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful retrofit of the DI880 3BSE028586R1 into an existing S800 I/O rack begins with a thorough audit of the control cabinet. Engineers should first confirm the terminal base type installed — the TB820V2 and TB840A are the most common bases compatible with the DI880, and no rewiring is required when swapping on the same base. If the existing installation uses an older TB810 or TB811 base, a base replacement must be factored into the project scope.

Power budget verification is the next critical step. The S800 I/O bus coupler — typically an LD800HSE or CI840A — supplies power to all modules on the rack. Adding or replacing modules requires confirming that the total current draw does not exceed the coupler’s rated output. In multi-rack configurations connected via the TB807 bus extender, each segment must be evaluated independently.

For systems running PROFIBUS DP as the fieldbus backbone, the CI840A coupler handles protocol translation between the ModuleBus and the PROFIBUS network. When replacing a DI880, the GSD file and station address configuration in the PROFIBUS master should be verified to ensure the new module is recognized correctly. In Modbus TCP or FOUNDATION Fieldbus environments, similar coupler-level checks apply using the CI854A or CI862K respectively.

I/O address mapping must be confirmed in ABB Control Builder M before the replacement module is brought online. The DI880 3BSE028586R1 occupies a defined slot address on the ModuleBus, and any change in physical slot position will require an update to the hardware configuration tree. Engineers should export the existing project backup from the PM860 or PM864 CPU before beginning work, preserving the original program logic, function block diagrams, and HMI tag bindings.

HMI screens built in ABB 800xA or Panel 800 operator stations reference I/O tags by name rather than hardware address, so tag names must remain consistent after the swap. If the replacement changes any signal naming convention, HMI faceplates and alarm lists will require corresponding updates. Coordinating with the SCADA or DCS configuration team before the maintenance window begins prevents unexpected display errors during restart.

Field wiring termination should be documented with photographs before disconnection. The DI880 accepts 24 VDC digital signals and the terminal base provides clearly labeled screw terminals for each channel. Verify signal polarity, cable shielding continuity, and ground bonding before powering the new module. In high-noise industrial environments, proper shielding of signal cables connected to the DI880 is essential for reliable input state detection.

Downtime Control During System Migration

Minimizing unplanned downtime during a DI880 replacement requires a structured hot-swap or cold-swap protocol depending on the process criticality. For non-critical I/O points, the S800 I/O platform supports module replacement with the rack powered, provided the terminal base remains energized and the fieldbus coupler maintains communication with the controller. The PM860 or PM864 CPU will log a module fault during the swap interval and automatically re-establish communication once the new DI880 is seated and recognized.

For safety-critical inputs — particularly those connected to emergency shutdown logic or interlock circuits — a planned cold-swap during a scheduled maintenance window is strongly recommended. Before powering down, place the affected control loops in manual mode at the AC800M controller level, notify the operations team, and confirm that all downstream actuators are in a safe state. After the DI880 3BSE028586R1 is installed and the rack is re-energized, perform a channel-by-channel input verification using a signal simulator before returning loops to automatic control.

Keeping a pre-tested spare DI880 3BSE028586R1 on the shelf — with firmware revision matched to the installed base — is the most effective strategy for reducing mean time to repair. SMARTNEXMSK maintains in-stock inventory of the DI880 3BSE028586R1 and can support same-day dispatch for urgent breakdown orders, with 12-month warranty coverage on every unit.

Retrofit Support FAQ

Q: Is the DI880 3BSE028586R1 a direct replacement for older DI810 or DI820 modules?
A: The DI880 is not a pin-for-pin replacement for the DI810 or DI820, as these modules use different terminal base types. However, with a TB820V2 base already installed, the DI880 is a compatible upgrade. Engineering review of the I/O configuration in Control Builder M is required before substitution.

Q: Do I need to re-download the control program after replacing the DI880?
A: The CPU program itself does not need to be re-downloaded, but the hardware configuration must be re-synchronized in Control Builder M if the module revision or slot address has changed. Always perform a full I/O force test after replacement to confirm all 24 channels are reading correctly.

Q: What wiring checks are required before powering the replacement module?
A: Verify 24 VDC supply voltage at the terminal base, confirm signal cable shielding is intact and grounded at one end only, check that all channel terminals are correctly re-terminated per the original wiring diagram, and ensure no open-circuit or short-circuit conditions exist on any input channel before energizing.

Q: What does the 12-month warranty cover?
A: The 12-month warranty covers all functional defects in the DI880 3BSE028586R1 under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage, or physical mishandling. SMARTNEXMSK provides pre-shipment function testing documentation upon request.
