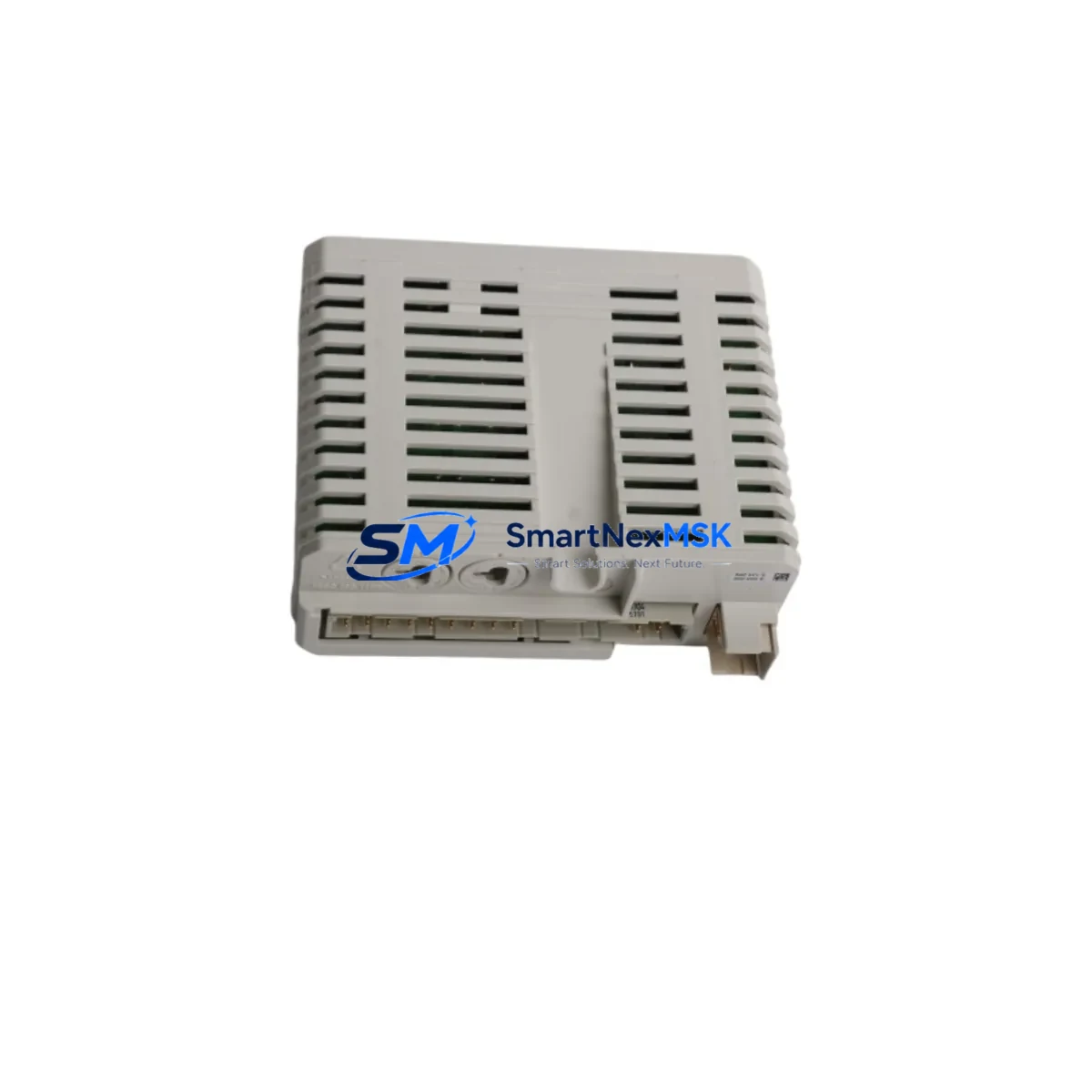

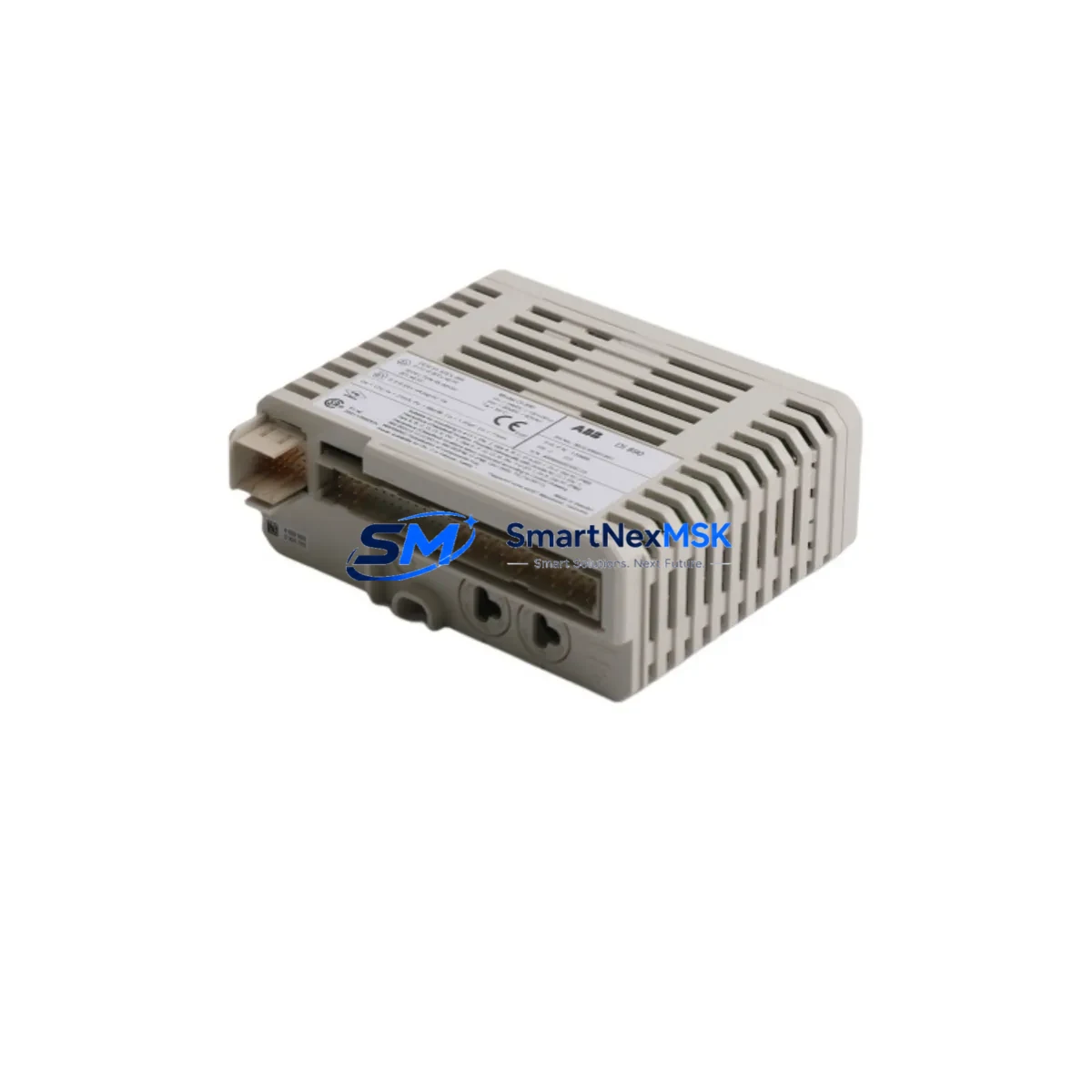

ABB DI890 3BSC690073R1 Maintenance-Ready Spare S900 Automation
The ABB DI890 (3BSC690073R1) is an original digital input module designed for the S900 Remote I/O system, widely deployed in AC800M-based DCS architectures across process industries including oil & gas, power generation, chemical processing, and pulp & paper. When a DI890 fails or degrades in service, the impact is immediate: loss of field signal visibility, compromised interlock logic, and potential unplanned shutdown. Sourcing a verified original replacement with a confirmed 12-month warranty is the fastest path to restoring full system integrity and minimizing downtime exposure.
At SMARTNEXMSK, every DI890 3BSC690073R1 unit is individually inspected, functionally tested, and shipped with full documentation. Our inventory supports both emergency breakdown response and planned maintenance stock replenishment, ensuring your engineering and procurement teams can act decisively when the need arises.
Spare Maintenance Table
| Parameter | Specification |
|---|---|
| Part Number | DI890 / 3BSC690073R1 |
| Brand | ABB |
| Series | S900 Remote I/O |
| Compatible System | AC800M DCS, S900 I/O Station |
| Module Type | Digital Input Module |
| Channel Count | 32 DI channels (24 VDC) |
| Signal Type | 24 VDC digital input, sink/source compatible |
| Communication Interface | S900 backplane bus |
| Isolation | Galvanic isolation between field and system bus |
| Operating Temperature | 0°C to +60°C |
| Mounting | DIN rail via S900 I/O station carrier |
| Origin | Germany |
| Condition | Original, tested before shipment |
| Warranty | 12 months from date of shipment |
| Lead Time | In stock — ships within 2 business days |
Maintenance Planning for Continuous Operation
When a DI890 3BSC690073R1 is flagged for replacement during a scheduled outage or emergency callout, experienced maintenance engineers know that the digital input module is rarely the only component that warrants attention. A thorough inspection of the surrounding S900 I/O station should include the S900 power supply module (PS890) feeding the I/O rack — a degraded PS890 can cause intermittent DI channel faults that mimic module failure. The S900 bus coupler (BC810) linking the I/O station to the AC800M controller should also be verified for firmware currency and communication health.
Field wiring terminations at the S900 terminal unit (TU890) — the carrier on which the DI890 plugs — should be inspected for corrosion, loose screws, and insulation breakdown, particularly in humid or high-vibration environments. If the plant uses signal isolators or signal conditioners between field sensors and the DI890 input terminals, these should be tested for drift, especially on critical interlock loops.
For plants running mixed analog and digital I/O in the same cabinet, it is good practice to simultaneously verify the adjacent AI890 analog input module and DO890 digital output module for any latent faults. The CI854 PROFIBUS DP communication interface or CI857 FOUNDATION Fieldbus HSE module, if present in the same AC800M controller rack, should be checked for communication error counters that may indicate upstream network degradation.
Fuse integrity on the 24 VDC field supply rail, the condition of terminal blocks and DIN rail grounding straps, and the calibration status of any loop-powered transmitters feeding the DI890 inputs are all part of a complete maintenance sweep. Addressing these components during the same maintenance window avoids repeat callouts and extends the effective service life of the entire I/O station.
Site Replacement Workflow
Step 1 — Isolation & Documentation: Before removing the DI890, capture the current channel status in the AC800M engineering tool (Control Builder M). Note any active alarms or forced values on the affected channels. Isolate the 24 VDC field supply to the terminal unit if hot-swap is not supported in your plant safety procedure.
Step 2 — Module Extraction: Release the DI890 from the TU890 terminal unit by pressing the module latch and sliding the module out. The S900 system is designed for tool-free module replacement, minimizing intervention time.
Step 3 — Compatibility Verification: Confirm the replacement DI890 3BSC690073R1 carries the same hardware revision as the removed unit, or verify that the installed firmware in the BC810 bus coupler supports the replacement revision. Cross-reference the S900 hardware compatibility matrix if revisions differ.
Step 4 — Installation & Restoration: Seat the new DI890 into the TU890 carrier until the latch clicks. Restore the 24 VDC field supply. The module will auto-configure from the BC810 bus coupler — no manual parameter download is required in standard S900 configurations.
Step 5 — Functional Verification: In Control Builder M, confirm all 32 DI channels return to expected states. Clear any residual alarms. Document the replacement in the plant maintenance management system (CMMS) with the new module serial number and warranty start date.
This workflow supports rapid turnaround — typically under 30 minutes for a prepared maintenance team — and is compatible with both planned outage windows and emergency breakdown scenarios.
Spare Parts Support FAQ
Q1: Is the DI890 3BSC690073R1 still available as a new original part?
Yes. SMARTNEXMSK maintains stock of original ABB DI890 3BSC690073R1 modules sourced through verified supply channels. Each unit is tested prior to shipment and covered by a 12-month warranty. We support both single-unit emergency orders and bulk procurement for spare parts inventory programs.
Q2: How do I verify compatibility with my existing S900 I/O station before ordering?
Provide your BC810 bus coupler firmware version and the hardware revision of your existing DI890 (printed on the module label). Our technical team will confirm compatibility and advise on any firmware considerations before shipment. Compatibility with AC800M controller versions 5.x and 6.x is standard.
Q3: What testing is performed before the DI890 ships?
Each DI890 3BSC690073R1 undergoes functional channel testing on an S900-compatible test bench, verifying all 32 digital input channels, backplane communication, and LED status indicators. A test report is available upon request. Units that do not pass full functional testing are not shipped.
Q4: What does the 12-month warranty cover, and what is the replacement process?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions. If a warranted unit fails within the warranty period, SMARTNEXMSK will arrange priority replacement shipment. Contact sales@smartnexmsk.com with your order reference and a description of the fault. We aim to dispatch a replacement within 2 business days of warranty claim confirmation.
