ABB DLM01 Safety-Enhanced Fieldbus Link for Harsh Industrial Sites

ABB DLM01 Safety-Enhanced Fieldbus Link for Harsh Industrial Sites

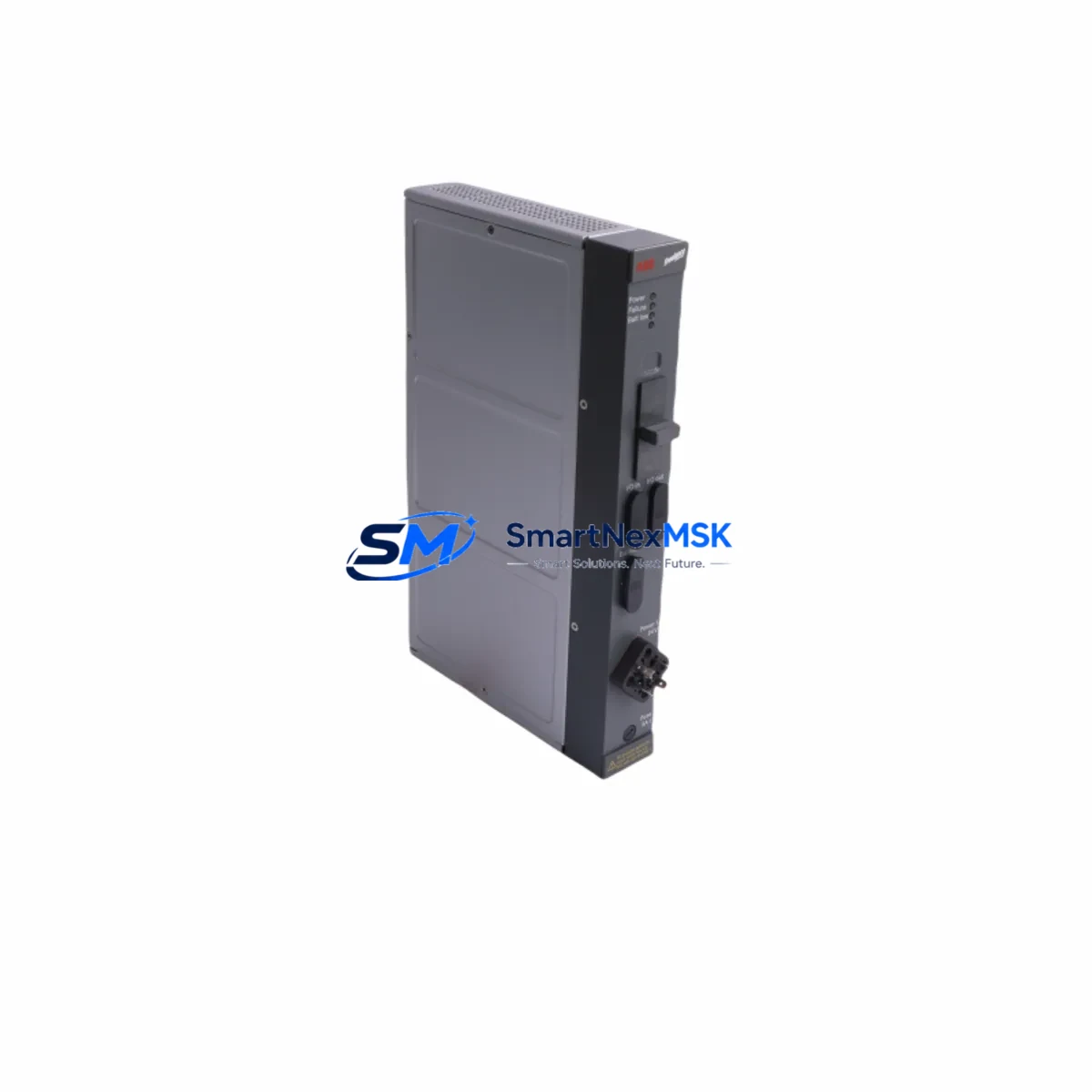

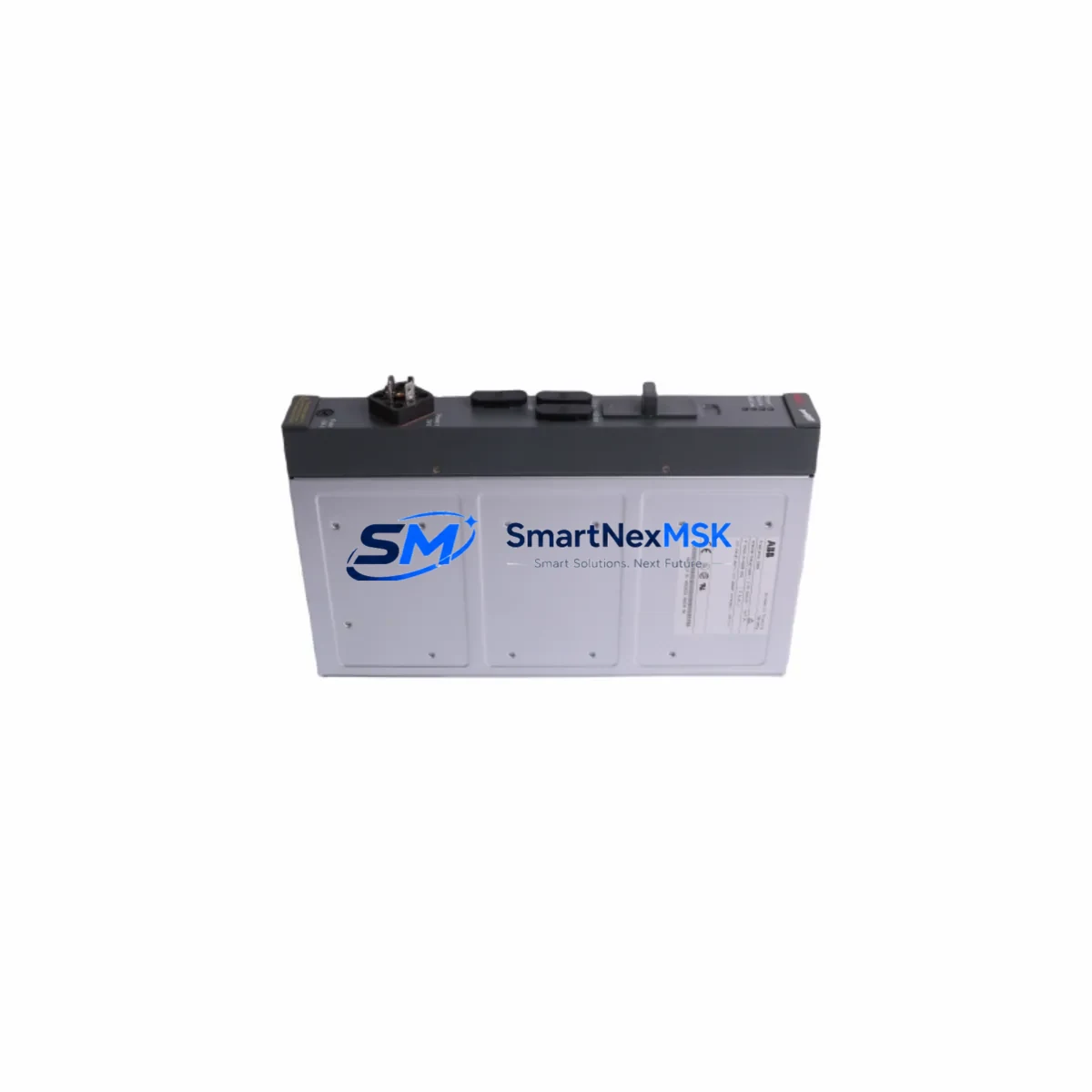

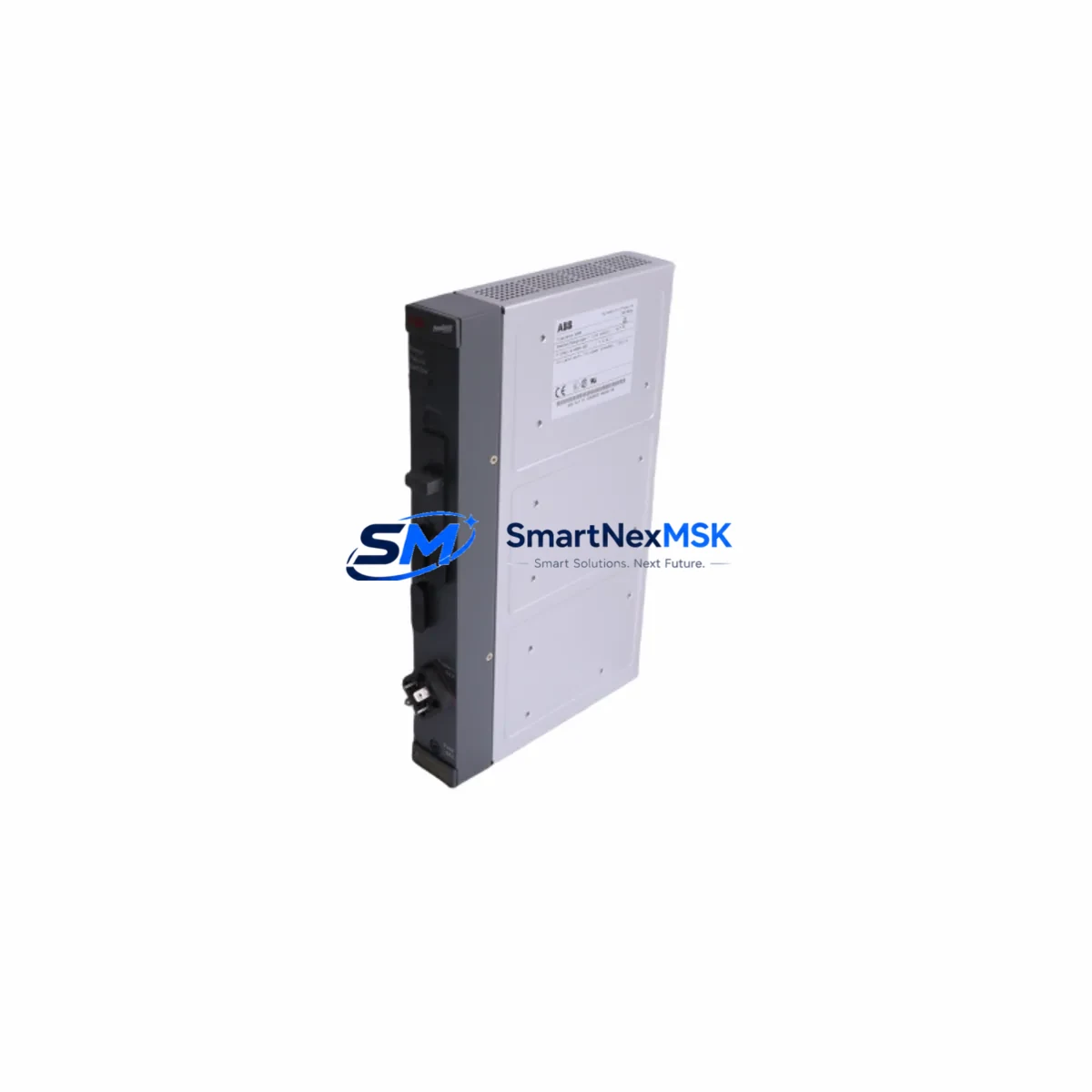

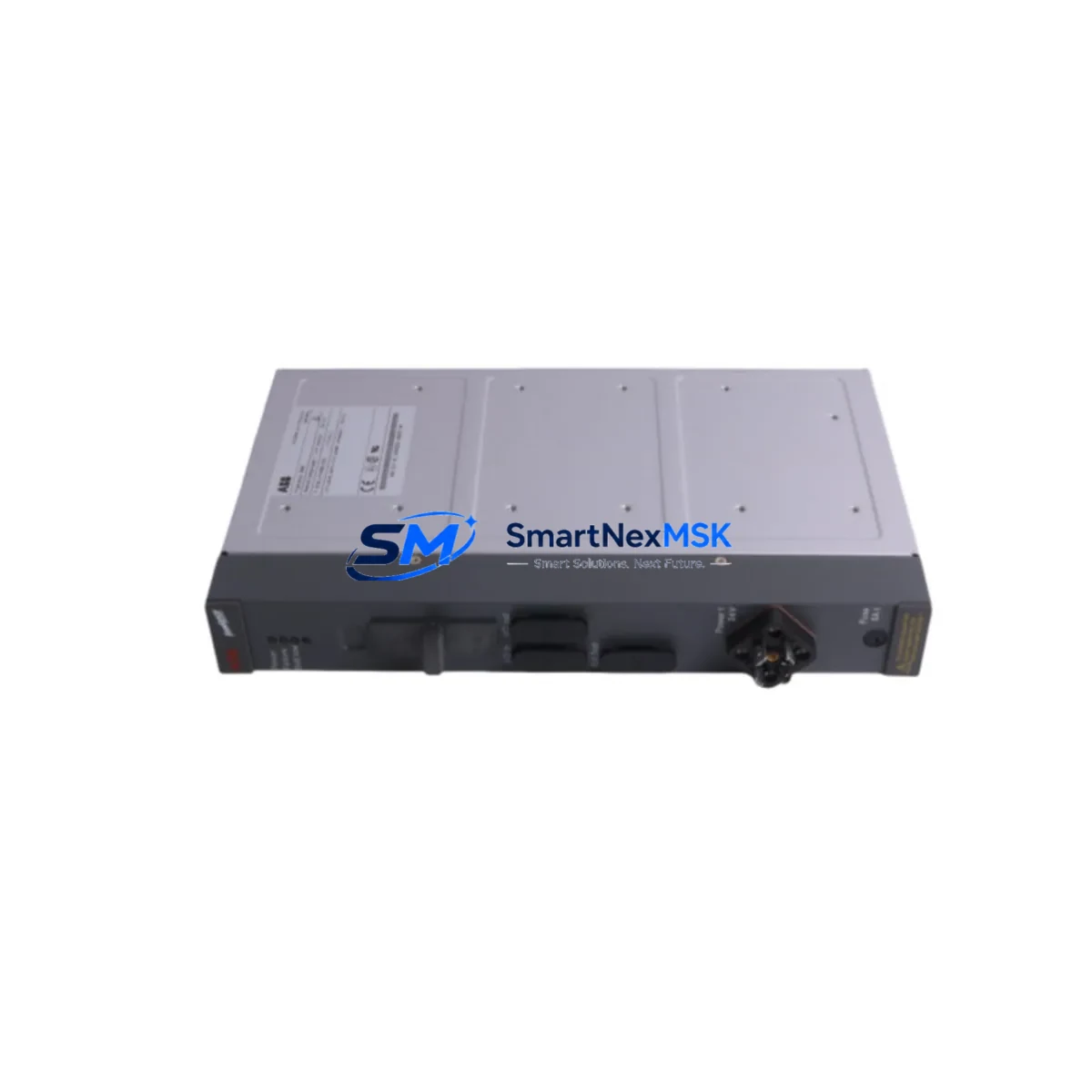

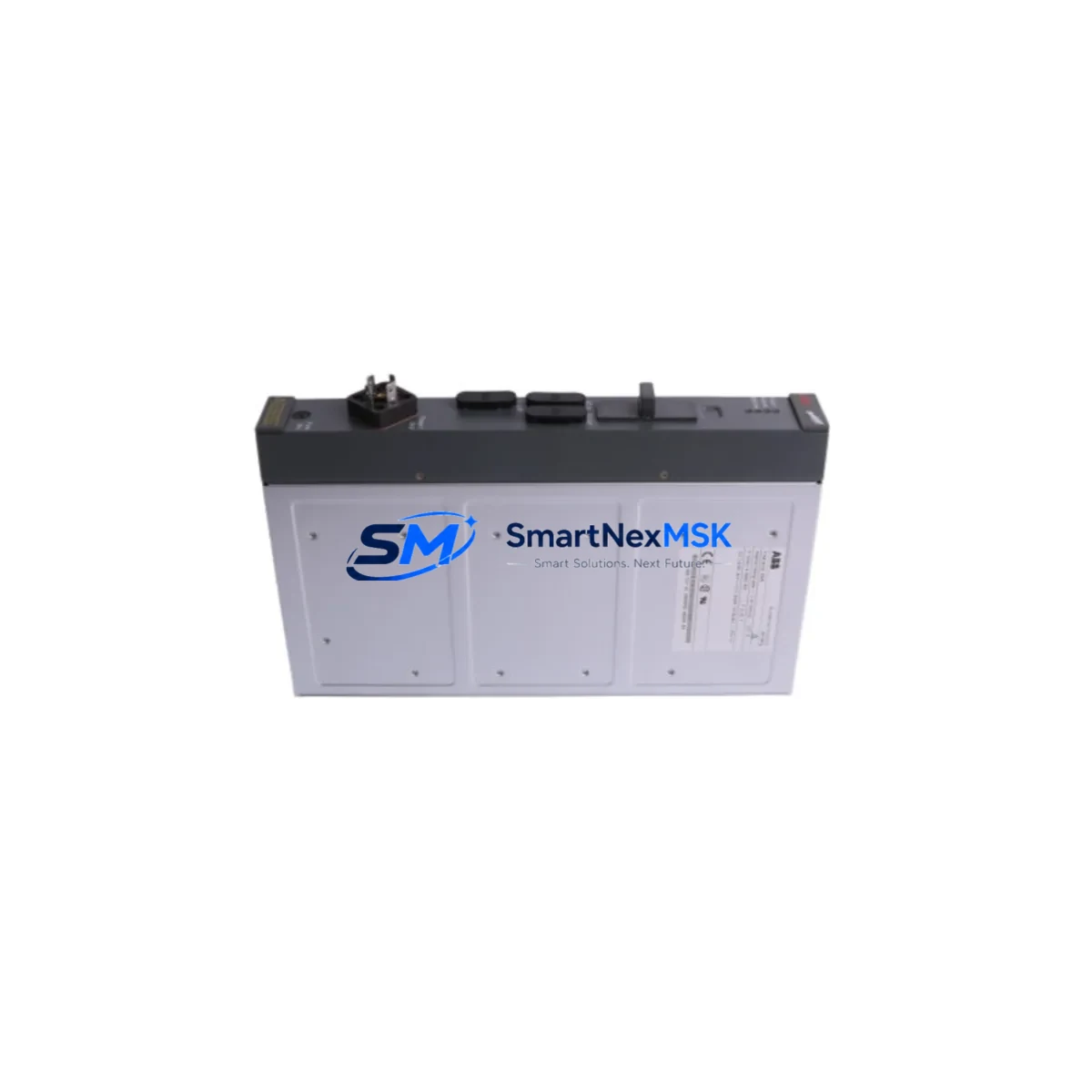

The ABB DLM01 is a ruggedized fieldbus link module engineered for the ABB AC500 PLC platform, purpose-built to maintain uninterrupted communication integrity in the most demanding industrial control environments. Whether deployed in petrochemical processing units, power generation switchgear rooms, underground mining control cabinets, or continuous steel-rolling mill automation systems, the DLM01 delivers the signal stability and protocol resilience that safety-critical fieldbus architectures demand.

In high-load, high-interference production sites, fieldbus communication failures are among the leading causes of unplanned shutdowns and safety interlock failures. The DLM01 addresses this directly by providing a dedicated, electrically isolated communication bridge between the AC500 CPU modules — such as the ABB PM573-ETH or PM591-2ETH — and field devices operating on PROFIBUS DP, DeviceNet, or CANopen networks. This multi-protocol capability ensures that existing field device investments are protected while the control architecture scales safely.

Signal drift and communication anomalies caused by electromagnetic interference (EMI) from variable frequency drives, high-voltage bus bars, and arc furnace equipment are persistent threats in heavy industrial environments. The DLM01’s robust hardware design, combined with the AC500’s proven noise immunity architecture, suppresses these interference sources and maintains deterministic cycle times across the fieldbus segment — a prerequisite for reliable safety interlock response and process control accuracy.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust industrial control cabinet integrating the DLM01 is only as reliable as the ecosystem of components surrounding it. In a typical AC500-based safety cabinet, the DLM01 operates alongside the ABB TU515 or TU516 terminal units, which provide the mechanical and electrical interface between I/O modules and field wiring — ensuring that vibration, thermal cycling, and cable pull forces do not compromise signal continuity at the backplane level.

Power quality is a foundational safety concern. Voltage sags, micro-interruptions, and conducted surges from motor starts or capacitor bank switching can propagate into the control bus and cause module resets or data corruption. Pairing the DLM01 installation with a dedicated ABB CP-E 24/5.0 or CP-E 24/10.0 power supply module — or equivalent DIN-rail 24 VDC regulated supply — provides the stable, filtered DC bus that the AC500 backplane requires for uninterrupted operation. For sites with severe transient exposure, additional surge protection devices (SPDs) on the 24 VDC rail and fieldbus cable screens are strongly recommended.

On the fieldbus segment itself, the DLM01 connects to PROFIBUS DP slaves such as ABB ACSM1 or ACS880 drive fieldbus adapters, remote I/O stations, and intelligent motor control centers. Proper bus termination using PROFIBUS DP termination resistors at both ends of the segment is essential to prevent signal reflection that can cause intermittent communication faults — a common root cause of nuisance safety trips in continuous process plants. The DLM01’s diagnostic LEDs and AC500 system diagnostics provide real-time visibility into bus health, enabling maintenance teams to detect degraded nodes before they escalate to a process shutdown.

For applications requiring functional safety compliance, the DLM01 is typically deployed in conjunction with ABB AC500-S Safety PLC modules (such as the SM560-S), where the standard fieldbus network carries process data while the safety bus handles SIL-rated interlock signals independently. This architecture ensures that a fieldbus fault on the DLM01 segment does not compromise the integrity of the safety instrumented system (SIS). Additional ABB CI590-CS31-HA communication interface modules may be used to extend the control network across distributed cabinet clusters in large plant layouts.

Critical Industrial Safety Applications

The ABB DLM01 has established a proven track record across the most demanding sectors of heavy industry:

Petrochemical & Refinery Plants: In continuous distillation and catalytic cracking units, the DLM01 maintains PROFIBUS DP communication between the AC500 PLC and field transmitters, control valves, and emergency shutdown (ESD) valve actuators. Its galvanic isolation prevents ground loop currents — common in large plant earthing systems — from corrupting process signals and triggering false ESD activations.

Power Generation & Substation Automation: In coal-fired, gas turbine, and hydroelectric generating stations, the DLM01 links the AC500 control system to generator protection relays, excitation controllers, and auxiliary motor starters via DeviceNet or PROFIBUS DP. The module’s immunity to high-frequency switching transients from high-voltage circuit breakers ensures that protection relay commands are executed without communication-induced delays.

Mining & Mineral Processing: Underground and open-cut mining operations subject control equipment to extreme dust ingress, mechanical shock, and wide temperature swings. The DLM01, installed in sealed, climate-controlled control cabinets, provides the reliable fieldbus backbone for conveyor drive control, crusher automation, and ventilation safety systems — where a communication failure can trigger mandatory site evacuation procedures.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities rely on the DLM01 to coordinate pump station control, chemical dosing systems, and SCADA integration across geographically distributed sites. The module’s multi-protocol support allows legacy DeviceNet pump controllers to coexist with newer PROFIBUS DP instrumentation on a unified AC500 platform.

Metallurgy & Steel Production: In electric arc furnace (EAF) and continuous casting environments, the DLM01 operates in the presence of extreme electromagnetic interference from furnace transformers and thyristor drives. Its hardened communication interface sustains data integrity for ladle handling crane automation, mold level control, and cooling water safety interlocks — processes where a single communication dropout can result in equipment damage or personnel injury.

Port & Material Handling Automation: Container crane and bulk material handling systems demand high-cycle, low-latency fieldbus communication for precise load positioning and anti-sway control. The DLM01 supports the deterministic PROFIBUS DP cycle times required for these motion-critical applications, while its robust construction withstands the vibration and humidity exposure typical of port environments.

Safety and Quality FAQ

Q1: What warranty coverage is provided with the ABB DLM01?
Every ABB DLM01 unit supplied by SMARTNEXMSK is covered by a 12-month warranty from the date of shipment. This covers manufacturing defects and functional failures under normal operating conditions. In the event of a warranty claim, we provide full replacement or repair at no additional cost, with priority processing to minimize your site downtime.

Q2: How is each unit tested before shipment?
All DLM01 modules undergo a 100% pre-shipment functional test that verifies backplane communication, fieldbus port integrity, LED diagnostics, and power consumption within specification. Units that do not pass the full test protocol are quarantined and not dispatched. A test record is available upon request for quality-critical procurement processes.

Q3: Is the DLM01 compatible with all ABB AC500 CPU generations?
The DLM01 is designed for the ABB AC500 PLC platform and is compatible with the standard AC500 backplane architecture used across the PM573, PM591, PM595, and related CPU families. For specific firmware version compatibility or application-critical configurations, we recommend consulting the ABB AC500 system manual or contacting our technical team with your CPU part number for confirmation before ordering.

Q4: Can long-term supply and spare parts availability be guaranteed?
SMARTNEXMSK maintains dedicated stock of the ABB DLM01 and key AC500 ecosystem components to support ongoing maintenance, planned shutdowns, and emergency spare requirements. We serve industrial clients with multi-year procurement frameworks and can provide supply commitment letters for critical spare parts programs. Contact our sales team to discuss scheduled delivery arrangements or consignment stock options for your facility.
