ABB DO810 3BSE008510R1 Retrofit-Ready Digital Output for S800 I/O

ABB DO810 3BSE008510R1 Retrofit-Ready Digital Output for S800 I/O Control Systems

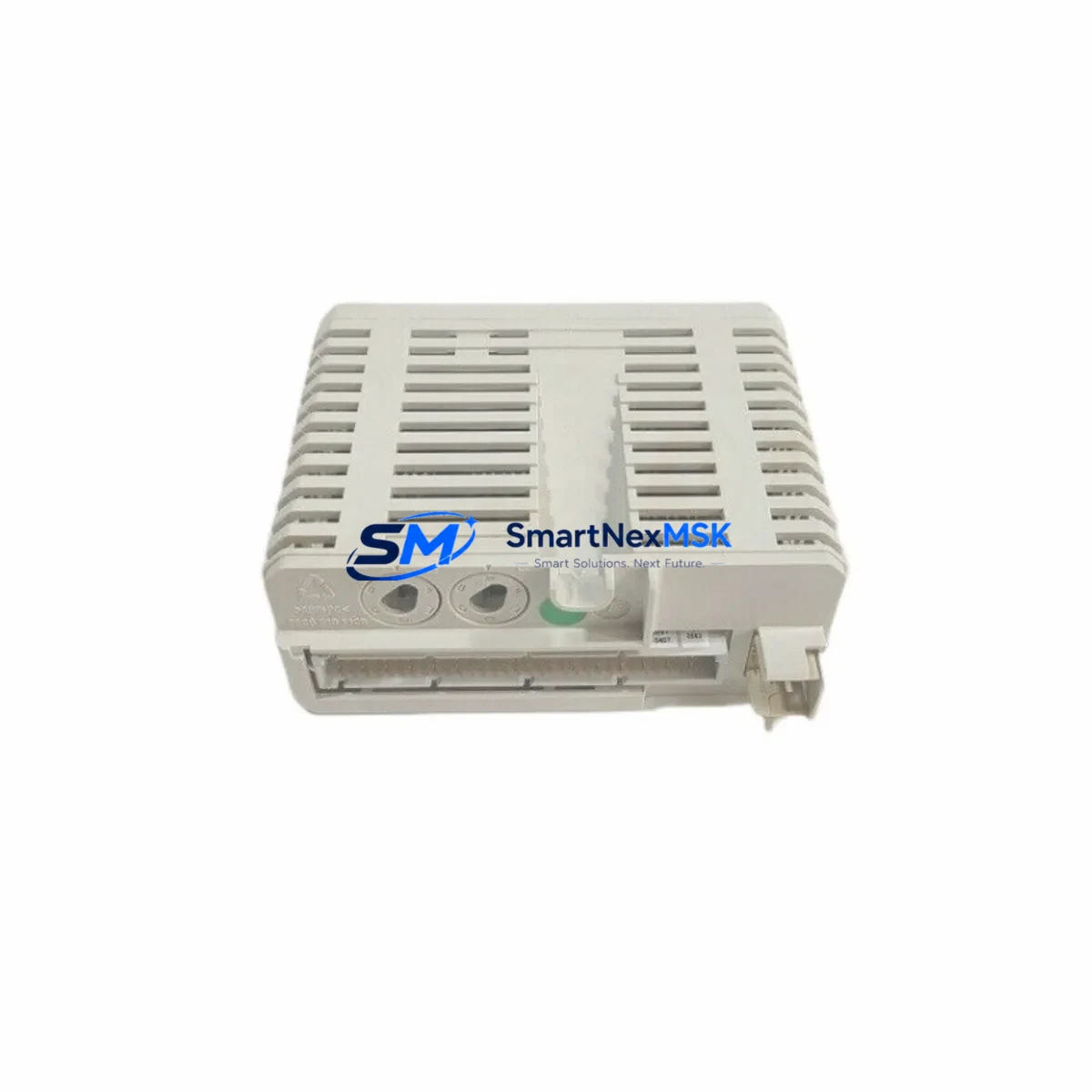

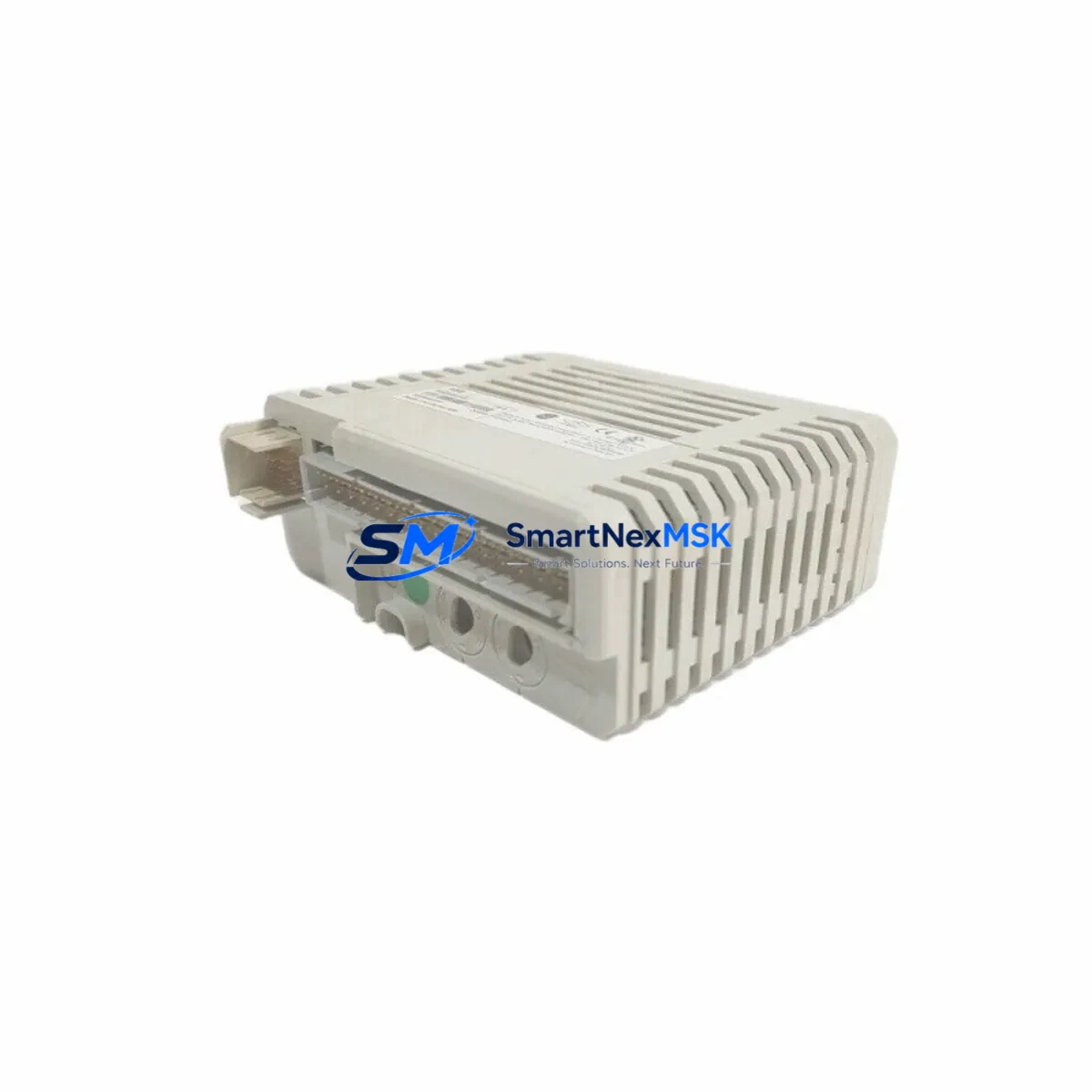

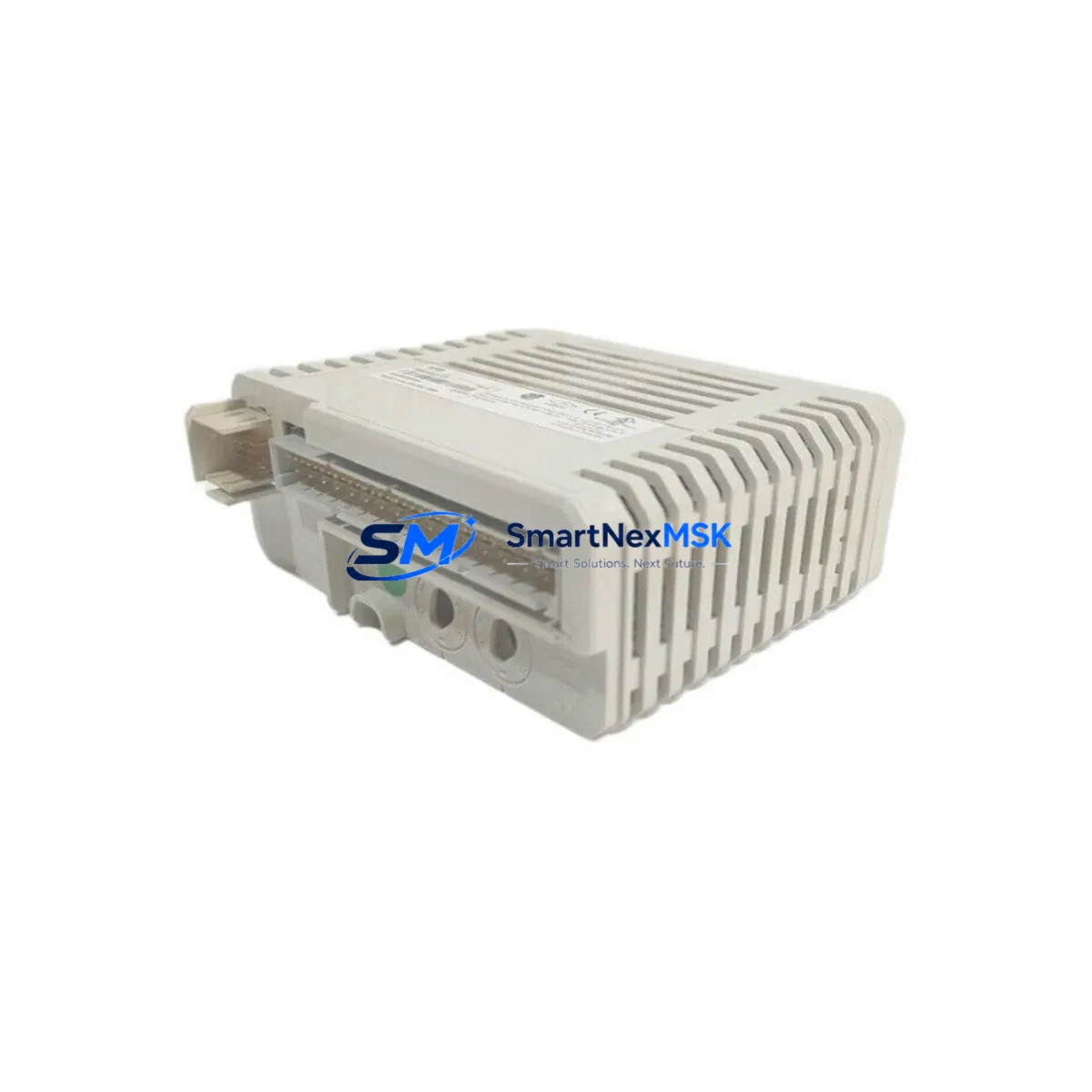

The ABB DO810 (3BSE008510R1) is an 8-channel, 24 VDC digital output module designed for the ABB S800 I/O platform — one of the most widely deployed distributed I/O families in process automation and continuous manufacturing environments. As legacy DCS installations built around ABB Advant, MOD 300, and early AC 800M architectures approach end-of-service milestones, the DO810 has become a critical retrofit component for engineers tasked with extending system life, migrating to current hardware, or restoring failed output channels without a full control-system replacement.

This module ships from Xiamen with full functional testing completed, and is backed by a 12-month warranty covering manufacturing defects and operational failures under normal industrial service conditions.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a failed or end-of-life DO810 in a running plant requires careful pre-work to avoid unplanned downtime. Before pulling the module, engineers should document the current channel assignment table from the AC 800M Control Builder project and confirm that the replacement DO810 3BSE008510R1 carries the same hardware revision as the installed unit — or that the firmware on the CI810B or CI820 fieldbus coupler supports the revision being installed.

Termination wiring connects through a dedicated TB810 or TB820 termination unit, which remains in the rack during module swap. This design means field cables do not need to be disturbed — a significant advantage when working in live control cabinets. Confirm that the termination unit’s screw terminals are torqued to specification and that no corrosion or loose conductors are present before re-energizing the output channels.

Power budget is a common oversight in S800 retrofit projects. The SD821 or SD822 power supply module feeding the rack must have sufficient headroom to support the DO810’s inrush current alongside other modules in the same chassis. In high-density racks combining AI810, AO810, DI810, and multiple DO810 modules, a power audit using the S800 I/O System Product Guide is strongly recommended before adding replacement hardware.

For sites migrating from Advant OCS or MOD 300 platforms to AC 800M, the DO810 fits directly into the new S800 I/O architecture without requiring a new field wiring harness. The migration path typically involves installing a new AC 800M PM866 or PM891 controller, connecting S800 racks via CI840A redundant fieldbus couplers, and importing the legacy I/O list into Control Builder. The DO810 module addresses are reassigned during this import step, and the HMI tag database in ABB 800xA or a third-party SCADA must be updated to reflect the new hardware path before operator screens go live.

In applications where the DO810 drives solenoid valves, motor starters, or relay coils, verify that the inductive load suppression (flyback diode or RC snubber) is correctly installed at the field device. Missing suppression is a leading cause of premature output transistor failure and will void warranty coverage. If the existing installation lacks suppression, this is the ideal time to retrofit it during the module replacement outage.

Sites running PROFIBUS DP or FOUNDATION Fieldbus alongside the S800 I/O bus should confirm that the DO810 replacement does not affect the coupler’s bus cycle time. In mixed-protocol cabinets where a CI830 PROFIBUS coupler is present, a brief bus diagnostic scan after module insertion will confirm that all nodes are communicating correctly before the system is returned to automatic control.

Downtime Control During System Migration

Minimizing control interruption during a DO810 swap begins with preparation, not execution. The most effective approach is to pre-configure the replacement module offline using a bench AC 800M setup or a Control Builder simulation environment, verifying that the module’s I/O list, channel forcing behavior, and diagnostic reporting match the production configuration before the maintenance window opens.

During the swap itself, the S800 I/O bus hot-swap capability (available when using CI840A redundant couplers) allows the DO810 to be removed and reinserted without powering down the rack. The controller will detect the module removal, hold the last output state or drive outputs to the configured safe state depending on the application program’s fault handling logic, and automatically re-establish communication with the replacement module within seconds of reinsertion. Engineers should confirm the safe-state configuration in Control Builder before relying on this behavior in a live process.

For non-redundant coupler installations (CI810B or CI820), a brief rack power cycle is required. In these cases, the recommended practice is to place the affected control loop in manual at the DCS operator station, notify field operators, execute the swap, confirm module diagnostics in the 800xA System Status display, and return the loop to automatic only after all eight output channels report healthy. Total interruption time for a prepared team is typically under five minutes.

Original program logic does not need to be modified when replacing a DO810 with an identical 3BSE008510R1 unit. The Control Builder application download is only required if the module address has changed or if the hardware configuration file has been updated. Preserving the existing application binary eliminates the risk of introducing software errors during a hardware maintenance event.

Retrofit Support FAQ

Q: Is the DO810 3BSE008510R1 a direct drop-in replacement for an existing DO810 in my S800 rack?
A: Yes. The DO810 3BSE008510R1 is the standard catalog revision for the 8-channel 24 VDC digital output module in the S800 I/O family. It installs into the same slot, connects to the same TB810 or TB820 termination unit, and is recognized automatically by the AC 800M controller without a program download, provided the module address has not changed.

Q: What wiring changes are needed when replacing the DO810?
A: None, in most cases. The S800 I/O architecture separates the module from the field wiring via the termination unit. The TB810 or TB820 remains in the rack during the swap, so all field cables stay connected. Only inspect and re-torque terminal screws if the termination unit has not been serviced recently.

Q: How is the replacement DO810 tested before shipment?
A: Each DO810 3BSE008510R1 unit undergoes functional output testing across all eight channels prior to dispatch. Test records are available on request. The module ships with a 12-month warranty covering manufacturing defects and in-service failures under normal operating conditions.

Q: Can the DO810 be used in a system being upgraded from Advant OCS to AC 800M?
A: Yes. The DO810 is fully compatible with the AC 800M / S800 I/O platform that replaces Advant OCS hardware. During migration, the module is added to the new Control Builder hardware configuration, assigned the appropriate module address, and the existing field wiring is reused via the termination unit. No new field cables are required for the digital output circuits.
