ABB DO880 3BSE028602R1 Safety-Enhanced Digital Output Module

ABB DO880 3BSE028602R1 Safety-Enhanced Digital Output Module for Harsh Industrial Sites

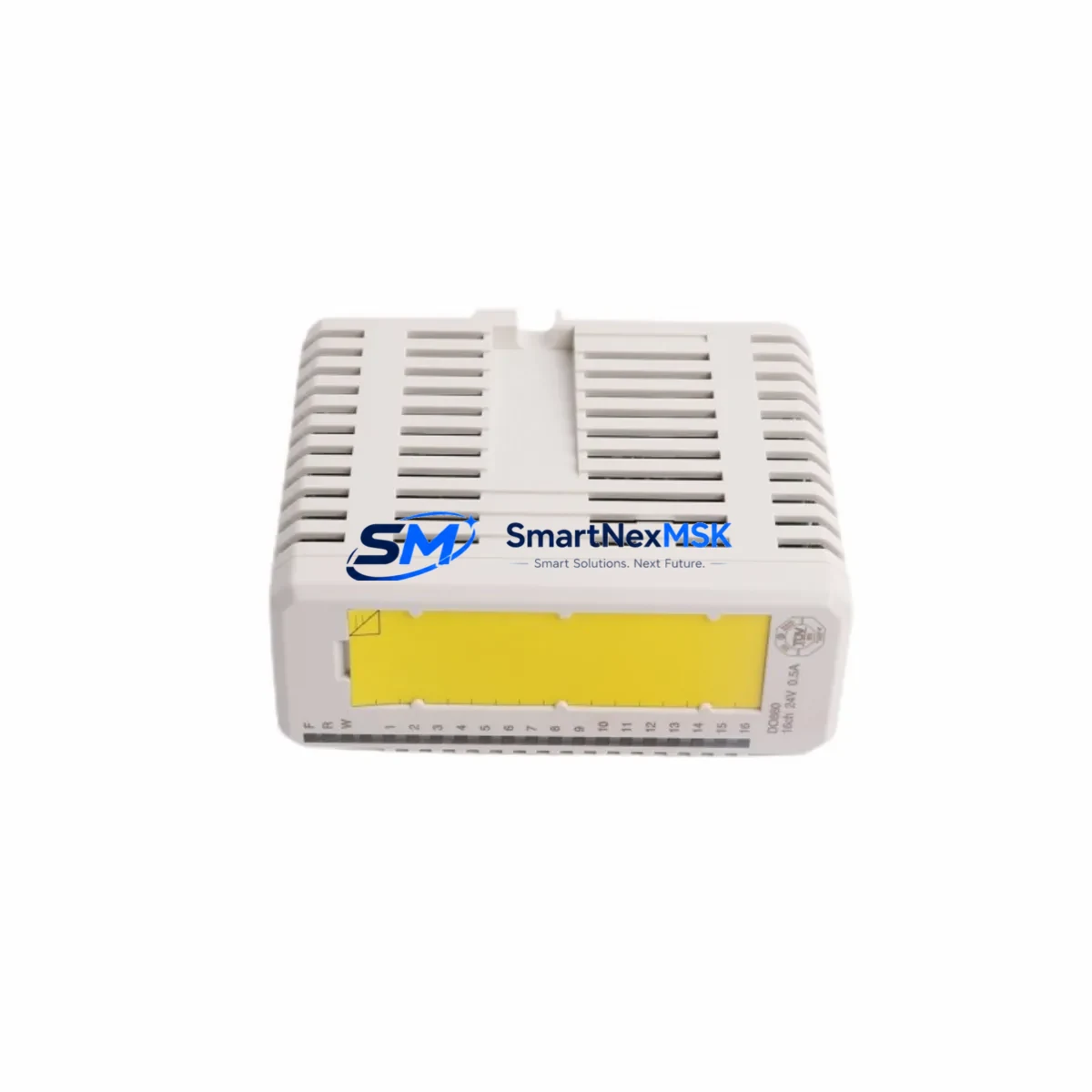

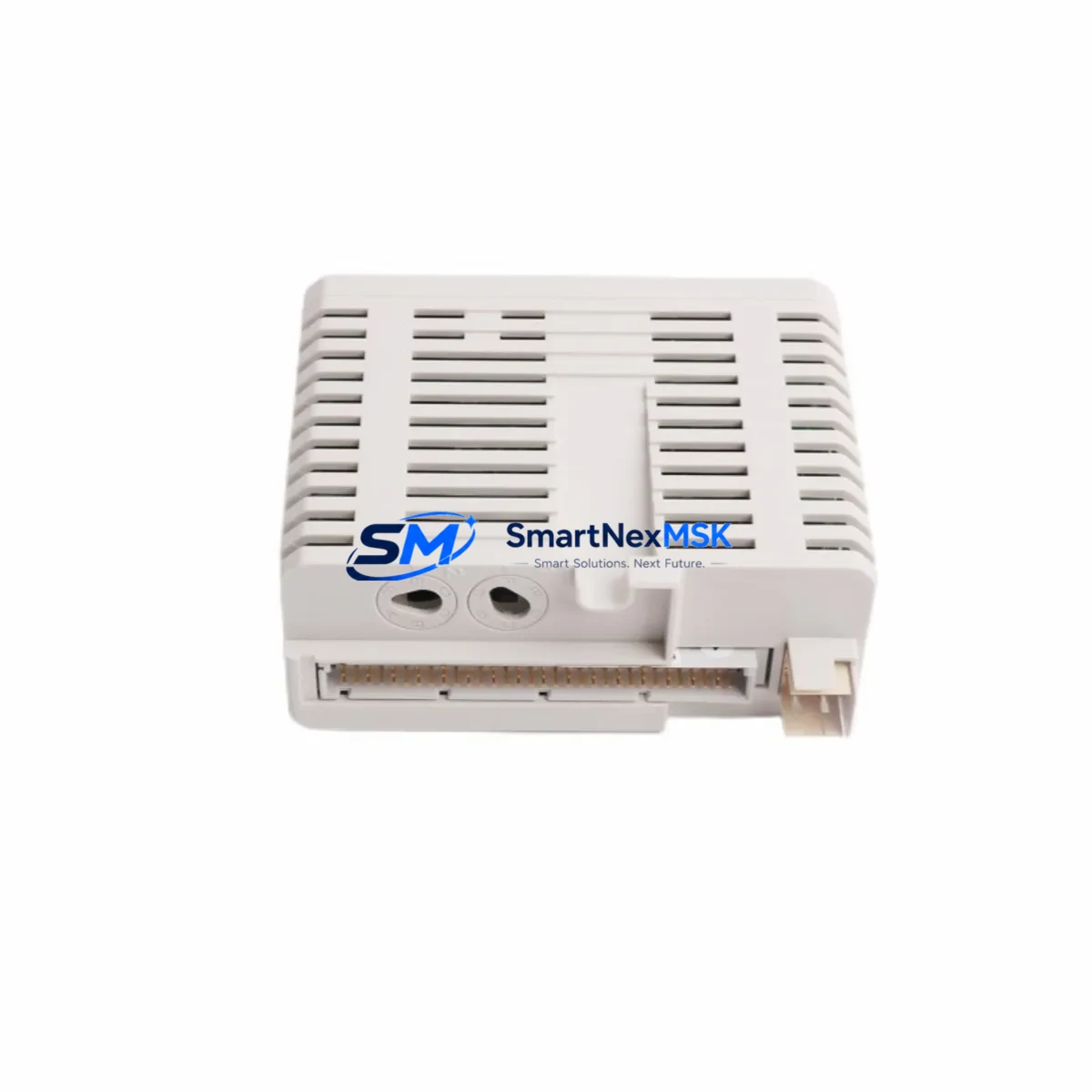

The ABB DO880 (3BSE028602R1) is a 16-channel, 24 VDC digital output module engineered for the ABB S800 I/O platform — one of the most widely deployed distributed I/O architectures in continuous-process and safety-critical industries. Designed to operate reliably inside high-density control cabinets, hazardous-area marshalling panels, and critical interlock loops, the DO880 delivers deterministic output switching even under sustained electrical noise, voltage transients, and wide ambient-temperature swings. Its compact DIN-rail form factor and hot-swap capability make it a preferred choice for petrochemical, power generation, mining, water treatment, metallurgical, and port-automation facilities where unplanned downtime carries severe safety and financial consequences.

In demanding field environments, digital output modules are among the most stress-exposed components in a control cabinet. Load-side inductive surges from solenoid valves, motor contactors, and relay coils can inject destructive energy back into the module bus. The DO880 incorporates per-channel output protection circuitry that clamps surge voltages and prevents latch-up, preserving both the module itself and the integrity of the ABB AC800M controller or S800 remote I/O station it serves. This protection is especially valuable in interlock and emergency-shutdown (ESD) circuits, where a single spurious output state change can trigger a full-plant trip or, worse, mask a genuine safety demand.

Signal integrity is maintained through galvanic isolation between the field-side outputs and the backplane communication bus. This isolation barrier blocks ground-loop currents and common-mode noise — a persistent challenge in facilities where long cable runs share conduit with high-voltage power feeders. When paired with the ABB AI810 3BSE008516R1 analog input module and the ABB DI810 3BSE008508R1 digital input module on the same S800 station, the DO880 forms a coherent, noise-immune I/O cluster that supports both regulatory control and safety interlock functions within a single backplane architecture.

Power supply stability is a prerequisite for reliable output switching. Installations that pair the DO880 with a Siemens SITOP PSU100S 6EP1334-2BA20 or equivalent 24 VDC redundant power supply benefit from clean, regulated bus voltage that eliminates the micro-dips and ripple that can cause marginal output channels to chatter. For applications requiring higher output current per channel — such as driving multiple solenoids from a single module — the ABB DO810 3BSE008510R1 8-channel high-current variant can be deployed in parallel racks, with the DO880 handling lower-current digital loads and status outputs.

Communication reliability between the S800 I/O station and the host controller is maintained through the ABB TB820V2 3BSE013208R1 ModuleBus modem, which provides optical isolation on the fieldbus segment. In plants where the control network spans multiple buildings or crosses high-EMI zones near large drives or arc furnaces, this optical link eliminates the ground-potential differences that corrupt RS-485 and similar copper-based fieldbus signals. The DO880’s deterministic scan cycle — synchronized to the controller’s execution period — ensures that output commands are applied within a predictable latency window, a requirement for time-critical interlock sequences.

For facilities operating under IEC 61511 (functional safety for process industries) or IEC 62061 (safety of machinery), the DO880 is routinely deployed in SIL 1 and SIL 2 architectures when combined with appropriate safety logic solvers such as the ABB AC800M HI 3BDH000002R0001 high-integrity controller. Diagnostic coverage is enhanced by pairing the module with the ABB SM811K01 3BDH000011R0001 S800 module bus terminator and periodic proof-test routines that exercise each output channel against a known load. This systematic approach to proof testing is documented in the plant’s safety instrumented system (SIS) maintenance plan and supports the probabilistic failure calculations required for SIL verification.

In metallurgical and heavy-industry control rooms, where ambient temperatures can reach 55 °C and cooling systems are not always reliable, the DO880’s extended operating temperature range and conformal-coated PCB provide a meaningful reliability margin over commercial-grade alternatives. The module’s status LEDs — one per output channel — give field technicians immediate visual confirmation of output state without requiring a laptop or handheld programmer, accelerating fault isolation during shift changes or emergency response. When a channel fault is detected, the module reports diagnostic data to the controller via the S800 bus, enabling the SCADA or DCS historian to log the event with a millisecond-resolution timestamp for post-incident analysis.

Spare-parts management is a critical element of any industrial safety program. Stocking a verified, tested DO880 3BSE028602R1 ensures that maintenance teams can execute a like-for-like replacement within a planned maintenance window rather than waiting weeks for factory lead times. Each unit supplied by SMARTNEXMSK undergoes pre-shipment functional testing — output switching verification, isolation resistance measurement, and bus communication check — and is shipped with full traceability documentation. A 12-month warranty covers defects in materials and workmanship, and our inventory team maintains buffer stock to support urgent breakdown orders with same-day or next-day dispatch.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust control cabinet protection strategy for S800-based systems begins with clean, regulated power. Pairing the DO880 with a Phoenix Contact QUINT-PS/1AC/24DC/10 or Siemens SITOP PSU100S 6EP1334-2BA20 redundant 24 VDC power supply eliminates the voltage sags and ripple that cause marginal output channels to misfire. Upstream surge protection — such as a Phoenix Contact TRABTECH PT 2X2-24DC-ST surge protection device — on the 24 VDC bus intercepts lightning-induced and switching transients before they reach the module rack.

On the fieldbus side, the ABB TB820V2 3BSE013208R1 ModuleBus modem provides optical isolation that decouples the S800 station from ground-potential differences in the plant network. The ABB CI854B 3BSE030220R1 PROFIBUS DP communication interface module, when used in the same cabinet, extends this protection philosophy to the PROFIBUS segment, ensuring that noise on the field network does not propagate into the controller backplane.

For output-side protection, each DO880 channel driving an inductive load — solenoid valve, relay coil, or motor contactor — should be equipped with a Weidmüller WG series or equivalent suppression diode or RC snubber at the load terminals. This practice, combined with the DO880’s internal clamp circuitry, provides two-layer surge protection that significantly extends the service life of both the module and the connected field devices. The ABB DO810 3BSE008510R1 high-current digital output module can be deployed alongside the DO880 in the same S800 station to handle high-inrush loads, distributing thermal stress across the rack.

Input-side signal conditioning is equally important. The ABB DI810 3BSE008508R1 digital input module and ABB AI810 3BSE008516R1 analog input module, mounted on the same S800 station, share the DO880’s galvanic isolation architecture, creating a fully isolated I/O cluster. The ABB SM811K01 3BDH000011R0001 S800 module bus terminator ensures correct bus impedance at the end of the station, preventing reflections that can corrupt diagnostic data and cause spurious fault alarms. Together, these components form a layered protection strategy that addresses power quality, fieldbus integrity, output surge, and bus termination — the four most common root causes of unplanned I/O-related shutdowns in continuous-process facilities.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In hydrocarbon processing facilities, the DO880 is deployed in emergency shutdown (ESD) and fire-and-gas (F&G) interlock panels where output reliability is a life-safety requirement. Its per-channel diagnostic reporting enables the safety instrumented system to detect output failures between proof tests, maintaining the required SIL integrity level without manual inspection.

Power Generation: Thermal and hydroelectric power stations use the DO880 to control turbine auxiliary systems — lube oil pumps, cooling fans, and valve actuators — where a missed output command during a load transient can escalate to a full unit trip. The module’s deterministic scan cycle and hot-swap capability allow maintenance teams to replace a faulty unit during a planned outage window without disturbing adjacent channels.

Mining and Mineral Processing: Underground and surface mining operations subject control equipment to extreme vibration, dust ingress, and wide temperature swings. The DO880’s conformal-coated PCB and robust backplane connector withstand these conditions, maintaining reliable output switching for conveyor drives, ventilation fans, and dewatering pump controls in environments where commercial-grade modules fail prematurely.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities rely on the DO880 to control dosing pumps, UV disinfection systems, and sluice gate actuators in continuous 24/7 operation. The module’s low power dissipation and wide humidity tolerance make it suitable for installation in outdoor marshalling kiosks and humid pump-station control panels.

Metallurgy and Steel Production: Electric arc furnace (EAF) and continuous casting control systems generate intense electromagnetic interference that disrupts conventional I/O modules. The DO880’s galvanic isolation and IEC 61000-4 EMC compliance allow it to operate reliably in close proximity to large thyristor drives and furnace transformers, maintaining precise control of cooling water valves, electrode positioning systems, and mold oscillation drives.

Port Automation and Material Handling: Automated container terminals and bulk-material handling systems use the DO880 to control crane drives, conveyor interlocks, and positioning systems across large geographic areas with multiple earthing points. The module’s isolation architecture prevents ground-loop currents from corrupting output states, ensuring that crane movements and conveyor sequences execute as commanded by the central PLC.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers all defects in materials and workmanship from the date of shipment. If a module fails within the warranty period under normal operating conditions, SMARTNEXMSK will provide a replacement unit or full refund after fault verification. Contact sales@smartnexmsk.com with the order reference and a description of the failure mode to initiate a claim.

Q2: What pre-shipment testing is performed on each DO880 3BSE028602R1?
Every unit undergoes a three-stage functional test before dispatch: (1) output switching verification across all 16 channels under rated load, (2) isolation resistance measurement between field-side terminals and the backplane bus, and (3) S800 ModuleBus communication check confirming correct module identification and diagnostic data exchange. Test records are retained and available upon request.

Q3: Is the DO880 3BSE028602R1 compatible with all ABB AC800M and S800 I/O configurations?
Yes. The DO880 is fully compatible with all ABB S800 I/O stations — including the TB810, TB820, TB840, and TB845 base units — and communicates with AC800M controllers via the standard ModuleBus protocol. It is also compatible with S800 remote I/O stations connected via PROFIBUS DP, PROFINET, and Modbus TCP communication interfaces. No firmware upgrade is required for integration into existing S800 installations.

Q4: Can SMARTNEXMSK guarantee long-term supply for ongoing maintenance and spare-parts programs?
Yes. SMARTNEXMSK maintains buffer stock of the DO880 3BSE028602R1 and other S800 I/O modules to support both planned maintenance schedules and emergency breakdown orders. For facilities with multi-year maintenance contracts or large installed bases, we offer reserved-stock agreements that guarantee availability and fixed pricing over the contract period. Contact our sales team to discuss a tailored supply arrangement.
