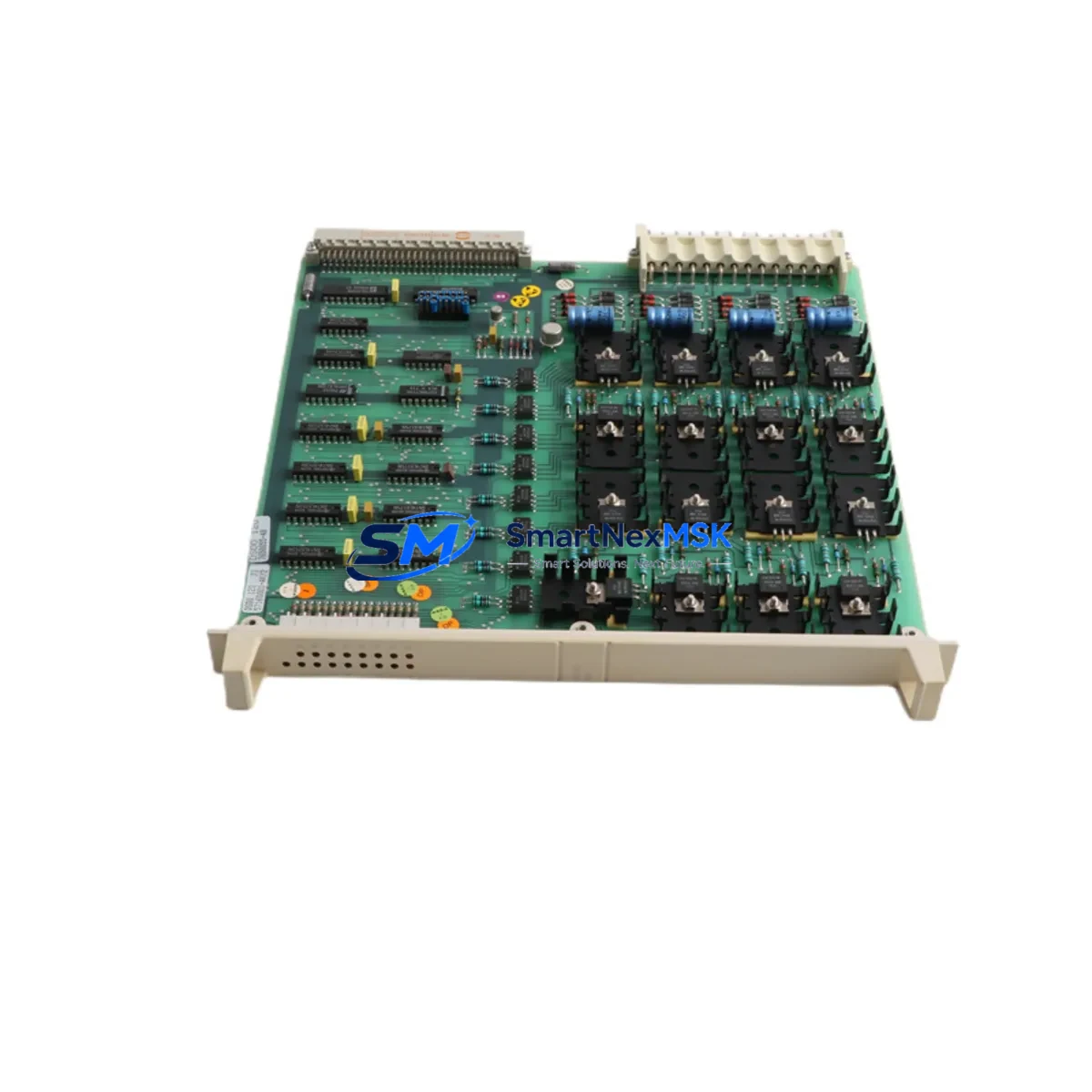

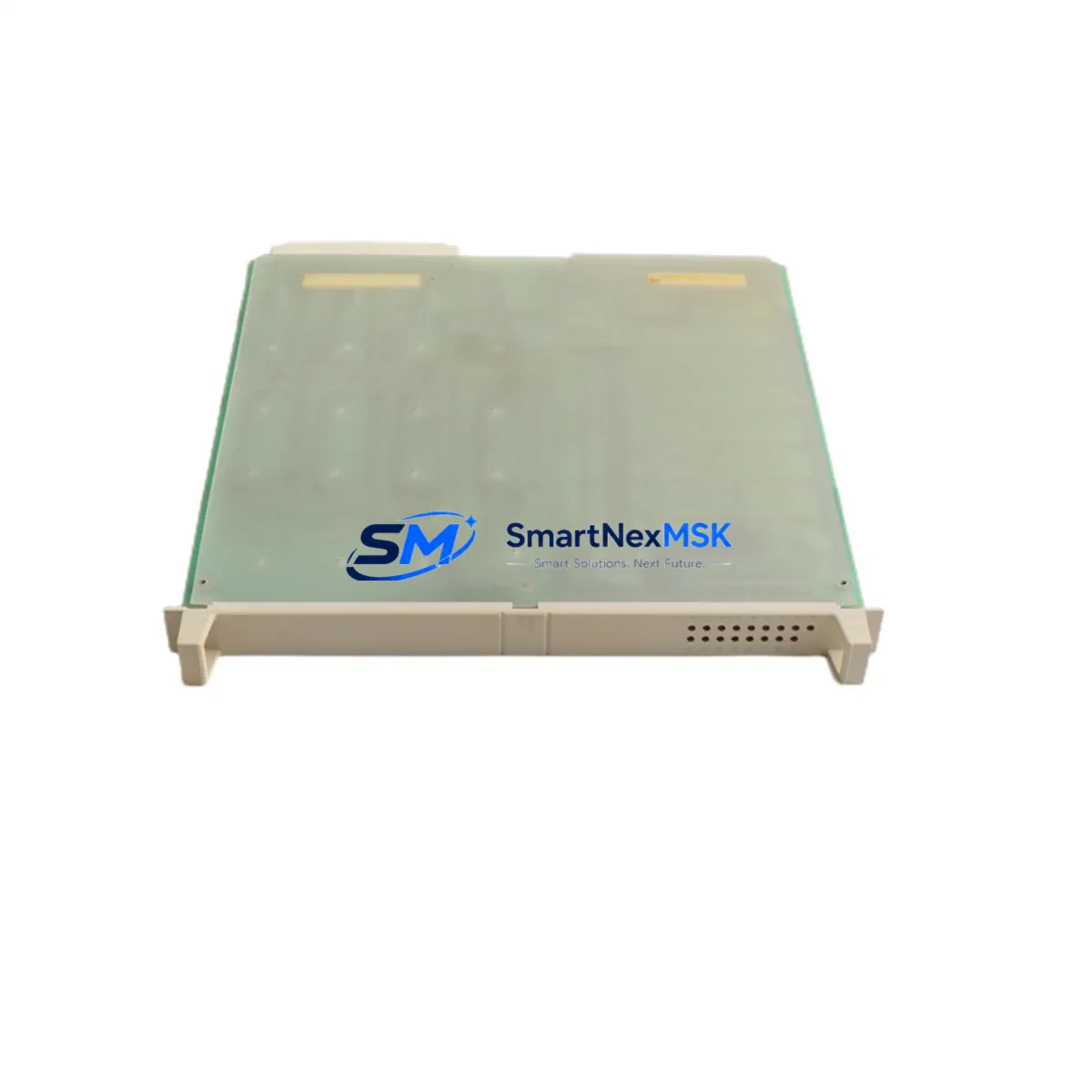

The ABB DSDO120 57160001-AK is an original digital output module designed for the ABB Advant OCS (Open Control System) platform — one of the most widely deployed distributed control architectures in process automation, power generation, and heavy industry. For maintenance engineers managing aging Advant OCS installations, securing a verified spare of the DSDO120 57160001-AK is a critical step in any proactive downtime-prevention strategy. This module handles discrete output signaling to field actuators, solenoid valves, motor starters, and relay-driven loads, making it a high-priority component in both planned maintenance cycles and emergency fault recovery scenarios.

At SMARTNEXMSK, every DSDO120 57160001-AK unit is sourced from verified industrial channels, functionally tested prior to shipment, and covered by a 12-month warranty. Fast global dispatch ensures that your control system can be restored to full operation with minimal delay — whether you are responding to an unplanned trip or executing a scheduled turnaround.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a DSDO120 57160001-AK digital output module fails or is flagged during a routine control cabinet inspection, the fault rarely exists in isolation. Experienced maintenance engineers know that a single module failure in an Advant OCS rack is often a symptom of broader electrical stress, aging backplane connectors, or power supply degradation. A thorough site assessment should accompany any DSDO120 replacement.

Begin by verifying the S100 subrack power supply — modules such as the ABB DSCS110 or DSCS140 power conditioner units are common companions in the same cabinet and should be load-tested after any output module fault. Check the DSDX110 or DSDX452 digital input modules in adjacent slots; shared bus faults can corrupt both input and output cards simultaneously. If the DSDO120 is part of a motor control or valve actuation loop, inspect the associated DSDO115 or DSDO122 output modules in parallel circuits for signs of output channel saturation or contact welding.

Communication integrity is equally important. Confirm that the DSSB110 S100 bus extender or DSBC172 bus cable connecting the I/O subrack to the AC450 or AC410 controller is undamaged and properly seated. A degraded bus connection can cause intermittent output faults that mimic module failure. While the cabinet is open, inspect the DSAI130 or DSAI155 analog input modules for corrosion on the front connector — these are frequently overlooked during digital output troubleshooting but share the same environmental exposure.

For installations with relay-driven outputs, verify the condition of the external relay terminal boards (such as the DSDO120-compatible relay expansion boards) and check fuse integrity on each output channel. Signal isolators between the DSDO120 output and field devices should also be tested — degraded isolation can cause ground loops that stress output transistors over time. Finally, if the system includes an Operator Interface Terminal (OIT) or legacy HMI panel connected via the Advant fieldbus, confirm that alarm and status signals from the replaced module are correctly re-mapped after card swap.

Maintaining a minimum stock of two DSDO120 57160001-AK units per control system is recommended for facilities operating continuous processes where unplanned downtime carries significant production cost.

Site Replacement Workflow

Replacing the DSDO120 57160001-AK on-site is a straightforward procedure when the correct spare is available and pre-verified. Follow this workflow to minimize downtime and ensure system compatibility:

1. Pre-replacement verification: Confirm the replacement unit carries the correct part suffix (-AK) matching the installed firmware and hardware revision. Mismatched hardware revisions between DSDO120 variants can cause bus initialization errors on the AC450 or AC410 controller. Cross-reference the label on the installed card before pulling it from the subrack.

2. Safe isolation: Place the affected controller loop in manual mode via the operator station or HMI. De-energize the output field circuit at the marshalling panel before removing the module. Do not hot-swap DSDO120 modules without confirming the controller supports live insertion for this card type — most S100 configurations require a controlled shutdown sequence.

3. Card extraction and inspection: Remove the DSDO120 57160001-AK by releasing the front panel locking levers. Inspect the backplane connector on the extracted card for bent pins or carbon tracking. Clean the subrack slot connector with approved contact cleaner before inserting the replacement.

4. Insertion and power-up: Seat the new DSDO120 57160001-AK firmly into the subrack slot. Restore power and observe the module status LEDs — a steady green RUN indicator confirms successful initialization. If a fault LED persists, check the controller configuration database to ensure the I/O address assignment matches the physical slot position.

5. Loop verification: Perform a channel-by-channel output test from the engineering workstation or HMI. Confirm that all field actuators respond correctly before returning the loop to automatic control. Document the replacement in the site maintenance log with the date, replaced part number, and technician ID.

This workflow applies equally to planned maintenance replacements and emergency fault recovery, and is compatible with all Advant OCS controller families that support the S100 I/O bus architecture.

Spare Parts Support FAQ

Q1: What is the expected service life of the DSDO120 57160001-AK, and when should I plan for replacement?
The DSDO120 57160001-AK was manufactured for long-cycle industrial deployment, but output transistors and backplane connectors are subject to wear in high-cycle applications. For systems operating more than 10 years, proactive replacement during scheduled shutdowns is recommended rather than waiting for in-service failure. SMARTNEXMSK maintains long-term stock to support lifecycle extension programs for Advant OCS installations.

Q2: How do I verify compatibility between my installed Advant OCS system and a replacement DSDO120 unit?
Compatibility is determined by the hardware suffix (-AK in this case), the S100 bus protocol version supported by your AC450 or AC410 controller, and the firmware revision loaded in the controller configuration. Provide your controller model and existing card label details to our technical team at sales@smartnexmsk.com and we will confirm compatibility before shipment.

Q3: Is the DSDO120 57160001-AK tested before shipment, and what does the 12-month warranty cover?
Yes — every unit undergoes functional output channel verification and power-on self-test before dispatch. The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling on-site. Warranty claims are processed directly through SMARTNEXMSK with a standard RMA procedure.

Q4: Can SMARTNEXMSK support ongoing spare parts inventory for our Advant OCS fleet?
Yes. We offer long-term supply agreements for facilities managing multiple Advant OCS cabinets or planning multi-year lifecycle extension programs. Contact us to discuss consignment stock arrangements, priority allocation, and volume pricing for DSDO120 57160001-AK and related S100 I/O modules.
