ABB DSPC155 57310001-CX Spare for AC450 Automation: Spare Replacement & Industrial Downtime Risk Control

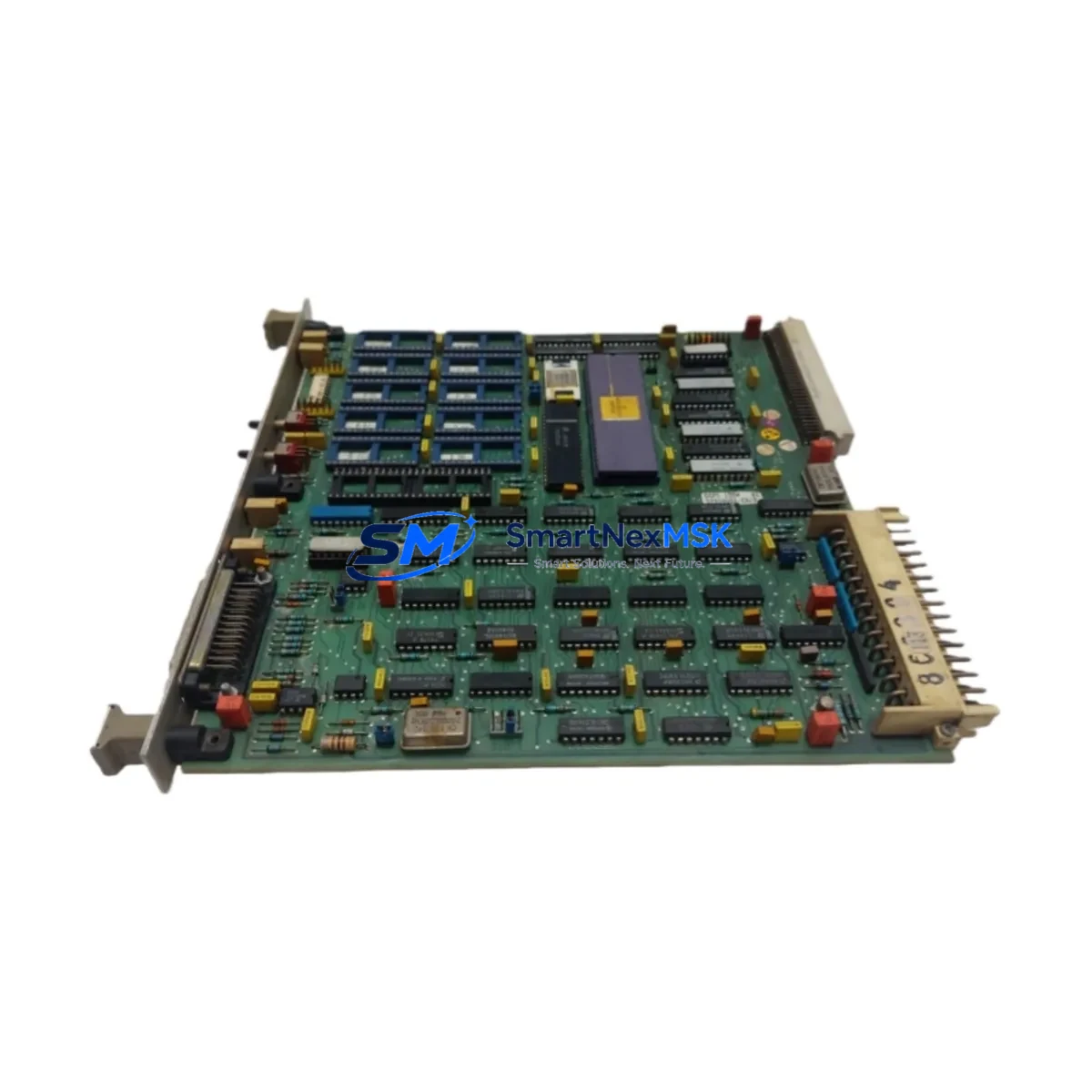

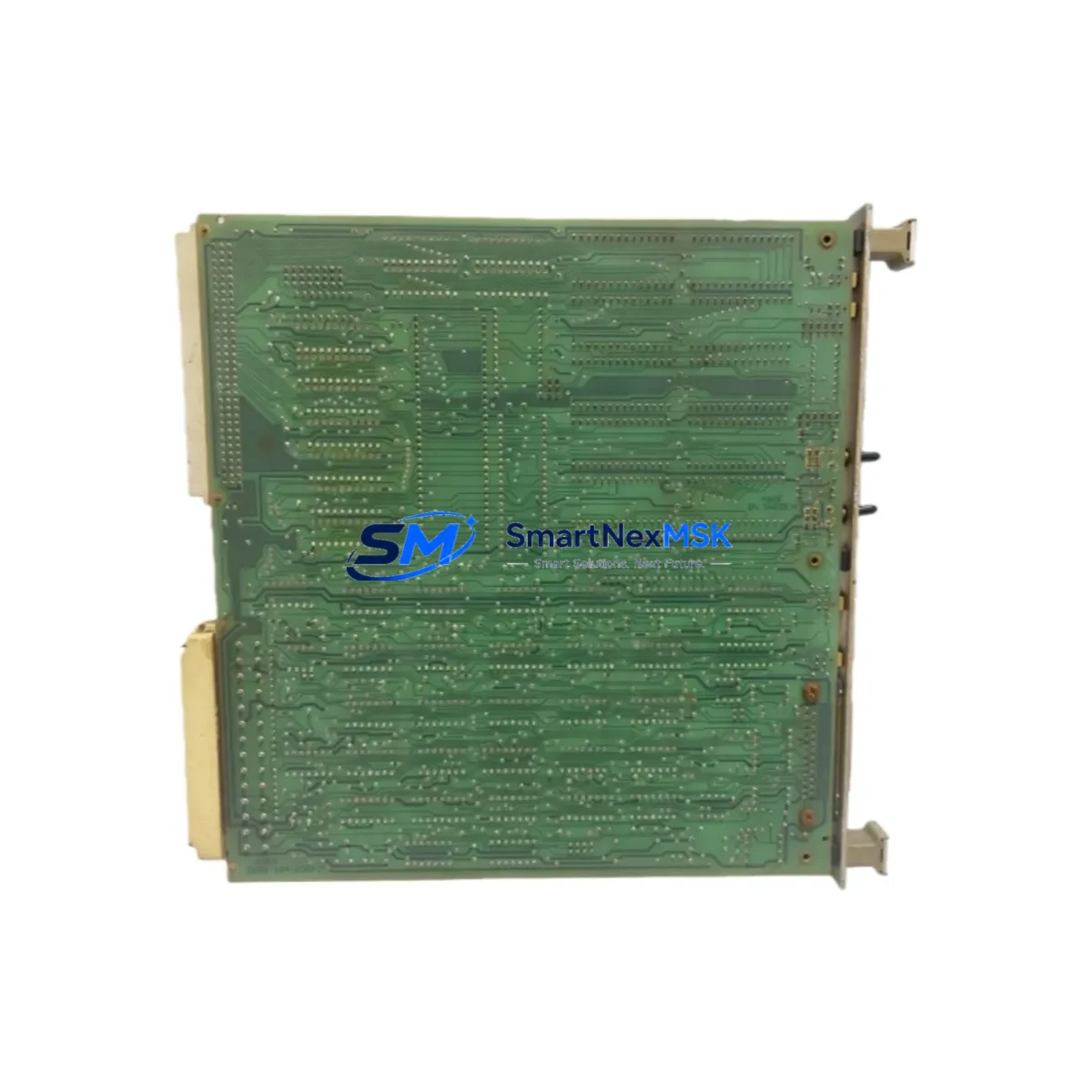

The ABB DSPC155 (57310001-CX) is a central processor board designed for the ABB Advant Controller AC 450 and AC 410 DCS platforms — one of the most widely deployed distributed control systems in power generation, pulp & paper, chemical processing, and heavy industry. When this CPU module fails or degrades, the entire control loop is at risk. Unplanned downtime in these environments can cost thousands of dollars per hour. Holding a verified, tested spare of the DSPC155 57310001-CX in your maintenance inventory is one of the most cost-effective strategies for protecting continuous operations.
Our DSPC155 57310001-CX units are sourced as original ABB components, fully inspected, and shipped with a 12-month warranty. Each unit undergoes pre-shipment functional testing to confirm processor integrity, memory bus stability, and communication readiness before leaving our facility. Whether you are managing a planned turnaround, responding to an emergency fault, or building out your critical spare parts inventory, this module is available for immediate dispatch.
Spare Maintenance Table
| Parameter | Specification / Detail |
|---|---|
| Part Number | DSPC155 / 57310001-CX |
| Manufacturer | ABB (Asea Brown Boveri) |
| Series / Platform | Advant Controller AC 450 / AC 410 |
| Module Type | DCS Central Processor Board (CPU) |
| Origin | Germany (Original ABB manufacture) |
| Compatibility | AC 450, AC 410 DCS systems; Advant OCS architecture |
| Bus Interface | Advant Fieldbus 100 (AF 100) compatible |
| Operating Voltage | 24 VDC (supplied via backplane) |
| Operating Temperature | 0°C to +55°C |
| Weight | Approx. 550 g |
| Mounting | DIN-rail subrack / Advant controller cabinet |
| Application Environment | Industrial control cabinets, DCS marshalling rooms, process control panels |
| Pre-Shipment Testing | Yes — functional and communication integrity verified |
| Condition | Original spare (new or refurbished-to-spec) |
| Warranty | 12 Months |
| Lead Time | In stock — ships within 1–3 business days |
Maintenance Planning for Continuous Operation
Replacing the DSPC155 57310001-CX is rarely an isolated task. Experienced maintenance engineers know that a CPU module fault in an AC 450 system is often accompanied by — or can trigger — secondary issues in adjacent components. A thorough site inspection and planned replacement should include a review of the following components within the same control cabinet and electrical circuit:
The DSMB127 memory backup module and DSPC176 processor extension board work in close coordination with the DSPC155 and should be inspected for corrosion, loose connectors, and firmware version alignment. The DSDO115 digital output module and DSDI110A digital input module share the same I/O bus and should be checked for channel faults or blown output drivers that may have contributed to the CPU overload condition.
Power integrity is critical: verify the DSSB110 power supply board and any associated 24 VDC rail fuses are within specification before inserting the replacement DSPC155. A marginal power supply is a common root cause of repeated CPU module failures. Similarly, the DSAI130 analog input module and DSAO120 analog output module should be checked for signal drift or ground loop issues that can generate spurious interrupts to the processor.
For systems using Advant Fieldbus 100, inspect the DSCL110 communication link module and associated fiber-optic or copper trunk cables for signal degradation. If the AC 450 is integrated with an Operator Station, confirm that the DSCS140 communication supervisor board and HMI interface remain synchronized after the CPU swap. Terminal blocks, relay output modules, and surge protection devices on the I/O marshalling panel should also be visually inspected as part of any planned CPU replacement procedure.
Maintaining a documented spare parts list that includes the DSPC155 alongside these companion modules ensures that your team can execute a complete cabinet restoration — not just a single-board swap — within a single maintenance window.
Site Replacement Workflow
Step 1 — Pre-replacement verification: Confirm the fault is isolated to the DSPC155 by reviewing the AC 450 system diagnostics log and checking the module status LEDs. Document the current firmware version and configuration backup before removal.
Step 2 — Safe isolation: Follow your site’s lockout/tagout (LOTO) procedure. De-energize the subrack and discharge any residual voltage on the backplane before extracting the module. Use an ESD wrist strap — the DSPC155 contains sensitive CMOS components.
Step 3 — Module swap: Seat the replacement DSPC155 57310001-CX firmly into the subrack slot. Verify that all edge connectors are fully engaged and that the module retention latch is secured. Re-energize the subrack and observe the startup LED sequence.
Step 4 — Configuration restore: Load the previously backed-up configuration using the ABB Advant Builder or MasterView 800 engineering tool. Verify all I/O channel assignments, PID loop parameters, and communication node addresses are correctly restored.
Step 5 — Functional test: Run a loop check on critical I/O channels. Confirm fieldbus communication with all connected DSDI, DSDO, DSAI, and DSAO modules. Verify HMI displays are updating correctly before returning the system to automatic control.
This workflow is designed to minimize mean time to repair (MTTR) and restore the system to full automatic operation with confidence. Having a pre-tested, warranted DSPC155 spare on hand eliminates the procurement delay that is typically the longest component of unplanned downtime recovery.
Spare Parts Support FAQ
Q1: Is this DSPC155 57310001-CX compatible with both AC 450 and AC 410 controllers?
Yes. The DSPC155 with part number 57310001-CX is designed for use in the ABB Advant Controller family, covering both the AC 450 and AC 410 platforms. Before installation, confirm the subrack slot assignment and firmware revision match your existing system configuration. If you are unsure, our technical team can assist with compatibility verification prior to shipment.
Q2: What pre-shipment testing is performed on each unit?
Every DSPC155 57310001-CX unit we ship undergoes a functional power-on test, processor bus integrity check, and communication interface verification. Units that do not pass all test criteria are not dispatched. A test report is available upon request. All shipped units are covered by a 12-month warranty against manufacturing defects and functional failure.
Q3: How should I manage long-term spare parts inventory for aging AC 450 systems?
For AC 450 systems that are past their original support lifecycle, we recommend maintaining at least one cold spare of the DSPC155 CPU board, one power supply module (DSSB110 or equivalent), and one each of your most-used I/O modules (DSDI110A, DSDO115, DSAI130). This three-tier spare strategy covers the majority of unplanned failure scenarios and allows your team to restore operations within a single shift rather than waiting days for emergency procurement.
Q4: Can you supply DSPC155 units on an ongoing basis for multi-site maintenance programs?
Yes. We support long-term supply agreements for maintenance teams managing multiple AC 450 installations. Volume pricing, reserved stock allocation, and priority dispatch are available for qualified accounts. Contact our sales team to discuss your site inventory requirements and establish a supply framework that aligns with your planned maintenance schedule.
