ABB DSQC1000 DSQC1018 Safety-Enhanced IRC5 Controller Module

ABB DSQC1000 DSQC1018 Safety-Enhanced IRC5 Controller Module: Reliable Safety Control for Harsh Industrial Sites

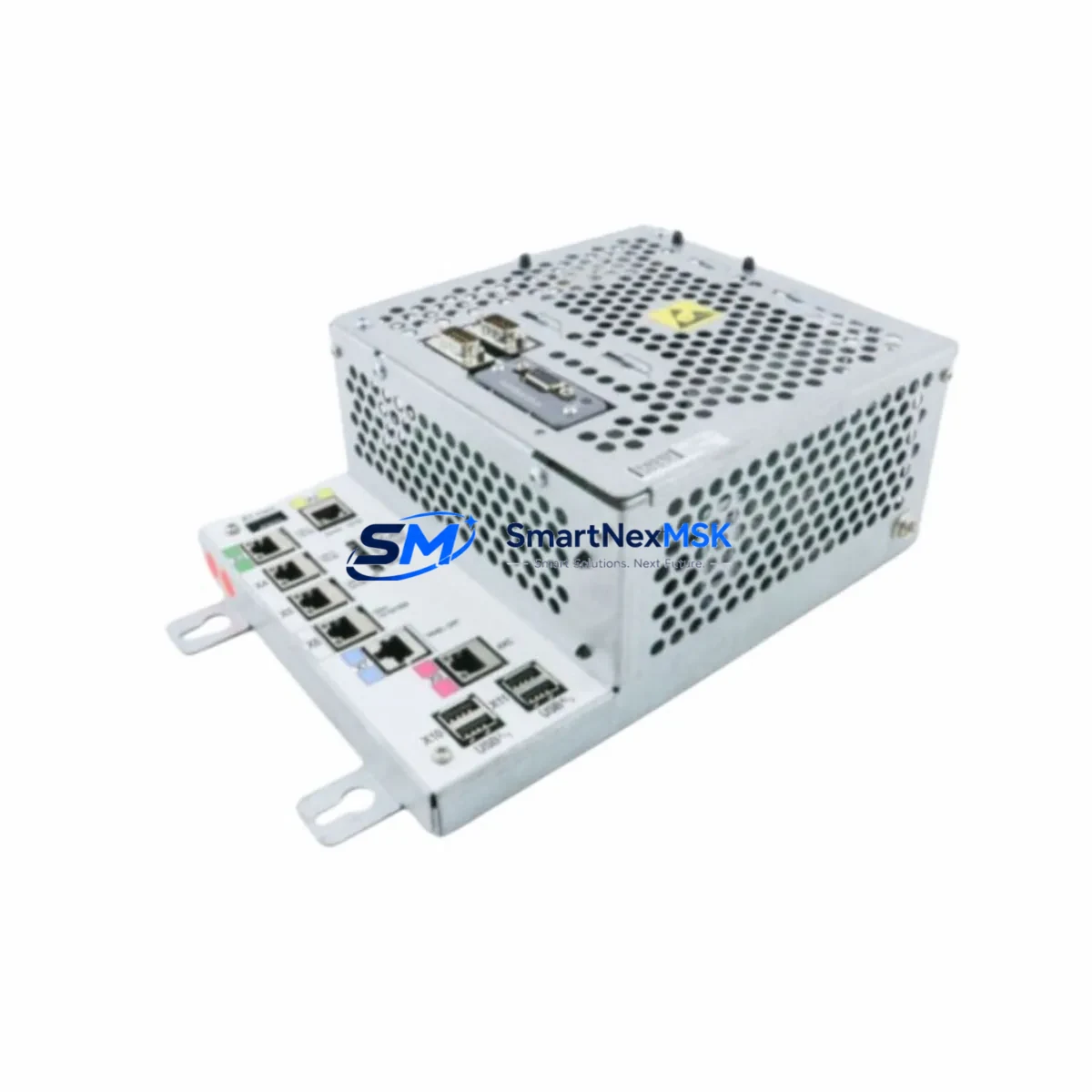

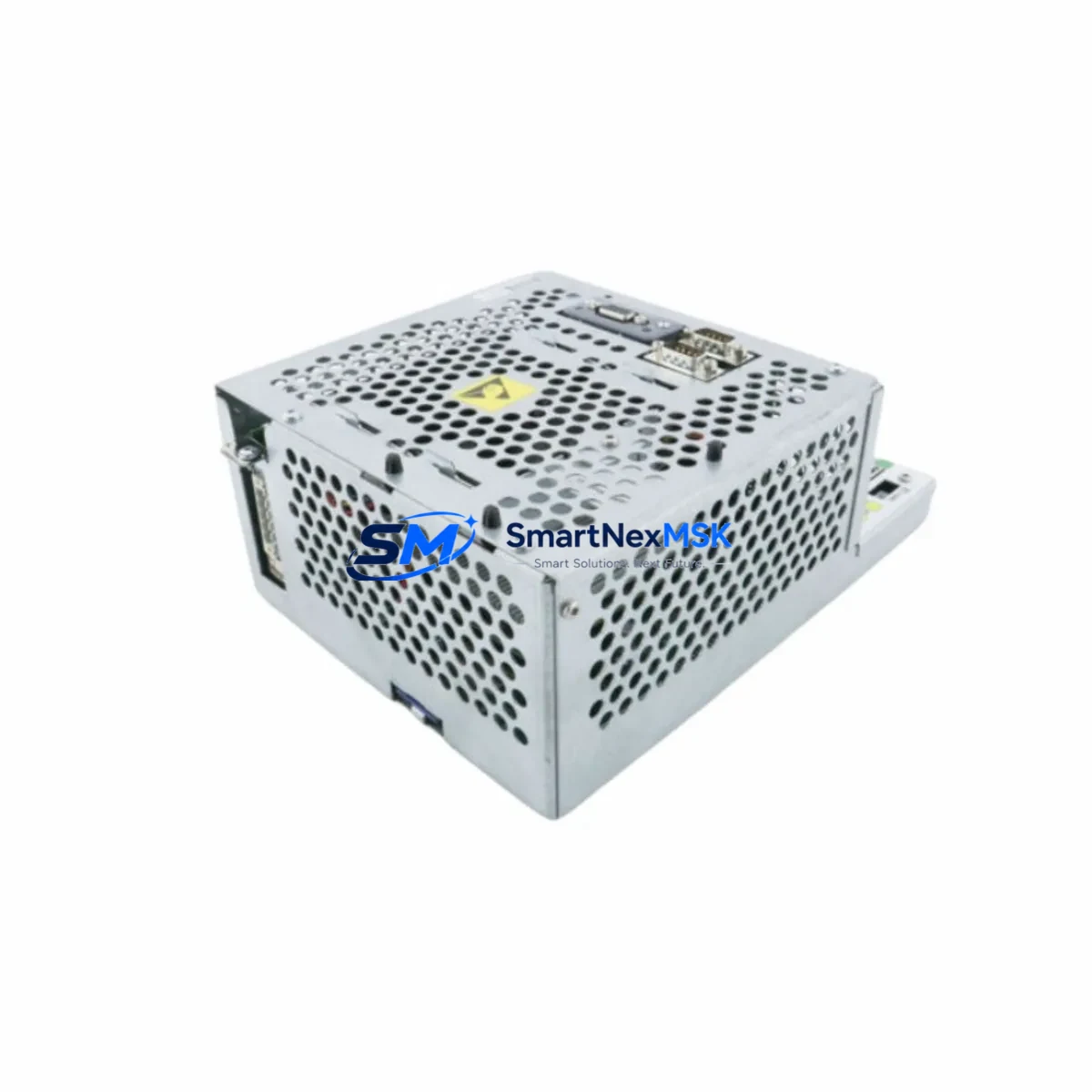

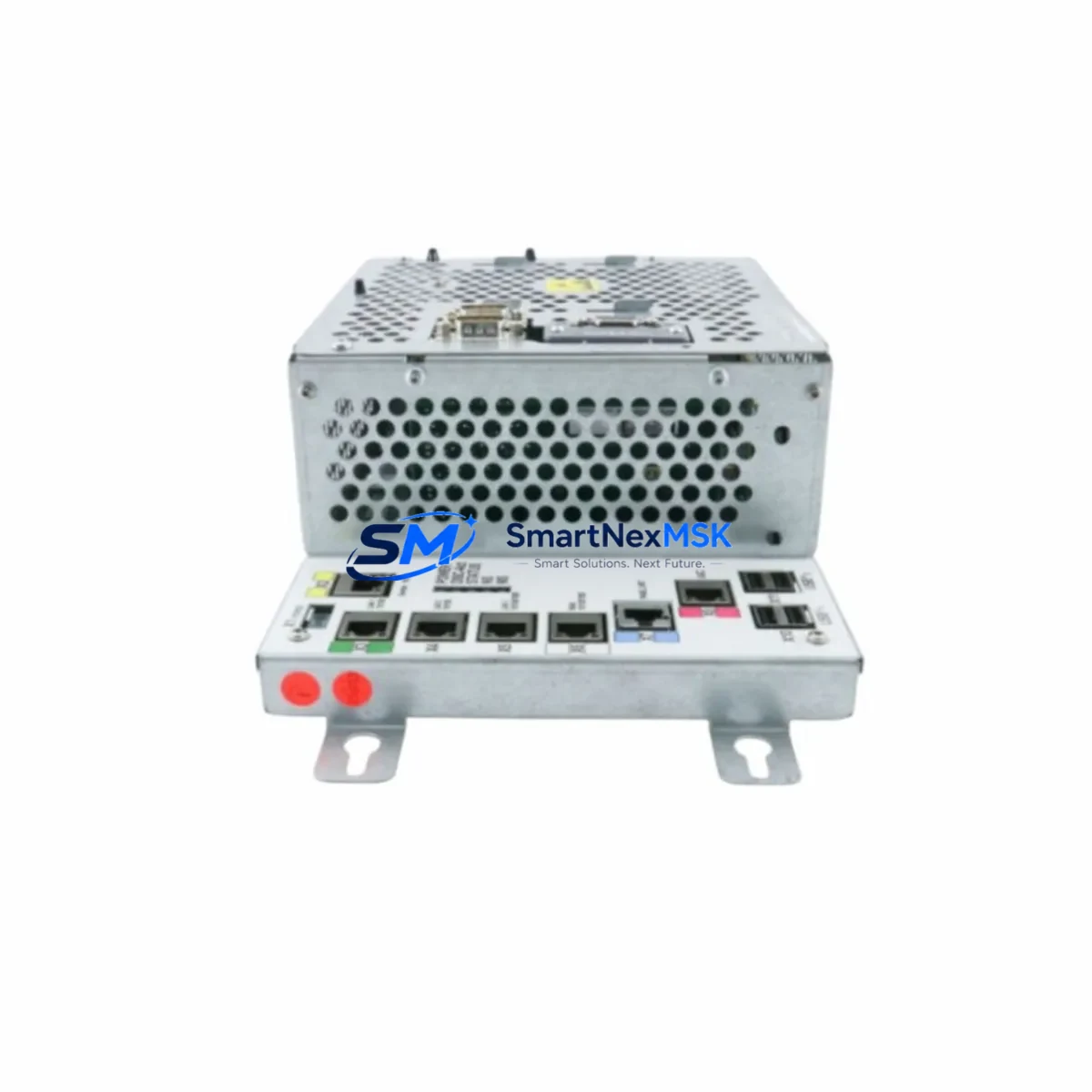

The ABB DSQC1000 / DSQC1018 (part numbers 3HAC042766-001 and 3HAC050363-001) is the main computer module at the heart of the ABB IRC5 robot controller platform. Engineered for continuous, uninterrupted operation in demanding industrial environments, this ruggedized module delivers the processing power, signal integrity, and fault-tolerance that safety-critical automation systems demand. Whether deployed in a high-cycle automotive assembly line, a petrochemical handling cell, or a heavy-duty arc welding station, the DSQC1000/DSQC1018 is designed to keep your robot controller running reliably — shift after shift, year after year.

In modern industrial facilities, the robot controller computer module is the nerve center of every motion sequence, safety interlock, and process decision. A failure at this level does not merely halt a single axis — it can trigger a full cell shutdown, compromise safety interlocks, and expose personnel to uncontrolled motion hazards. The DSQC1000/DSQC1018 addresses this risk through robust hardware design, wide operating temperature tolerance, and compatibility with the full IRC5 safety architecture, including the DSQC400 power supply unit and the DSQC662 fieldbus adapter for PROFIBUS-DP communication.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust IRC5 control cabinet protection strategy begins with ensuring every module in the safety chain is genuine, tested, and correctly specified. The DSQC1000/DSQC1018 main computer module sits at the top of this hierarchy, coordinating all downstream safety and control functions. To maintain full system integrity, it operates in close coordination with the DSQC609 power supply module, which conditions and distributes 24 VDC across the IRC5 backplane, protecting the main computer from voltage transients and power sag events that are common in heavy industrial environments with large motor drives or frequent load switching.

Signal integrity across the safety interlock chain is maintained through the DSQC652 digital I/O board, which handles 16 digital inputs and 16 digital outputs for safety gate monitoring, emergency stop circuits, and process interlocks. In applications where analog process feedback is required — such as force control in press-fit assembly or weld current monitoring — the DSQC355A analog I/O module provides the necessary signal conditioning to prevent drift-induced faults from propagating to the main computer.

For facilities running PROFINET or DeviceNet communication architectures, the DSQC688 PROFINET device module and DSQC377B DeviceNet master/slave board extend the IRC5 communication capability while maintaining the deterministic timing that safety-rated fieldbus applications require. Communication anomalies — packet loss, bus timeouts, or address conflicts — are among the leading causes of unexpected robot stops in continuous production environments, and these modules are engineered to minimize that risk.

Surge and transient protection at the cabinet entry point is equally critical. Industrial sites with large variable-frequency drives, overhead cranes, or resistance welding equipment generate significant conducted and radiated interference. Pairing the DSQC1000/DSQC1018 with properly rated surge protective devices (SPDs) at the cabinet power inlet, along with ferrite-core filtering on signal cables, significantly reduces the risk of module latch-up or memory corruption events that can cause unplanned downtime. The DSQC508 axis computer module for multi-robot or track motion applications should also be verified for firmware compatibility whenever the main computer module is replaced, to prevent axis synchronization faults during restart.

Critical Industrial Safety Applications

The ABB DSQC1000/DSQC1018 IRC5 main computer module is deployed across a wide range of safety-critical industrial sectors where control interruption carries significant operational and personnel risk.

In petrochemical and refinery facilities, IRC5-based robots perform hazardous material handling, valve actuation, and inspection tasks in classified zones. The main computer module’s ability to maintain deterministic cycle times and respond to safety interlock signals within milliseconds is essential for preventing process upsets that could escalate to hazardous releases. The module’s compatibility with ABB SafeMove safety supervision software allows speed, zone, and orientation monitoring to be enforced at the controller level — independent of the application program — providing a hardware-backed safety layer.

In electric power generation and substation maintenance applications, IRC5 robots are increasingly used for live-line inspection and switchgear handling. The DSQC1000/DSQC1018 provides the processing reliability needed to execute precise, repeatable motions in environments with strong electromagnetic fields from high-voltage busbars and transformers. Its internal EMI filtering and robust grounding architecture help maintain signal integrity even in these electrically noisy conditions.

In mining and mineral processing operations, robots equipped with IRC5 controllers handle ore sampling, explosive device placement, and conveyor maintenance tasks in environments with heavy dust, vibration, and temperature cycling. The ruggedized design of the DSQC1000/DSQC1018, combined with the IP54-rated IRC5 cabinet, ensures continuous operation through shift changes and seasonal temperature extremes.

In water and wastewater treatment plants, IRC5-based automation handles chemical dosing, pump maintenance, and pipe inspection in corrosive, high-humidity environments. The main computer module’s stable operation across the full IRC5 operating temperature range ensures that safety interlocks for chemical containment and overflow prevention remain active and responsive at all times.

In metallurgical and steel mill environments — among the most demanding for any electronic control system — the DSQC1000/DSQC1018 supports ladle handling, billet transfer, and rolling mill automation where radiated heat, metal splash, and intense vibration are constant factors. Planned preventive replacement of the main computer module, supported by SMARTNEXMSK’s in-stock inventory and 12-month warranty program, allows maintenance teams to execute scheduled shutdowns without the risk of extended downtime caused by sourcing delays.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the DSQC1000/DSQC1018?
The 12-month warranty covers all functional parameters of the module, including main computer processing, communication interfaces (Ethernet, USB, backplane bus), safety I/O compatibility, and power input regulation. If the module fails to perform any of its specified functions within the warranty period under normal operating conditions, SMARTNEXMSK will provide a replacement or full refund. The warranty period begins from the date of confirmed delivery.

Q2: What pre-shipment testing is performed on each DSQC1000/DSQC1018 unit?
Every unit undergoes a full power-on functional test prior to shipment. This includes verification of boot sequence completion, communication port activity (LAN and USB), backplane bus handshake with compatible IRC5 I/O modules, and safety I/O channel response. Units that do not pass all test criteria are quarantined and not shipped. A test record is available upon request for quality-critical applications.

Q3: Is the DSQC1000 directly interchangeable with the DSQC1018 in an existing IRC5 system?
The DSQC1000 (3HAC042766-001) and DSQC1018 (3HAC050363-001) are functionally equivalent main computer modules for the ABB IRC5 platform and are cross-compatible in most IRC5 cabinet configurations. However, firmware version compatibility with the existing IRC5 system software (RobotWare) should be verified before installation. SMARTNEXMSK’s technical team can assist with compatibility confirmation based on your controller serial number and current RobotWare version.

Q4: Can SMARTNEXMSK guarantee long-term supply of the DSQC1000/DSQC1018 for multi-year maintenance contracts?
Yes. SMARTNEXMSK maintains dedicated stock of the DSQC1000/DSQC1018 and other critical IRC5 spare modules to support long-term maintenance agreements and planned replacement programs. For customers with fleet maintenance requirements or multi-site operations, we offer reserved stock arrangements and priority dispatch agreements. Contact our sales team to discuss your specific supply continuity requirements.
