ABB DSQC1024 3HAC058366-001 Spare for IRC5 Automation

ABB DSQC1024 3HAC058366-001 Spare for IRC5 Automation: Spare Replacement & Downtime Risk Control

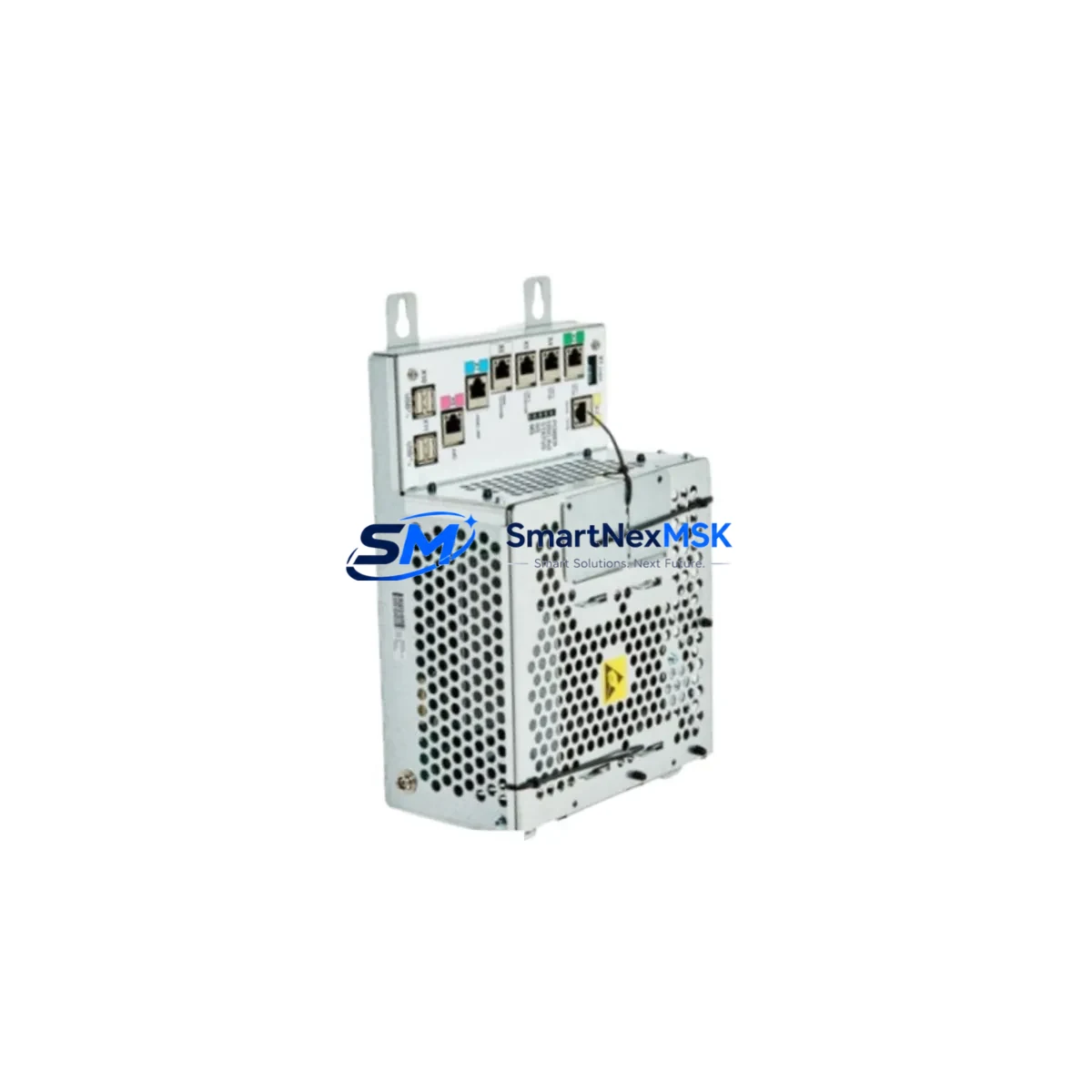

The ABB DSQC1024 (3HAC058366-001) is the main computer unit for the IRC5 robot controller cabinet, serving as the central processing and coordination hub for ABB industrial robots including the IRB 1200, IRB 2600, IRB 4600, and IRB 6700 series. When this module fails or degrades, the entire robot cell is rendered inoperative — making a verified, ready-to-ship spare a critical asset in any maintenance engineer’s toolkit. This listing provides an original ABB DSQC1024 3HAC058366-001, sourced, inspected, and dispatched with a 12-month warranty to support rapid downtime recovery and planned maintenance cycles.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the DSQC1024 is rarely an isolated task. Maintenance engineers and procurement teams working on IRC5 controller refurbishment or emergency recovery should treat this as an opportunity to audit the full controller cabinet. The 24 VDC power distribution module — often the DSQC661 or its successor — should be load-tested, as an unstable supply voltage is a leading cause of premature main computer failure. The axis computer board (DSQC668 or DSQC1000) shares the same backplane and should be inspected for firmware version alignment with the new DSQC1024.

I/O integrity is equally critical: the digital I/O modules (DSQC652 for 24-channel DI/DO) and analog I/O boards should be verified for correct addressing and signal continuity after any main computer swap. Communication modules such as the DSQC688 (PROFIBUS adapter) or DeviceNet gateway boards must be re-initialized and tested against the PLC or DCS host system following replacement. If the robot cell interfaces with a Siemens S7-300/S7-400 PLC or an Allen-Bradley ControlLogix system via fieldbus, confirm that the network node address and baud rate settings are preserved in the new module’s configuration backup.

Terminal blocks and cable harnesses inside the IRC5 cabinet — particularly the X1 and X2 connector assemblies on the main computer — should be inspected for corrosion, fretting, or loose crimps. Teach pendant (FlexPendant) connectivity via the SMB (Serial Measurement Board) and the DSQC633 safety board should also be confirmed operational before returning the robot to production. For sites running older IRC5 cabinets with legacy DSQC1018 (3HAC042766-001) main computers, the DSQC1024 is the validated upgrade path and is backward-compatible with existing wiring harnesses and I/O configurations.

Stocking a secondary DSQC1024 alongside a spare DSQC661 power unit, a set of DSQC652 I/O modules, and a FlexPendant cable assembly provides a comprehensive first-response kit capable of resolving the majority of IRC5 controller faults without waiting for new parts procurement — a strategy that can reduce mean time to repair (MTTR) from days to hours.

Site Replacement Workflow

1. Backup system parameters: Before powering down, use RobotStudio or the FlexPendant to perform a full system backup (RAPID programs, I/O configuration, calibration data, and safety settings) to a USB drive.
2. Power isolation: Isolate the IRC5 cabinet from mains supply and verify 0 VDC on the 24 VDC bus using a calibrated multimeter before opening the cabinet.
3. ESD precautions: Ground yourself with an ESD wrist strap. The DSQC1024 contains sensitive CMOS components susceptible to electrostatic discharge.
4. Module removal: Disconnect all cable harnesses from the DSQC1024 (X1, X2, Ethernet, and option board connectors). Release the DIN rail locking tabs and slide the module free.
5. Install replacement: Mount the new DSQC1024 3HAC058366-001, reconnect all harnesses in sequence, and verify connector seating.
6. System restore: Power up the cabinet, boot to the IRC5 boot application, and restore the system backup. Confirm firmware version compatibility via the FlexPendant system info screen.
7. Functional test: Run a dry-cycle (motors off) to verify I/O mapping, then a full motion test at reduced speed before returning to production speed.
8. Documentation: Log the replacement in the maintenance record with date, part number, and technician ID for traceability and warranty purposes.

This workflow is compatible with both single-cabinet and dual-cabinet IRC5 configurations and applies equally to panel-mounted IRC5 variants used in compact robot cells.

Spare Parts Support FAQ

Q1: Is the DSQC1024 3HAC058366-001 a direct replacement for the DSQC1018 (3HAC042766-001 or 3HAC075048-001)?
Yes. ABB introduced the DSQC1024 as the successor to the DSQC1018 main computer family. It is mechanically and electrically compatible with existing IRC5 cabinet wiring and backplane connectors. A firmware update via RobotStudio may be required to align with the robot’s existing software version.

Q2: How is the DSQC1024 tested before shipment?
Each unit undergoes bench-level power-on verification and communication interface testing prior to dispatch. Units are packed in ESD-safe anti-static bags with foam cushioning to prevent transit damage. A test report is available upon request for critical production environments.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions as defined by ABB IRC5 installation specifications. It does not cover damage resulting from incorrect installation, overvoltage events, or physical impact. Warranty claims are processed within 5 business days of receipt of the returned unit.

Q4: Can you support long-term or blanket purchase orders for DSQC1024 spares?
Yes. We support scheduled delivery agreements and blanket PO arrangements for maintenance teams managing multiple IRC5 robot cells or multi-site facilities. Contact our sales team to discuss volume pricing, lead time commitments, and consignment stock options tailored to your planned maintenance intervals.
