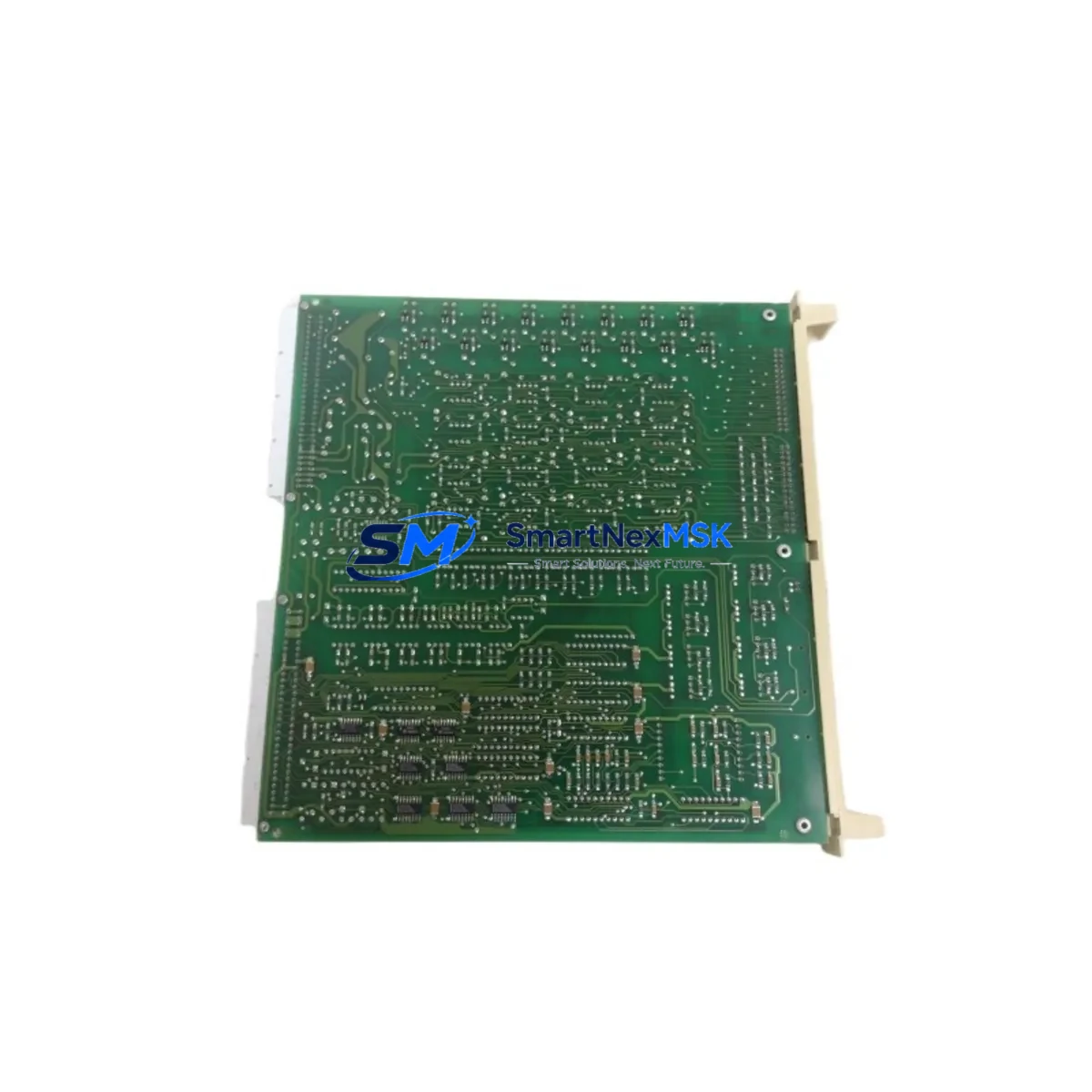

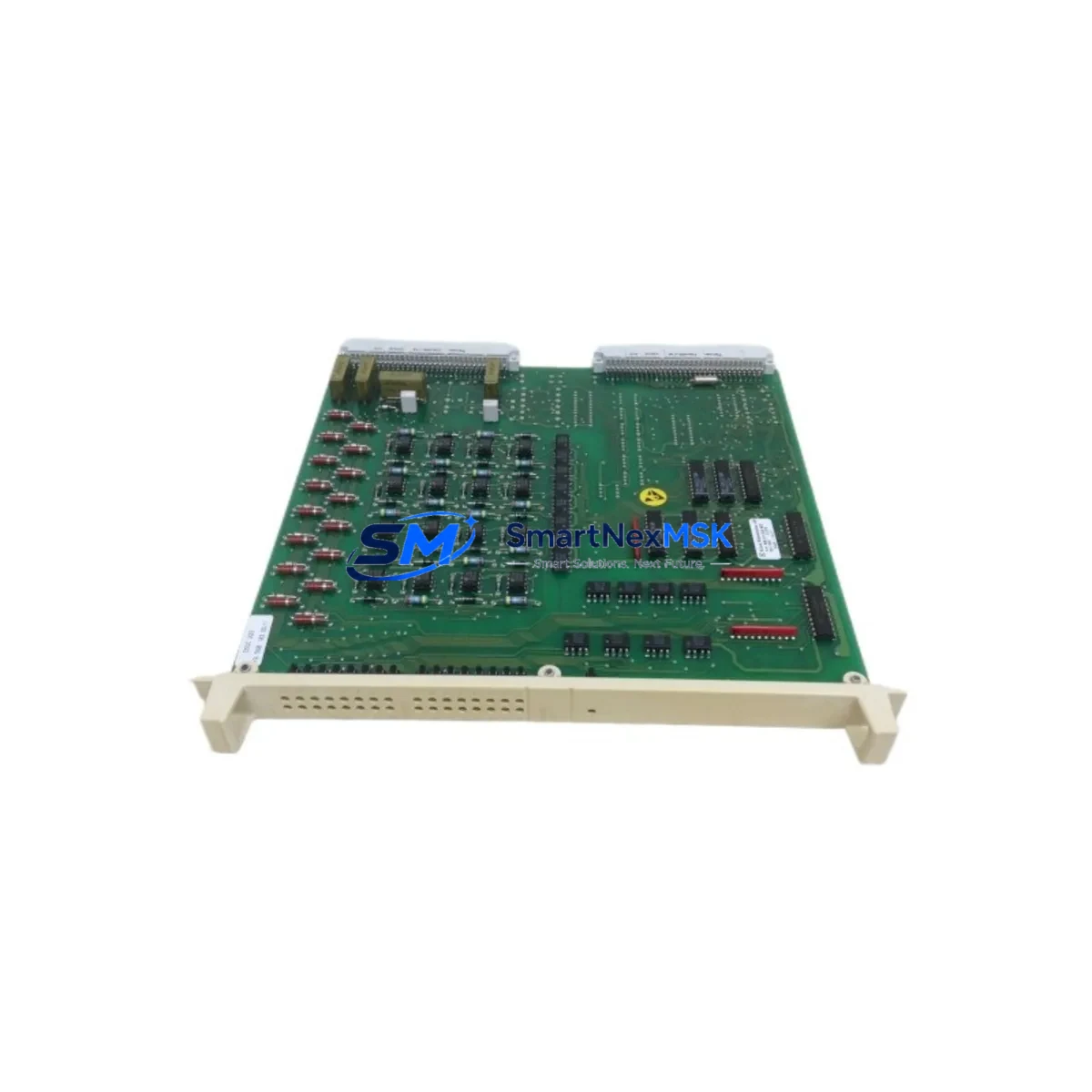

ABB DSQC223 Safety-Enhanced Digital I/O for Harsh Sites

ABB DSQC223 Safety-Enhanced Digital I/O for Harsh Industrial Sites

The ABB DSQC223 is a ruggedized Digital I/O Module engineered for deployment in the most demanding industrial control environments. Designed for ABB S3, S4, and S4C robot controller platforms, the DSQC223 delivers deterministic signal switching, robust EMI immunity, and sustained operational integrity across continuous production cycles, hazardous area control cabinets, and critical safety interlock circuits. Where signal integrity and control continuity are non-negotiable, the DSQC223 is the field-proven choice for automation engineers and maintenance teams worldwide.

In high-load manufacturing cells, petrochemical processing units, and heavy metallurgical plants, digital I/O modules are the first line of defense against control loop disruption. The DSQC223 addresses the full spectrum of field-level risks: signal drift caused by ground loops, module misoperation triggered by voltage transients, communication anomalies from electromagnetic interference, and unplanned downtime from power supply fluctuations. Its hardened design ensures that even under sustained electrical stress — including inductive load switching, motor drive harmonics, and high-frequency RF emissions — the module maintains clean, stable I/O states without false triggering or output latching errors.

Safety Reliability Table

Control Cabinet Protection Strategy

A reliable control cabinet is a system — not a collection of individual components. The ABB DSQC223 performs at its highest safety margin when integrated within a well-architected protection strategy alongside complementary modules and infrastructure components.

In a typical ABB S4C robot controller cabinet, the DSQC223 operates in close coordination with the ABB DSQC508 axis computer board, which manages motion control and trajectory execution. Any I/O signal anomaly detected by the DSQC223 — such as an unexpected input state change or output feedback mismatch — can be escalated to the axis computer for immediate motion hold, preventing mechanical collision or overtravel in safety-critical zones.

Power supply stability is equally critical. The ABB DSQC604 power supply unit provides regulated 24 VDC to the I/O bus, and its overcurrent protection directly safeguards the DSQC223’s output drivers from load-side short circuits. In installations where power quality is compromised by large motor starts or capacitor bank switching, pairing the DSQC223 with a dedicated 24 VDC UPS buffer module ensures uninterrupted I/O operation during momentary supply dips.

For communication integrity, the DSQC223 interfaces with the robot controller’s internal DSQC bus backplane, and its signal states are monitored by the ABB DSQC532 fieldbus adapter, which bridges the controller to DeviceNet or Profibus-DP plant networks. In facilities where the DSQC223 feeds safety interlock signals to a Pilz PNOZ safety relay or a Siemens ET 200SP fail-safe I/O module, the optical isolation on each input channel prevents ground potential differences between the robot controller and the safety PLC from inducing spurious trip signals.

Surge protection at the field wiring terminals is best achieved by installing Phoenix Contact TRABTECH surge arresters on all 24 VDC field lines entering the DSQC223. In arc furnace environments, rolling mill drives, or high-power welding cells, these arresters absorb transient energy before it reaches the module’s input optocouplers, extending service life and reducing nuisance faults. Cable shielding, proper grounding of the ABB IRC5 controller chassis, and segregation of I/O wiring from power cables further reduce the risk of induced noise on the DSQC223’s signal lines.

For installations requiring hot-swap capability or rapid module replacement during planned maintenance windows, maintaining a stocked spare of the ABB DSQC223 alongside the ABB DSQC652 communication board ensures that both I/O and network connectivity can be restored within minutes, minimizing mean time to repair (MTTR) in continuous production environments.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In hydrocarbon processing facilities, the DSQC223 is deployed within ABB robot controllers managing valve actuator feedback, emergency shutdown (ESD) signal monitoring, and burner management interlock circuits. Its optical isolation prevents ground loop currents — common in large grounded process plants — from corrupting discrete input states, ensuring that ESD commands are executed without delay or false inhibition.

Electric Power Generation and Substation Automation: Power plant auxiliary systems rely on the DSQC223 for turbine auxiliary control, generator protection relay feedback, and switchgear position monitoring. The module’s transient voltage suppression is particularly valuable in high-voltage switchyards where capacitive coupling from bus bars can induce voltage spikes on control wiring.

Mining and Mineral Processing: Underground and open-pit mining operations subject control equipment to extreme vibration, dust ingress, and wide temperature swings. The DSQC223’s robust backplane connection and conformal-coated PCB construction maintain reliable I/O operation in conveyor control systems, crusher interlock circuits, and ventilation safety monitoring applications.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities use the DSQC223 in pump station automation, chemical dosing interlock systems, and overflow protection circuits. Its low-power consumption and stable operation across the full 0–55°C range make it suitable for both climate-controlled pump houses and outdoor equipment enclosures.

Metallurgy and Steel Production: In continuous casting lines, rolling mills, and electric arc furnace (EAF) control systems, the DSQC223 handles high-cycle discrete I/O tasks — mold level sensor inputs, cooling water flow confirmation, and ladle transfer position feedback — in environments with intense electromagnetic emissions from high-current bus systems and induction heating equipment.

Port and Heavy Logistics Automation: Ship-to-shore crane controllers and automated stacking crane systems use the DSQC223 for spreader position feedback, anti-collision interlock monitoring, and load cell status acquisition. Its deterministic response time ensures that safety-critical stop commands are executed within the controller’s scan cycle without I/O latency.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the ABB DSQC223?
The 12-month warranty covers all manufacturing defects, component failures, and functional malfunctions that occur under normal operating conditions as specified in the ABB DSQC223 technical datasheet. It includes free replacement or repair of the module. The warranty period begins from the date of shipment. Damage resulting from incorrect installation, overvoltage beyond rated limits, or unauthorized modification is excluded.

Q2: What pre-shipment testing is performed on each DSQC223 unit?
Every ABB DSQC223 unit undergoes a full functional verification before dispatch. This includes: (1) I/O channel continuity test — all 16 digital inputs and 16 digital outputs are individually activated and verified; (2) isolation resistance measurement between I/O channels and the backplane bus; (3) communication handshake test confirming correct module identification on the DSQC backplane; and (4) visual inspection for physical damage, connector integrity, and PCB condition. A test record is retained for traceability.

Q3: Is the DSQC223 compatible with both S3 and S4C controllers, and can it replace older DSQC I/O modules?
Yes. The ABB DSQC223 is designed for use across the ABB S3, S4, and S4C robot controller families and is backward-compatible with the DSQC backplane architecture used in these platforms. It can serve as a direct replacement for functionally equivalent DSQC-series I/O modules in the same slot position, provided the controller firmware version supports the module’s I/O map. For S4C+ and IRC5 platforms, compatibility should be verified against the controller’s hardware configuration file before installation.

Q4: Can long-term supply of the DSQC223 be guaranteed for ongoing maintenance programs?
Yes. We maintain dedicated inventory of the ABB DSQC223 to support long-term spare parts programs for facilities operating ABB S3/S4/S4C robot fleets. Orders can be fulfilled for single units or bulk quantities, with lead times confirmed at the time of order. For customers requiring guaranteed annual supply agreements or priority allocation during high-demand periods, please contact our sales team directly to discuss a framework supply arrangement.
