ABB DSQC266G Maintenance-Ready Spare for S3/S4 Automation

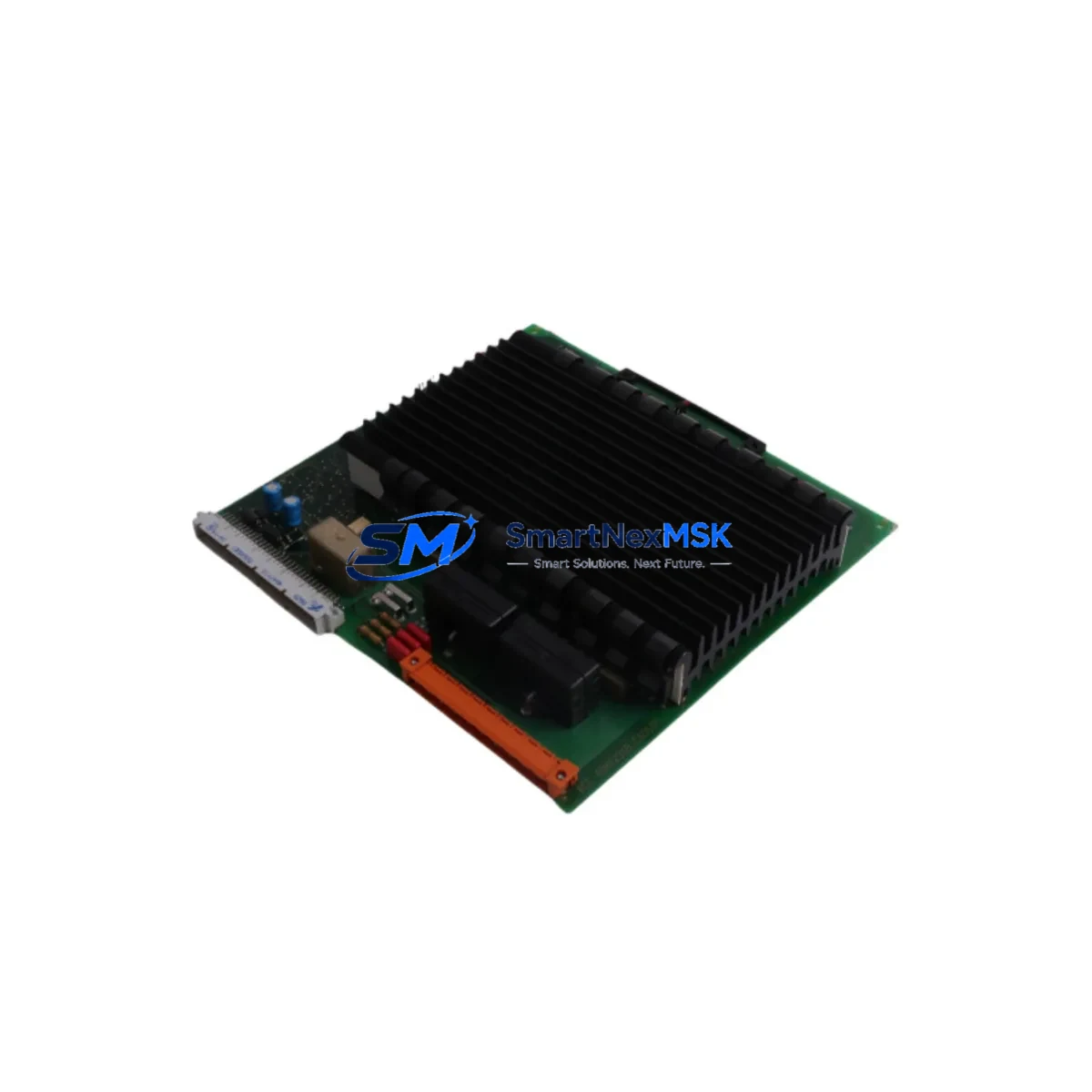

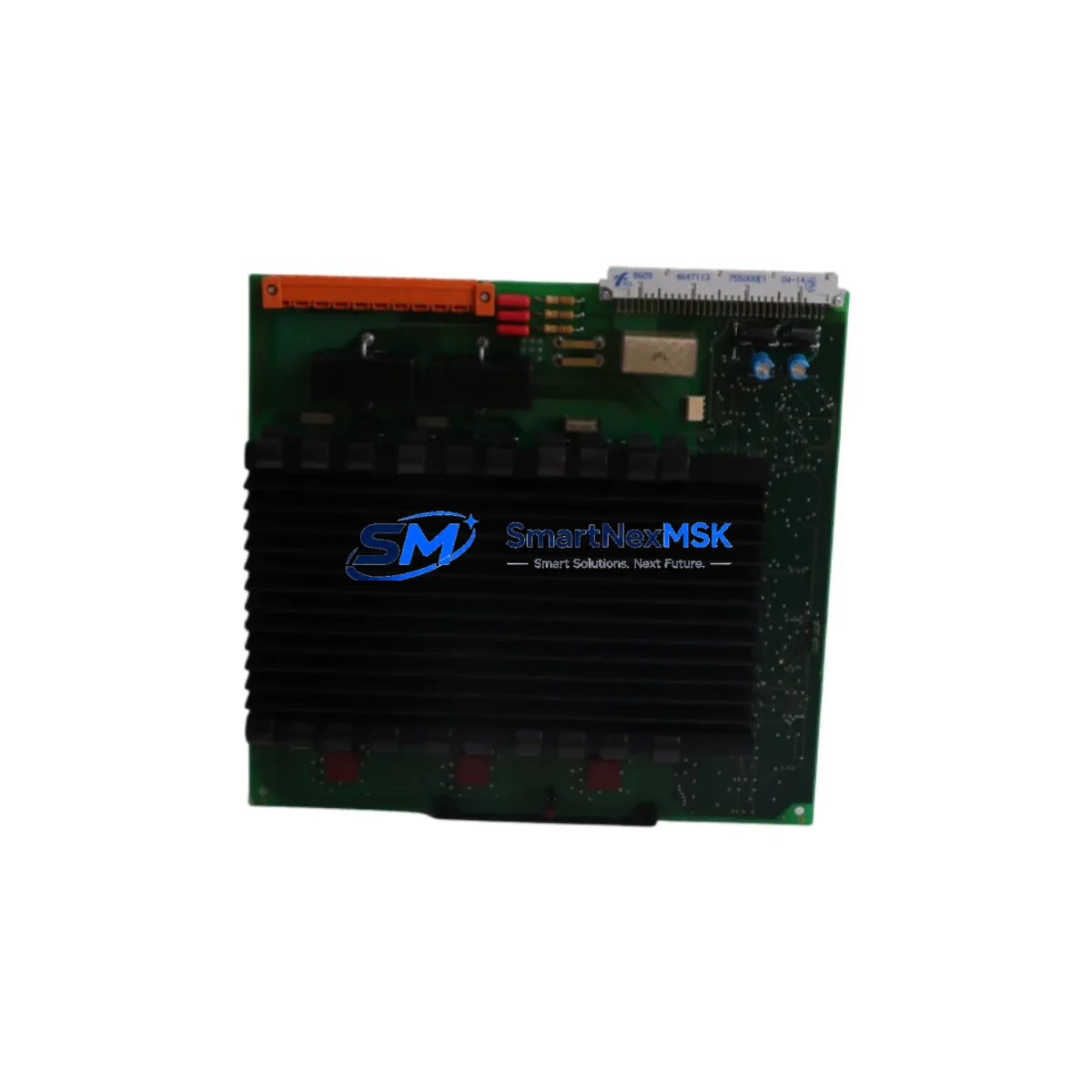

The ABB DSQC266G is an original servo amplifier board designed for ABB S3 and S4 series industrial robot systems. For maintenance engineers managing aging robot cells, this board represents one of the most critical spare parts in the drive and motion control circuit. When a servo amplifier fault is detected — whether through an error code on the IRC5 teach pendant, an unexpected axis stop, or a drive overtemperature alarm — the DSQC266G is typically the first board to be isolated and replaced. Keeping a verified unit in your spare parts cabinet is the single most effective way to reduce unplanned downtime in a robot-dependent production line.
At SMARTNEXMSK, every DSQC266G unit is sourced from original ABB supply channels, inspected for physical integrity, and functionally tested prior to shipment. Each unit ships with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.
Spare Maintenance Table
| Parameter | Specification / Detail |
|---|---|
| Part Number | DSQC266G |
| Manufacturer | ABB Robotics |
| Compatible Systems | ABB S3, S4 Robot Series |
| Module Function | Servo Amplifier Board (Drive Control) |
| Origin | Sweden |
| Installation Type | Internal backplane-mounted board |
| Communication Interface | Internal robot controller bus |
| Replacement Compatibility | Direct drop-in for DSQC266G in S3/S4 controller cabinets |
| Maintenance Recommendation | Replace on fault code or scheduled 5-year interval |
| Pre-shipment Testing | Functional test performed on every unit |
| Warranty | 12 Months |
Maintenance Planning for Continuous Operation
Effective maintenance planning for ABB S3 and S4 robot systems goes well beyond replacing a single board. When a DSQC266G servo amplifier fault occurs, experienced maintenance engineers know to inspect the surrounding drive circuit before returning the robot to production. The DSQC266G works in close coordination with the DSQC209 measurement board, which handles encoder feedback from each robot axis. If the amplifier board has failed due to an overcurrent event, the DSQC209 should be checked for signal integrity before the new board is powered up.
The robot controller cabinet power supply — typically the DSQC604 or DSQC661 depending on the controller generation — should be verified for correct output voltage on the 24VDC and 48VDC rails before the replacement board is installed. A degraded power supply is a common root cause of repeated servo amplifier failures and is frequently overlooked during emergency repairs. Similarly, the DSQC328 I/O board and DSQC352 fieldbus adapter should be inspected for loose connectors or corrosion on the backplane interface, as vibration in robot cells can cause intermittent contact faults that mimic amplifier failures.
For S4 systems specifically, the DSQC266G interfaces with the axis computer board (DSQC373 or equivalent) through the internal controller bus. If the axis computer is logging communication errors alongside the amplifier fault, both boards should be evaluated before a single-component replacement is assumed to be sufficient. The teach pendant cable and DSQC316 panel board should also be checked, as a corrupted system state can sometimes be traced back to a faulty operator interface rather than a drive component.
Maintenance teams managing multiple robot cells should consider holding at least one DSQC266G unit per robot model variant in their on-site spare parts inventory. For facilities running mixed S3 and S4 fleets, a consolidated spare parts list that includes the servo amplifier board, the measurement board, the system power supply, and the I/O module will cover the majority of unplanned fault scenarios. Terminal blocks and internal wiring harnesses within the controller cabinet should be inspected and re-torqued during any planned maintenance window, as loose connections are a leading cause of intermittent drive faults in older robot installations.
Site Replacement Workflow
Replacing the DSQC266G on-site is a structured process that, when followed correctly, can return a faulted robot to production within two to four hours. Begin by documenting the active fault codes from the robot controller and capturing the current system configuration backup using the ABB RobotStudio or the teach pendant backup function. Power down the controller cabinet using the main isolator switch and allow the drive capacitors to discharge for a minimum of five minutes before opening the cabinet door.
Locate the DSQC266G on the drive module rack inside the controller cabinet. Disconnect the axis connectors and the internal bus connector in the correct sequence as documented in the ABB S4 hardware manual. Remove the faulty board and install the replacement DSQC266G, ensuring the board is fully seated on the backplane and all connectors are re-engaged with positive locking confirmation. Restore power and allow the controller to complete its self-test sequence before attempting to jog any axis.
After the controller boots successfully, verify that no residual fault codes remain and perform a slow-speed manual jog of each axis to confirm correct encoder feedback and torque response. If the robot was previously running a production program, execute a dry-run cycle at reduced speed before returning to full production speed. This workflow minimizes the risk of a secondary fault and ensures that the replacement board is functioning correctly under load before the production line is restarted. Total downtime using this procedure is typically under four hours for a trained maintenance technician.
Spare Parts Support FAQ
Q: Is the DSQC266G compatible with both S3 and S4 robot controllers?
A: Yes. The DSQC266G servo amplifier board is compatible with ABB S3 and S4 series robot controller cabinets. Always verify the exact controller generation and axis configuration against the ABB hardware documentation before installation to confirm pin-for-pin compatibility.
Q: How is each unit tested before shipment?
A: Every DSQC266G unit at SMARTNEXMSK undergoes a functional test procedure that verifies board power-up, internal bus communication, and output signal integrity. Units that do not pass the full test sequence are not shipped. A test report is available upon request.
Q: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed within 5 business days of receiving the returned unit.
Q: Can I order multiple units for long-term spare parts inventory?
A: Yes. SMARTNEXMSK maintains stock of the DSQC266G and can fulfill both single-unit and multi-unit orders. For facilities managing multiple ABB robot cells, we recommend discussing a blanket spare parts agreement with our sales team to ensure priority allocation and consistent supply.
