ABB DSQC540 3HAC14279-1 Safety-Enhanced CPU for Harsh Sites

ABB DSQC540 3HAC14279-1 Safety-Enhanced CPU for Harsh Industrial Sites

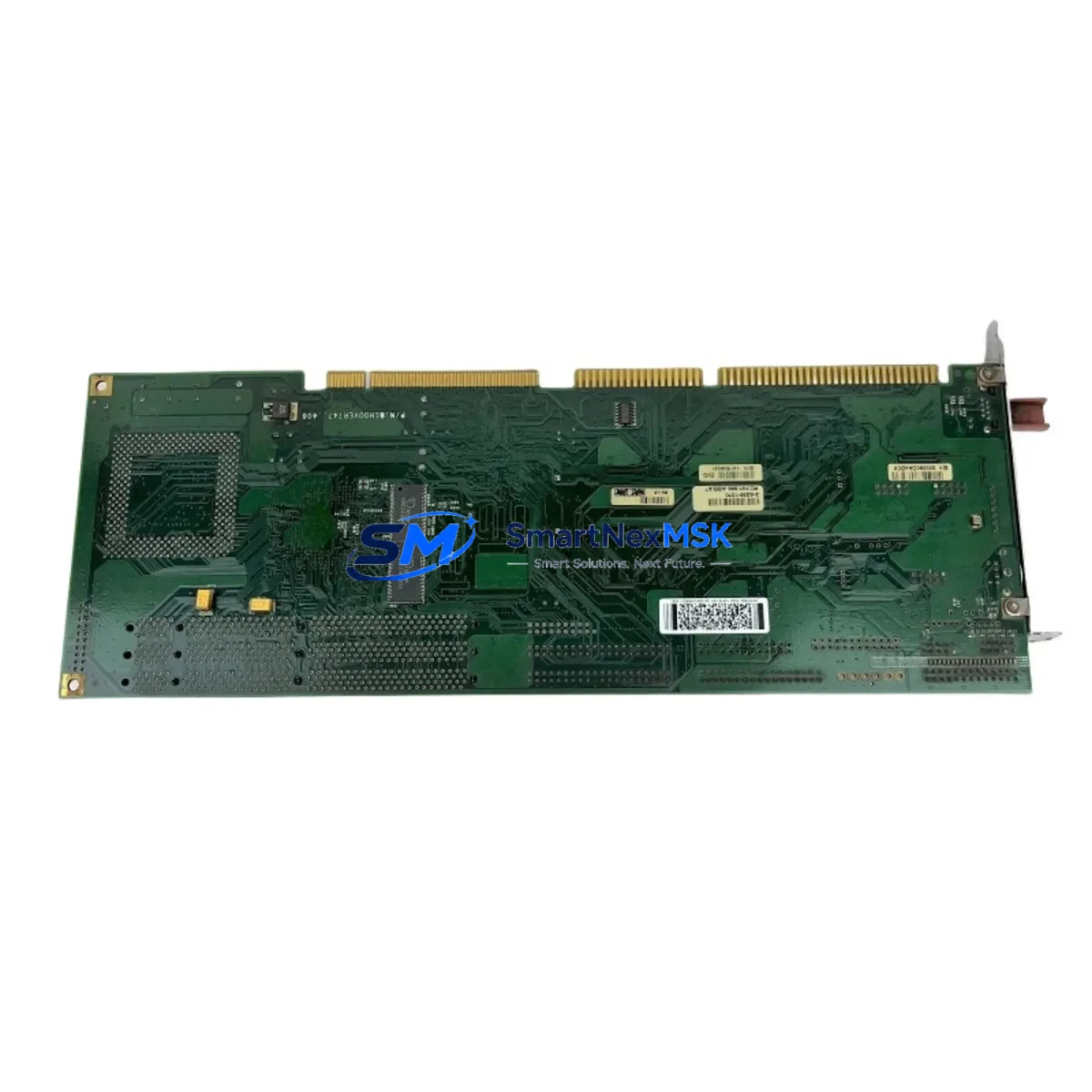

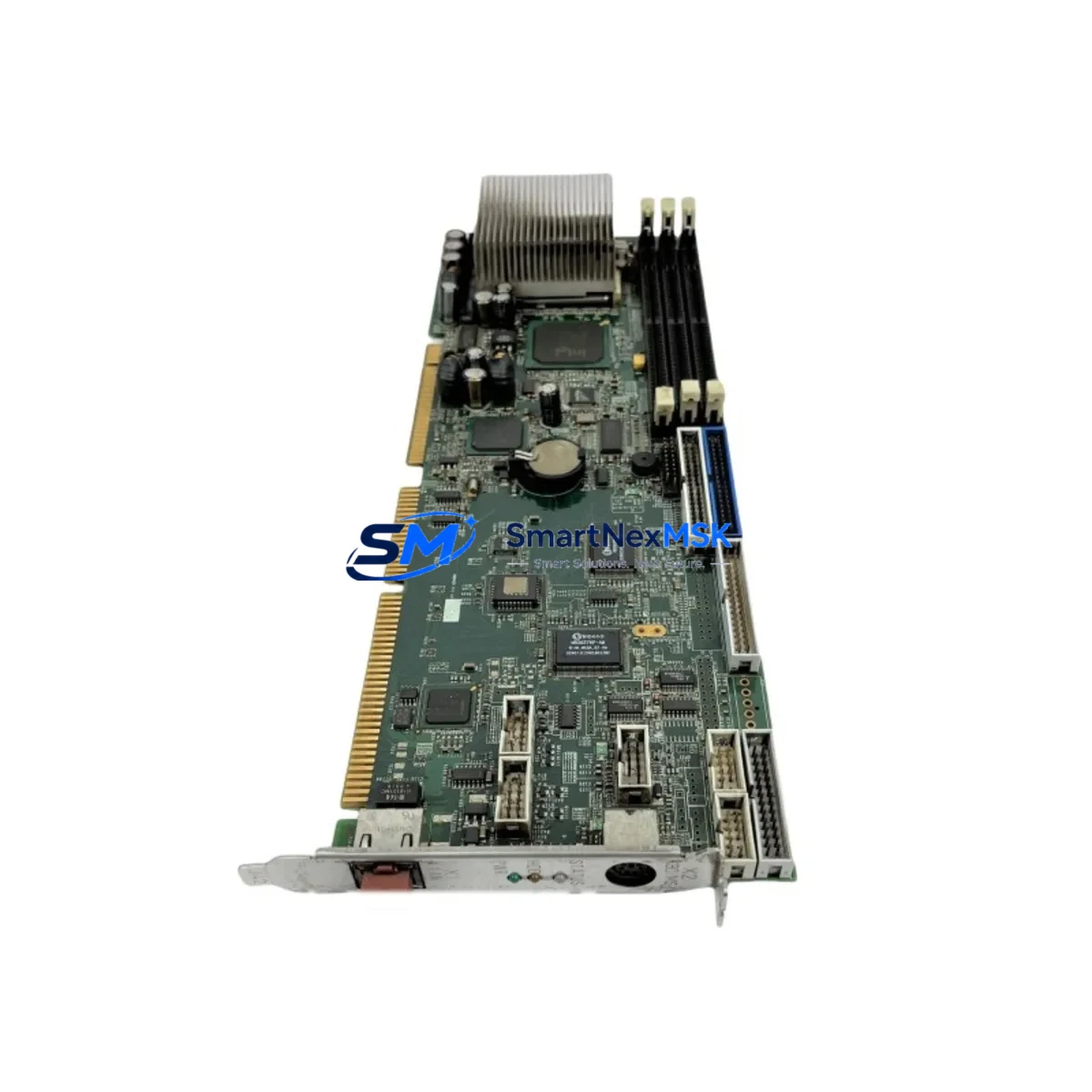

The ABB DSQC540 (3HAC14279-1) is the main computer CPU board engineered for the ABB IRC5 robot controller family. Designed to operate reliably in high-load, high-interference, and continuous-production industrial environments, this module serves as the central processing core that governs motion control, safety interlock execution, and real-time communication across the entire robot control cabinet. In petrochemical plants, steel mills, automotive body shops, port logistics systems, and water treatment automation lines, the DSQC540 is the component that keeps critical robotic processes running without interruption — even under sustained electrical stress, thermal cycling, and vibration exposure.

At SMARTNEXMSK, every DSQC540 3HAC14279-1 unit is sourced from verified supply channels, subjected to pre-shipment functional testing, and backed by a 12-month warranty. Our inventory is maintained to support urgent spare-part replacement needs, minimizing unplanned downtime in facilities where robotic cell availability directly impacts production throughput and safety compliance.

Safety Reliability Table

Control Cabinet Protection Strategy

The DSQC540 3HAC14279-1 does not operate in isolation — its safety performance is directly tied to the integrity of the surrounding IRC5 control cabinet ecosystem. In high-demand industrial installations, the CPU board works in close coordination with the ABB DSQC609 power supply unit, which provides stable 24 VDC regulation and protects the CPU from upstream voltage fluctuations and surge events. Alongside it, the ABB DSQC643 drive unit manages axis power distribution, ensuring that motor load transients do not propagate back into the CPU’s logic circuits.

For signal integrity and I/O reliability, the DSQC540 interfaces with the ABB DSQC652 digital I/O board and the ABB DSQC651 analog I/O module, both of which handle field-level sensor and actuator signals. In installations where fieldbus communication is critical — such as PROFIBUS-DP or DeviceNet networks connecting the IRC5 to PLCs, safety relays, or remote I/O stations — the ABB DSQC532 fieldbus adapter board provides the communication bridge, and its stable operation depends on the DSQC540 maintaining uninterrupted CPU cycles.

Safety interlock circuits in the IRC5 cabinet rely on the ABB DSQC611 safety board to process emergency stop signals, door interlock inputs, and enabling device states. The DSQC540 CPU reads and validates these safety states in real time, making the CPU board a direct participant in the machine’s functional safety architecture. In facilities that have upgraded to ABB SafeMove2 supervision, the CPU’s processing capacity is also responsible for executing speed monitoring, zone supervision, and safe standstill verification — functions that are non-negotiable in collaborative robot cells and restricted-access hazardous areas.

For cabinet-level surge and transient protection, installations in heavy industrial environments — particularly those near large motor drives, arc furnaces, or high-frequency welding equipment — should also ensure that appropriate surge protection devices (SPDs) and 24 VDC UPS modules are installed upstream of the IRC5 power entry point. These measures, combined with a properly maintained DSQC540, form a layered defense against the most common causes of robot controller failure in harsh production environments.

Critical Industrial Safety Applications

The ABB DSQC540 3HAC14279-1 is deployed across a wide range of safety-critical and continuous-production industrial sectors:

Petrochemical & Refinery Automation: In hazardous-area robotic inspection and valve actuation systems, the DSQC540 provides the processing backbone for robots operating near flammable atmospheres. Its reliable execution of safety interlock logic — including emergency stop chains and zone-entry detection — is essential for maintaining SIL-rated process safety in these environments.

Electric Power Generation & Transmission: Robotic systems used for substation maintenance, transformer inspection, and high-voltage switchgear handling depend on the IRC5 controller’s CPU to maintain precise motion control and safe-speed supervision. The DSQC540’s ability to sustain operation under strong electromagnetic interference from high-voltage equipment makes it a preferred choice in power utility applications.

Mining & Mineral Processing: In underground and open-pit mining automation, robotic drilling, rock bolting, and ore handling systems face extreme vibration, dust ingress, and temperature variation. The DSQC540’s ruggedized design and stable CPU performance ensure that robotic cells in these environments maintain consistent cycle times and safe operating states without frequent intervention.

Water & Wastewater Treatment: Automated chemical dosing, pipe inspection robots, and pump station control systems in water treatment facilities require continuous, unattended operation. The DSQC540 supports the long-duration, low-maintenance operation profiles that municipal and industrial water utilities demand.

Metallurgy & Steel Production: In continuous casting lines, rolling mills, and ladle handling systems, the IRC5 robot controller — anchored by the DSQC540 CPU — manages high-temperature material handling with precise trajectory control and real-time safety monitoring. The module’s thermal tolerance and EMC robustness are critical in environments dominated by induction heating and high-current bus systems.

Port & Logistics Automation: Automated container handling, palletizing, and AGV coordination systems in port terminals and distribution centers rely on the DSQC540 to maintain 24/7 operational availability. In these high-throughput environments, any CPU failure translates directly into logistics bottlenecks and financial loss, making reliable spare-part availability from SMARTNEXMSK a key operational risk mitigation strategy.

Safety and Quality FAQ

Q1: What warranty does SMARTNEXMSK provide for the ABB DSQC540 3HAC14279-1?
Every DSQC540 3HAC14279-1 unit supplied by SMARTNEXMSK is covered by a 12-month full functional warranty from the date of shipment. If the module fails under normal operating conditions within the warranty period, we provide replacement or repair support at no additional cost.

Q2: How is each unit tested before shipment?
All DSQC540 units undergo a structured pre-shipment inspection that includes power-on verification, communication interface testing (Ethernet and USB), and visual inspection for PCB damage, connector integrity, and component condition. Units that do not pass all test criteria are quarantined and not dispatched.

Q3: Is this module compatible with all IRC5 controller variants?
The DSQC540 (3HAC14279-1) is compatible with the ABB IRC5 Single Cabinet Controller, IRC5 Dual Cabinet Controller, and IRC5 Panel Mounted Controller across a range of robot models including the IRB 1600, IRB 2400, IRB 4600, IRB 6640, and IRB 7600 series. For specific firmware version compatibility or SafeMove integration requirements, contact our technical team before ordering.

Q4: Can SMARTNEXMSK support long-term and emergency spare-part supply?
Yes. SMARTNEXMSK maintains standing inventory of the DSQC540 3HAC14279-1 to support both planned maintenance schedules and emergency breakdown situations. We offer expedited dispatch for urgent orders and can provide documentation packages — including test reports and traceability records — to support your maintenance management system requirements.
